DtEnvironmentalGaussianPlumeRecord Class Reference

DtEnvironmentalGaussianPlumeRecord implements the Environmental geometry record type "Gaussian Plume Record." See Enumerated Bit Values document, section 12.3.4.14. More...

Inheritance diagram for DtEnvironmentalGaussianPlumeRecord:

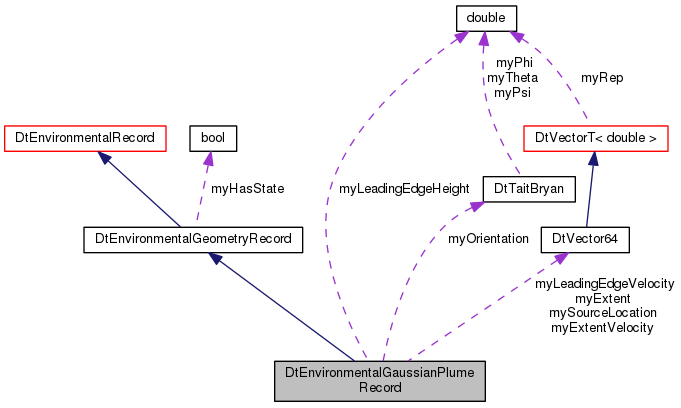

Collaboration diagram for DtEnvironmentalGaussianPlumeRecord:

Public Member Functions
	DtEnvironmentalGaussianPlumeRecord ()
	Constructor. More...
	DtEnvironmentalGaussianPlumeRecord (const DtEnvironmentalGaussianPlumeRecord &orig)
	Copy constructor. More...
const DtEnvironmentalGaussianPlumeRecord &	operator= (const DtEnvironmentalGaussianPlumeRecord &orig)
	Assignment Operator. More...
virtual	~DtEnvironmentalGaussianPlumeRecord ()
	Destructor. More...
virtual DtEnvironmentalRecord *	clone () const
	Clone. More...
virtual void	setSourceLocation (const DtVector &sourceLocation)
	Set/get source location. More...
virtual const DtVector &	sourceLocation () const
virtual void	setExtent (const DtVector &extent)
	Set/get extent. More...
virtual const DtVector &	extent () const
virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/get orientation. More...
virtual const DtTaitBryan &	orientation () const
virtual void	setExtentVelocity (const DtVector &extentVelocity)
	Set/get extent velocity. More...
virtual const DtVector &	extentVelocity () const
virtual void	setLeadingEdgeHeight (DtFloat32 leadingEdgeHeight)
	Set/get leading edge height. More...
virtual DtFloat32	leadingEdgeHeight () const
virtual void	setLeadingEdgeVelocity (const DtVector &leadingEdgeVelocity)
	Set/get leading edge velocity. More...
virtual const DtVector &	leadingEdgeVelocity () const
virtual bool	createNetworkRepresentation ()
	Create the network representation for this object. More...
const DtNetEnvironmentalGaussianPlumeRecord *	plumeNetRep () const
	returns the network representation of the environmental record More...
DtNetEnvironmentalGaussianPlumeRecord *	plumeNetRep ()
virtual void	setFromNet (const DtNetEnvironmentalRecord &buffer, int protocolVersion)
	used by the PDU class to fill in the network representation More...
virtual int	netRepSize () const
	returns the size of the net representation, in bytes. More...
Public Member Functions inherited from DtEnvironmentalGeometryRecord
	DtEnvironmentalGeometryRecord ()
	Constructor. More...
	DtEnvironmentalGeometryRecord (const DtEnvironmentalGeometryRecord &orig)
	Copy constructor. More...
const DtEnvironmentalGeometryRecord &	operator= (const DtEnvironmentalGeometryRecord &orig)
	Assignment Operator. More...
virtual	~DtEnvironmentalGeometryRecord ()
	Destructor. More...
virtual void	setHasState (bool hasState)
	Set/get a flag to indicate whether or not a state record is associated with this geometry record. More...
virtual bool	hasState () const
Public Member Functions inherited from DtEnvironmentalRecord
	DtEnvironmentalRecord ()
	Constructor. More...
	DtEnvironmentalRecord (const DtEnvironmentalRecord &orig)
	Copy constructor. More...
const DtEnvironmentalRecord &	operator= (const DtEnvironmentalRecord &orig)
	Assignment operator. More...
virtual	~DtEnvironmentalRecord ()
	Destructor. More...
virtual void	setType (DtU32 type)
virtual DtU32	type () const
virtual void	setLength (DtU16 length)
virtual DtU16	length () const
virtual void	setIndex (DtU8 index)
virtual DtU8	index () const
const DtNetEnvironmentalRecord *	netRep () const
	returns the network representation of the environmental record More...
DtNetEnvironmentalRecord *	netRep ()

Protected Member Functions
DtEnvironmentalGaussianPlumeRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...
Protected Member Functions inherited from DtEnvironmentalRecord
virtual bool	checkAndCreate ()
	Checks to see if we need a representation, and creates it if we do Returns false, if the create fails, true otherwise. More...
virtual bool	resizeNetRep (int newSize)
	Resizes the network representation. More...
DtEnvironmentalRecord *	self () const
	Casts the 'this' pointer for changing elements in a const function. More...

Protected Attributes
DtVector	mySourceLocation
DtTaitBryan	myOrientation
DtVector	myExtent
DtVector	myExtentVelocity
double	myLeadingEdgeHeight
DtVector	myLeadingEdgeVelocity
Protected Attributes inherited from DtEnvironmentalGeometryRecord
bool	myHasState
Protected Attributes inherited from DtEnvironmentalRecord
DtNetEnvironmentalRecord *	myNetRep

Detailed Description

DtEnvironmentalGaussianPlumeRecord implements the Environmental geometry record type "Gaussian Plume Record." See Enumerated Bit Values document, section 12.3.4.14.

Constructor & Destructor Documentation

DtEnvironmentalGaussianPlumeRecord::DtEnvironmentalGaussianPlumeRecord

(

)

Constructor.

DtEnvironmentalGaussianPlumeRecord::DtEnvironmentalGaussianPlumeRecord

(

const DtEnvironmentalGaussianPlumeRecord &

orig

)

Copy constructor.

virtual DtEnvironmentalGaussianPlumeRecord::~DtEnvironmentalGaussianPlumeRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtEnvironmentalRecord* DtEnvironmentalGaussianPlumeRecord::clone ( ) const

virtual

Clone.

Reimplemented from DtEnvironmentalGeometryRecord.

virtual bool DtEnvironmentalGaussianPlumeRecord::createNetworkRepresentation ( )

virtual

Create the network representation for this object.

Reimplemented from DtEnvironmentalRecord.

virtual const DtVector& DtEnvironmentalGaussianPlumeRecord::extent ( ) const

virtual

virtual const DtVector& DtEnvironmentalGaussianPlumeRecord::extentVelocity ( ) const

virtual

virtual DtFloat32 DtEnvironmentalGaussianPlumeRecord::leadingEdgeHeight ( ) const

virtual

virtual const DtVector& DtEnvironmentalGaussianPlumeRecord::leadingEdgeVelocity ( ) const

virtual

virtual int DtEnvironmentalGaussianPlumeRecord::netRepSize ( ) const

virtual

returns the size of the net representation, in bytes.

Reimplemented from DtEnvironmentalRecord.

const DtEnvironmentalGaussianPlumeRecord& DtEnvironmentalGaussianPlumeRecord::operator=

(

const DtEnvironmentalGaussianPlumeRecord &

orig

)

Assignment Operator.

virtual const DtTaitBryan& DtEnvironmentalGaussianPlumeRecord::orientation ( ) const

virtual

const DtNetEnvironmentalGaussianPlumeRecord* DtEnvironmentalGaussianPlumeRecord::plumeNetRep

(

)

const

returns the network representation of the environmental record

DtNetEnvironmentalGaussianPlumeRecord* DtEnvironmentalGaussianPlumeRecord::plumeNetRep

(

)

DtEnvironmentalGaussianPlumeRecord* DtEnvironmentalGaussianPlumeRecord::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

virtual void DtEnvironmentalGaussianPlumeRecord::setExtent ( const DtVector &  extent )

virtual

Set/get extent.

virtual void DtEnvironmentalGaussianPlumeRecord::setExtentVelocity ( const DtVector &  extentVelocity )

virtual

Set/get extent velocity.

virtual void DtEnvironmentalGaussianPlumeRecord::setFromNet ( const DtNetEnvironmentalRecord &  buffer, int  protocolVersion  )

virtual

used by the PDU class to fill in the network representation

Reimplemented from DtEnvironmentalRecord.

virtual void DtEnvironmentalGaussianPlumeRecord::setLeadingEdgeHeight ( DtFloat32  leadingEdgeHeight )

virtual

Set/get leading edge height.

virtual void DtEnvironmentalGaussianPlumeRecord::setLeadingEdgeVelocity ( const DtVector &  leadingEdgeVelocity )

virtual

Set/get leading edge velocity.

virtual void DtEnvironmentalGaussianPlumeRecord::setOrientation ( const DtTaitBryan &  orientation )

virtual

Set/get orientation.

virtual void DtEnvironmentalGaussianPlumeRecord::setSourceLocation ( const DtVector &  sourceLocation )

virtual

Set/get source location.

virtual const DtVector& DtEnvironmentalGaussianPlumeRecord::sourceLocation ( ) const

virtual

Member Data Documentation

DtVector DtEnvironmentalGaussianPlumeRecord::myExtent

protected

DtVector DtEnvironmentalGaussianPlumeRecord::myExtentVelocity

protected

double DtEnvironmentalGaussianPlumeRecord::myLeadingEdgeHeight

protected

DtVector DtEnvironmentalGaussianPlumeRecord::myLeadingEdgeVelocity

protected

DtTaitBryan DtEnvironmentalGaussianPlumeRecord::myOrientation

protected

DtVector DtEnvironmentalGaussianPlumeRecord::mySourceLocation

protected

---

The documentation for this class was generated from the following file:

• environmentalGaussianPlumeRecord.h
