DtEventId Class Reference

Represents Events in DIS. More...

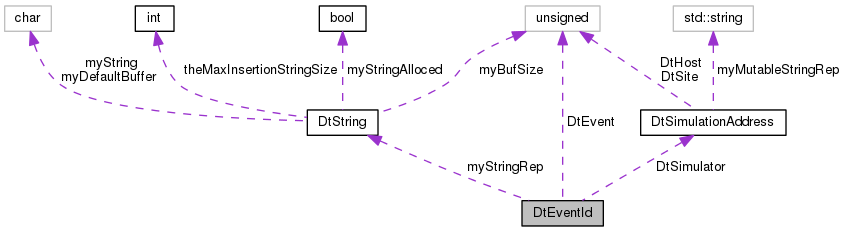

Collaboration diagram for DtEventId:

Public Member Functions
	DtEventId (const char *str)
	Constructs a DtEventId instance from a string in the form: "2:4:5" (Site/Host/EventNum) More...
	DtEventId (int site, int host, int eventNum)
	Constructor. More...
	DtEventId (DtNetEventId netId)
	Constructs an EventId from a DIS network structure. More...
	DtEventId ()
	Constructs a default EventId. More...
	~DtEventId ()
	Destructor. More...
void	init (int site, int host, int eventNum)
	Provided for backwards compatibility. More...
void	setFromNet (DtNetEventId netId)
	same as DtEventId(DtNetEventId) More...
	operator DtNetEventId () const
int	site () const
	Gets the SiteID. More...
void	setSite (int site)
	Sets the SiteID. More...
int	host () const
	Gets the HostID, also know as the application ID. More...
void	setHost (int host)
	Sets the HostID, also know as the application ID. More...
int	eventNum () const
	Gets the Event Number. More...
void	setEventNum (int eventNum)
	Sets the Event Number. More...
void	setEventId (int site, int host, int eventNum)
	Sets the Event ID. More...
const char *	string () const
	returns a string representation of this class More...
int	operator== (const DtEventId &otherGuy) const
int	operator!= (const DtEventId &otherGuy) const

Static Public Member Functions
static const DtEventId &	nullId ()
	returns an empty string More...

Public Attributes
DtSimulationAddress	DtSimulator
	Public for backwards compatibility, will be removed in the future. More...
DtU16	DtEvent
	Public for backwards compatibility, will be removed in the future. More...
DtString	myStringRep
	Public for backwards compatibility, will be removed in the future. More...

Detailed Description

Represents Events in DIS.

Events take the form of DtSimulationAddress:eventNum. EventIDs are used to match WeaponFire and Detonation Events as well as changes in EmitterSystems. Please consult the DIS standard for more details.

Constructor & Destructor Documentation

DtEventId::DtEventId

(

const char *

str

)

Constructs a DtEventId instance from a string in the form: "2:4:5" (Site/Host/EventNum)

DtEventId::DtEventId	(	int	site,
		int	host,
		int	eventNum
	)

Constructor.

DtEventId::DtEventId

(

DtNetEventId

netId

)

Constructs an EventId from a DIS network structure.

DtEventId::DtEventId

(

)

Constructs a default EventId.

DtEventId::~DtEventId

(

)

Destructor.

Member Function Documentation

int DtEventId::eventNum

(

)

const

Gets the Event Number.

int DtEventId::host

(

)

const

Gets the HostID, also know as the application ID.

void DtEventId::init	(	int	site,
		int	host,
		int	eventNum
	)

Provided for backwards compatibility.

static const DtEventId& DtEventId::nullId ( )

static

returns an empty string

DtEventId::operator DtNetEventId

(

)

const

int DtEventId::operator!=

(

const DtEventId &

otherGuy

)

const

int DtEventId::operator==

(

const DtEventId &

otherGuy

)

const

void DtEventId::setEventId	(	int	site,
		int	host,
		int	eventNum
	)

Sets the Event ID.

void DtEventId::setEventNum

(

int

eventNum

)

Sets the Event Number.

void DtEventId::setFromNet

(

DtNetEventId

netId

)

same as DtEventId(DtNetEventId)

void DtEventId::setHost

(

int

host

)

Sets the HostID, also know as the application ID.

void DtEventId::setSite

(

int

site

)

Sets the SiteID.

int DtEventId::site

(

)

const

Gets the SiteID.

const char* DtEventId::string

(

)

const

returns a string representation of this class

Member Data Documentation

DtU16 DtEventId::DtEvent

Public for backwards compatibility, will be removed in the future.

DtSimulationAddress DtEventId::DtSimulator

Public for backwards compatibility, will be removed in the future.

DtString DtEventId::myStringRep

Public for backwards compatibility, will be removed in the future.

---

The documentation for this class was generated from the following file:

• eventId.h
