DtFomSorter Class Reference

This class facilitates FOM file sorting based on FOM dependencies. More...

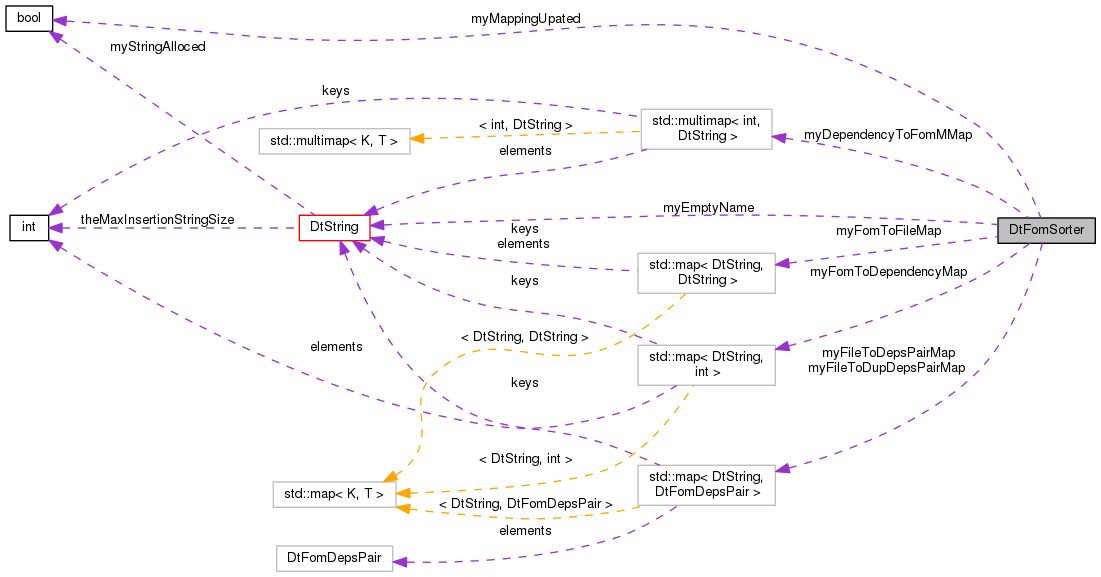

Collaboration diagram for DtFomSorter:

Public Member Functions
	DtFomSorter ()
	Constructor. More...
virtual	~DtFomSorter ()
	Destructor. More...
virtual void	addFom (const DtString &fomFileName, const DtString &fomIdentifcation, const std::vector< DtString > &depedencies)
	Add the given fom file name, its identification and its depedencies A mapping between the file name and ID/dependencies is created and replaces any mapping the already exists. More...
virtual void	clear ()
	Clear the FOMs and supporting data to start again. More...
virtual void	getSortedFomFileNames (std::vector< DtString > &fomFileNames)
	Sorts the list of FOM file names once FOM dependency values have been mapped. More...

Protected Types
typedef std::pair< int, DtString >	DtCompFomPair
typedef std::pair< DtString, int >	DtFomCompPair
typedef std::pair< DtString, std::vector< DtString > >	DtFomDepsPair
typedef std::multimap< int, DtString >	DtDependencyToFomMMap
typedef std::map< DtString, int >	DtFomToDependencyMap
typedef std::map< DtString, DtFomDepsPair >	DtFileToDepsPairMap
typedef std::map< DtString, DtString >	DtFomToFileMap

Protected Member Functions
virtual int	mapFomDepedency (const DtString &fomName, std::set< DtString > &visitedFoms)
	Determine the FOM dependency value (depth) for the given FOM based on a recursive traverse of its depedencies. More...
virtual void	mapFomDepedencies ()
	Map the FOM dependency values for the collected FOM modules. More...
virtual const DtString &	fileNameFromFomName (const DtString &fomName) const
	Return the FOM file name given the FOM name (identification) More...
virtual const DtString &	fomNameFromFileName (const DtString &fomFileName) const
	Return the FOM name (identification) given the FOM file name. More...
virtual void	addFomDependencyMapping (int dependencyValue, const DtString &fomName)
	Add a mapping between a FOM and its dependency value. More...
virtual void	fixDuplicateFomNames ()
	Fix cases where 2 or more FOMs have same name (identification) More...
virtual DtString &	makeUniqueFomName (DtString &fomName)
	Checks if given FOM name is already known and makes it unique if so. More...

Protected Attributes
DtDependencyToFomMMap	myDependencyToFomMMap
DtFomToDependencyMap	myFomToDependencyMap
DtFileToDepsPairMap	myFileToDepsPairMap
DtFileToDepsPairMap	myFileToDupDepsPairMap
DtFomToFileMap	myFomToFileMap
const DtString	myEmptyName
bool	myMappingUpated

Detailed Description

This class facilitates FOM file sorting based on FOM dependencies.

The sorting of file names helps prevent conflicts when FOMs are merged. FOM filenames are added along with their FOM identification and list of dependencies (as FOM identifications). After all the required FOMs have been added, the dependency information is processed to give each FOM a dependency depth value. A base FOM without any dependencies is given a value of 0. FOMs with dependencies are given a value of 1 greater than the value of its largest dependency. FOMs are then sorted by their dependency value with the order of FOMs with equal values being arbitrary.

Member Typedef Documentation

typedef std::pair< int, DtString > DtFomSorter::DtCompFomPair

protected

typedef std::multimap< int, DtString > DtFomSorter::DtDependencyToFomMMap

protected

typedef std::map< DtString, DtFomDepsPair > DtFomSorter::DtFileToDepsPairMap

protected

typedef std::pair< DtString, int > DtFomSorter::DtFomCompPair

protected

typedef std::pair< DtString, std::vector<DtString> > DtFomSorter::DtFomDepsPair

protected

typedef std::map< DtString, int > DtFomSorter::DtFomToDependencyMap

protected

typedef std::map< DtString, DtString > DtFomSorter::DtFomToFileMap

protected

Constructor & Destructor Documentation

DtFomSorter::DtFomSorter

(

)

Constructor.

virtual DtFomSorter::~DtFomSorter ( )

virtual

Destructor.

Member Function Documentation

virtual void DtFomSorter::addFom ( const DtString &  fomFileName, const DtString &  fomIdentifcation, const std::vector< DtString > &  depedencies  )

virtual

Add the given fom file name, its identification and its depedencies A mapping between the file name and ID/dependencies is created and replaces any mapping the already exists.

virtual void DtFomSorter::addFomDependencyMapping ( int  dependencyValue, const DtString &  fomName  )

protectedvirtual

Add a mapping between a FOM and its dependency value.

virtual void DtFomSorter::clear ( )

virtual

Clear the FOMs and supporting data to start again.

virtual const DtString& DtFomSorter::fileNameFromFomName ( const DtString &  fomName ) const

protectedvirtual

Return the FOM file name given the FOM name (identification)

virtual void DtFomSorter::fixDuplicateFomNames ( )

protectedvirtual

Fix cases where 2 or more FOMs have same name (identification)

virtual const DtString& DtFomSorter::fomNameFromFileName ( const DtString &  fomFileName ) const

protectedvirtual

Return the FOM name (identification) given the FOM file name.

virtual void DtFomSorter::getSortedFomFileNames ( std::vector< DtString > &  fomFileNames )

virtual

Sorts the list of FOM file names once FOM dependency values have been mapped.

virtual DtString& DtFomSorter::makeUniqueFomName ( DtString &  fomName )

protectedvirtual

Checks if given FOM name is already known and makes it unique if so.

Changes name if necessary and returns it.

virtual void DtFomSorter::mapFomDepedencies ( )

protectedvirtual

Map the FOM dependency values for the collected FOM modules.

virtual int DtFomSorter::mapFomDepedency ( const DtString &  fomName, std::set< DtString > &  visitedFoms  )

protectedvirtual

Determine the FOM dependency value (depth) for the given FOM based on a recursive traverse of its depedencies.

The list of visited FOMS is used to detect circular dependencies (contains the FOMs that have been traversed to get to the given FOM not including the given FOM).

Member Data Documentation

DtDependencyToFomMMap DtFomSorter::myDependencyToFomMMap

protected

const DtString DtFomSorter::myEmptyName

protected

DtFileToDepsPairMap DtFomSorter::myFileToDepsPairMap

protected

DtFileToDepsPairMap DtFomSorter::myFileToDupDepsPairMap

protected

DtFomToDependencyMap DtFomSorter::myFomToDependencyMap

protected

DtFomToFileMap DtFomSorter::myFomToFileMap

protected

bool DtFomSorter::myMappingUpated

protected

---

The documentation for this class was generated from the following file:

• fomSorter.h
