Instances of DtGriddedDataRepository are used to communicate environmental data defined on a grid. More...

Inheritance diagram for DtGriddedDataRepository:

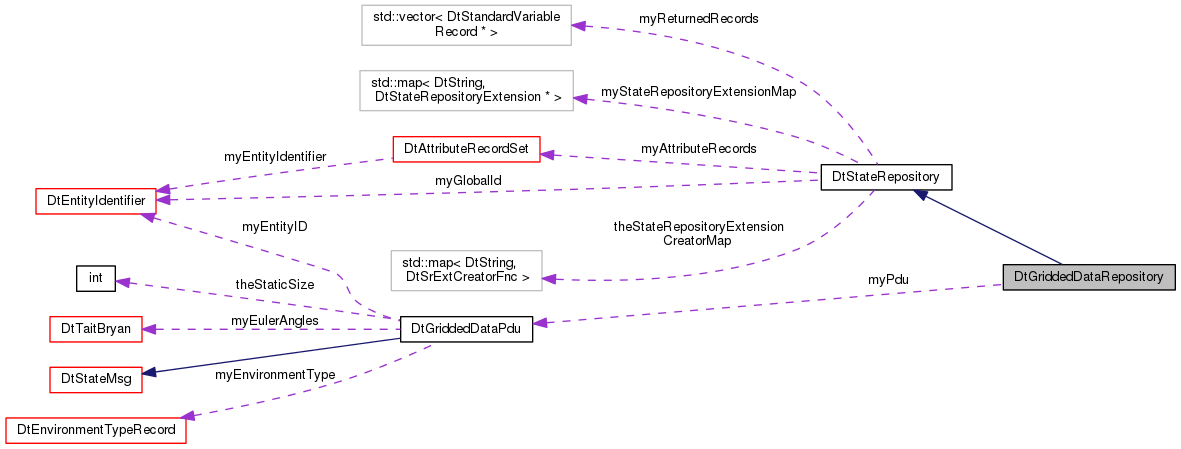

Collaboration diagram for DtGriddedDataRepository:

Public Member Functions
	DtGriddedDataRepository ()
	default constructor More...

virtual	~DtGriddedDataRepository ()
	destructor More...

	DtGriddedDataRepository (const DtGriddedDataRepository &orig)
	copy constructor More...

virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object with the same type as this. More...

DtGriddedDataRepository &	operator= (const DtGriddedDataRepository &orig)
	Assignment operator. More...

virtual void	setGridIdentifier (const DtEntityIdentifier &gridId)
	Set/Get gridIdentifier. 2.0D4. More...

virtual const DtEntityIdentifier &	gridIdentifier () const

virtual void	setGridID (const DtEntityIdentifier &gridId)
	Set/Get gridId. More...

virtual const DtEntityIdentifier &	gridID () const

virtual void	setFieldNumber (DtU16 num)
	Set/Get field number. More...

virtual DtU16	fieldNumber () const

virtual void	setRecordNumber (DtU16 num)
	Set/Get the record index number. More...

virtual DtU16	recordNumber () const

virtual void	setRecordTotal (DtU16 total)
	Set/Get total number of records used to transmit the environmental data. More...

virtual DtU16	recordTotal () const

virtual void	setCoordSystem (DtEnvironmentDataCoordSystem sys)
	Set/Get coordinate system. More...

virtual DtEnvironmentDataCoordSystem	coordSystem () const

virtual bool	setNumGridAxes (DtU8 axes)
	Set/Get number of grid axes. More...

virtual DtU8	numGridAxes () const

virtual void	setConstantGrid (DtEnvironmentGridType constant)

virtual DtEnvironmentGridType	constantGrid () const

virtual void	setEnvironmentType (const DtEnvironmentTypeRecord &type)
	Set/Get environment type. More...

virtual const DtEnvironmentTypeRecord &	environmentType () const

virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/Get orientation. More...

virtual const DtTaitBryan &	orientation () const

virtual void	setSampleTime (int index, DtU32 time)
	Set/Get sample time. More...

virtual DtU32	sampleTime (int index) const

virtual void	setTotalValues (DtU32 total)
	Set/Get total values. More...

virtual DtU32	totalValues () const

virtual bool	setVectorDim (DtU8 dim)
	Set/Get vector dimension. More...

virtual DtU8	vectorDim () const

virtual DtGridAxisType	gridAxisRecordType (int index) const
	Get the grid axes record type for a particular record. More...

virtual bool	setGridAxisRecord (int index, const DtGridAxisRecordFixed &init)
	Set/Get the grid axis record type and values of record index to values specified by the initializer in the second argument. More...

virtual bool	getGridAxisRecord (int index, DtGridAxisRecordFixed &record) const

virtual bool	setGridAxisRecord (int index, const DtGridAxisRecordVariable &init)

virtual bool	getGridAxisRecord (int index, DtGridAxisRecordVariable &record) const

virtual DtGridDataRecType	gridDataRecordType (int index) const
	Get the grid data record type for a particular record. More...

virtual bool	setGridDataRecord (int index, const DtGridDataRecordType0 &init)
	Set/Get the grid data record type and values of record index to values specified by the initializer in the second argument. More...

virtual bool	getGridDataRecord (int index, DtGridDataRecordType0 &record) const

virtual bool	setGridDataRecord (int index, const DtGridDataRecordType1 &init)

virtual bool	getGridDataRecord (int index, DtGridDataRecordType1 &record) const

virtual bool	setGridDataRecord (int index, const DtGridDataRecordType2 &init)

virtual bool	getGridDataRecord (int index, DtGridDataRecordType2 &record) const

virtual void	printData () const
	print data contained within the repository to DtInfo More...

virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...

Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...

	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...

virtual	~DtStateRepository ()
	destructor More...

DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...

virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...

virtual const DtGlobalObjectDesignator &	globalId () const

virtual unsigned int	numberOfAttributeRecords () const

virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...

virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...

virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...

virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...

virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...

virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...

virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...

virtual void	addAttributeRecord (std::unique_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...

virtual void	clearAttributeRecords ()
	Clear all records. More...

virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...

virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtGriddedDataRepository *	create ()
	Create a DtGriddedDataRepository. More...

Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtGriddedDataPdu	myPdu

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId

DtAttributeRecordSet	myAttributeRecords

DtStandardVariableRecordPtrVector	myReturnedRecords

DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap

Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtGriddedDataRepository are used to communicate environmental data defined on a grid.

Constructor & Destructor Documentation

DtGriddedDataRepository::DtGriddedDataRepository ( )

default constructor

virtual DtGriddedDataRepository::~DtGriddedDataRepository ( )

virtual

destructor

DtGriddedDataRepository::DtGriddedDataRepository ( const DtGriddedDataRepository & orig )

copy constructor

Member Function Documentation

virtual DtStateRepository* DtGriddedDataRepository::clone ( bool copy = false ) const

virtual

Return a copy/empty object with the same type as this.

Reimplemented from DtStateRepository.

virtual DtEnvironmentGridType DtGriddedDataRepository::constantGrid ( ) const

virtual

virtual DtEnvironmentDataCoordSystem DtGriddedDataRepository::coordSystem ( ) const

virtual

static DtGriddedDataRepository* DtGriddedDataRepository::create ( )

static

Create a DtGriddedDataRepository.

Caller is responsible for deletion.

virtual const DtEnvironmentTypeRecord& DtGriddedDataRepository::environmentType ( ) const

virtual

virtual DtU16 DtGriddedDataRepository::fieldNumber ( ) const

virtual

virtual bool DtGriddedDataRepository::getGridAxisRecord	(	int	index,
		DtGridAxisRecordFixed &	record
	)		const

virtual

virtual bool DtGriddedDataRepository::getGridAxisRecord	(	int	index,
		DtGridAxisRecordVariable &	record
	)		const

virtual

virtual bool DtGriddedDataRepository::getGridDataRecord	(	int	index,
		DtGridDataRecordType0 &	record
	)		const

virtual

virtual bool DtGriddedDataRepository::getGridDataRecord	(	int	index,
		DtGridDataRecordType1 &	record
	)		const

virtual

virtual bool DtGriddedDataRepository::getGridDataRecord	(	int	index,
		DtGridDataRecordType2 &	record
	)		const

virtual

virtual DtGridAxisType DtGriddedDataRepository::gridAxisRecordType ( int index ) const

virtual

Get the grid axes record type for a particular record.

virtual DtGridDataRecType DtGriddedDataRepository::gridDataRecordType ( int index ) const

virtual

Get the grid data record type for a particular record.

virtual const DtEntityIdentifier& DtGriddedDataRepository::gridID ( ) const

virtual

virtual const DtEntityIdentifier& DtGriddedDataRepository::gridIdentifier ( ) const

virtual

virtual DtU8 DtGriddedDataRepository::numGridAxes ( ) const

virtual

DtGriddedDataRepository& DtGriddedDataRepository::operator= ( const DtGriddedDataRepository & orig )

Assignment operator.

virtual const DtTaitBryan& DtGriddedDataRepository::orientation ( ) const

virtual

virtual void DtGriddedDataRepository::printData ( ) const

virtual

print data contained within the repository to DtInfo

Reimplemented from DtStateRepository.

virtual void DtGriddedDataRepository::printDataToStream ( std::ostream & stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtStateRepository.

virtual DtU16 DtGriddedDataRepository::recordNumber ( ) const

virtual

virtual DtU16 DtGriddedDataRepository::recordTotal ( ) const

virtual

virtual DtU32 DtGriddedDataRepository::sampleTime ( int index ) const

virtual

virtual void DtGriddedDataRepository::setConstantGrid ( DtEnvironmentGridType constant )

virtual

virtual void DtGriddedDataRepository::setCoordSystem ( DtEnvironmentDataCoordSystem sys )

virtual

Set/Get coordinate system.

virtual void DtGriddedDataRepository::setEnvironmentType ( const DtEnvironmentTypeRecord & type )

virtual

Set/Get environment type.

virtual void DtGriddedDataRepository::setFieldNumber ( DtU16 num )

virtual

Set/Get field number.

virtual bool DtGriddedDataRepository::setGridAxisRecord	(	int	index,
		const DtGridAxisRecordFixed &	init
	)

virtual

Set/Get the grid axis record type and values of record index to values specified by the initializer in the second argument.

If index is out of bounds, or if the record type at the specified index does not match the parameter record type (for a get), then false is returned. If the space would exceed the maximum space permitted for a PDU (for a set) then false may be returned.

virtual bool DtGriddedDataRepository::setGridAxisRecord	(	int	index,
		const DtGridAxisRecordVariable &	init
	)

virtual

virtual bool DtGriddedDataRepository::setGridDataRecord	(	int	index,
		const DtGridDataRecordType0 &	init
	)

virtual

Set/Get the grid data record type and values of record index to values specified by the initializer in the second argument.

If index is out of bounds, or if the record type at the specified index does not match the parameter record type (for a get), then false is returned. If the space would exceed the maximum space permitted for a PDU (for a set) then false may be returned.

virtual bool DtGriddedDataRepository::setGridDataRecord	(	int	index,
		const DtGridDataRecordType1 &	init
	)

virtual

virtual bool DtGriddedDataRepository::setGridDataRecord	(	int	index,
		const DtGridDataRecordType2 &	init
	)

virtual

virtual void DtGriddedDataRepository::setGridID ( const DtEntityIdentifier & gridId )

virtual

Set/Get gridId.

Deprecated, use Set/Get gridIdentifier

virtual void DtGriddedDataRepository::setGridIdentifier ( const DtEntityIdentifier & gridId )

virtual

Set/Get gridIdentifier. 2.0D4.

virtual bool DtGriddedDataRepository::setNumGridAxes ( DtU8 axes )

virtual

Set/Get number of grid axes.

virtual void DtGriddedDataRepository::setOrientation ( const DtTaitBryan & orientation )

virtual

Set/Get orientation.

virtual void DtGriddedDataRepository::setRecordNumber ( DtU16 num )

virtual

Set/Get the record index number.

virtual void DtGriddedDataRepository::setRecordTotal ( DtU16 total )

virtual

Set/Get total number of records used to transmit the environmental data.

virtual void DtGriddedDataRepository::setSampleTime	(	int	index,
		DtU32	time
	)

virtual

Set/Get sample time.

This is a 64-bit quantity. The argument index selects between the most significant 32-bit word (0) and least significant 32-bit word (1) of the complete 64-bit value.

virtual void DtGriddedDataRepository::setTotalValues ( DtU32 total )

virtual

Set/Get total values.

virtual bool DtGriddedDataRepository::setVectorDim ( DtU8 dim )

virtual

Set/Get vector dimension.

setVectorDim may return false if the PDU size exceeds the maximum allowable size for a PDU.

virtual DtU32 DtGriddedDataRepository::totalValues ( ) const

virtual

virtual DtU8 DtGriddedDataRepository::vectorDim ( ) const

virtual

Member Data Documentation

DtGriddedDataPdu DtGriddedDataRepository::myPdu

protected

The documentation for this class was generated from the following file:

griddedDataRepository.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
