Instances of DtLandSurfaceStateRepository are used to store state data for METOC_Root.EnvironmentCondition.Weather.LandSurface objects. More...

Inheritance diagram for DtLandSurfaceStateRepository:

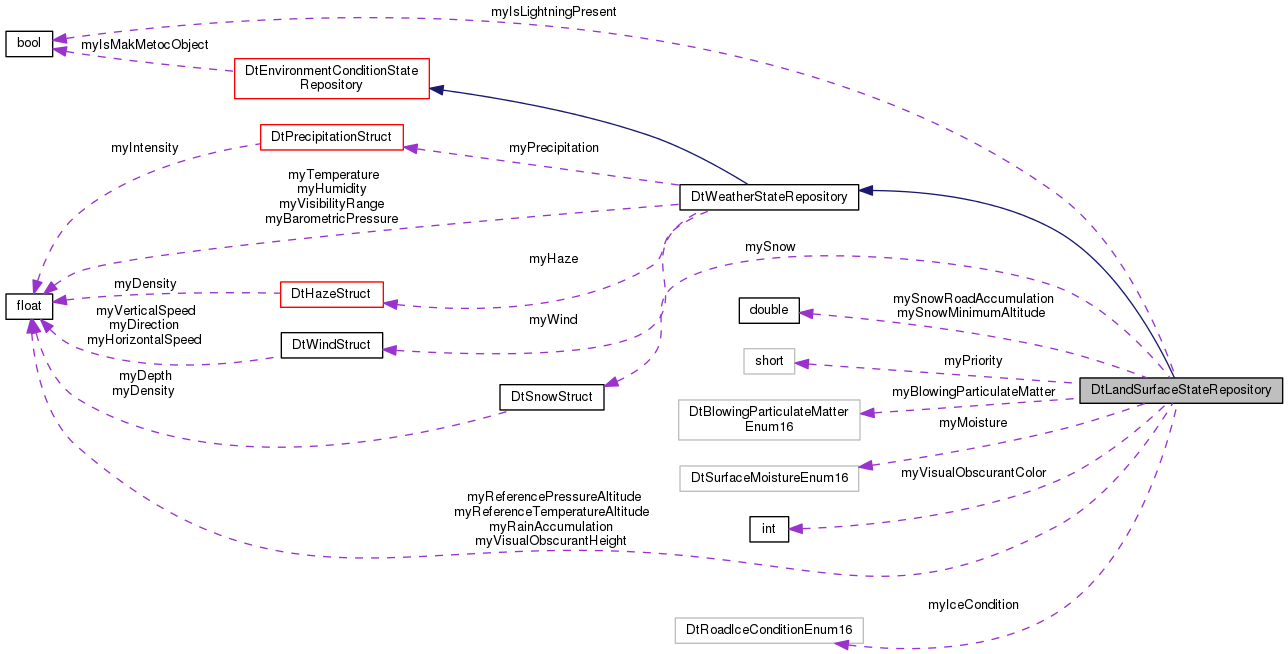

Collaboration diagram for DtLandSurfaceStateRepository:

Public Member Functions
	DtLandSurfaceStateRepository ()
	Constructor. More...

virtual	~DtLandSurfaceStateRepository ()
	Destructor. More...

	DtLandSurfaceStateRepository (const DtLandSurfaceStateRepository &orig)
	Copy Constructor. More...

DtLandSurfaceStateRepository &	operator= (const DtLandSurfaceStateRepository &orig)
	Assignment Operator. More...

virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...

virtual void	printData () const
	Print data to the DtInfo stream. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...

virtual void	setSnow (const DtSnowStruct &ss)
	Set the Snow. More...

virtual const DtSnowStruct &	snow () const
	Get the Snow. More...

virtual void	setMoisture (const DtSurfaceMoistureEnum16 &moisture)
	Set the Moisture. More...

virtual const DtSurfaceMoistureEnum16 &	moisture () const
	Get the Moisture. More...

virtual void	setIceCondition (const DtRoadIceConditionEnum16 &val)
	Set the IceCondition. More...

virtual const DtRoadIceConditionEnum16 &	iceCondition () const
	Get the IceCondition. More...

virtual void	setBlowingParticulateMatter (const DtBlowingParticulateMatterEnum16 &val)
	Set the Blowing Particulate Matter. More...

virtual const DtBlowingParticulateMatterEnum16 &	blowingParticulateMatter () const
	Get the Blowing Particulate Matter. More...

virtual const void	setPriority (const DtU16 &val)
	Set the priority level. Used when METOC objects overlap. More...

virtual const DtU16 &	priority () const
	Get the Priority. More...

virtual void	setSnowMinimumAltitude (const DtFloat64 &val)
	Set the SnowMinimumAltitude. More...

virtual const DtFloat64 &	snowMinimumAltitude () const
	Get the SnowMinimumAltitude. More...

virtual void	setSnowRoadAccumulation (const DtFloat64 &val)
	Set the SnowRoadAccumulation. More...

virtual const DtFloat64 &	snowRoadAccumulation () const
	Get the SnowRoadAccumulation. More...

virtual void	setReferenceTemperatureAltitude (DtFloat32 val)
	Set the reference altitude for temperature. More...

virtual DtFloat32	referenceTemperatureAltitude () const
	Get the reference altitude for temperature. More...

virtual void	setReferencePressureAltitude (DtFloat32 val)
	Set the reference altitude for pressure. More...

virtual DtFloat32	referencePressureAltitude () const
	Get the reference altitude for pressure. More...

virtual void	setIsLightningPresent (bool val)
	Set if lightning is present in this weather area. More...

virtual bool	isLightningPresent () const
	Get if lightning is present in this weather area. More...

virtual void	setRainAccumulation (DtFloat32 val)
	Set the rain accumulation on this land surface in meters. More...

virtual DtFloat32	rainAccumulation () const
	Get the rain accumulation on this land surface in meters. More...

virtual void	setVisualObscurantColor (int r, int g, int b, int a)
	Set the visual obscurant color (R, G, B, A) More...

virtual void	setVisualObscurantColor (unsigned int color)
	Set the visual obscurant color with an encoded integer value. More...

virtual unsigned int	visualObscurantColor () const
	Get the encoded integer value of the visual obscurant color. More...

virtual void	setVisualObscurantHeight (DtFloat32 val)
	Set the height of the visual obscurant affect. More...

virtual DtFloat32	visualObscurantHeight () const
	Get the height of the visual obscurant affect. More...

Public Member Functions inherited from DtWeatherStateRepository
	DtWeatherStateRepository ()
	Constructor. More...

virtual	~DtWeatherStateRepository ()
	Destructor. More...

	DtWeatherStateRepository (const DtWeatherStateRepository &orig)
	Copy Constructor. More...

DtWeatherStateRepository &	operator= (const DtWeatherStateRepository &orig)
	Assignment Operator. More...

virtual void	setTemperature (DtFloat32 val)
	Set the Temperature. More...

virtual DtFloat32	temperature () const
	Get the Temperature.". More...

virtual void	setWind (const DtWindStruct &val)
	Set the Wind. More...

virtual const DtWindStruct &	wind () const
	Get the Wind.". More...

virtual void	setPrecipitation (const DtPrecipitationStruct &val)
	Set the Precipitation. More...

virtual const DtPrecipitationStruct &	precipitation () const
	Get the Precipitation.". More...

virtual void	setHaze (const DtHazeStruct &val)
	Set the Haze. More...

virtual const DtHazeStruct &	haze () const
	Get the Haze.". More...

virtual void	setHumidity (DtFloat32 val)
	Set the Humidity. More...

virtual DtFloat32	humidity () const
	Get the Humidity.". More...

virtual void	setBarometricPressure (DtFloat32 val)
	Set the BarometricPressure. More...

virtual DtFloat32	barometricPressure () const
	Get the BarometricPressure.". More...

virtual void	setVisibilityRange (DtFloat32 val)
	Set the VisibilityRange. More...

virtual DtFloat32	visibilityRange () const
	Get the VisibilityRange. More...

Public Member Functions inherited from DtEnvironmentConditionStateRepository
	DtEnvironmentConditionStateRepository ()
	Constructor. More...

virtual	~DtEnvironmentConditionStateRepository ()
	Destructor. More...

	DtEnvironmentConditionStateRepository (const DtEnvironmentConditionStateRepository &orig)
	Copy Constructor. More...

DtEnvironmentConditionStateRepository &	operator= (const DtEnvironmentConditionStateRepository &orig)
	Assignment Operator. More...

virtual void	setServiceId (const DtVrlUuid &val)
	Set the ServiceId. More...

virtual const DtVrlUuid &	serviceId () const
	Get the ServiceId. More...

virtual void	setGeoReference (const DtGeoReferenceVariant &val)
	Set the GeoReference. More...

virtual const DtGeoReferenceVariant &	geoReference () const
	Get the GeoReference. More...

virtual bool	isGlobalGeoreference () const
	returns true if the geo reference object is global. More...

virtual void	setIsMakMetocObject (bool val)
	Set if this object is a MAK extended class. More...

virtual bool	isMakMetocObject () const
	returns true if this object is a MAK Extended METOC object opposed to a NETN METOC object without MAK extensions More...

Public Member Functions inherited from DtMetocRootStateRepository
	DtMetocRootStateRepository ()
	Constructor. More...

virtual	~DtMetocRootStateRepository ()
	Destructor. More...

	DtMetocRootStateRepository (const DtMetocRootStateRepository &orig)
	Copy Constructor. More...

DtMetocRootStateRepository &	operator= (const DtMetocRootStateRepository &orig)
	Assignment Operator. More...

virtual void	setUniqueId (const DtVrlUuid &val)
	Set the UniqueId. More...

virtual const DtVrlUuid &	uniqueId () const
	Get the UniqueId. More...

virtual void	setName (const DtString &val)
	Set the Name. More...

virtual const DtString &	name () const
	Get the Name. More...

virtual void	setVrfWeatherAreaIdentifier (const DtVrlUuid &vrfWeatherAreaIdentifier)
	Set the UniqueId. More...

virtual DtVrlUuid	vrfWeatherAreaIdentifier () const
	Get the UniqueId. More...

Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...

	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...

virtual	~DtStateRepository ()
	destructor More...

DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...

virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...

virtual const DtGlobalObjectDesignator &	globalId () const

virtual unsigned int	numberOfAttributeRecords () const

virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...

virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...

virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...

virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...

virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...

virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...

virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...

virtual void	addAttributeRecord (std::unique_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...

virtual void	clearAttributeRecords ()
	Clear all records. More...

virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...

virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtLandSurfaceStateRepository *	create ()
	Create a DtLandSurfaceStateRepository. More...

Static Public Member Functions inherited from DtWeatherStateRepository
static DtWeatherStateRepository *	create ()
	Create a DtWeatherStateRepository. More...

Static Public Member Functions inherited from DtEnvironmentConditionStateRepository
static DtEnvironmentConditionStateRepository *	create ()
	Create a DtEnvironmentConditionStateRepository. More...

Static Public Member Functions inherited from DtMetocRootStateRepository
static DtMetocRootStateRepository *	create ()
	Create a DtMetocRootStateRepository. More...

Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtSnowStruct	mySnow

DtSurfaceMoistureEnum16	myMoisture

DtRoadIceConditionEnum16	myIceCondition

DtBlowingParticulateMatterEnum16	myBlowingParticulateMatter

DtU16	myPriority

DtFloat64	mySnowMinimumAltitude

DtFloat64	mySnowRoadAccumulation

DtFloat32	myRainAccumulation

DtFloat32	myReferenceTemperatureAltitude

DtFloat32	myReferencePressureAltitude

bool	myIsLightningPresent

unsigned int	myVisualObscurantColor

DtFloat32	myVisualObscurantHeight

Protected Attributes inherited from DtWeatherStateRepository
DtFloat32	myTemperature

DtWindStruct	myWind

DtPrecipitationStruct	myPrecipitation

DtHazeStruct	myHaze

DtFloat32	myHumidity

DtFloat32	myBarometricPressure

DtFloat32	myVisibilityRange

Protected Attributes inherited from DtEnvironmentConditionStateRepository
DtVrlUuid	myServiceId

DtGeoReferenceVariant	myGeoReference

bool	myIsMakMetocObject

Protected Attributes inherited from DtMetocRootStateRepository
DtVrlUuid	myUniqueId

DtString	myName

DtVrlUuid	myVrfWeatherAreaId

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId

DtAttributeRecordSet	myAttributeRecords

DtStandardVariableRecordPtrVector	myReturnedRecords

DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap

Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtLandSurfaceStateRepository are used to store state data for METOC_Root.EnvironmentCondition.Weather.LandSurface objects.

Constructor & Destructor Documentation

DtLandSurfaceStateRepository::DtLandSurfaceStateRepository ( )

Constructor.

virtual DtLandSurfaceStateRepository::~DtLandSurfaceStateRepository ( )

virtual

Destructor.

DtLandSurfaceStateRepository::DtLandSurfaceStateRepository ( const DtLandSurfaceStateRepository & orig )

Copy Constructor.

Member Function Documentation

virtual const DtBlowingParticulateMatterEnum16& DtLandSurfaceStateRepository::blowingParticulateMatter ( ) const

virtual

Get the Blowing Particulate Matter.

virtual DtStateRepository* DtLandSurfaceStateRepository::clone ( bool copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtWeatherStateRepository.

static DtLandSurfaceStateRepository* DtLandSurfaceStateRepository::create ( )

static

Create a DtLandSurfaceStateRepository.

virtual const DtRoadIceConditionEnum16& DtLandSurfaceStateRepository::iceCondition ( ) const

virtual

Get the IceCondition.

virtual bool DtLandSurfaceStateRepository::isLightningPresent ( ) const

virtual

Get if lightning is present in this weather area.

virtual const DtSurfaceMoistureEnum16& DtLandSurfaceStateRepository::moisture ( ) const

virtual

Get the Moisture.

DtLandSurfaceStateRepository& DtLandSurfaceStateRepository::operator= ( const DtLandSurfaceStateRepository & orig )

Assignment Operator.

virtual void DtLandSurfaceStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtWeatherStateRepository.

virtual void DtLandSurfaceStateRepository::printDataToStream ( std::ostream & stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtWeatherStateRepository.

virtual const DtU16& DtLandSurfaceStateRepository::priority ( ) const

virtual

Get the Priority.

virtual DtFloat32 DtLandSurfaceStateRepository::rainAccumulation ( ) const

virtual

Get the rain accumulation on this land surface in meters.

virtual DtFloat32 DtLandSurfaceStateRepository::referencePressureAltitude ( ) const

virtual

Get the reference altitude for pressure.

virtual DtFloat32 DtLandSurfaceStateRepository::referenceTemperatureAltitude ( ) const

virtual

Get the reference altitude for temperature.

virtual void DtLandSurfaceStateRepository::setBlowingParticulateMatter ( const DtBlowingParticulateMatterEnum16 & val )

virtual

Set the Blowing Particulate Matter.

virtual void DtLandSurfaceStateRepository::setIceCondition ( const DtRoadIceConditionEnum16 & val )

virtual

Set the IceCondition.

virtual void DtLandSurfaceStateRepository::setIsLightningPresent ( bool val )

virtual

Set if lightning is present in this weather area.

virtual void DtLandSurfaceStateRepository::setMoisture ( const DtSurfaceMoistureEnum16 & moisture )

virtual

Set the Moisture.

virtual const void DtLandSurfaceStateRepository::setPriority ( const DtU16 & val )

virtual

Set the priority level. Used when METOC objects overlap.

virtual void DtLandSurfaceStateRepository::setRainAccumulation ( DtFloat32 val )

virtual

Set the rain accumulation on this land surface in meters.

virtual void DtLandSurfaceStateRepository::setReferencePressureAltitude ( DtFloat32 val )

virtual

Set the reference altitude for pressure.

virtual void DtLandSurfaceStateRepository::setReferenceTemperatureAltitude ( DtFloat32 val )

virtual

Set the reference altitude for temperature.

virtual void DtLandSurfaceStateRepository::setSnow ( const DtSnowStruct & ss )

virtual

Set the Snow.

virtual void DtLandSurfaceStateRepository::setSnowMinimumAltitude ( const DtFloat64 & val )

virtual

Set the SnowMinimumAltitude.

virtual void DtLandSurfaceStateRepository::setSnowRoadAccumulation ( const DtFloat64 & val )

virtual

Set the SnowRoadAccumulation.

virtual void DtLandSurfaceStateRepository::setVisualObscurantColor	(	int	r,
		int	g,
		int	b,
		int	a
	)

virtual

Set the visual obscurant color (R, G, B, A)

virtual void DtLandSurfaceStateRepository::setVisualObscurantColor ( unsigned int color )

virtual

Set the visual obscurant color with an encoded integer value.

virtual void DtLandSurfaceStateRepository::setVisualObscurantHeight ( DtFloat32 val )

virtual

Set the height of the visual obscurant affect.

virtual const DtSnowStruct& DtLandSurfaceStateRepository::snow ( ) const

virtual

Get the Snow.

virtual const DtFloat64& DtLandSurfaceStateRepository::snowMinimumAltitude ( ) const

virtual

Get the SnowMinimumAltitude.

virtual const DtFloat64& DtLandSurfaceStateRepository::snowRoadAccumulation ( ) const

virtual

Get the SnowRoadAccumulation.

virtual unsigned int DtLandSurfaceStateRepository::visualObscurantColor ( ) const

virtual

Get the encoded integer value of the visual obscurant color.

virtual DtFloat32 DtLandSurfaceStateRepository::visualObscurantHeight ( ) const

virtual

Get the height of the visual obscurant affect.

Member Data Documentation

DtBlowingParticulateMatterEnum16 DtLandSurfaceStateRepository::myBlowingParticulateMatter

protected

DtRoadIceConditionEnum16 DtLandSurfaceStateRepository::myIceCondition

protected

bool DtLandSurfaceStateRepository::myIsLightningPresent

protected

DtSurfaceMoistureEnum16 DtLandSurfaceStateRepository::myMoisture

protected

DtU16 DtLandSurfaceStateRepository::myPriority

protected

DtFloat32 DtLandSurfaceStateRepository::myRainAccumulation

protected

DtFloat32 DtLandSurfaceStateRepository::myReferencePressureAltitude

protected

DtFloat32 DtLandSurfaceStateRepository::myReferenceTemperatureAltitude

protected

DtSnowStruct DtLandSurfaceStateRepository::mySnow

protected

DtFloat64 DtLandSurfaceStateRepository::mySnowMinimumAltitude

protected

DtFloat64 DtLandSurfaceStateRepository::mySnowRoadAccumulation

protected

unsigned int DtLandSurfaceStateRepository::myVisualObscurantColor

protected

DtFloat32 DtLandSurfaceStateRepository::myVisualObscurantHeight

protected

The documentation for this class was generated from the following file:

landSurfaceStateRepository.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
