DtLinearObjectEncoder Class Reference

Provides encoding logic for the DtLinearObjectStatePdu class. More...

Inheritance diagram for DtLinearObjectEncoder:

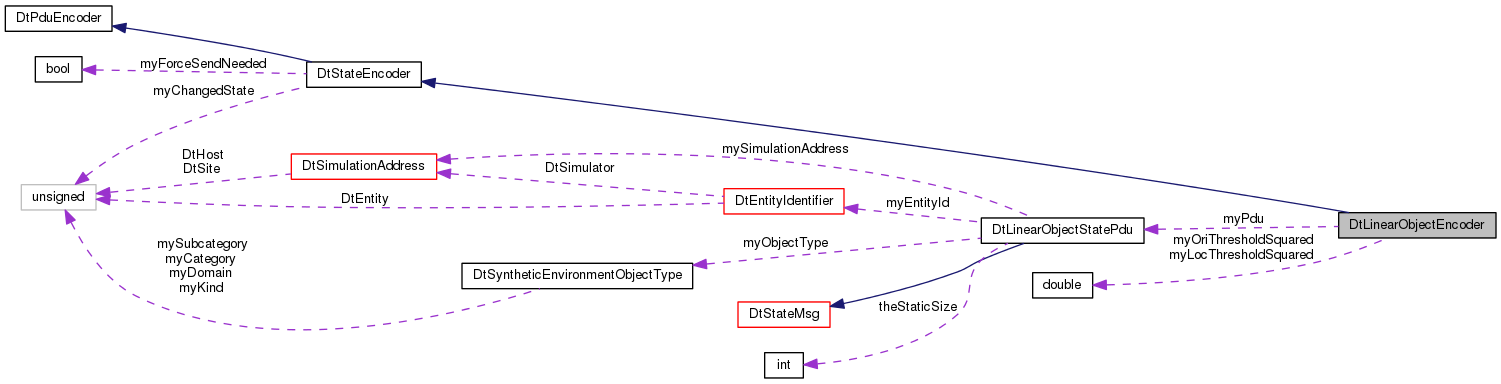

Collaboration diagram for DtLinearObjectEncoder:

Public Member Functions
	DtLinearObjectEncoder (double locThresh=1.0, double oriThresh=1.0)
	CTOR. More...
	DtLinearObjectEncoder (const DtLinearObjectEncoder &orig)
	Copy CTOR. More...
virtual	~DtLinearObjectEncoder ()
	Virtual DTOR. More...
DtLinearObjectEncoder &	operator= (const DtLinearObjectEncoder &orig)
	Assignment operator. More...
virtual DtLinearObjectStatePdu *	stateMsg (const DtLinearObjectRepository &stateRep, const DtLinearObjectRepository &asSeenByRemote)
	Constructs a PDU from the state repository. More...
	DtCLONE_ENCODER (DtLinearObjectEncoder)
virtual void	setLocThreshold (double val)
	Set/Query the value of the Location Update Threshold. More...
virtual double	locThreshold () const
	Set/Query the value of the Location Update Threshold. More...
virtual void	setOriThreshold (double val)
	Set/Query the value of the Orientation Update Threshold. More...
virtual double	oriThreshold () const
	Set/Query the value of the Orientation Update Threshold. More...
Public Member Functions inherited from DtStateEncoder
	DtStateEncoder ()
	Default constructor. More...
virtual	~DtStateEncoder ()
	Destructor. More...
	DtStateEncoder (const DtStateEncoder &orig)
	Copy constructor. More...
DtStateEncoder &	operator= (const DtStateEncoder &orig)
	Assignment operator. More...
virtual void	setSendNeeded ()
	Sets myForceSendNeeded to true. More...
virtual DtU32	changedState () const
virtual void	clearChangedState ()
virtual bool	isChangedStateBit (DtU32 st) const
virtual void	resetChangedStateBit (DtU32 st)
virtual void	setChangedStateBit (DtU32 st)
virtual DtPduEncoder *	clone () const =0
	clone. More...
virtual void	encode (DtPdu *pdu)
	This is a dummy method for backwards compatibility with DIS encoders. More...
virtual void	fillOutAttributeRecords (const DtStateRepository &stateRep, DtPduWithAttributeRecordSets *pdu, const DtEntityIdentifier &id, bool clearBeforeAdding=true)
	DIS 7 requires filling the Attribute Records for a coupled Attribute PDU. More...
virtual bool	sendNeededAttributeRecords (const DtStateRepository &stateRep, const DtStateRepository &asSeenByRemote)
	In order to modify records in place, and have them sent, we need to compare the stateRep with the As seen by remote. More...
Public Member Functions inherited from DtPduEncoder
virtual	~DtPduEncoder ()

Protected Member Functions
virtual bool	sendNeeded (const DtLinearObjectRepository &stateRep, const DtLinearObjectRepository &asSeenByRemote)
	Determine if a state message needs to be sent. More...
virtual void	updateModifications (const DtLinearObjectRepository &lclRep, const DtLinearObjectRepository &remRep)
	Update the PDU's modification flags. More...

Protected Attributes
DtLinearObjectStatePdu	myPdu
double	myLocThresholdSquared
double	myOriThresholdSquared
Protected Attributes inherited from DtStateEncoder
bool	myForceSendNeeded
DtU32	myChangedState

Detailed Description

Provides encoding logic for the DtLinearObjectStatePdu class.

Constructor & Destructor Documentation

DtLinearObjectEncoder::DtLinearObjectEncoder	(	double	locThresh = 1.0,
		double	oriThresh = 1.0
	)

CTOR.

DtLinearObjectEncoder::DtLinearObjectEncoder

(

const DtLinearObjectEncoder &

orig

)

Copy CTOR.

virtual DtLinearObjectEncoder::~DtLinearObjectEncoder ( )

virtual

Virtual DTOR.

Member Function Documentation

DtLinearObjectEncoder::DtCLONE_ENCODER

(

DtLinearObjectEncoder

)

double DtLinearObjectEncoder::locThreshold ( ) const

inlinevirtual

Set/Query the value of the Location Update Threshold.

References myLocThresholdSquared.

DtLinearObjectEncoder& DtLinearObjectEncoder::operator=

(

const DtLinearObjectEncoder &

orig

)

Assignment operator.

double DtLinearObjectEncoder::oriThreshold ( ) const

inlinevirtual

Set/Query the value of the Orientation Update Threshold.

References myOriThresholdSquared.

virtual bool DtLinearObjectEncoder::sendNeeded ( const DtLinearObjectRepository &  stateRep, const DtLinearObjectRepository &  asSeenByRemote  )

protectedvirtual

Determine if a state message needs to be sent.

void DtLinearObjectEncoder::setLocThreshold ( double  val )

inlinevirtual

Set/Query the value of the Location Update Threshold.

References myLocThresholdSquared.

void DtLinearObjectEncoder::setOriThreshold ( double  val )

inlinevirtual

Set/Query the value of the Orientation Update Threshold.

References myOriThresholdSquared.

virtual DtLinearObjectStatePdu* DtLinearObjectEncoder::stateMsg ( const DtLinearObjectRepository &  stateRep, const DtLinearObjectRepository &  asSeenByRemote  )

virtual

Constructs a PDU from the state repository.

stateMsg determines whether a Designator PDU needs to be sent and constructs one of it does.

Returns

PDU if send is needed, and NULL if not

virtual void DtLinearObjectEncoder::updateModifications ( const DtLinearObjectRepository &  lclRep, const DtLinearObjectRepository &  remRep  )

protectedvirtual

Update the PDU's modification flags.

Member Data Documentation

double DtLinearObjectEncoder::myLocThresholdSquared

protected

Referenced by locThreshold(), and setLocThreshold().

double DtLinearObjectEncoder::myOriThresholdSquared

protected

Referenced by oriThreshold(), and setOriThreshold().

DtLinearObjectStatePdu DtLinearObjectEncoder::myPdu

protected

---

The documentation for this class was generated from the following file:

• linearObjectEncoderDIS.h
