VR-Link API Documentation for DIS
|
All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
|
VR-Link API Documentation for DIS
|
Instances of DtMode1StateRepository are used to store state data for IFFData.Mode1 objects. More...

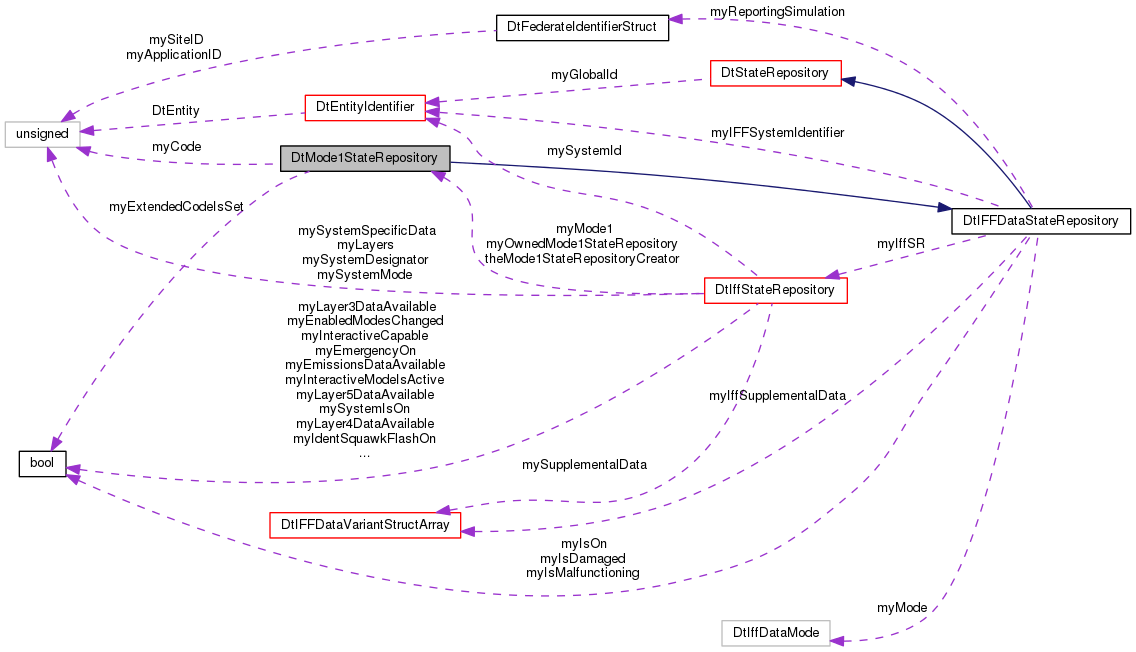

Inheritance diagram for DtMode1StateRepository: Collaboration diagram for DtMode1StateRepository:Public Member Functions | |||
| DtMode1StateRepository () | |||
| Constructor. More... | |||
| virtual | ~DtMode1StateRepository () | ||
| Destructor. More... | |||
| DtMode1StateRepository (const DtMode1StateRepository &orig) | |||
| Copy Constructor. More... | |||
| DtMode1StateRepository & | operator= (const DtMode1StateRepository &orig) | ||
| Assignment Operator. More... | |||
| virtual DtStateRepository * | clone (bool copy) const | ||
| Return a copy/empty object of the same type as this. More... | |||
| virtual void | printData () const | ||
| Print data to the DtInfo stream. More... | |||
| virtual void | printDataToStream (std::ostream &stream) const | ||
| Print data to the specified stream. More... | |||
Mode1 Transponder-Specific Attributes | |||
Set the Code attribute
| |||
| virtual void | setCode (DtU16 val) | ||
| Get the Code attribute. More... | |||
| virtual DtU16 | code () const | ||
| Get the Code attribute. More... | |||
| virtual void | setExtendedCodeIsSet (bool val) | ||
| Set the ExtendedCodeIsSet attribute. More... | |||
| virtual bool | extendedCodeIsSet () const | ||
| Get the ExtendedCodeIsSet attribute. More... | |||
| Public Member Functions inherited from DtIFFDataStateRepository | |||
| DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk) | |||
| Constructor. More... | |||
| virtual | ~DtIFFDataStateRepository () | ||
| Destructor. More... | |||
| DtIFFDataStateRepository (const DtIFFDataStateRepository &orig) | |||
| Copy Constructor. More... | |||
| DtIFFDataStateRepository & | operator= (const DtIFFDataStateRepository &orig) | ||
| Assignment Operator. More... | |||
| virtual void | setIsOn (bool val) | ||
| Set the IsOn attribute. More... | |||
| virtual bool | isOn () const | ||
| Get the IsOn attribute. More... | |||
| virtual void | setIsDamaged (bool val) | ||
| Set the IsDamaged attribute. More... | |||
| virtual bool | isDamaged () const | ||
| Get the IsDamaged attribute. More... | |||
| virtual void | setIsMalfunctioning (bool val) | ||
| Set the IsMalfunctioning attribute. More... | |||
| virtual bool | isMalfunctioning () const | ||
| Get the IsMalfunctioning attribute. More... | |||
| virtual void | setIFFSystemIdentifier (const DtGlobalObjectDesignator &val) | ||
| Set the IFFSystemIdentifier. More... | |||
| virtual const DtGlobalObjectDesignator & | IFFSystemIdentifier () const | ||
| Get the IFFSystemIdentifier. More... | |||
| virtual void | setIFFData (const DtIFFDataVariantStructArray &val) | ||
| Set the SupplementalData. More... | |||
| virtual const DtIFFDataVariantStructArray & | IFFData () const | ||
| Get the IFFSystemIdentifier. More... | |||
| virtual void | setReportingSimulation (const DtFederateIdentifierStruct &val) | ||
| Set the ReportingSimulation attribute. More... | |||
| virtual const DtFederateIdentifierStruct & | reportingSimulation () const | ||
| Get the ReportingSimulation. More... | |||
| virtual void | setIffStateRepository (const DtIffStateRepository *sr) | ||
| virtual const DtIffStateRepository * | isr () const | ||
| Public Member Functions inherited from DtStateRepository | |||
| DtStateRepository () | |||
| default constructor More... | |||
| DtStateRepository (const DtStateRepository &orig) | |||
| copy constructor More... | |||
| virtual | ~DtStateRepository () | ||
| destructor More... | |||
| DtStateRepository & | operator= (const DtStateRepository &orig) | ||
| assignment operator More... | |||
| virtual void | setGlobalId (const DtGlobalObjectDesignator &id) | ||
| Get/Set global identifier, or name. More... | |||
| virtual const DtGlobalObjectDesignator & | globalId () const | ||
| virtual unsigned int | numberOfAttributeRecords () const | ||
| virtual void | setAttributeRecords (const DtAttributeRecordSet &records) | ||
| The following functions are related to the extendability part of DIS 7. More... | |||
| virtual void | setAttributeRecords (const DtStandardVariableRecordPtrVector &records) | ||
| Replace the attribute record set with the records in the given vector. More... | |||
| virtual const DtAttributeRecordSet & | attributeRecordSet () const | ||
| Return the attribute record set. More... | |||
| virtual DtAttributeRecordSet & | attributeRecordSet () | ||
| Return the attribute record set. More... | |||
| virtual const DtStandardVariableRecordPtrVector & | attributeRecords () const | ||
| Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More... | |||
| virtual const DtStandardVariableRecordPtrVector & | attributeRecords (unsigned int recordType) const | ||
| Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More... | |||
| virtual DtStandardVariableRecord * | attributeRecord (unsigned int recordType) const | ||
| Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More... | |||
| virtual int | removeAttributeRecord (unsigned int recordType, bool removeAll=true) | ||
| Remove and discard the first record of the given record type (if there is one) or all them. More... | |||
| virtual DtStandardVariableRecordPtrVector & | getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const | ||
| Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More... | |||
| virtual DtStandardVariableRecordPtrVector & | getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const | ||
| Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More... | |||
| virtual void | addAttributeRecord (DtStandardVariableRecord *record) | ||
| Add a clone of given record to the attribute record set. More... | |||
| virtual void | addAttributeRecord (std::unique_ptr< DtStandardVariableRecord > record) | ||
| Add the given record to the attribute record set. More... | |||
| virtual void | clearAttributeRecords () | ||
| Clear all records. More... | |||
| virtual DtStateRepositoryExtension * | stateRepositoryExtension (DtString srExtName) const | ||
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |||
| virtual std::vector< DtString > | stateRepositoryExtensionNames () const | ||
| Returns a set of the registered state repository extension names. More... | |||
| virtual void | setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions) | ||
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |||
| virtual const std::map < DtString, DtStateRepositoryExtension * > | stateRepositoryExtensions () const | ||
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |||
Static Public Member Functions | |
| static DtMode1StateRepository * | create () |
| Create a DtMode1StateRepository. More... | |
| Static Public Member Functions inherited from DtIFFDataStateRepository | |
| static DtIFFDataStateRepository * | create () |
| Create a DtIFFDataStateRepository. More... | |
| Static Public Member Functions inherited from DtStateRepository | |
| static bool | addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc) |
| The following functions are for extending state repositories through State Repository Extension classes. More... | |
Protected Attributes | |
| DtU16 | myCode |
| bool | myExtendedCodeIsSet |
| Protected Attributes inherited from DtIFFDataStateRepository | |
| DtGlobalObjectDesignator | myIFFSystemIdentifier |
| DtIFFDataVariantStructArray | myIffSupplementalData |
| DtFederateIdentifierStruct | myReportingSimulation |
| DtIffDataMode | myMode |
| const DtIffStateRepository * | myIffSR |
| bool | myIsOn |
| bool | myIsDamaged |
| bool | myIsMalfunctioning |
Additional Inherited Members | |
| Public Types inherited from DtStateRepository | |
| typedef std::map< DtString, DtStateRepositoryExtension * > | DtStateRepositoryExtensionMap |
| Public Attributes inherited from DtStateRepository | |
| DtGlobalObjectDesignator | myGlobalId |
| DtAttributeRecordSet | myAttributeRecords |
| DtStandardVariableRecordPtrVector | myReturnedRecords |
| DtStateRepositoryExtensionMap | myStateRepositoryExtensionMap |
| Static Public Attributes inherited from DtStateRepository | |
| static std::map< DtString, DtSrExtCreatorFnc > | theStateRepositoryExtensionCreatorMap |
Instances of DtMode1StateRepository are used to store state data for IFFData.Mode1 objects.
| DtMode1StateRepository::DtMode1StateRepository | ( | ) |
Constructor.
|
virtual |
Destructor.
| DtMode1StateRepository::DtMode1StateRepository | ( | const DtMode1StateRepository & | orig | ) |
Copy Constructor.
|
virtual |
Return a copy/empty object of the same type as this.
Reimplemented from DtIFFDataStateRepository.
|
virtual |
Get the Code attribute.
|
static |
Create a DtMode1StateRepository.
|
virtual |
Get the ExtendedCodeIsSet attribute.
| DtMode1StateRepository& DtMode1StateRepository::operator= | ( | const DtMode1StateRepository & | orig | ) |
Assignment Operator.
|
virtual |
Print data to the DtInfo stream.
Reimplemented from DtIFFDataStateRepository.
|
virtual |
Print data to the specified stream.
Reimplemented from DtIFFDataStateRepository.
|
virtual |
Get the Code attribute.
|
virtual |
Set the ExtendedCodeIsSet attribute.
| val | boolean Specifies whether or not Mark XIIA Enhanced Mode 1 is on |
|
protected |
|
protected |
