DtOwnershipHandler Class Reference

This is a base class meant to encapsulate user callbacks on ownership management services. More...

Inheritance diagram for DtOwnershipHandler:

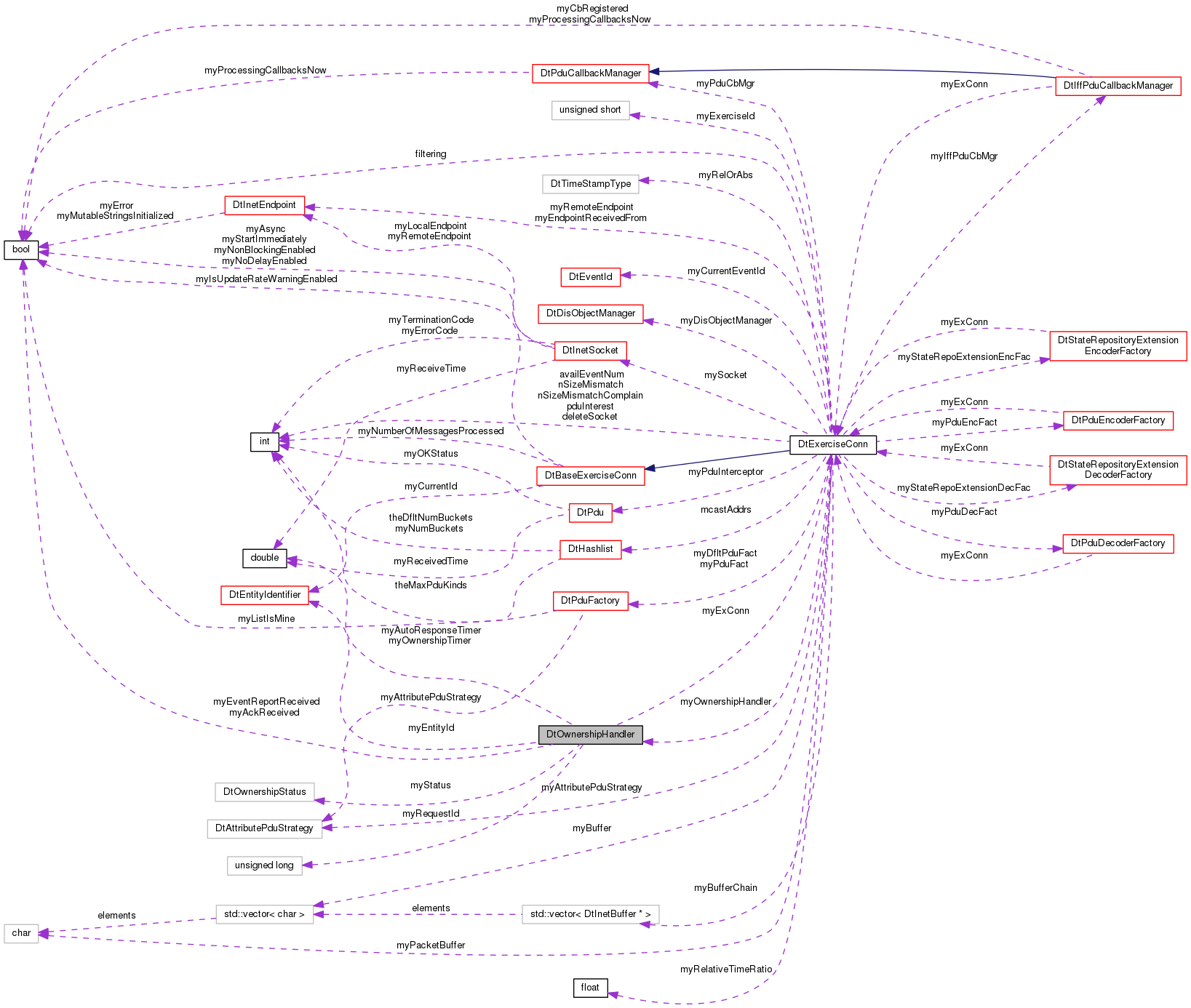

Collaboration diagram for DtOwnershipHandler:

Public Member Functions
	DtOwnershipHandler ()
	Constructor. More...
virtual	~DtOwnershipHandler ()
	Destructor. More...
	DtOwnershipHandler (const DtOwnershipHandler &other)
	Copy constructor. More...
DtOwnershipHandler &	operator= (const DtOwnershipHandler &other)
	Assignment operator. More...
virtual DtOwnershipHandler *	clone () const
	Clone copy. More...
virtual void	divestObject (DtU16 siteTarget, DtU16 applicationTarget)
	Begin a DIS 7 push request for this object The entire process will by default be automated from here. More...
virtual void	acquireObject ()
	Begin a DIS 7 pull request for this object The entire process will by default be automated from here. More...
virtual void	setExConn (DtExerciseConn *exConn)
virtual void	setEntityId (const DtEntityIdentifier &entityId)
virtual void	setAutoResponseTimer (double time)
	By default DIS 7 allows for 5 seconds for transfer ownership to happen before it gets cancelled. More...

Protected Member Functions
virtual void	acknowledgeCallback (DtAcknowledgeRPdu *ack)
virtual void	setRecordCallback (DtSetRecordPdu *setRec)
virtual void	eventReportCallback (DtEventReportPdu *setRec)
virtual void	transferOwnershipCallback (DtTransferControlRequestPdu *transfer)
virtual void	transferFailed ()
	Sent whenever a transfer did not complete. More...
virtual void	gainOwnership ()
	Called whenever the local federate has gained ownership of an object. More...
virtual void	loseOwnership ()
	Called whenever the local federate has lost ownership of an object. More...
virtual bool	requestOwnershipRelease ()
virtual bool	requestOwnershipAssumption ()

Static Protected Member Functions
static void	acknowledgeRCb (DtAcknowledgeRPdu *ack, void *usr)
	The following callbacks are used internally to handle the back and forth messaging required in a DIS ownership transfer. More...
static void	setRecordCb (DtSetRecordPdu *setRec, void *usr)
static void	eventReportCb (DtEventReportPdu *setRec, void *usr)
static void	transferOwnershipCb (DtTransferControlRequestPdu *setRec, void *usr)

Protected Attributes
DtOwnershipStatus	myStatus
DtTime	myOwnershipTimer
double	myAutoResponseTimer
DtU32	myRequestId
DtExerciseConn *	myExConn
DtEntityIdentifier	myEntityId
bool	myAckReceived
bool	myEventReportReceived

Detailed Description

This is a base class meant to encapsulate user callbacks on ownership management services.

Users should derive from this class, override the empty functions declared here with implementations that perform desired actions. The DtDefaultOwnershipHandler is a derivation of this class that provides easy ownership transfer in DIS.

Constructor & Destructor Documentation

DtOwnershipHandler::DtOwnershipHandler

(

)

Constructor.

virtual DtOwnershipHandler::~DtOwnershipHandler ( )

virtual

Destructor.

DtOwnershipHandler::DtOwnershipHandler

(

const DtOwnershipHandler &

other

)

Copy constructor.

Member Function Documentation

virtual void DtOwnershipHandler::acknowledgeCallback ( DtAcknowledgeRPdu *  ack )

protectedvirtual

static void DtOwnershipHandler::acknowledgeRCb ( DtAcknowledgeRPdu *  ack, void *  usr  )

staticprotected

The following callbacks are used internally to handle the back and forth messaging required in a DIS ownership transfer.

virtual void DtOwnershipHandler::acquireObject ( )

virtual

Begin a DIS 7 pull request for this object The entire process will by default be automated from here.

virtual DtOwnershipHandler* DtOwnershipHandler::clone ( ) const

virtual

Clone copy.

Reimplemented in DtDefaultOwnershipHandler.

virtual void DtOwnershipHandler::divestObject ( DtU16  siteTarget, DtU16  applicationTarget  )

virtual

Begin a DIS 7 push request for this object The entire process will by default be automated from here.

Parameters

siteTarget	the destination site where you want the object to go
appicationTarget	the destination application where you want the object to go.

virtual void DtOwnershipHandler::eventReportCallback ( DtEventReportPdu *  setRec )

protectedvirtual

static void DtOwnershipHandler::eventReportCb ( DtEventReportPdu *  setRec, void *  usr  )

staticprotected

virtual void DtOwnershipHandler::gainOwnership ( )

protectedvirtual

Called whenever the local federate has gained ownership of an object.

Reimplemented in DtDefaultOwnershipHandler.

virtual void DtOwnershipHandler::loseOwnership ( )

protectedvirtual

Called whenever the local federate has lost ownership of an object.

Reimplemented in DtDefaultOwnershipHandler.

DtOwnershipHandler& DtOwnershipHandler::operator=

(

const DtOwnershipHandler &

other

)

Assignment operator.

virtual bool DtOwnershipHandler::requestOwnershipAssumption ( )

protectedvirtual

Reimplemented in DtDefaultOwnershipHandler.

virtual bool DtOwnershipHandler::requestOwnershipRelease ( )

protectedvirtual

Reimplemented in DtDefaultOwnershipHandler.

virtual void DtOwnershipHandler::setAutoResponseTimer ( double  time )

virtual

By default DIS 7 allows for 5 seconds for transfer ownership to happen before it gets cancelled.

You can change this value by calling this function.

virtual void DtOwnershipHandler::setEntityId ( const DtEntityIdentifier &  entityId )

virtual

virtual void DtOwnershipHandler::setExConn ( DtExerciseConn *  exConn )

virtual

virtual void DtOwnershipHandler::setRecordCallback ( DtSetRecordPdu *  setRec )

protectedvirtual

static void DtOwnershipHandler::setRecordCb ( DtSetRecordPdu *  setRec, void *  usr  )

staticprotected

virtual void DtOwnershipHandler::transferFailed ( )

protectedvirtual

Sent whenever a transfer did not complete.

virtual void DtOwnershipHandler::transferOwnershipCallback ( DtTransferControlRequestPdu *  transfer )

protectedvirtual

static void DtOwnershipHandler::transferOwnershipCb ( DtTransferControlRequestPdu *  setRec, void *  usr  )

staticprotected

Member Data Documentation

bool DtOwnershipHandler::myAckReceived

protected

double DtOwnershipHandler::myAutoResponseTimer

protected

DtEntityIdentifier DtOwnershipHandler::myEntityId

protected

bool DtOwnershipHandler::myEventReportReceived

protected

DtExerciseConn* DtOwnershipHandler::myExConn

protected

DtTime DtOwnershipHandler::myOwnershipTimer

protected

DtU32 DtOwnershipHandler::myRequestId

protected

DtOwnershipStatus DtOwnershipHandler::myStatus

protected

---

The documentation for this class was generated from the following file:

• ownershipHandlerDIS.h
