DtPduEncoderFactory Class Reference

Instances of DtPduEncoderFactory are used to create encoders which know how to encode a state repository (or host representation) into a DIS Pdu (or network representation). More...

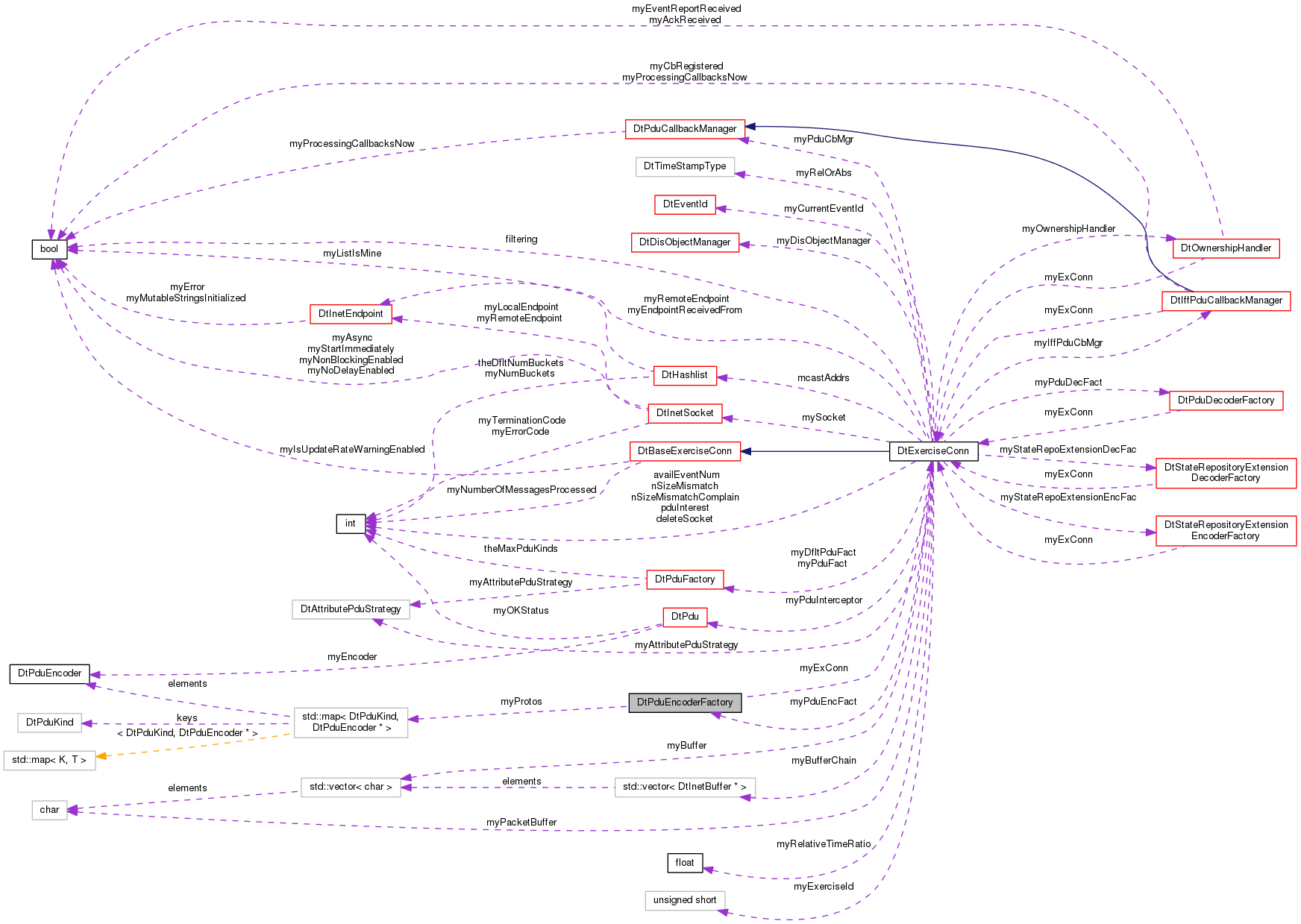

Collaboration diagram for DtPduEncoderFactory:

Public Member Functions
	DtPduEncoderFactory (DtExerciseConn *exConn)
	constructor More...
virtual	~DtPduEncoderFactory ()
	destructor More...
virtual void	initialize ()
virtual DtPduEncoder *	createEncoder (DtPduKind kind)
	Create an encoder for the specified object class. More...
virtual DtPduEncoder *	addEncoder (DtPduKind kind, DtPduEncoder *encoder)
	Add a encoder prototype to the factory. More...
virtual void	clearEncoder (DtPduKind kind)
	remove this specific encoder from the factory. More...
virtual DtPduEncoder *	encoder (DtPduKind kind)
	Returns the encoder prototype associated with handle by a previous call to addEncoder. More...

Protected Types
typedef std::map< DtPduKind, DtPduEncoder * >	PduToEncoderMap

Protected Attributes
PduToEncoderMap	myProtos
DtExerciseConn *	myExConn

Private Member Functions
	DtPduEncoderFactory (const DtPduEncoderFactory &orig)
	copy constructor - not implemented. More...
DtPduEncoderFactory &	operator= (const DtPduEncoderFactory &orig)
	assignment operator - not implemented. More...

Detailed Description

Instances of DtPduEncoderFactory are used to create encoders which know how to encode a state repository (or host representation) into a DIS Pdu (or network representation).

Member Typedef Documentation

typedef std::map<DtPduKind, DtPduEncoder*> DtPduEncoderFactory::PduToEncoderMap

protected

Constructor & Destructor Documentation

DtPduEncoderFactory::DtPduEncoderFactory

(

DtExerciseConn *

exConn

)

constructor

virtual DtPduEncoderFactory::~DtPduEncoderFactory ( )

virtual

destructor

DtPduEncoderFactory::DtPduEncoderFactory ( const DtPduEncoderFactory &  orig )

private

copy constructor - not implemented.

Member Function Documentation

virtual DtPduEncoder* DtPduEncoderFactory::addEncoder ( DtPduKind  kind, DtPduEncoder *  encoder  )

virtual

Add a encoder prototype to the factory.

The encoder prototype will be cloned by createEncoder when called for the appropriate handle. Caller deletes the encoder, but AFTER the encoder factory no longer needs it. Returns any previous encoder which was replaced by the add.

virtual void DtPduEncoderFactory::clearEncoder ( DtPduKind  kind )

virtual

remove this specific encoder from the factory.

If another encoder is not added then this pdu will not encode correctly.

virtual DtPduEncoder* DtPduEncoderFactory::createEncoder ( DtPduKind  kind )

virtual

Create an encoder for the specified object class.

Note: Caller is responsible for deleting. Returns NULL if encoder creation function is not in the factory.

virtual DtPduEncoder* DtPduEncoderFactory::encoder ( DtPduKind  kind )

virtual

Returns the encoder prototype associated with handle by a previous call to addEncoder.

virtual void DtPduEncoderFactory::initialize ( )

virtual

DtPduEncoderFactory& DtPduEncoderFactory::operator= ( const DtPduEncoderFactory &  orig )

private

assignment operator - not implemented.

Member Data Documentation

DtExerciseConn* DtPduEncoderFactory::myExConn

protected

PduToEncoderMap DtPduEncoderFactory::myProtos

protected

---

The documentation for this class was generated from the following file:

• pduEncoderFactory.h
