Instances of DtRadioReceiverRepository are used to store state information for radio receiver objects in both HLA and DIS environments. More...

Inheritance diagram for DtRadioReceiverRepository:

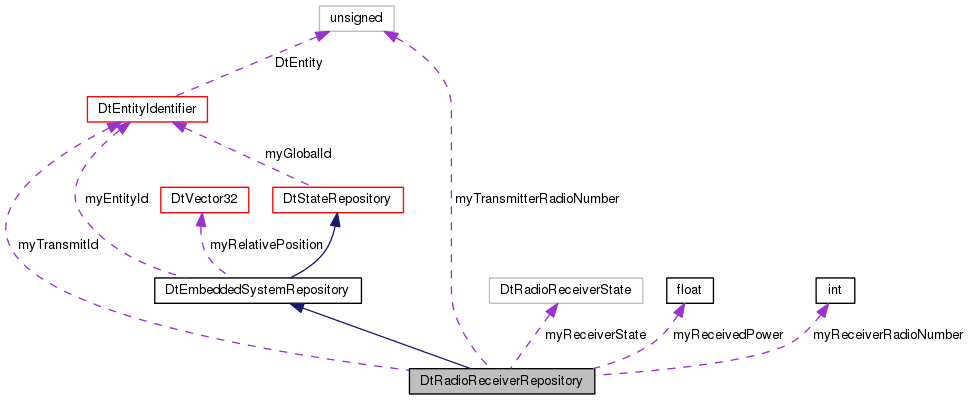

Collaboration diagram for DtRadioReceiverRepository:

Public Member Functions
	DtRadioReceiverRepository ()
	Default constructor. More...

virtual	~DtRadioReceiverRepository ()
	Destructor. More...

	DtRadioReceiverRepository (const DtRadioReceiverRepository &orig)
	Copy constructor. More...

DtRadioReceiverRepository &	operator= (const DtRadioReceiverRepository &orig)
	Assignment operator. More...

virtual DtStateRepository *	clone (bool copy=false) const
	Return a copy/empty object of the same type as this. More...

virtual void	printData () const
	Print the state repository's data to the DtInfo stream. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the state repository to the specified stream. More...


virtual void	setRadioId (unsigned int number)
	Set/Get the Receiver radio number. More...

virtual unsigned int	radioId () const
	Set/Get the Receiver radio number. More...


virtual void	setReceivedPower (DtFloat32 power)
	Set/Get the received power. More...

virtual DtFloat32	receivedPower () const
	Set/Get the received power. More...


virtual void	setTransmitRadioId (const DtGlobalObjectDesignator &id)
	Set/Get the received transmitter. More...

virtual const DtGlobalObjectDesignator &	transmitRadioId () const
	Set/Get the received transmitter. More...


virtual void	setTransmitterId (const DtGlobalObjectDesignator &id)
	Set/Get the transmitter ID. More...

virtual const DtGlobalObjectDesignator &	transmitterId () const
	Set/Get the transmitter ID. More...


virtual void	setTransmitterRadioId (unsigned int num)
	Set/Get the Transmitter Radio ID - this is only used in DIS. More...

virtual unsigned int	transmitterRadioId () const
	Set/Get the Transmitter Radio ID - this is only used in DIS. More...


virtual void	setReceiverState (DtRadioReceiverState state)
	Set/Get the receiver state. More...

virtual DtRadioReceiverState	receiverState () const
	Set/Get the receiver state. More...

Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor More...

	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor More...

virtual	~DtEmbeddedSystemRepository ()
	destructor More...

DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator More...

virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier. More...

virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier. More...

virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier. More...

virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier. More...

virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity. More...

virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity. More...

Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...

	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...

virtual	~DtStateRepository ()
	destructor More...

DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...

virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...

virtual const DtGlobalObjectDesignator &	globalId () const

virtual unsigned int	numberOfAttributeRecords () const

virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...

virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...

virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...

virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...

virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...

virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...

virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...

virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...

virtual void	addAttributeRecord (std::unique_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...

virtual void	clearAttributeRecords ()
	Clear all records. More...

virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...

virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtRadioReceiverRepository *	create ()
	Create a DtRadioReceiverRepository. More...

Static Public Member Functions inherited from DtEmbeddedSystemRepository
static DtEmbeddedSystemRepository *	create ()

Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
int	myReceiverRadioNumber

unsigned int	myTransmitterRadioNumber

DtFloat32	myReceivedPower

DtGlobalObjectDesignator	myTransmitId

DtRadioReceiverState	myReceiverState

Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId

DtVector32	myRelativePosition

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap

Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId

DtAttributeRecordSet	myAttributeRecords

DtStandardVariableRecordPtrVector	myReturnedRecords

DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap

Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtRadioReceiverRepository are used to store state information for radio receiver objects in both HLA and DIS environments.

Constructor & Destructor Documentation

DtRadioReceiverRepository::DtRadioReceiverRepository ( )

Default constructor.

virtual DtRadioReceiverRepository::~DtRadioReceiverRepository ( )

virtual

Destructor.

DtRadioReceiverRepository::DtRadioReceiverRepository ( const DtRadioReceiverRepository & orig )

Copy constructor.

Member Function Documentation

virtual DtStateRepository* DtRadioReceiverRepository::clone ( bool copy = false ) const

virtual

Return a copy/empty object of the same type as this.

Parameters

copy	tells the methods whether to copy the state repository.

Reimplemented from DtEmbeddedSystemRepository.

static DtRadioReceiverRepository* DtRadioReceiverRepository::create ( )

static

Create a DtRadioReceiverRepository.

DtRadioReceiverRepository& DtRadioReceiverRepository::operator= ( const DtRadioReceiverRepository & orig )

Assignment operator.

virtual void DtRadioReceiverRepository::printData ( ) const

virtual

Print the state repository's data to the DtInfo stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual void DtRadioReceiverRepository::printDataToStream ( std::ostream & stream ) const

virtual

Print the state repository to the specified stream.

Reimplemented from DtEmbeddedSystemRepository.

virtual unsigned int DtRadioReceiverRepository::radioId ( ) const

virtual

Set/Get the Receiver radio number.

Referenced by DtReflectedRadioReceiver::radioId().

virtual DtFloat32 DtRadioReceiverRepository::receivedPower ( ) const

virtual

Set/Get the received power.

virtual DtRadioReceiverState DtRadioReceiverRepository::receiverState ( ) const

virtual

Set/Get the receiver state.

virtual void DtRadioReceiverRepository::setRadioId ( unsigned int number )

virtual

Set/Get the Receiver radio number.

virtual void DtRadioReceiverRepository::setReceivedPower ( DtFloat32 power )

virtual

Set/Get the received power.

virtual void DtRadioReceiverRepository::setReceiverState ( DtRadioReceiverState state )

virtual

Set/Get the receiver state.

virtual void DtRadioReceiverRepository::setTransmitRadioId ( const DtGlobalObjectDesignator & id )

virtual

Set/Get the received transmitter.

This function is used for HLA, but DIS calls in the Transmitter Entity so in DIS the identification is the ENtity + the Radio Number.

Deprecated:: The methods, setTransmitterId() and transmitterId() should be used instead.

virtual void DtRadioReceiverRepository::setTransmitterId ( const DtGlobalObjectDesignator & id )

virtual

Set/Get the transmitter ID.

virtual void DtRadioReceiverRepository::setTransmitterRadioId ( unsigned int num )

virtual

Set/Get the Transmitter Radio ID - this is only used in DIS.

virtual const DtGlobalObjectDesignator& DtRadioReceiverRepository::transmitRadioId ( ) const

virtual

Set/Get the received transmitter.

This function is used for HLA, but DIS calls in the Transmitter Entity so in DIS the identification is the ENtity + the Radio Number.

Deprecated:: The methods, setTransmitterId() and transmitterId() should be used instead.

virtual const DtGlobalObjectDesignator& DtRadioReceiverRepository::transmitterId ( ) const

virtual

Set/Get the transmitter ID.

virtual unsigned int DtRadioReceiverRepository::transmitterRadioId ( ) const

virtual

Set/Get the Transmitter Radio ID - this is only used in DIS.

Member Data Documentation

DtFloat32 DtRadioReceiverRepository::myReceivedPower

protected

int DtRadioReceiverRepository::myReceiverRadioNumber

protected

DtRadioReceiverState DtRadioReceiverRepository::myReceiverState

protected

DtGlobalObjectDesignator DtRadioReceiverRepository::myTransmitId

protected

unsigned int DtRadioReceiverRepository::myTransmitterRadioNumber

protected

The documentation for this class was generated from the following file:

radioReceiverRepository.h
