Instances of this class provide a protocol independent interface to a list of reflected emitters in a DIS environment. More...

Inheritance diagram for DtReflectedIffList:

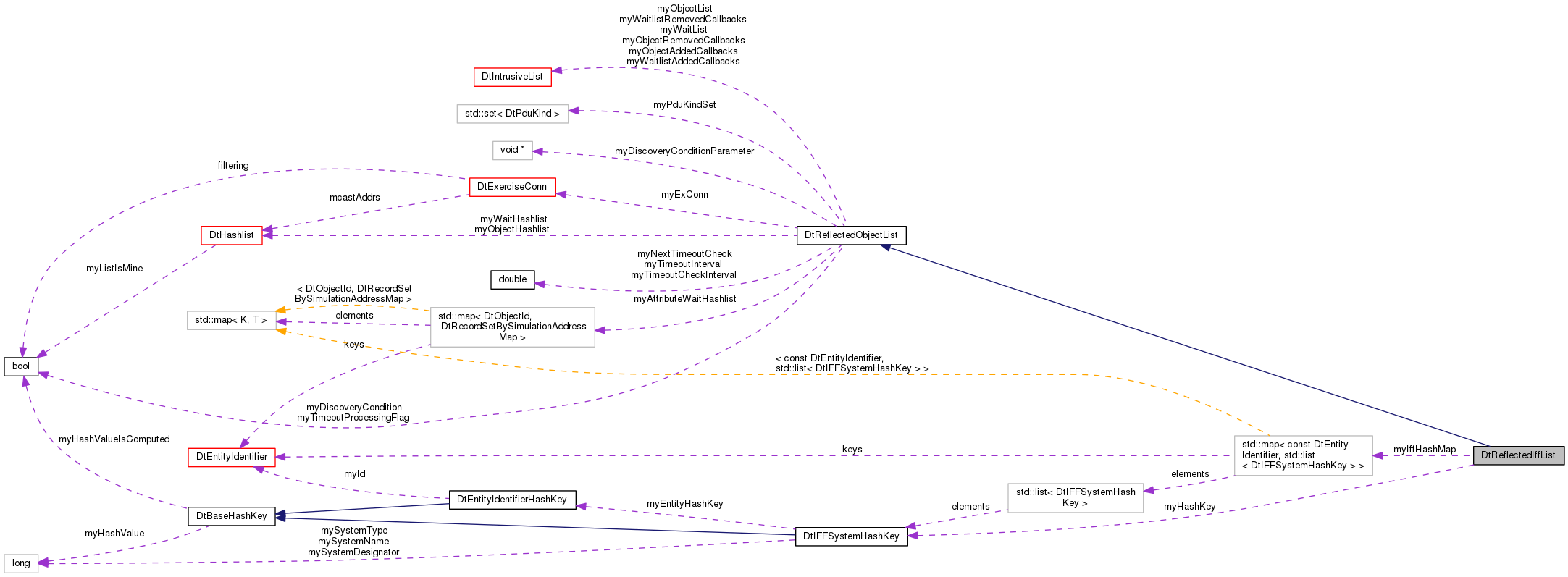

Collaboration diagram for DtReflectedIffList:

Public Member Functions
	DtReflectedIffList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...

virtual	~DtReflectedIffList ()
	Destructor. More...

virtual DtReflectedIff *	lookup (const DtGlobalObjectDesignator &emittingEntity, DtU16 systemType, DtU16 systemName, DtU8 systemDesignator) const
	Lookup an emitter from its object ID. More...

virtual DtReflectedIff *	lookup (const DtGlobalObjectDesignator &emittingEntity) const
	Lookup the first emitter from it's object ID. More...

virtual DtReflectedIff *	first () const
	Get the first and last elements of the IFF list. More...

virtual DtReflectedIff *	last () const

virtual void	addIffAdditionCallback (DtIffCallbackFunction cb, void *userData)
	Emitter added callback registration/deregistration. More...

virtual void	removeIffAdditionCallback (DtIffCallbackFunction cb, void *userData)

virtual void	addEmitterAdditionCallback (DtIffCallbackFunction cb, void *userData)
	DEPRECATED, USE addIffAdditionCallback. More...

virtual void	removeEmitterAdditionCallback (DtIffCallbackFunction cb, void *userData)
	DEPRECATED, USE removeIffAdditionCallbac. More...

virtual void	addIffRemovalCallback (DtIffCallbackFunction cb, void *userData)
	Emitter removed callback registration/deregistration. More...

virtual void	removeIffRemovalCallback (DtIffCallbackFunction cb, void *userData)

virtual void	addEmitterRemovalCallback (DtIffCallbackFunction cb, void *userData)
	DEPRECATED, use addIffRemovalCallback. More...

virtual void	removeEmitterRemovalCallback (DtIffCallbackFunction cb, void *userData)
	DEPRECATED, use removeIffRemovalCallback. More...

virtual void	print ()
	Print the SRs of all objects. More...

virtual int	acceptPdu (const DtStateMsg &) const
	Determines if a IFF PDU is a state PDUs or an interaction PDUs. More...

Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, int numBucketsPrimeNumber=503)
	Constructor. More...

virtual	~DtReflectedObjectList ()
	destructor Warning: makes non-virtual call to removeAndDelete More...

virtual void	initializeAttributePduKindsOfInterest (const std::set< DtPduKind > &pduKinds)
	This initializes which PDU kinds will be processed when receiving an Attribute PDU. More...

virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...

virtual DtReflectedObject *	lastObj () const

virtual int	count () const
	Get number of objects. More...

virtual DtReflectedObject *	lookupObj (const DtBaseHashKey &key) const
	Search for an object. More...

virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...

virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...

virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...

virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	print () const
	Print the SRs of all objects. More...

virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...

virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...

virtual DtTime	timeoutInterval ()

virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the ref. More...

virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...

virtual void	removeObject (DtReflectedObject *obj)
	This is the same as removeAndDelete, it exists to maintain equality with HLA objects. More...

virtual DtTime	timeoutCheckInterval () const

virtual void	setTimeoutCheckInterval (DtTime interval)

virtual void	addWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Callback registration for when objects are added or removed from the waitlist. More...

virtual void	removeWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)

virtual void	addWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Waitlist removed callback registration/deregistration. More...

virtual void	removeWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)

Protected Member Functions
DtReflectedIffList &	operator= (const DtReflectedIffList &orig)
	Assignment operator – not implemented. More...

	DtReflectedIffList (const DtReflectedIffList &orig)
	Copy constructor – not implemented. More...

virtual DtReflectedIff *	newReflectedIff (const DtGlobalObjectDesignator &emittingEntity, DtU16 systemType, DtU16 systemName, DtU8 systemDesignator)
	Create a new object from a global designator. More...

virtual DtReflectedObject *	newReflectedObj (const DtStateMsg &msg)
	Overrides base class's implementation. Always returns NULL. More...

virtual DtReflectedObject *	processStateMessage (const DtStateMsg &msg)
	Process an incoming state message. More...

virtual void	objectAdded (DtReflectedObject *obj)
	Called after an entity is added and before addition callbacks are processed. More...

virtual const DtBaseHashKey &	hashKeyFromStateMessage (const DtStateMsg *msg)
	Get a hash key from a state message. More...

virtual void	removeAndDelete (DtReflectedObject obj, const char msg=NULL)
	Remove the remote object from the list if found and delete it. More...

Protected Member Functions inherited from DtReflectedObjectList
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...

virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...

void	emptyLists ()
	Empty the object list and the timeout list. More...

void	emptyCallbackLists ()

virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...

virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)

virtual void	processWaitlistAdditionCallbacks (DtReflectedObject *object)
	Process waitlist addition/removal callbacks. More...

virtual void	processWaitlistRemovalCallbacks (DtReflectedObject *object)

virtual DtBaseHashKey *	hashKeyFromAttributeRecordSet (const DtAttributeRecordSet &recordSet)
	Get a hash key from an attribute record set. More...

virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myDiscoveryCondition from within. More...

virtual void	processAttributePduCb (DtAttributeInteraction *inter)

virtual void	processAttributePduRecordSet (const DtAttributeRecordSet &recordSet, const DtSimulationAddress &simAddr, DtReflectedObject *obj=0)

virtual void	processAttributePduWaitListCb (DtReflectedObject *obj)

virtual void	deleteRecordSetBySimulationAddressMap (DtRecordSetBySimulationAddressMap &recordSetMap, const DtSimulationAddress &simAddr=DtSimulationAddress()) const

Static Protected Member Functions
static void	emIffCb (DtIffAtcNavaidsPdu pdu, void usr)
	Callback for the exercise connection. More...

Static Protected Member Functions inherited from DtReflectedObjectList
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...

static void	processAttributePduCb (DtAttributeInteraction inter, void usr)

static void	processAttributePduWaitListCb (DtReflectedObject obj, void userData)

Protected Attributes
DtIFFSystemHashKey	myHashKey

std::map< const DtGlobalObjectDesignator, std::list< DtIFFSystemHashKey > >	myIffHashMap

Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn

DtIntrusiveList	myObjectAddedCallbacks

DtIntrusiveList	myObjectRemovedCallbacks

DtIntrusiveList	myWaitlistAddedCallbacks

DtIntrusiveList	myWaitlistRemovedCallbacks

DtIntrusiveList	myObjectList

DtIntrusiveList	myWaitList

DtHashlist	myObjectHashlist

DtHashlist	myWaitHashlist

DtAttributesByObjectIdMap	myAttributeWaitHashlist

DtTime	myTimeoutInterval

DtTime	myNextTimeoutCheck

DtTime	myTimeoutCheckInterval

bool	myTimeoutProcessingFlag

DtDiscoveryCondition	myDiscoveryCondition

void *	myDiscoveryConditionParameter

std::set< DtPduKind >	myPduKindSet

Detailed Description

Instances of this class provide a protocol independent interface to a list of reflected emitters in a DIS environment.

Constructor & Destructor Documentation

DtReflectedIffList::DtReflectedIffList	(	DtExerciseConn *	exConn,
		int	numBucketsPrimeNumber = `503`
	)

Constructor.

virtual DtReflectedIffList::~DtReflectedIffList ( )

virtual

Destructor.

DtReflectedIffList::DtReflectedIffList ( const DtReflectedIffList & orig )

protected

Copy constructor – not implemented.

Member Function Documentation

virtual int DtReflectedIffList::acceptPdu ( const DtStateMsg & ) const

virtual

Determines if a IFF PDU is a state PDUs or an interaction PDUs.

Returns 1 for state PDUs; returns 0 for interaction PDUs

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedIffList::addEmitterAdditionCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

DEPRECATED, USE addIffAdditionCallback.

virtual void DtReflectedIffList::addEmitterRemovalCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

DEPRECATED, use addIffRemovalCallback.

virtual void DtReflectedIffList::addIffAdditionCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

Emitter added callback registration/deregistration.

virtual void DtReflectedIffList::addIffRemovalCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

Emitter removed callback registration/deregistration.

static void DtReflectedIffList::emIffCb	(	DtIffAtcNavaidsPdu *	pdu,
		void *	usr
	)

staticprotected

Callback for the exercise connection.

virtual DtReflectedIff* DtReflectedIffList::first ( ) const

virtual

Get the first and last elements of the IFF list.

virtual const DtBaseHashKey& DtReflectedIffList::hashKeyFromStateMessage ( const DtStateMsg * msg )

protectedvirtual

Get a hash key from a state message.

Implements DtReflectedObjectList.

virtual DtReflectedIff* DtReflectedIffList::last ( ) const

virtual

virtual DtReflectedIff* DtReflectedIffList::lookup	(	const DtGlobalObjectDesignator &	emittingEntity,
		DtU16	systemType,
		DtU16	systemName,
		DtU8	systemDesignator
	)		const

virtual

Lookup an emitter from its object ID.

virtual DtReflectedIff* DtReflectedIffList::lookup ( const DtGlobalObjectDesignator & emittingEntity ) const

virtual

Lookup the first emitter from it's object ID.

useful if you know there is only one emitter.

virtual DtReflectedIff* DtReflectedIffList::newReflectedIff	(	const DtGlobalObjectDesignator &	emittingEntity,
		DtU16	systemType,
		DtU16	systemName,
		DtU8	systemDesignator
	)

protectedvirtual

Create a new object from a global designator.

virtual DtReflectedObject* DtReflectedIffList::newReflectedObj ( const DtStateMsg & msg )

protectedvirtual

Overrides base class's implementation. Always returns NULL.

Implements DtReflectedObjectList.

virtual void DtReflectedIffList::objectAdded ( DtReflectedObject * obj )

protectedvirtual

Called after an entity is added and before addition callbacks are processed.

Right now, this function only calls DtInfo.

Reimplemented from DtReflectedObjectList.

DtReflectedIffList& DtReflectedIffList::operator= ( const DtReflectedIffList & orig )

protected

Assignment operator – not implemented.

virtual void DtReflectedIffList::print ( )

virtual

Print the SRs of all objects.

virtual DtReflectedObject* DtReflectedIffList::processStateMessage ( const DtStateMsg & msg )

protectedvirtual

Process an incoming state message.

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedIffList::removeAndDelete	(	DtReflectedObject *	obj,
		const char *	msg = `NULL`
	)

protectedvirtual

Remove the remote object from the list if found and delete it.

Prints a message on deletion if specified.

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedIffList::removeEmitterAdditionCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

DEPRECATED, USE removeIffAdditionCallbac.

virtual void DtReflectedIffList::removeEmitterRemovalCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

DEPRECATED, use removeIffRemovalCallback.

virtual void DtReflectedIffList::removeIffAdditionCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

virtual void DtReflectedIffList::removeIffRemovalCallback	(	DtIffCallbackFunction	cb,
		void *	userData
	)

virtual

Member Data Documentation

DtIFFSystemHashKey DtReflectedIffList::myHashKey

protected

std::map<const DtGlobalObjectDesignator, std::list<DtIFFSystemHashKey> > DtReflectedIffList::myIffHashMap

protected

The documentation for this class was generated from the following file:

reflectedIffListDIS.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
