Instances of DtRunwayPdu are used for DIS network packets which encode the DtAerodromeStateRepository repository. More...

Inheritance diagram for DtRunwayPdu:

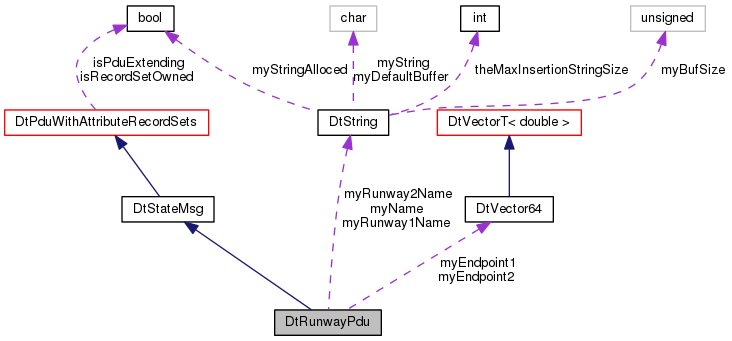

Collaboration diagram for DtRunwayPdu:

Public Member Functions
	DtRunwayPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors. More...

	DtRunwayPdu (const DtNetPacket initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)

virtual	~DtRunwayPdu ()
	destructor More...

virtual void	setVersion (DtU16 val)
	Set the PDU version. More...

virtual DtU16	version () const
	Get the PDU version. More...

virtual void	setEntityId (const DtEntityIdentifier &val)
	Set the Entity Identifier. More...

virtual DtEntityIdentifier	entityId () const

virtual void	setUniqueId (const DtVrlUuid &val)
	Set the UniqueId. More...

DtVrlUuid	uniqueId () const
	Get the UniqueId. More...

virtual void	setAerodromeId (const DtVrlUuid &val)
	Set the Aerodrome Unique ID. More...

DtVrlUuid	aerodromeId () const
	Get the Aerodrome Unique ID. More...

virtual void	setDamaged (bool val)
	Set the Damage state. More...

virtual bool	damaged () const
	Get the Damage state. More...

virtual void	setCondition (const DtRunwayConditionEnum8 &val)
	Set the Condition of the runway. More...

virtual const DtString	name ()
	Returns the Runway name, which combines both Runway1Name and Runway2Name in the form of "Runway1Name/Runway2Name". More...

virtual const DtRunwayConditionEnum8	condition () const
	Get the Condition. More...

virtual void	setRunway1Name (const DtString &val)
	Set name for Runway1. More...

virtual const DtString &	runway1Name () const
	Get the name for Runway1. More...

virtual void	setRunway2Name (const DtString &val)
	Set name for Runway2. More...

virtual const DtString &	runway2Name () const
	Get the name for Runway2. More...

virtual void	setRunway1Active (bool val)
	Set the Runway1Active. More...

virtual bool	runway1Active () const
	Get the Runway1Active. More...

virtual void	setRunway2Active (bool val)
	Set the Runway2Active. More...

virtual bool	runway2Active () const
	Get the Runway2Active. More...

virtual void	setRunway1CenterLineLight (DtU8 val)
	Set the Runway1CenterLineLight. More...

virtual DtU8	runway1CenterLineLight () const
	Get the Runway1CenterLineLight. More...

virtual void	setRunway2CenterLineLight (DtU8 val)
	Set the Runway2CenterLineLight. More...

virtual DtU8	runway2CenterLineLight () const
	Get the Runway2CenterLineLight. More...

virtual void	setRunway1DistanceToGoLight (bool onOff)
	Set the Runway1DistanceToGoLight on or off. More...

virtual bool	runway1DistanceToGoLight () const
	Get the Runway1DistanceToGoLight on or off state. More...

virtual void	setRunway2DistanceToGoLight (bool onOff)
	Set the Runway2DistanceToGoLight on or off. More...

virtual bool	runway2DistanceToGoLight () const
	Get the Runway2DistanceToGoLight on or off state. More...

virtual void	setRunway1EdgeLight (DtU8 val)
	Set the Runway1EdgeLight. More...

virtual DtU8	runway1EdgeLight () const
	Get the Runway1EdgeLight. More...

virtual void	setRunway2EdgeLight (DtU8 val)
	Set the Runway2EdgeLight. More...

virtual DtU8	runway2EdgeLight () const
	Get the Runway2EdgeLight. More...

virtual void	setRunway1DisplacedThresholdLight (DtU8 val)
	Set the Runway1DisplacedThresholdLight. More...

virtual DtU8	runway1DisplacedThresholdLight () const
	Get the Runway1DisplacedThresholdLight. More...

virtual void	setRunway2DisplacedThresholdLight (DtU8 val)
	Set the Runway2DisplacedThresholdLight. More...

virtual DtU8	runway2DisplacedThresholdLight () const
	Get the Runway2DisplacedThresholdLight. More...

virtual void	setRunway1EndLight (DtU8 val)
	Set the Runway1EndLight. More...

virtual DtU8	runway1EndLight () const
	Get the Runway1EndLight. More...

virtual void	setRunway2EndLight (DtU8 val)
	Set the Runway2EndLight. More...

virtual DtU8	runway2EndLight () const
	Get the Runway2EndLight. More...

virtual void	setRunway1TouchDownZoneLight (DtU8 val)
	Set the Runway1TouchDownZoneLight. More...

virtual DtU8	runway1TouchDownZoneLight () const
	Get the Runway1TouchDownZoneLight. More...

virtual void	setRunway2TouchDownZoneLight (DtU8 val)
	Set the Runway2TouchDownZoneLight. More...

virtual DtU8	runway2TouchDownZoneLight () const
	Get the Runway2TouchDownZoneLight. More...

virtual void	setRunway1ThresholdLightingLight (DtU8 val)
	Set the Runway1ThresholdLightingLight. More...

virtual DtU8	runway1ThresholdLightingLight () const
	Get the Runway1ThresholdLightingLight. More...

virtual void	setRunway2ThresholdLightingLight (DtU8 val)
	Set the Runway2ThresholdLightingLight. More...

virtual DtU8	runway2ThresholdLightingLight () const
	Get the Runway2ThresholdLightingLight. More...

virtual void	setRunway1RunwayEndIndicatorLight (DtU8 val)
	Set the Runway1RunwayEndIndicatorLight. More...

virtual DtU8	runway1RunwayEndIndicatorLight () const
	Get the Runway1RunwayEndIndicatorLight. More...

virtual void	setRunway2RunwayEndIndicatorLight (DtU8 val)
	Set the Runway2RunwayEndIndicatorLight. More...

virtual DtU8	runway2RunwayEndIndicatorLight () const
	Get the Runway2RunwayEndIndicatorLight. More...

virtual void	setRunway1ApproachLight (DtU8 val)
	Set the Runway1ApproachLight. More...

virtual DtU8	runway1ApproachLight () const
	Get the Runway1ApproachLight. More...

virtual void	setRunway2ApproachLight (DtU8 val)
	Set the Runway2ApproachLight. More...

virtual DtU8	runway2ApproachLight () const
	Get the Runway2ApproachLight. More...

virtual void	setRunway1VGSILight (DtU8 val)
	Set the Runway1VGSILight. More...

virtual DtU8	runway1VGSILight () const
	Get the Runway1VGSILight. More...

virtual void	setRunway2VGSILight (DtU8 val)
	Set the Runway2VGSILight. More...

virtual DtU8	runway2VGSILight () const
	Get the Runway2VGSILight. More...

virtual void	setRunwayGuardLight (DtU8 val)
	Set the RunwayGuardLight. More...

virtual DtU8	runwayGuardLight () const
	Get the RunwayGuardLight. More...

virtual void	setRunway1RapidExitTaxiwayLight (DtU8 val)
	Set the Runway1RapidExitTaxiwayLight. More...

virtual DtU8	runway1RapidExitTaxiwayLight () const
	Get the Runway1RapidExitTaxiwayLight. More...

virtual void	setRunway2RapidExitTaxiwayLight (DtU8 val)
	Set the Runway2RapidExitTaxiwayLight. More...

virtual DtU8	runway2RapidExitTaxiwayLight () const
	Get the Runway2RapidExitTaxiwayLight. More...

virtual void	setRunway1RunwayExitLight (DtU8 val)
	Set the Runway1RunwayExitLight. More...

virtual DtU8	runway1RunwayExitLight () const
	Get the Runway1RunwayExitLight. More...

virtual void	setRunway2RunwayExitLight (DtU8 val)
	Set the Runway2RunwayExitLight. More...

virtual DtU8	runway2RunwayExitLight () const
	Get the Runway2RunwayExitLight. More...

virtual void	setRunway1TaxiwayLeadOnLight (DtU8 val)
	Set the Runway1TaxiwayLeadOnLight. More...

virtual DtU8	runway1TaxiwayLeadOnLight () const
	Get the Runway1TaxiwayLeadOnLight. More...

virtual void	setRunway2TaxiwayLeadOnLight (DtU8 val)
	Set the Runway2TaxiwayLeadOnLight. More...

virtual DtU8	runway2TaxiwayLeadOnLight () const
	Get the Runway2TaxiwayLeadOnLight. More...

virtual void	setRunway1TaxiwayStopBarLight (DtU8 val)
	Set the Runway1TaxiwayStopBarLight. More...

virtual DtU8	runway1TaxiwayStopBarLight () const
	Get the Runway1TaxiwayStopBarLight. More...

virtual void	setRunway2TaxiwayStopBarLight (DtU8 val)
	Set the Runway2TaxiwayStopBarLight. More...

virtual DtU8	runway2TaxiwayStopBarLight () const
	Get the Runway2TaxiwayStopBarLight. More...

virtual void	setRunway1PrethresholdEdgeLight (DtU8 val)
	Set the Runway1PrethresholdEdgeLight. More...

virtual DtU8	runway1PrethresholdEdgeLight () const
	Get the Runway1PrethresholdEdgeLight. More...

virtual void	setRunway2PrethresholdEdgeLight (DtU8 val)
	Set the Runway2PrethresholdEdgeLight. More...

virtual DtU8	runway2PrethresholdEdgeLight () const
	Get the Runway2PrethresholdEdgeLight. More...

virtual void	setRunway1ArrestorGearUp (bool val)
	Set the Runway1ArrestorGearUp. More...

virtual bool	runway1ArrestorGearUp () const
	Get the Runway1ArrestorGearUp. More...

virtual void	setRunway2ArrestorGearUp (bool val)
	Set the Runway2ArrestorGearUp. More...

virtual bool	runway2ArrestorGearUp () const
	Get the Runway2ArrestorGearUp. More...

virtual void	setEndpoint1 (DtVector val)
	Set the Endpoint1. More...

virtual DtVector	endpoint1 () const
	Get the Endpoint1. More...

virtual void	setEndpoint2 (DtVector val)
	Set the Endpoint2. More...

virtual DtVector	endpoint2 () const
	Get the Endpoint2. More...

void	printData () const
	Print functions. More...

void	printDataToStream (std::ostream &stream) const

DtString	uniqueKey () const

Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor More...

virtual	~DtStateMsg ()
	destructor More...

	DtStateMsg (const DtStateMsg &orig)
	copy constructor More...

DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator More...

Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor. More...

	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor. More...

DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator. More...

virtual	~DtPduWithAttributeRecordSets ()
	Destructor. More...

virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets() More...

virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo. More...

virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream. More...

virtual void	addRecord (std::unique_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record. More...

virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record. More...

virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier. More...

virtual void	clearAllRecordSets ()
	Removes all RecordSets. More...

virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets. More...

virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers. More...

virtual const DtStandardVariableRecordPtrVector &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier. More...

virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier. More...

virtual const DtStandardVariableRecordPtrVector	allRecords () const
	This will return the Records of all Record Sets. More...

virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets. More...

virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier. More...

virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher). More...

virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists. More...

virtual void	encode ()
	Encode method. More...

virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method. More...

virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets. More...

virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets. More...

virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding. More...

virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const

virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets. More...

virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map. More...

virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not) More...

virtual void	setAttributeStrategy (DtAttributePduStrategy strat)

virtual DtAttributePduStrategy	attributePduStrategy () const

virtual bool	shouldAttributePduBeCoupled () const

Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor. More...

	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator. More...

virtual void *	packet () const
	Older function that returns a pointer to the network representation. More...

virtual int	status () const
	Get PDU status. More...

virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header. More...

virtual int	protocolVersion () const

virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header. More...

virtual int	exerciseId () const

virtual DtPduKind	kind () const
	Returns PDU kind from PDU header. More...

virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type. More...

virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header. More...

virtual void	setReceivedTime (DtTime t)
	absRealTime when PDU was received into buffer. More...

virtual DtTime	receivedTime () const

virtual void	setPduLength (unsigned int length)
	Set the PDU header's length. More...

virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header. More...

virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header. More...

virtual int	pduStatus () const
	Returns the PDU Status from the PDU header. More...

virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference. More...

virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference. More...

virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header. More...

virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header. More...

virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled. More...

virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled. More...

virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header. More...

virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header. More...

virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header. More...

virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header. More...

virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header. More...

virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header. More...

virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header. More...

virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header. More...

virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header. More...

virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header. More...

virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header. More...

virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header. More...

virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo). More...

virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo). More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream. More...

virtual void	printDataToString (DtString &str) const

virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex. More...

virtual bool	isTransientPdu () const
	This method returns true if transient, false if state. More...

Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor. More...

	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor. More...

DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment. More...

virtual const char *	netRep () const
	Get network representation. More...

virtual int	length () const
	Get size of message. More...

	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called. More...

void	initMsg (int size, DtBufferPtr bufferPtr)

void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)

virtual void	changeSize (int size)
	Changes the size of the message. More...

virtual void	changeBufferSize (int size)
	Changes the size of the message buffer, but not the message itself. More...

virtual void	insertBytes (int offset, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep. More...

virtual void	insertBytes (void *address, int numBytes)
	Inserts numBytes zeroed-out bytes at the indicated address. More...

virtual void	deleteBytes (int offset, int numBytes)
	Deletes numBytes bytes at the indicated offset in the net rep. More...

virtual void	deleteBytes (void *address, int numBytes)
	Deletes numBytes bytes starting at the indicated address. More...

virtual void	clearAll ()
	Zeros out all bytes in the network representation. More...

virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPduHeader initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory pduFactory=0)
	Create a DtRunwayPdu. More...

static void	addCallback (DtExerciseConn conn, DtRunwayPduCb cb, void usr)
	Add (register)/Remove (deregister) function to be called when a PDU is received. More...

static void	removeCallback (DtExerciseConn conn, DtRunwayPduCb cb, void usr)

Protected Member Functions
virtual unsigned int	fixedBytesSize () const

virtual char *	firstVarDatumStart () const

DtPduKind	internalGetPduKind () const
	Returns the PDU kind associated with the derived PDU class. More...

Protected Member Functions inherited from DtPduWithAttributeRecordSets
virtual void	deepAttributeRecordSetMapCopy (const DtAttributeRecordSetMap &orig)
	Performs a deep copy. More...

virtual void	printRecordSetToStream (const DtEntityIdentifier &id, std::ostream &stream) const

Protected Member Functions inherited from DtPdu
	DtPdu ()
	Constructor. More...

virtual void	setStatus (int okStatus)
	Sets the PDU's status to okStatus. More...

virtual void	initPdu (int size, DtBufferPtr buffer)
	Must be called after default ctor before PDU is completely constructed. More...

virtual void	initPdu (const void initial, DtBufferPtr buffer, DtPduFactory pduFactory)
	Called by from-net-rep ctor. Initializes DtBaseMsg. More...

virtual DtProtocolFamily	kindToFamily (DtPduKind kind) const
	Maps PDU kind to ProtocolFamily. More...

virtual void	sizeChanged (int size)
	Called by changeSize. Sets the size in the header to size. More...

virtual void	clearData ()
	zeros out all bytes after the PDU header. More...

virtual void	initHeader (DtPduKind kind, int size)
	Initializes PDU header. Called by initPdu. More...

virtual bool	isTEIApplicable () const
	Returns whether a PDU Status is applicable to this PDU (based on PDU Type) These methods are only relevant in DIS 7 and greater. More...

virtual bool	isLVCApplicable () const

virtual bool	isCEIApplicable () const

virtual bool	isFTIApplicable () const

virtual bool	isDTIApplicable () const

virtual bool	isRAIApplicable () const

virtual bool	isIAIApplicable () const

virtual bool	isISMApplicable () const

virtual bool	isAIIApplicable () const

Static Protected Member Functions
static DtPduKind	internalGetPduKindImpl ()

Protected Attributes
DtString	myName

DtString	myRunway1Name

DtString	myRunway2Name

DtVector	myEndpoint1

DtVector	myEndpoint2

Protected Attributes inherited from DtPduWithAttributeRecordSets
DtAttributeRecordSetMap	myAttributeRecordSetMap
	The Map which holds the Record Sets (Set of Record Sets) where the Entity Identifier is the key. More...

bool	isRecordSetOwned

bool	isPduExtending

DtStandardVariableRecordFactory *	mySVRFactory

DtPduDecoder *	myAttributeDecoder

DtPduEncoder *	myAttributeEncoder

DtSimulationAddress	myAttributePduOriginatingSimulationAddress

DtAttributePduStrategy	myAttributePduStrategy

Protected Attributes inherited from DtPdu
DtPduEncoder *	myEncoder

DtPduDecoder *	myDecoder

int	myOKStatus

DtTime	myReceivedTime

Protected Attributes inherited from DtBaseMsg
void *	myNetMsg

void *	myInternalBuff

int	myIntBuffSize

int	myMsgSize

int	myNetworkMsgSize

Private Member Functions
	DtRunwayPdu (const DtRunwayPdu &orig)
	Copy CTOR not implemented. More...

DtRunwayPdu &	operator= (const DtRunwayPdu &orig)
	Assignment operator not implemented. More...

Additional Inherited Members
Static Protected Attributes inherited from DtPduWithAttributeRecordSets
static const DtAttributeRecordSet	theEmptyAttributeRecordSet

Detailed Description

Instances of DtRunwayPdu are used for DIS network packets which encode the DtAerodromeStateRepository repository.

The actual network layout occures in the DtNetAerodromePdu.

Constructor & Destructor Documentation

DtRunwayPdu::DtRunwayPdu ( DtBufferPtr buffer = DtUSE_INTERNAL_BUFFER )

Constructors.

DtRunwayPdu::DtRunwayPdu	(	const DtNetPacket *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

virtual DtRunwayPdu::~DtRunwayPdu ( )

virtual

destructor

DtRunwayPdu::DtRunwayPdu ( const DtRunwayPdu & orig )

private

Copy CTOR not implemented.

Member Function Documentation

static void DtRunwayPdu::addCallback	(	DtExerciseConn *	conn,
		DtRunwayPduCb	cb,
		void *	usr
	)

static

Add (register)/Remove (deregister) function to be called when a PDU is received.

DtVrlUuid DtRunwayPdu::aerodromeId ( ) const

Get the Aerodrome Unique ID.

virtual const DtRunwayConditionEnum8 DtRunwayPdu::condition ( ) const

virtual

Get the Condition.

static DtPdu* DtRunwayPdu::create	(	const DtNetPduHeader *	initial,
		DtBufferPtr	buffer = `DtUSE_INTERNAL_BUFFER`,
		DtPduFactory *	pduFactory = `0`
	)

static

Create a DtRunwayPdu.

Caller is responsible for deletion.

virtual bool DtRunwayPdu::damaged ( ) const

virtual

Get the Damage state.

virtual DtVector DtRunwayPdu::endpoint1 ( ) const

virtual

Get the Endpoint1.

virtual DtVector DtRunwayPdu::endpoint2 ( ) const

virtual

Get the Endpoint2.

virtual DtEntityIdentifier DtRunwayPdu::entityId ( ) const

virtual

virtual char* DtRunwayPdu::firstVarDatumStart ( ) const

protectedvirtual

virtual unsigned int DtRunwayPdu::fixedBytesSize ( ) const

protectedvirtual

DtPduKind DtRunwayPdu::internalGetPduKind ( ) const

inlineprotectedvirtual

Returns the PDU kind associated with the derived PDU class.

Implements DtPdu.

static DtPduKind DtRunwayPdu::internalGetPduKindImpl ( )

inlinestaticprotected

References DtRunwayPduKind.

virtual const DtString DtRunwayPdu::name ( )

virtual

Returns the Runway name, which combines both Runway1Name and Runway2Name in the form of "Runway1Name/Runway2Name".

DtRunwayPdu& DtRunwayPdu::operator= ( const DtRunwayPdu & orig )

private

Assignment operator not implemented.

void DtRunwayPdu::printData ( ) const

virtual

Print functions.

Reimplemented from DtPdu.

void DtRunwayPdu::printDataToStream ( std::ostream & stream ) const

virtual

Reimplemented from DtPdu.

static void DtRunwayPdu::removeCallback	(	DtExerciseConn *	conn,
		DtRunwayPduCb	cb,
		void *	usr
	)

static

virtual bool DtRunwayPdu::runway1Active ( ) const

virtual

Get the Runway1Active.

virtual DtU8 DtRunwayPdu::runway1ApproachLight ( ) const

virtual

Get the Runway1ApproachLight.

virtual bool DtRunwayPdu::runway1ArrestorGearUp ( ) const

virtual

Get the Runway1ArrestorGearUp.

virtual DtU8 DtRunwayPdu::runway1CenterLineLight ( ) const

virtual

Get the Runway1CenterLineLight.

virtual DtU8 DtRunwayPdu::runway1DisplacedThresholdLight ( ) const

virtual

Get the Runway1DisplacedThresholdLight.

virtual bool DtRunwayPdu::runway1DistanceToGoLight ( ) const

virtual

Get the Runway1DistanceToGoLight on or off state.

virtual DtU8 DtRunwayPdu::runway1EdgeLight ( ) const

virtual

Get the Runway1EdgeLight.

virtual DtU8 DtRunwayPdu::runway1EndLight ( ) const

virtual

Get the Runway1EndLight.

virtual const DtString& DtRunwayPdu::runway1Name ( ) const

virtual

Get the name for Runway1.

virtual DtU8 DtRunwayPdu::runway1PrethresholdEdgeLight ( ) const

virtual

Get the Runway1PrethresholdEdgeLight.

virtual DtU8 DtRunwayPdu::runway1RapidExitTaxiwayLight ( ) const

virtual

Get the Runway1RapidExitTaxiwayLight.

virtual DtU8 DtRunwayPdu::runway1RunwayEndIndicatorLight ( ) const

virtual

Get the Runway1RunwayEndIndicatorLight.

virtual DtU8 DtRunwayPdu::runway1RunwayExitLight ( ) const

virtual

Get the Runway1RunwayExitLight.

virtual DtU8 DtRunwayPdu::runway1TaxiwayLeadOnLight ( ) const

virtual

Get the Runway1TaxiwayLeadOnLight.

virtual DtU8 DtRunwayPdu::runway1TaxiwayStopBarLight ( ) const

virtual

Get the Runway1TaxiwayStopBarLight.

virtual DtU8 DtRunwayPdu::runway1ThresholdLightingLight ( ) const

virtual

Get the Runway1ThresholdLightingLight.

virtual DtU8 DtRunwayPdu::runway1TouchDownZoneLight ( ) const

virtual

Get the Runway1TouchDownZoneLight.

virtual DtU8 DtRunwayPdu::runway1VGSILight ( ) const

virtual

Get the Runway1VGSILight.

virtual bool DtRunwayPdu::runway2Active ( ) const

virtual

Get the Runway2Active.

virtual DtU8 DtRunwayPdu::runway2ApproachLight ( ) const

virtual

Get the Runway2ApproachLight.

virtual bool DtRunwayPdu::runway2ArrestorGearUp ( ) const

virtual

Get the Runway2ArrestorGearUp.

virtual DtU8 DtRunwayPdu::runway2CenterLineLight ( ) const

virtual

Get the Runway2CenterLineLight.

virtual DtU8 DtRunwayPdu::runway2DisplacedThresholdLight ( ) const

virtual

Get the Runway2DisplacedThresholdLight.

virtual bool DtRunwayPdu::runway2DistanceToGoLight ( ) const

virtual

Get the Runway2DistanceToGoLight on or off state.

virtual DtU8 DtRunwayPdu::runway2EdgeLight ( ) const

virtual

Get the Runway2EdgeLight.

virtual DtU8 DtRunwayPdu::runway2EndLight ( ) const

virtual

Get the Runway2EndLight.

virtual const DtString& DtRunwayPdu::runway2Name ( ) const

virtual

Get the name for Runway2.

virtual DtU8 DtRunwayPdu::runway2PrethresholdEdgeLight ( ) const

virtual

Get the Runway2PrethresholdEdgeLight.

virtual DtU8 DtRunwayPdu::runway2RapidExitTaxiwayLight ( ) const

virtual

Get the Runway2RapidExitTaxiwayLight.

virtual DtU8 DtRunwayPdu::runway2RunwayEndIndicatorLight ( ) const

virtual

Get the Runway2RunwayEndIndicatorLight.

virtual DtU8 DtRunwayPdu::runway2RunwayExitLight ( ) const

virtual

Get the Runway2RunwayExitLight.

virtual DtU8 DtRunwayPdu::runway2TaxiwayLeadOnLight ( ) const

virtual

Get the Runway2TaxiwayLeadOnLight.

virtual DtU8 DtRunwayPdu::runway2TaxiwayStopBarLight ( ) const

virtual

Get the Runway2TaxiwayStopBarLight.

virtual DtU8 DtRunwayPdu::runway2ThresholdLightingLight ( ) const

virtual

Get the Runway2ThresholdLightingLight.

virtual DtU8 DtRunwayPdu::runway2TouchDownZoneLight ( ) const

virtual

Get the Runway2TouchDownZoneLight.

virtual DtU8 DtRunwayPdu::runway2VGSILight ( ) const

virtual

Get the Runway2VGSILight.

virtual DtU8 DtRunwayPdu::runwayGuardLight ( ) const

virtual

Get the RunwayGuardLight.

virtual void DtRunwayPdu::setAerodromeId ( const DtVrlUuid & val )

virtual

Set the Aerodrome Unique ID.

virtual void DtRunwayPdu::setCondition ( const DtRunwayConditionEnum8 & val )

virtual

Set the Condition of the runway.

virtual void DtRunwayPdu::setDamaged ( bool val )

virtual

Set the Damage state.

virtual void DtRunwayPdu::setEndpoint1 ( DtVector val )

virtual

Set the Endpoint1.

virtual void DtRunwayPdu::setEndpoint2 ( DtVector val )

virtual

Set the Endpoint2.

virtual void DtRunwayPdu::setEntityId ( const DtEntityIdentifier & val )

virtual

Set the Entity Identifier.

virtual void DtRunwayPdu::setRunway1Active ( bool val )

virtual

Set the Runway1Active.

virtual void DtRunwayPdu::setRunway1ApproachLight ( DtU8 val )

virtual

Set the Runway1ApproachLight.

virtual void DtRunwayPdu::setRunway1ArrestorGearUp ( bool val )

virtual

Set the Runway1ArrestorGearUp.

virtual void DtRunwayPdu::setRunway1CenterLineLight ( DtU8 val )

virtual

Set the Runway1CenterLineLight.

virtual void DtRunwayPdu::setRunway1DisplacedThresholdLight ( DtU8 val )

virtual

Set the Runway1DisplacedThresholdLight.

virtual void DtRunwayPdu::setRunway1DistanceToGoLight ( bool onOff )

virtual

Set the Runway1DistanceToGoLight on or off.

virtual void DtRunwayPdu::setRunway1EdgeLight ( DtU8 val )

virtual

Set the Runway1EdgeLight.

virtual void DtRunwayPdu::setRunway1EndLight ( DtU8 val )

virtual

Set the Runway1EndLight.

virtual void DtRunwayPdu::setRunway1Name ( const DtString & val )

virtual

Set name for Runway1.

virtual void DtRunwayPdu::setRunway1PrethresholdEdgeLight ( DtU8 val )

virtual

Set the Runway1PrethresholdEdgeLight.

virtual void DtRunwayPdu::setRunway1RapidExitTaxiwayLight ( DtU8 val )

virtual

Set the Runway1RapidExitTaxiwayLight.

virtual void DtRunwayPdu::setRunway1RunwayEndIndicatorLight ( DtU8 val )

virtual

Set the Runway1RunwayEndIndicatorLight.

virtual void DtRunwayPdu::setRunway1RunwayExitLight ( DtU8 val )

virtual

Set the Runway1RunwayExitLight.

virtual void DtRunwayPdu::setRunway1TaxiwayLeadOnLight ( DtU8 val )

virtual

Set the Runway1TaxiwayLeadOnLight.

virtual void DtRunwayPdu::setRunway1TaxiwayStopBarLight ( DtU8 val )

virtual

Set the Runway1TaxiwayStopBarLight.

virtual void DtRunwayPdu::setRunway1ThresholdLightingLight ( DtU8 val )

virtual

Set the Runway1ThresholdLightingLight.

virtual void DtRunwayPdu::setRunway1TouchDownZoneLight ( DtU8 val )

virtual

Set the Runway1TouchDownZoneLight.

virtual void DtRunwayPdu::setRunway1VGSILight ( DtU8 val )

virtual

Set the Runway1VGSILight.

virtual void DtRunwayPdu::setRunway2Active ( bool val )

virtual

Set the Runway2Active.

virtual void DtRunwayPdu::setRunway2ApproachLight ( DtU8 val )

virtual

Set the Runway2ApproachLight.

virtual void DtRunwayPdu::setRunway2ArrestorGearUp ( bool val )

virtual

Set the Runway2ArrestorGearUp.

virtual void DtRunwayPdu::setRunway2CenterLineLight ( DtU8 val )

virtual

Set the Runway2CenterLineLight.

virtual void DtRunwayPdu::setRunway2DisplacedThresholdLight ( DtU8 val )

virtual

Set the Runway2DisplacedThresholdLight.

virtual void DtRunwayPdu::setRunway2DistanceToGoLight ( bool onOff )

virtual

Set the Runway2DistanceToGoLight on or off.

virtual void DtRunwayPdu::setRunway2EdgeLight ( DtU8 val )

virtual

Set the Runway2EdgeLight.

virtual void DtRunwayPdu::setRunway2EndLight ( DtU8 val )

virtual

Set the Runway2EndLight.

virtual void DtRunwayPdu::setRunway2Name ( const DtString & val )

virtual

Set name for Runway2.

virtual void DtRunwayPdu::setRunway2PrethresholdEdgeLight ( DtU8 val )

virtual

Set the Runway2PrethresholdEdgeLight.

virtual void DtRunwayPdu::setRunway2RapidExitTaxiwayLight ( DtU8 val )

virtual

Set the Runway2RapidExitTaxiwayLight.

virtual void DtRunwayPdu::setRunway2RunwayEndIndicatorLight ( DtU8 val )

virtual

Set the Runway2RunwayEndIndicatorLight.

virtual void DtRunwayPdu::setRunway2RunwayExitLight ( DtU8 val )

virtual

Set the Runway2RunwayExitLight.

virtual void DtRunwayPdu::setRunway2TaxiwayLeadOnLight ( DtU8 val )

virtual

Set the Runway2TaxiwayLeadOnLight.

virtual void DtRunwayPdu::setRunway2TaxiwayStopBarLight ( DtU8 val )

virtual

Set the Runway2TaxiwayStopBarLight.

virtual void DtRunwayPdu::setRunway2ThresholdLightingLight ( DtU8 val )

virtual

Set the Runway2ThresholdLightingLight.

virtual void DtRunwayPdu::setRunway2TouchDownZoneLight ( DtU8 val )

virtual

Set the Runway2TouchDownZoneLight.

virtual void DtRunwayPdu::setRunway2VGSILight ( DtU8 val )

virtual

Set the Runway2VGSILight.

virtual void DtRunwayPdu::setRunwayGuardLight ( DtU8 val )

virtual

Set the RunwayGuardLight.

virtual void DtRunwayPdu::setUniqueId ( const DtVrlUuid & val )

virtual

Set the UniqueId.

virtual void DtRunwayPdu::setVersion ( DtU16 val )

virtual

Set the PDU version.

DtVrlUuid DtRunwayPdu::uniqueId ( ) const

Get the UniqueId.

DtString DtRunwayPdu::uniqueKey ( ) const

virtual DtU16 DtRunwayPdu::version ( ) const

virtual

Get the PDU version.

Member Data Documentation

DtVector DtRunwayPdu::myEndpoint1

mutableprotected

DtVector DtRunwayPdu::myEndpoint2

mutableprotected

DtString DtRunwayPdu::myName

mutableprotected

DtString DtRunwayPdu::myRunway1Name

mutableprotected

DtString DtRunwayPdu::myRunway2Name

mutableprotected

The documentation for this class was generated from the following file:

runwayPdu.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
