DtRunwayStateRepository Class Reference

Instances of DtRunwayStateRepository are used to store state data for runway objects. More...

Inheritance diagram for DtRunwayStateRepository:

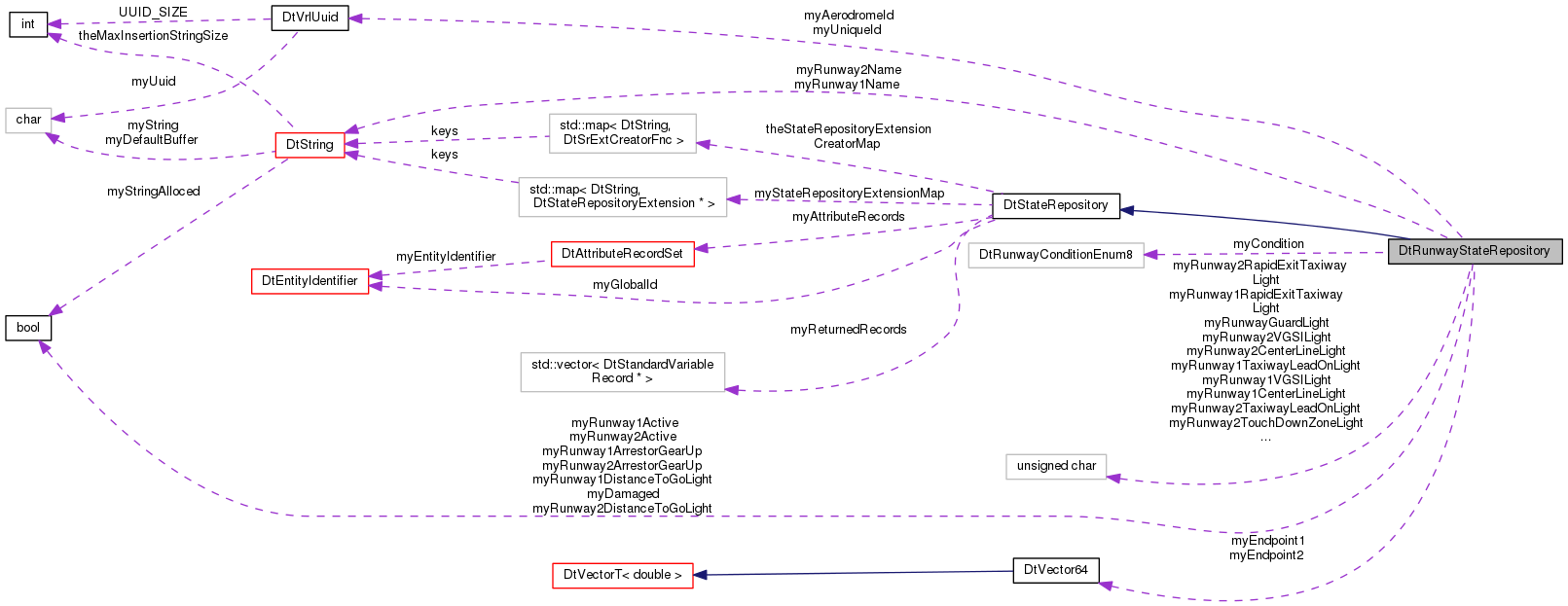

Collaboration diagram for DtRunwayStateRepository:

Public Member Functions
	DtRunwayStateRepository ()
	Constructor. More...
virtual	~DtRunwayStateRepository ()
	Destructor. More...
	DtRunwayStateRepository (const DtRunwayStateRepository &orig)
	Copy Constructor. More...
DtRunwayStateRepository &	operator= (const DtRunwayStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setUniqueId (const DtVrlUuid &val)
	Set the UniqueId. More...
virtual const DtVrlUuid &	uniqueId () const
	Get the UniqueId. More...
virtual void	setAerodromeId (const DtVrlUuid &val)
	Set the AerodromeId. More...
virtual const DtVrlUuid &	aerodromeId () const
	Get the AerodromeId. More...
virtual void	setDamaged (bool val)
	Set the Damage state. More...
virtual bool	damaged () const
	Get the Damage state. More...
virtual void	setCondition (const DtRunwayConditionEnum8 &val)
	Set the Condition of the runway. More...
virtual const DtString	name ()
	Returns the Runway name, which combines both Runway1Name and Runway2Name in the form of "Runway1Name/Runway2Name". More...
virtual const DtRunwayConditionEnum8 &	condition () const
	Get the Condition. More...
virtual void	setRunway1Name (const DtString &val)
	Set name for Runway1. More...
virtual const DtString &	runway1Name () const
	Get the name for Runway1. More...
virtual void	setRunway2Name (const DtString &val)
	Set name for Runway2. More...
virtual const DtString &	runway2Name () const
	Get the name for Runway2. More...
virtual void	setRunway1Active (bool val)
	Set the Runway1Active. More...
virtual bool	runway1Active () const
	Get the Runway1Active. More...
virtual void	setRunway2Active (bool val)
	Set the Runway2Active. More...
virtual bool	runway2Active () const
	Get the Runway2Active. More...
virtual void	setRunway1CenterLineLight (DtU8 val)
	Set the Runway1CenterLineLight. More...
virtual DtU8	runway1CenterLineLight () const
	Get the Runway1CenterLineLight. More...
virtual void	setRunway2CenterLineLight (DtU8 val)
	Set the Runway2CenterLineLight. More...
virtual DtU8	runway2CenterLineLight () const
	Get the Runway2CenterLineLight. More...
virtual void	setRunway1DistanceToGoLight (bool onOff)
	Set the Runway1DistanceToGoLight to on or off. More...
virtual bool	runway1DistanceToGoLight () const
	Get the Runway1DistanceToGoLight on or off state. More...
virtual void	setRunway2DistanceToGoLight (bool onOff)
	Set the Runway2DistanceToGoLight to on or off. More...
virtual bool	runway2DistanceToGoLight () const
	Get the Runway2DistanceToGoLight on or off state. More...
virtual void	setRunway1EdgeLight (DtU8 val)
	Set the Runway1EdgeLight. More...
virtual DtU8	runway1EdgeLight () const
	Get the Runway1EdgeLight. More...
virtual void	setRunway2EdgeLight (DtU8 val)
	Set the Runway2EdgeLight. More...
virtual DtU8	runway2EdgeLight () const
	Get the Runway2EdgeLight. More...
virtual void	setRunway1DisplacedThresholdLight (DtU8 val)
	Set the Runway1DisplacedThresholdLight. More...
virtual DtU8	runway1DisplacedThresholdLight () const
	Get the Runway1DisplacedThresholdLight. More...
virtual void	setRunway2DisplacedThresholdLight (DtU8 val)
	Set the Runway2DisplacedThresholdLight. More...
virtual DtU8	runway2DisplacedThresholdLight () const
	Get the Runway2DisplacedThresholdLight. More...
virtual void	setRunway1EndLight (DtU8 val)
	Set the Runway1EndLight. More...
virtual DtU8	runway1EndLight () const
	Get the Runway1EndLight. More...
virtual void	setRunway2EndLight (DtU8 val)
	Set the Runway2EndLight. More...
virtual DtU8	runway2EndLight () const
	Get the Runway2EndLight. More...
virtual void	setRunway1TouchDownZoneLight (DtU8 val)
	Set the Runway1TouchDownZoneLight. More...
virtual DtU8	runway1TouchDownZoneLight () const
	Get the Runway1TouchDownZoneLight. More...
virtual void	setRunway2TouchDownZoneLight (DtU8 val)
	Set the Runway2TouchDownZoneLight. More...
virtual DtU8	runway2TouchDownZoneLight () const
	Get the Runway2TouchDownZoneLight. More...
virtual void	setRunway1ThresholdLightingLight (DtU8 val)
	Set the Runway1ThresholdLightingLight. More...
virtual DtU8	runway1ThresholdLightingLight () const
	Get the Runway1ThresholdLightingLight. More...
virtual void	setRunway2ThresholdLightingLight (DtU8 val)
	Set the Runway2ThresholdLightingLight. More...
virtual DtU8	runway2ThresholdLightingLight () const
	Get the Runway2ThresholdLightingLight. More...
virtual void	setRunway1RunwayEndIndicatorLight (DtU8 val)
	Set the Runway1RunwayEndIndicatorLight. More...
virtual DtU8	runway1RunwayEndIndicatorLight () const
	Get the Runway1RunwayEndIndicatorLight. More...
virtual void	setRunway2RunwayEndIndicatorLight (DtU8 val)
	Set the Runway2RunwayEndIndicatorLight. More...
virtual DtU8	runway2RunwayEndIndicatorLight () const
	Get the Runway2RunwayEndIndicatorLight. More...
virtual void	setRunway1ApproachLight (DtU8 val)
	Set the Runway1ApproachLight. More...
virtual DtU8	runway1ApproachLight () const
	Get the Runway1ApproachLight. More...
virtual void	setRunway2ApproachLight (DtU8 val)
	Set the Runway2ApproachLight. More...
virtual DtU8	runway2ApproachLight () const
	Get the Runway2ApproachLight. More...
virtual void	setRunway1VGSILight (DtU8 val)
	Set the Runway1VGSILight. More...
virtual DtU8	runway1VGSILight () const
	Get the Runway1VGSILight. More...
virtual void	setRunway2VGSILight (DtU8 val)
	Set the Runway2VGSILight. More...
virtual DtU8	runway2VGSILight () const
	Get the Runway2VGSILight. More...
virtual void	setRunwayGuardLight (DtU8 val)
	Set the RunwayGuardLight. More...
virtual DtU8	runwayGuardLight () const
	Get the RunwayGuardLight. More...
virtual void	setRunway1RapidExitTaxiwayLight (DtU8 val)
	Set the Runway1RapidExitTaxiwayLight. More...
virtual DtU8	runway1RapidExitTaxiwayLight () const
	Get the Runway1RapidExitTaxiwayLight. More...
virtual void	setRunway2RapidExitTaxiwayLight (DtU8 val)
	Set the Runway2RapidExitTaxiwayLight. More...
virtual DtU8	runway2RapidExitTaxiwayLight () const
	Get the Runway2RapidExitTaxiwayLight. More...
virtual void	setRunway1RunwayExitLight (DtU8 val)
	Set the Runway1RunwayExitLight. More...
virtual DtU8	runway1RunwayExitLight () const
	Get the Runway1RunwayExitLight. More...
virtual void	setRunway2RunwayExitLight (DtU8 val)
	Set the Runway2RunwayExitLight. More...
virtual DtU8	runway2RunwayExitLight () const
	Get the Runway2RunwayExitLight. More...
virtual void	setRunway1TaxiwayLeadOnLight (DtU8 val)
	Set the Runway1TaxiwayLeadOnLight. More...
virtual DtU8	runway1TaxiwayLeadOnLight () const
	Get the Runway1TaxiwayLeadOnLight. More...
virtual void	setRunway2TaxiwayLeadOnLight (DtU8 val)
	Set the Runway2TaxiwayLeadOnLight. More...
virtual DtU8	runway2TaxiwayLeadOnLight () const
	Get the Runway2TaxiwayLeadOnLight. More...
virtual void	setRunway1TaxiwayStopBarLight (DtU8 val)
	Set the Runway1TaxiwayStopBarLight. More...
virtual DtU8	runway1TaxiwayStopBarLight () const
	Get the Runway1TaxiwayStopBarLight. More...
virtual void	setRunway2TaxiwayStopBarLight (DtU8 val)
	Set the Runway2TaxiwayStopBarLight. More...
virtual DtU8	runway2TaxiwayStopBarLight () const
	Get the Runway2TaxiwayStopBarLight. More...
virtual void	setRunway1PrethresholdEdgeLight (DtU8 val)
	Set the Runway1PrethresholdEdgeLight. More...
virtual DtU8	runway1PrethresholdEdgeLight () const
	Get the Runway1PrethresholdEdgeLight. More...
virtual void	setRunway2PrethresholdEdgeLight (DtU8 val)
	Set the Runway2PrethresholdEdgeLight. More...
virtual DtU8	runway2PrethresholdEdgeLight () const
	Get the Runway2PrethresholdEdgeLight. More...
virtual void	setRunway1ArrestorGearUp (bool val)
	Set the Runway1ArrestorGearUp. More...
virtual bool	runway1ArrestorGearUp () const
	Get the Runway1ArrestorGearUp. More...
virtual void	setRunway2ArrestorGearUp (bool val)
	Set the Runway2ArrestorGearUp. More...
virtual bool	runway2ArrestorGearUp () const
	Get the Runway2ArrestorGearUp. More...
virtual void	setEndpoint1 (DtVector val)
	Set the Endpoint1. More...
virtual DtVector	endpoint1 () const
	Get the Endpoint1. More...
virtual void	setEndpoint2 (DtVector val)
	Set the Endpoint2. More...
virtual DtVector	endpoint2 () const
	Get the Endpoint2. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
virtual unsigned int	numberOfAttributeRecords () const
virtual void	setAttributeRecords (const DtAttributeRecordSet &records)
	The following functions are related to the extendability part of DIS 7. More...
virtual void	setAttributeRecords (const DtStandardVariableRecordPtrVector &records)
	Replace the attribute record set with the records in the given vector. More...
virtual const DtAttributeRecordSet &	attributeRecordSet () const
	Return the attribute record set. More...
virtual DtAttributeRecordSet &	attributeRecordSet ()
	Return the attribute record set. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords () const
	Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual const DtStandardVariableRecordPtrVector &	attributeRecords (unsigned int recordType) const
	Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecord *	attributeRecord (unsigned int recordType) const
	Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More...
virtual int	removeAttributeRecord (unsigned int recordType, bool removeAll=true)
	Remove and discard the first record of the given record type (if there is one) or all them. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual DtStandardVariableRecordPtrVector &	getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const
	Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More...
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
	Add a clone of given record to the attribute record set. More...
virtual void	addAttributeRecord (std::unique_ptr< DtStandardVariableRecord > record)
	Add the given record to the attribute record set. More...
virtual void	clearAttributeRecords ()
	Clear all records. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtRunwayStateRepository *	create ()
	Create a DtRunwayStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtVrlUuid	myUniqueId
DtVrlUuid	myAerodromeId
bool	myDamaged
DtRunwayConditionEnum8	myCondition
DtString	myRunway1Name
DtString	myRunway2Name
bool	myRunway1Active
bool	myRunway2Active
DtU8	myRunway1CenterLineLight
DtU8	myRunway2CenterLineLight
bool	myRunway1DistanceToGoLight
bool	myRunway2DistanceToGoLight
DtU8	myRunway1EdgeLight
DtU8	myRunway2EdgeLight
DtU8	myRunway1DisplacedThresholdLight
DtU8	myRunway2DisplacedThresholdLight
DtU8	myRunway1EndLight
DtU8	myRunway2EndLight
DtU8	myRunway1TouchDownZoneLight
DtU8	myRunway2TouchDownZoneLight
DtU8	myRunway1ThresholdLightingLight
DtU8	myRunway2ThresholdLightingLight
DtU8	myRunway1RunwayEndIndicatorLight
DtU8	myRunway2RunwayEndIndicatorLight
DtU8	myRunway1ApproachLight
DtU8	myRunway2ApproachLight
DtU8	myRunway1VGSILight
DtU8	myRunway2VGSILight
DtU8	myRunwayGuardLight
DtU8	myRunway1RapidExitTaxiwayLight
DtU8	myRunway2RapidExitTaxiwayLight
DtU8	myRunway1RunwayExitLight
DtU8	myRunway2RunwayExitLight
DtU8	myRunway1TaxiwayLeadOnLight
DtU8	myRunway2TaxiwayLeadOnLight
DtU8	myRunway1TaxiwayStopBarLight
DtU8	myRunway2TaxiwayStopBarLight
DtU8	myRunway1PrethresholdEdgeLight
DtU8	myRunway2PrethresholdEdgeLight
bool	myRunway1ArrestorGearUp
bool	myRunway2ArrestorGearUp
DtVector64	myEndpoint1
DtVector64	myEndpoint2

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtAttributeRecordSet	myAttributeRecords
DtStandardVariableRecordPtrVector	myReturnedRecords
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtRunwayStateRepository are used to store state data for runway objects.

Constructor & Destructor Documentation

DtRunwayStateRepository::DtRunwayStateRepository

(

)

Constructor.

virtual DtRunwayStateRepository::~DtRunwayStateRepository ( )

virtual

Destructor.

DtRunwayStateRepository::DtRunwayStateRepository

(

const DtRunwayStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual const DtVrlUuid& DtRunwayStateRepository::aerodromeId ( ) const

virtual

Get the AerodromeId.

virtual DtStateRepository* DtRunwayStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtStateRepository.

virtual const DtRunwayConditionEnum8& DtRunwayStateRepository::condition ( ) const

virtual

Get the Condition.

static DtRunwayStateRepository* DtRunwayStateRepository::create ( )

static

Create a DtRunwayStateRepository.

virtual bool DtRunwayStateRepository::damaged ( ) const

virtual

Get the Damage state.

virtual DtVector DtRunwayStateRepository::endpoint1 ( ) const

virtual

Get the Endpoint1.

virtual DtVector DtRunwayStateRepository::endpoint2 ( ) const

virtual

Get the Endpoint2.

virtual const DtString DtRunwayStateRepository::name ( )

virtual

Returns the Runway name, which combines both Runway1Name and Runway2Name in the form of "Runway1Name/Runway2Name".

DtRunwayStateRepository& DtRunwayStateRepository::operator=

(

const DtRunwayStateRepository &

orig

)

Assignment Operator.

virtual void DtRunwayStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtStateRepository.

virtual void DtRunwayStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtStateRepository.

virtual bool DtRunwayStateRepository::runway1Active ( ) const

virtual

Get the Runway1Active.

virtual DtU8 DtRunwayStateRepository::runway1ApproachLight ( ) const

virtual

Get the Runway1ApproachLight.

virtual bool DtRunwayStateRepository::runway1ArrestorGearUp ( ) const

virtual

Get the Runway1ArrestorGearUp.

virtual DtU8 DtRunwayStateRepository::runway1CenterLineLight ( ) const

virtual

Get the Runway1CenterLineLight.

virtual DtU8 DtRunwayStateRepository::runway1DisplacedThresholdLight ( ) const

virtual

Get the Runway1DisplacedThresholdLight.

virtual bool DtRunwayStateRepository::runway1DistanceToGoLight ( ) const

virtual

Get the Runway1DistanceToGoLight on or off state.

virtual DtU8 DtRunwayStateRepository::runway1EdgeLight ( ) const

virtual

Get the Runway1EdgeLight.

virtual DtU8 DtRunwayStateRepository::runway1EndLight ( ) const

virtual

Get the Runway1EndLight.

virtual const DtString& DtRunwayStateRepository::runway1Name ( ) const

virtual

Get the name for Runway1.

virtual DtU8 DtRunwayStateRepository::runway1PrethresholdEdgeLight ( ) const

virtual

Get the Runway1PrethresholdEdgeLight.

virtual DtU8 DtRunwayStateRepository::runway1RapidExitTaxiwayLight ( ) const

virtual

Get the Runway1RapidExitTaxiwayLight.

virtual DtU8 DtRunwayStateRepository::runway1RunwayEndIndicatorLight ( ) const

virtual

Get the Runway1RunwayEndIndicatorLight.

virtual DtU8 DtRunwayStateRepository::runway1RunwayExitLight ( ) const

virtual

Get the Runway1RunwayExitLight.

virtual DtU8 DtRunwayStateRepository::runway1TaxiwayLeadOnLight ( ) const

virtual

Get the Runway1TaxiwayLeadOnLight.

virtual DtU8 DtRunwayStateRepository::runway1TaxiwayStopBarLight ( ) const

virtual

Get the Runway1TaxiwayStopBarLight.

virtual DtU8 DtRunwayStateRepository::runway1ThresholdLightingLight ( ) const

virtual

Get the Runway1ThresholdLightingLight.

virtual DtU8 DtRunwayStateRepository::runway1TouchDownZoneLight ( ) const

virtual

Get the Runway1TouchDownZoneLight.

virtual DtU8 DtRunwayStateRepository::runway1VGSILight ( ) const

virtual

Get the Runway1VGSILight.

virtual bool DtRunwayStateRepository::runway2Active ( ) const

virtual

Get the Runway2Active.

virtual DtU8 DtRunwayStateRepository::runway2ApproachLight ( ) const

virtual

Get the Runway2ApproachLight.

virtual bool DtRunwayStateRepository::runway2ArrestorGearUp ( ) const

virtual

Get the Runway2ArrestorGearUp.

virtual DtU8 DtRunwayStateRepository::runway2CenterLineLight ( ) const

virtual

Get the Runway2CenterLineLight.

virtual DtU8 DtRunwayStateRepository::runway2DisplacedThresholdLight ( ) const

virtual

Get the Runway2DisplacedThresholdLight.

virtual bool DtRunwayStateRepository::runway2DistanceToGoLight ( ) const

virtual

Get the Runway2DistanceToGoLight on or off state.

virtual DtU8 DtRunwayStateRepository::runway2EdgeLight ( ) const

virtual

Get the Runway2EdgeLight.

virtual DtU8 DtRunwayStateRepository::runway2EndLight ( ) const

virtual

Get the Runway2EndLight.

virtual const DtString& DtRunwayStateRepository::runway2Name ( ) const

virtual

Get the name for Runway2.

virtual DtU8 DtRunwayStateRepository::runway2PrethresholdEdgeLight ( ) const

virtual

Get the Runway2PrethresholdEdgeLight.

virtual DtU8 DtRunwayStateRepository::runway2RapidExitTaxiwayLight ( ) const

virtual

Get the Runway2RapidExitTaxiwayLight.

virtual DtU8 DtRunwayStateRepository::runway2RunwayEndIndicatorLight ( ) const

virtual

Get the Runway2RunwayEndIndicatorLight.

virtual DtU8 DtRunwayStateRepository::runway2RunwayExitLight ( ) const

virtual

Get the Runway2RunwayExitLight.

virtual DtU8 DtRunwayStateRepository::runway2TaxiwayLeadOnLight ( ) const

virtual

Get the Runway2TaxiwayLeadOnLight.

virtual DtU8 DtRunwayStateRepository::runway2TaxiwayStopBarLight ( ) const

virtual

Get the Runway2TaxiwayStopBarLight.

virtual DtU8 DtRunwayStateRepository::runway2ThresholdLightingLight ( ) const

virtual

Get the Runway2ThresholdLightingLight.

virtual DtU8 DtRunwayStateRepository::runway2TouchDownZoneLight ( ) const

virtual

Get the Runway2TouchDownZoneLight.

virtual DtU8 DtRunwayStateRepository::runway2VGSILight ( ) const

virtual

Get the Runway2VGSILight.

virtual DtU8 DtRunwayStateRepository::runwayGuardLight ( ) const

virtual

Get the RunwayGuardLight.

virtual void DtRunwayStateRepository::setAerodromeId ( const DtVrlUuid &  val )

virtual

Set the AerodromeId.

virtual void DtRunwayStateRepository::setCondition ( const DtRunwayConditionEnum8 &  val )

virtual

Set the Condition of the runway.

virtual void DtRunwayStateRepository::setDamaged ( bool  val )

virtual

Set the Damage state.

virtual void DtRunwayStateRepository::setEndpoint1 ( DtVector  val )

virtual

Set the Endpoint1.

virtual void DtRunwayStateRepository::setEndpoint2 ( DtVector  val )

virtual

Set the Endpoint2.

virtual void DtRunwayStateRepository::setRunway1Active ( bool  val )

virtual

Set the Runway1Active.

virtual void DtRunwayStateRepository::setRunway1ApproachLight ( DtU8  val )

virtual

Set the Runway1ApproachLight.

virtual void DtRunwayStateRepository::setRunway1ArrestorGearUp ( bool  val )

virtual

Set the Runway1ArrestorGearUp.

virtual void DtRunwayStateRepository::setRunway1CenterLineLight ( DtU8  val )

virtual

Set the Runway1CenterLineLight.

virtual void DtRunwayStateRepository::setRunway1DisplacedThresholdLight ( DtU8  val )

virtual

Set the Runway1DisplacedThresholdLight.

virtual void DtRunwayStateRepository::setRunway1DistanceToGoLight ( bool  onOff )

virtual

Set the Runway1DistanceToGoLight to on or off.

virtual void DtRunwayStateRepository::setRunway1EdgeLight ( DtU8  val )

virtual

Set the Runway1EdgeLight.

virtual void DtRunwayStateRepository::setRunway1EndLight ( DtU8  val )

virtual

Set the Runway1EndLight.

virtual void DtRunwayStateRepository::setRunway1Name ( const DtString &  val )

virtual

Set name for Runway1.

Runways are named by a number between 01 and 36, which is generally the magnetic azimuth of the runway's heading in decadegrees This number is then optionally followed by a letter

virtual void DtRunwayStateRepository::setRunway1PrethresholdEdgeLight ( DtU8  val )

virtual

Set the Runway1PrethresholdEdgeLight.

virtual void DtRunwayStateRepository::setRunway1RapidExitTaxiwayLight ( DtU8  val )

virtual

Set the Runway1RapidExitTaxiwayLight.

virtual void DtRunwayStateRepository::setRunway1RunwayEndIndicatorLight ( DtU8  val )

virtual

Set the Runway1RunwayEndIndicatorLight.

virtual void DtRunwayStateRepository::setRunway1RunwayExitLight ( DtU8  val )

virtual

Set the Runway1RunwayExitLight.

virtual void DtRunwayStateRepository::setRunway1TaxiwayLeadOnLight ( DtU8  val )

virtual

Set the Runway1TaxiwayLeadOnLight.

virtual void DtRunwayStateRepository::setRunway1TaxiwayStopBarLight ( DtU8  val )

virtual

Set the Runway1TaxiwayStopBarLight.

virtual void DtRunwayStateRepository::setRunway1ThresholdLightingLight ( DtU8  val )

virtual

Set the Runway1ThresholdLightingLight.

virtual void DtRunwayStateRepository::setRunway1TouchDownZoneLight ( DtU8  val )

virtual

Set the Runway1TouchDownZoneLight.

virtual void DtRunwayStateRepository::setRunway1VGSILight ( DtU8  val )

virtual

Set the Runway1VGSILight.

virtual void DtRunwayStateRepository::setRunway2Active ( bool  val )

virtual

Set the Runway2Active.

virtual void DtRunwayStateRepository::setRunway2ApproachLight ( DtU8  val )

virtual

Set the Runway2ApproachLight.

virtual void DtRunwayStateRepository::setRunway2ArrestorGearUp ( bool  val )

virtual

Set the Runway2ArrestorGearUp.

virtual void DtRunwayStateRepository::setRunway2CenterLineLight ( DtU8  val )

virtual

Set the Runway2CenterLineLight.

virtual void DtRunwayStateRepository::setRunway2DisplacedThresholdLight ( DtU8  val )

virtual

Set the Runway2DisplacedThresholdLight.

virtual void DtRunwayStateRepository::setRunway2DistanceToGoLight ( bool  onOff )

virtual

Set the Runway2DistanceToGoLight to on or off.

virtual void DtRunwayStateRepository::setRunway2EdgeLight ( DtU8  val )

virtual

Set the Runway2EdgeLight.

virtual void DtRunwayStateRepository::setRunway2EndLight ( DtU8  val )

virtual

Set the Runway2EndLight.

virtual void DtRunwayStateRepository::setRunway2Name ( const DtString &  val )

virtual

Set name for Runway2.

Runways are named by a number between 01 and 36, which is generally the magnetic azimuth of the runway's heading in decadegrees This number is then optionally followed by a letter

virtual void DtRunwayStateRepository::setRunway2PrethresholdEdgeLight ( DtU8  val )

virtual

Set the Runway2PrethresholdEdgeLight.

virtual void DtRunwayStateRepository::setRunway2RapidExitTaxiwayLight ( DtU8  val )

virtual

Set the Runway2RapidExitTaxiwayLight.

virtual void DtRunwayStateRepository::setRunway2RunwayEndIndicatorLight ( DtU8  val )

virtual

Set the Runway2RunwayEndIndicatorLight.

virtual void DtRunwayStateRepository::setRunway2RunwayExitLight ( DtU8  val )

virtual

Set the Runway2RunwayExitLight.

virtual void DtRunwayStateRepository::setRunway2TaxiwayLeadOnLight ( DtU8  val )

virtual

Set the Runway2TaxiwayLeadOnLight.

virtual void DtRunwayStateRepository::setRunway2TaxiwayStopBarLight ( DtU8  val )

virtual

Set the Runway2TaxiwayStopBarLight.

virtual void DtRunwayStateRepository::setRunway2ThresholdLightingLight ( DtU8  val )

virtual

Set the Runway2ThresholdLightingLight.

virtual void DtRunwayStateRepository::setRunway2TouchDownZoneLight ( DtU8  val )

virtual

Set the Runway2TouchDownZoneLight.

virtual void DtRunwayStateRepository::setRunway2VGSILight ( DtU8  val )

virtual

Set the Runway2VGSILight.

virtual void DtRunwayStateRepository::setRunwayGuardLight ( DtU8  val )

virtual

Set the RunwayGuardLight.

virtual void DtRunwayStateRepository::setUniqueId ( const DtVrlUuid &  val )

virtual

Set the UniqueId.

virtual const DtVrlUuid& DtRunwayStateRepository::uniqueId ( ) const

virtual

Get the UniqueId.

Member Data Documentation

DtVrlUuid DtRunwayStateRepository::myAerodromeId

protected

DtRunwayConditionEnum8 DtRunwayStateRepository::myCondition

protected

bool DtRunwayStateRepository::myDamaged

protected

DtVector64 DtRunwayStateRepository::myEndpoint1

protected

DtVector64 DtRunwayStateRepository::myEndpoint2

protected

bool DtRunwayStateRepository::myRunway1Active

protected

DtU8 DtRunwayStateRepository::myRunway1ApproachLight

protected

bool DtRunwayStateRepository::myRunway1ArrestorGearUp

protected

DtU8 DtRunwayStateRepository::myRunway1CenterLineLight

protected

DtU8 DtRunwayStateRepository::myRunway1DisplacedThresholdLight

protected

bool DtRunwayStateRepository::myRunway1DistanceToGoLight

protected

DtU8 DtRunwayStateRepository::myRunway1EdgeLight

protected

DtU8 DtRunwayStateRepository::myRunway1EndLight

protected

DtString DtRunwayStateRepository::myRunway1Name

protected

DtU8 DtRunwayStateRepository::myRunway1PrethresholdEdgeLight

protected

DtU8 DtRunwayStateRepository::myRunway1RapidExitTaxiwayLight

protected

DtU8 DtRunwayStateRepository::myRunway1RunwayEndIndicatorLight

protected

DtU8 DtRunwayStateRepository::myRunway1RunwayExitLight

protected

DtU8 DtRunwayStateRepository::myRunway1TaxiwayLeadOnLight

protected

DtU8 DtRunwayStateRepository::myRunway1TaxiwayStopBarLight

protected

DtU8 DtRunwayStateRepository::myRunway1ThresholdLightingLight

protected

DtU8 DtRunwayStateRepository::myRunway1TouchDownZoneLight

protected

DtU8 DtRunwayStateRepository::myRunway1VGSILight

protected

bool DtRunwayStateRepository::myRunway2Active

protected

DtU8 DtRunwayStateRepository::myRunway2ApproachLight

protected

bool DtRunwayStateRepository::myRunway2ArrestorGearUp

protected

DtU8 DtRunwayStateRepository::myRunway2CenterLineLight

protected

DtU8 DtRunwayStateRepository::myRunway2DisplacedThresholdLight

protected

bool DtRunwayStateRepository::myRunway2DistanceToGoLight

protected

DtU8 DtRunwayStateRepository::myRunway2EdgeLight

protected

DtU8 DtRunwayStateRepository::myRunway2EndLight

protected

DtString DtRunwayStateRepository::myRunway2Name

protected

DtU8 DtRunwayStateRepository::myRunway2PrethresholdEdgeLight

protected

DtU8 DtRunwayStateRepository::myRunway2RapidExitTaxiwayLight

protected

DtU8 DtRunwayStateRepository::myRunway2RunwayEndIndicatorLight

protected

DtU8 DtRunwayStateRepository::myRunway2RunwayExitLight

protected

DtU8 DtRunwayStateRepository::myRunway2TaxiwayLeadOnLight

protected

DtU8 DtRunwayStateRepository::myRunway2TaxiwayStopBarLight

protected

DtU8 DtRunwayStateRepository::myRunway2ThresholdLightingLight

protected

DtU8 DtRunwayStateRepository::myRunway2TouchDownZoneLight

protected

DtU8 DtRunwayStateRepository::myRunway2VGSILight

protected

DtU8 DtRunwayStateRepository::myRunwayGuardLight

protected

DtVrlUuid DtRunwayStateRepository::myUniqueId

protected

---

The documentation for this class was generated from the following file:

• runwayStateRepository.h
