VR-Link API Documentation for DIS
|
Instances of DtTurbulenceLayerStateRepository are used to store state data for METOC_Root.EnvironmentCondition.MAK_TurbulenceLayer objects. More...

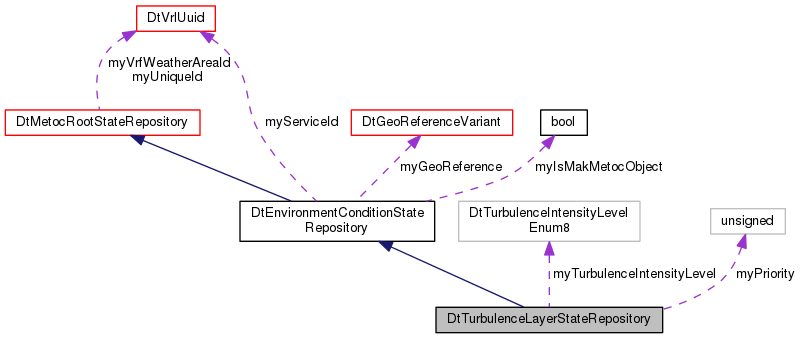

Inheritance diagram for DtTurbulenceLayerStateRepository: Collaboration diagram for DtTurbulenceLayerStateRepository:Public Member Functions | |
| DtTurbulenceLayerStateRepository () | |
| Constructor. More... | |
| virtual | ~DtTurbulenceLayerStateRepository () |
| Destructor. More... | |
| DtTurbulenceLayerStateRepository (const DtTurbulenceLayerStateRepository &orig) | |
| Copy Constructor. More... | |
| DtTurbulenceLayerStateRepository & | operator= (const DtTurbulenceLayerStateRepository &orig) |
| Assignment Operator. More... | |
| virtual DtStateRepository * | clone (bool copy) const |
| Return a copy/empty object of the same type as this. More... | |
| virtual void | printData () const |
| Print data to the DtInfo stream. More... | |
| virtual void | printDataToStream (std::ostream &stream) const |
| Print data to the specified stream. More... | |
| virtual void | setPriority (const DtU16 &val) |
| Set the Priority. More... | |
| virtual const DtU16 & | priority () const |
| Get the Priority. More... | |
| virtual void | setTurbulenceIntensityLevel (const DtTurbulenceIntensityLevelEnum8 &val) |
| Set the Turbulence Intensity Level. More... | |
| virtual const DtTurbulenceIntensityLevelEnum8 & | turbulenceIntensityLevel () const |
| Get the Turbulence Intensity Level. More... | |
| Public Member Functions inherited from DtEnvironmentConditionStateRepository | |
| DtEnvironmentConditionStateRepository () | |
| Constructor. More... | |
| virtual | ~DtEnvironmentConditionStateRepository () |
| Destructor. More... | |
| DtEnvironmentConditionStateRepository (const DtEnvironmentConditionStateRepository &orig) | |
| Copy Constructor. More... | |
| DtEnvironmentConditionStateRepository & | operator= (const DtEnvironmentConditionStateRepository &orig) |
| Assignment Operator. More... | |
| virtual void | setServiceId (const DtVrlUuid &val) |
| Set the ServiceId. More... | |
| virtual const DtVrlUuid & | serviceId () const |
| Get the ServiceId. More... | |
| virtual void | setGeoReference (const DtGeoReferenceVariant &val) |
| Set the GeoReference. More... | |
| virtual const DtGeoReferenceVariant & | geoReference () const |
| Get the GeoReference. More... | |
| virtual bool | isGlobalGeoreference () const |
| returns true if the geo reference object is global. More... | |
| virtual void | setIsMakMetocObject (bool val) |
| Set if this object is a MAK extended class. More... | |
| virtual bool | isMakMetocObject () const |
| returns true if this object is a MAK Extended METOC object opposed to a NETN METOC object without MAK extensions More... | |
| Public Member Functions inherited from DtMetocRootStateRepository | |
| DtMetocRootStateRepository () | |
| Constructor. More... | |
| virtual | ~DtMetocRootStateRepository () |
| Destructor. More... | |
| DtMetocRootStateRepository (const DtMetocRootStateRepository &orig) | |
| Copy Constructor. More... | |
| DtMetocRootStateRepository & | operator= (const DtMetocRootStateRepository &orig) |
| Assignment Operator. More... | |
| virtual void | setUniqueId (const DtVrlUuid &val) |
| Set the UniqueId. More... | |
| virtual const DtVrlUuid & | uniqueId () const |
| Get the UniqueId. More... | |
| virtual void | setName (const DtString &val) |
| Set the Name. More... | |
| virtual const DtString & | name () const |
| Get the Name. More... | |
| virtual void | setVrfWeatherAreaIdentifier (const DtVrlUuid &vrfWeatherAreaIdentifier) |
| Set the UniqueId. More... | |
| virtual DtVrlUuid | vrfWeatherAreaIdentifier () const |
| Get the UniqueId. More... | |
| Public Member Functions inherited from DtStateRepository | |
| DtStateRepository () | |
| default constructor More... | |
| DtStateRepository (const DtStateRepository &orig) | |
| copy constructor More... | |
| virtual | ~DtStateRepository () |
| destructor More... | |
| DtStateRepository & | operator= (const DtStateRepository &orig) |
| assignment operator More... | |
| virtual void | setGlobalId (const DtGlobalObjectDesignator &id) |
| Get/Set global identifier, or name. More... | |
| virtual const DtGlobalObjectDesignator & | globalId () const |
| virtual unsigned int | numberOfAttributeRecords () const |
| virtual void | setAttributeRecords (const DtAttributeRecordSet &records) |
| The following functions are related to the extendability part of DIS 7. More... | |
| virtual void | setAttributeRecords (const DtStandardVariableRecordPtrVector &records) |
| Replace the attribute record set with the records in the given vector. More... | |
| virtual const DtAttributeRecordSet & | attributeRecordSet () const |
| Return the attribute record set. More... | |
| virtual DtAttributeRecordSet & | attributeRecordSet () |
| Return the attribute record set. More... | |
| virtual const DtStandardVariableRecordPtrVector & | attributeRecords () const |
| Return the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual const DtStandardVariableRecordPtrVector & | attributeRecords (unsigned int recordType) const |
| Return the attribute records of the given type (all records if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual DtStandardVariableRecord * | attributeRecord (unsigned int recordType) const |
| Return the (first) attribute record of the given type (first record if type is 0) Any changes to the returned record will modify the record in the recordSet. More... | |
| virtual int | removeAttributeRecord (unsigned int recordType, bool removeAll=true) |
| Remove and discard the first record of the given record type (if there is one) or all them. More... | |
| virtual DtStandardVariableRecordPtrVector & | getAttributeRecords (unsigned int recordType, DtStandardVariableRecordPtrVector &vec) const |
| Get the attribute records of the given type (all if type is 0) Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual DtStandardVariableRecordPtrVector & | getAttributeRecords (DtStandardVariableRecordPtrVector &vec) const |
| Get the attribute records Any changes to the returned record(s) will modify the records in the recordSet. More... | |
| virtual void | addAttributeRecord (DtStandardVariableRecord *record) |
| Add a clone of given record to the attribute record set. More... | |
| virtual void | addAttributeRecord (std::unique_ptr< DtStandardVariableRecord > record) |
| Add the given record to the attribute record set. More... | |
| virtual void | clearAttributeRecords () |
| Clear all records. More... | |
| virtual DtStateRepositoryExtension * | stateRepositoryExtension (DtString srExtName) const |
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |
| virtual std::vector< DtString > | stateRepositoryExtensionNames () const |
| Returns a set of the registered state repository extension names. More... | |
| virtual void | setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions) |
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |
| virtual const std::map < DtString, DtStateRepositoryExtension * > | stateRepositoryExtensions () const |
| Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More... | |
Static Public Member Functions | |
| static DtTurbulenceLayerStateRepository * | create () |
| Create a DtTurbulenceLayerStateRepository. More... | |
| Static Public Member Functions inherited from DtEnvironmentConditionStateRepository | |
| static DtEnvironmentConditionStateRepository * | create () |
| Create a DtEnvironmentConditionStateRepository. More... | |
| Static Public Member Functions inherited from DtMetocRootStateRepository | |
| static DtMetocRootStateRepository * | create () |
| Create a DtMetocRootStateRepository. More... | |
| Static Public Member Functions inherited from DtStateRepository | |
| static bool | addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc) |
| The following functions are for extending state repositories through State Repository Extension classes. More... | |
Protected Attributes | |
| DtU16 | myPriority |
| DtTurbulenceIntensityLevelEnum8 | myTurbulenceIntensityLevel |
| Protected Attributes inherited from DtEnvironmentConditionStateRepository | |
| DtVrlUuid | myServiceId |
| DtGeoReferenceVariant | myGeoReference |
| bool | myIsMakMetocObject |
| Protected Attributes inherited from DtMetocRootStateRepository | |
| DtVrlUuid | myUniqueId |
| DtString | myName |
| DtVrlUuid | myVrfWeatherAreaId |
Additional Inherited Members | |
| Public Types inherited from DtStateRepository | |
| typedef std::map< DtString, DtStateRepositoryExtension * > | DtStateRepositoryExtensionMap |
| Public Attributes inherited from DtStateRepository | |
| DtGlobalObjectDesignator | myGlobalId |
| DtAttributeRecordSet | myAttributeRecords |
| DtStandardVariableRecordPtrVector | myReturnedRecords |
| DtStateRepositoryExtensionMap | myStateRepositoryExtensionMap |
| Static Public Attributes inherited from DtStateRepository | |
| static std::map< DtString, DtSrExtCreatorFnc > | theStateRepositoryExtensionCreatorMap |
Instances of DtTurbulenceLayerStateRepository are used to store state data for METOC_Root.EnvironmentCondition.MAK_TurbulenceLayer objects.
| DtTurbulenceLayerStateRepository::DtTurbulenceLayerStateRepository | ( | ) |
Constructor.
|
virtual |
Destructor.
| DtTurbulenceLayerStateRepository::DtTurbulenceLayerStateRepository | ( | const DtTurbulenceLayerStateRepository & | orig | ) |
Copy Constructor.
|
virtual |
Return a copy/empty object of the same type as this.
Reimplemented from DtEnvironmentConditionStateRepository.
|
static |
Create a DtTurbulenceLayerStateRepository.
| DtTurbulenceLayerStateRepository& DtTurbulenceLayerStateRepository::operator= | ( | const DtTurbulenceLayerStateRepository & | orig | ) |
Assignment Operator.
|
virtual |
Print data to the DtInfo stream.
Reimplemented from DtEnvironmentConditionStateRepository.
|
virtual |
Print data to the specified stream.
Reimplemented from DtEnvironmentConditionStateRepository.
|
virtual |
Get the Priority.
|
virtual |
Set the Priority.
|
virtual |
Set the Turbulence Intensity Level.
|
virtual |
Get the Turbulence Intensity Level.
|
protected |
|
protected |
