DtCollisionStrategy Class Reference

DtDataStrategy class. More...

Inheritance diagram for DtCollisionStrategy:

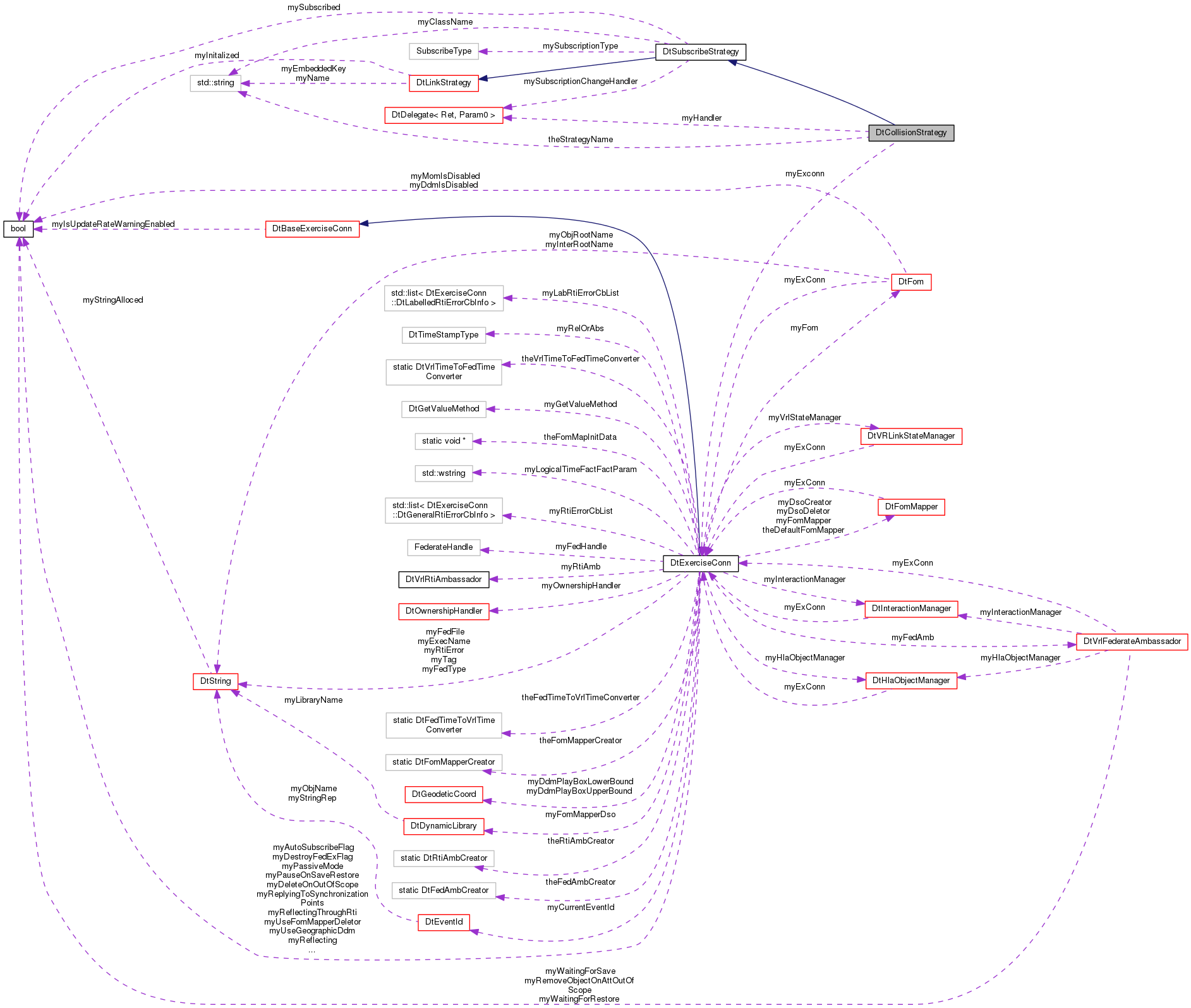

Collaboration diagram for DtCollisionStrategy:

Public Member Functions
virtual	~DtCollisionStrategy ()
	destructor More...
std::string	name ()
	Get the strategy name. More...
virtual bool	init ()
	initialize More...
virtual void	tick ()
	tick More...
virtual void	shutdown ()
	shutdown More...
Public Member Functions inherited from DtSubscribeStrategy
	DtSubscribeStrategy (std::string name, DtManagedInterface *link, std::string subscribeClassName, SubscribeMessage::SubscribeType subscribeType)
	constructor takes name More...
virtual	~DtSubscribeStrategy ()
	destructor More...
void	handleSubscriptionChange (DtMessage *msg)
Public Member Functions inherited from DtLinkStrategy
	DtLinkStrategy (const std::string &name, DtManagedInterface *link)
	constructor takes name More...
virtual	~DtLinkStrategy ()
	destructor More...
std::string	name ()
	Get the name of the strategy. More...
virtual void	addChildStrategy (DtLinkStrategy *strategy)
	Functions for adding, removing or finding any child strategies This is typically used for the initialization strategy that "owns" all the other strategies. More...
virtual bool	removeChildStrategy (const std::string &name)
virtual DtLinkStrategy *	findStrategy (const std::string &name)
virtual std::string &	makeEmbeddedKey (std::string &embeddedKey, const std::string &hostGlobalId, unsigned embeddedIndex, const char *descriptor=nullptr)
	Combine the given host global/entity identifiers, embedded index, and optional descriptor to form the value of the given embedded key Return the embedded key. More...

Static Public Member Functions
static std::string	theName ()
	get the strategy name (statically) More...
static DtLinkStrategy *	create (DtManagedInterface *gl)
	Static create function. More...

Protected Member Functions
	DtCollisionStrategy (DtManagedInterface *link)
	constructor More...
void	handleCSharpMessage (DtMessage *msg)
	Handle detonate messages from C#. More...
void	handleVrl (DtCollisionInteraction *det)
	Handle VR-Link detonation messages for sending to C#. More...
virtual void	addVrlCallback (DtExerciseConn *exConn)
	Add/Remove VR-Link C++ Interaction Callback. More...
virtual void	removeVrlCallback (DtExerciseConn *exConn)

Static Protected Member Functions
static void	vrlCb (DtCollisionInteraction *det, void *usr)
	Static callback for registering with VR-Link. More...

Protected Attributes
DtExerciseConn *	myExconn
DtMessageDelegate *	myHandler
Protected Attributes inherited from DtSubscribeStrategy
DtMessageDelegate *	mySubscriptionChangeHandler
bool	mySubscribed
std::string	myClassName
SubscribeMessage::SubscribeType	mySubscriptionType
Protected Attributes inherited from DtLinkStrategy
DtManagedInterface *	myManagedInterface
std::string	myName
std::string	myEmbeddedKey
bool	myInitalized
std::list< DtLinkStrategy * >	myChildStrategies

Static Protected Attributes
static std::string	theStrategyName

Detailed Description

DtDataStrategy class.

Constructor & Destructor Documentation

virtual DtCollisionStrategy::~DtCollisionStrategy ( )

virtual

destructor

DtCollisionStrategy::DtCollisionStrategy ( DtManagedInterface *  link )

protected

constructor

Member Function Documentation

virtual void DtCollisionStrategy::addVrlCallback ( DtExerciseConn *  exConn )

protectedvirtual

Add/Remove VR-Link C++ Interaction Callback.

Implements DtSubscribeStrategy.

static DtLinkStrategy* DtCollisionStrategy::create ( DtManagedInterface *  gl )

static

Static create function.

void DtCollisionStrategy::handleCSharpMessage ( DtMessage *  msg )

protected

Handle detonate messages from C#.

void DtCollisionStrategy::handleVrl ( DtCollisionInteraction *  det )

protected

Handle VR-Link detonation messages for sending to C#.

virtual bool DtCollisionStrategy::init ( )

virtual

initialize

Implements DtLinkStrategy.

std::string DtCollisionStrategy::name

(

)

Get the strategy name.

virtual void DtCollisionStrategy::removeVrlCallback ( DtExerciseConn *  exConn )

protectedvirtual

Implements DtSubscribeStrategy.

virtual void DtCollisionStrategy::shutdown ( )

virtual

shutdown

Reimplemented from DtSubscribeStrategy.

static std::string DtCollisionStrategy::theName ( )

static

get the strategy name (statically)

virtual void DtCollisionStrategy::tick ( )

virtual

tick

Reimplemented from DtLinkStrategy.

static void DtCollisionStrategy::vrlCb ( DtCollisionInteraction *  det, void *  usr  )

staticprotected

Static callback for registering with VR-Link.

Member Data Documentation

DtExerciseConn* DtCollisionStrategy::myExconn

protected

DtMessageDelegate* DtCollisionStrategy::myHandler

protected

std::string DtCollisionStrategy::theStrategyName

staticprotected

---

The documentation for this class was generated from the following file:

• strategies/collision.h
