Instances of DtFedReader13 are used to read a FED file, and fill in a DtFedTarget with the information read. More...

Inheritance diagram for DtFedReader13:

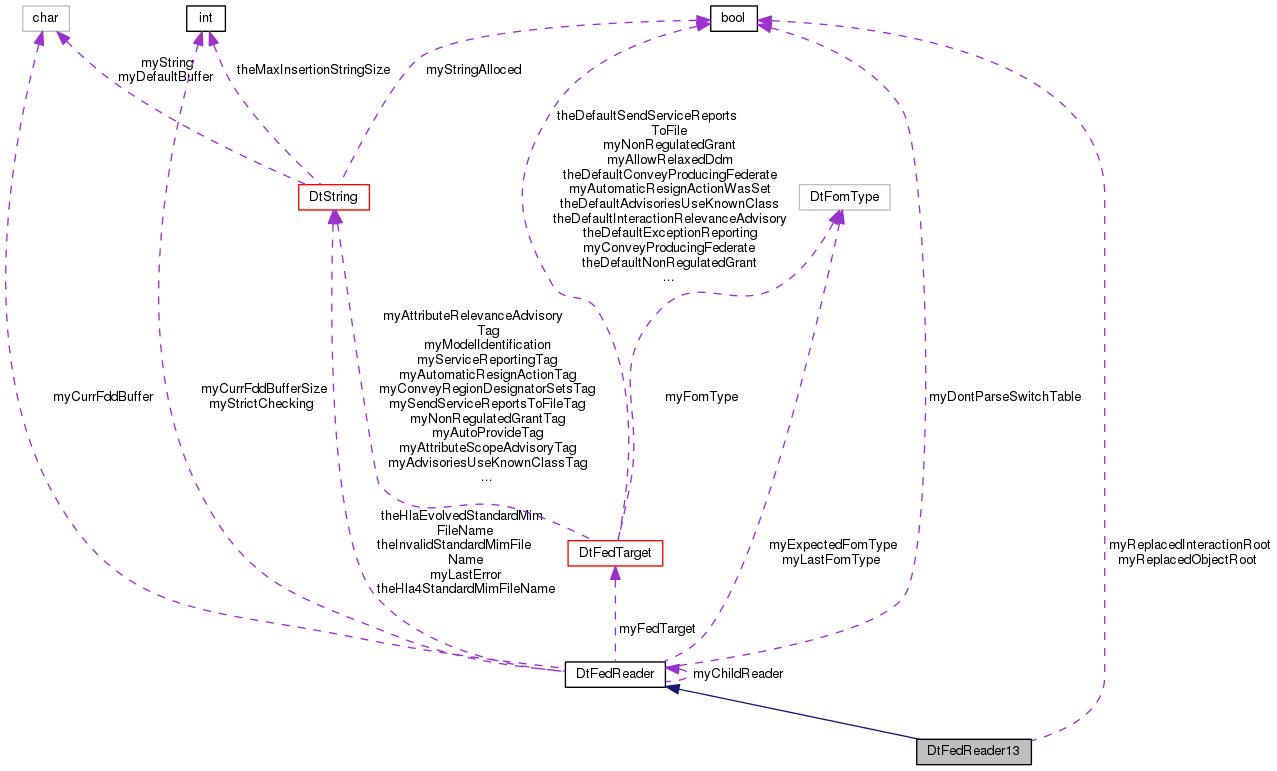

Collaboration diagram for DtFedReader13:

Public Member Functions
	DtFedReader13 ()
	Constructor. More...

virtual	~DtFedReader13 ()
	Destructor. More...

virtual DtFedReadStatus	readFedFilePtr (FILE filePointer, DtFedTarget fedTarget, DtFilename fedFileName, unsigned int strictCheckingMask=DtFedReadStrictDisabled, bool useDTD=false, bool dontParseSwitches=false)
	Read the FED file fedFileName, setting values to fedTarget. More...

Public Member Functions inherited from DtFedReader
	DtFedReader ()
	Constructor. More...

virtual	~DtFedReader ()
	Destructor. More...

virtual DtFedReadStatus	readFed (const char fedFileName, DtFedTarget fedTarget, unsigned int strictCheckingMask=DtFedReadStrictDisabled, bool useDTD=false, bool dontParseSwitches=false)
	Read the FED file fedFileName, setting values to fedTarget. More...

virtual FILE *	openFedFileWithErrCheck (const char *fileName, bool isBinary=false)
	get the a file handle to the FED File for reading in text or binary mode More...

virtual unsigned int	setStrictChecking (unsigned int checkMask)
	Set status of strict checking. More...

virtual bool	strictChecking (unsigned int checkMask) const
	Returns bool: strictChecking enabled for types of checks provided. More...

virtual void	setExpectedFomType (DtFomType fomType)
	Set/Get expected FOM type. More...

virtual DtFomType	expectedFomType () const

virtual DtFomType	lastFomType () const
	Returns the FOM type of the last FOM read. More...

virtual const DtString &	lastError () const
	Get the last error. More...

char *	takeCurrFddData ()

Protected Member Functions
virtual DtFedReadStatus	processFed (DtlObjPtr fedObj)
	process the FED directive More...

virtual DtFedReadStatus	processFederation (DtlObjPtr fedObj)
	process the federation directive More...

virtual DtFedReadStatus	processVersion (DtlObjPtr fedObj)
	process the FEDVersion directive More...

virtual DtFedReadStatus	processSpaces (DtlObjPtr fedObj)
	process the spaces directive More...

virtual DtFedReadStatus	processSpace (DtlObjPtr fedObj)
	process the space directive More...

virtual DtFedReadStatus	processDimension (DtlObjPtr fedObj, const char *space)
	process the dimension directive More...

virtual DtFedReadStatus	processObjects (DtlObjPtr fedObj)
	process the objects directive More...

virtual DtFedReadStatus	processObjClass (DtlObjPtr fedObj, const char *parent)
	process the object's class directive More...

virtual DtFedReadStatus	processAttribute (DtlObjPtr fedObj, const char *obj)
	process the object's attribute directive More...

virtual DtFedReadStatus	processInteractions (DtlObjPtr fedObj)
	process the interactions directive More...

virtual DtFedReadStatus	processIntClass (DtlObjPtr fedObj, const char *parent)
	process the interaction's class directive More...

virtual DtFedReadStatus	processParameter (DtlObjPtr fedObj, const char *inter)
	process the interaction's parameter directive More...

Protected Member Functions inherited from DtFedReader
void	appendErrorLine (xmlNode *node, DtString &output) const

Protected Attributes

bool	myReplacedObjectRoot
	Indicates when federation's FOM is 1516(e) and root name has been replaced to match. More...

bool	myReplacedInteractionRoot
	Indicates when federation's FOM is 1516(e) and root name has been replaced to match. More...

Protected Attributes inherited from DtFedReader
DtFedTarget *	myFedTarget

DtFedReader *	myChildReader

unsigned int	myStrictChecking

bool	myDontParseSwitchTable

DtFomType	myExpectedFomType
	When set, the FOM must conform to this type. More...

DtFomType	myLastFomType
	The type of FOM format that was last read. More...

DtString	myLastError
	Description of last encountered error. More...

Private Member Functions
	DtFedReader13 (const DtFedReader13 &)
	Copy constructor and Assignment operator - Unimplemented. More...

DtFedReader13 &	operator= (const DtFedReader13 &)

Additional Inherited Members
Static Public Member Functions inherited from DtFedReader
static const DtString &	standardMimFileName (DtFomType fomType)
	Return the standard MIM filename given the FOM type. More...

static bool	isStandardMimFileName (DtString const &fileName, DtFomType fomType)
	Return true if file is the standard MIM file of the given type. More...

static FILE *	openFedFile (const char *fileName, bool isBinary=false)
	Open file from name and return FILE*. More...

static bool	readFileIntoBuffer (FILE fileHandle, char fileBuffer, unsigned int fileSize)
	Read the file from the FILE* into the buffer. More...

static DtFomType	checkFomType (const char fedFileName, void fedFilePtr)
	Get the FOM Type. More...

static DtFomType	checkFomType (const char *fedFileName)
	Get the FOM Type. More...

Public Attributes inherited from DtFedReader
char *	myCurrFddBuffer
	Buffer containing the most recently read FDD file. More...

unsigned int	myCurrFddBufferSize
	Size of the buffer for the most recently read FDD file. More...

Static Public Attributes inherited from DtFedReader
static const DtString	theHlaEvolvedStandardMimFileName

static const DtString	theHla4StandardMimFileName

static const DtString	theInvalidStandardMimFileName

Detailed Description

Instances of DtFedReader13 are used to read a FED file, and fill in a DtFedTarget with the information read.

Constructor & Destructor Documentation

DtFedReader13::DtFedReader13 ( )

Constructor.

virtual DtFedReader13::~DtFedReader13 ( )

virtual

Destructor.

DtFedReader13::DtFedReader13 ( const DtFedReader13 & )

private

Copy constructor and Assignment operator - Unimplemented.

Member Function Documentation

DtFedReader13& DtFedReader13::operator= ( const DtFedReader13 & )

private

virtual DtFedReadStatus DtFedReader13::processAttribute	(	DtlObjPtr	fedObj,
		const char *	obj
	)

protectedvirtual

process the object's attribute directive

virtual DtFedReadStatus DtFedReader13::processDimension	(	DtlObjPtr	fedObj,
		const char *	space
	)

protectedvirtual

process the dimension directive

virtual DtFedReadStatus DtFedReader13::processFed ( DtlObjPtr fedObj )

protectedvirtual

process the FED directive

virtual DtFedReadStatus DtFedReader13::processFederation ( DtlObjPtr fedObj )

protectedvirtual

process the federation directive

virtual DtFedReadStatus DtFedReader13::processIntClass	(	DtlObjPtr	fedObj,
		const char *	parent
	)

protectedvirtual

process the interaction's class directive

virtual DtFedReadStatus DtFedReader13::processInteractions ( DtlObjPtr fedObj )

protectedvirtual

process the interactions directive

virtual DtFedReadStatus DtFedReader13::processObjClass	(	DtlObjPtr	fedObj,
		const char *	parent
	)

protectedvirtual

process the object's class directive

virtual DtFedReadStatus DtFedReader13::processObjects ( DtlObjPtr fedObj )

protectedvirtual

process the objects directive

virtual DtFedReadStatus DtFedReader13::processParameter	(	DtlObjPtr	fedObj,
		const char *	inter
	)

protectedvirtual

process the interaction's parameter directive

virtual DtFedReadStatus DtFedReader13::processSpace ( DtlObjPtr fedObj )

protectedvirtual

process the space directive

virtual DtFedReadStatus DtFedReader13::processSpaces ( DtlObjPtr fedObj )

protectedvirtual

process the spaces directive

virtual DtFedReadStatus DtFedReader13::processVersion ( DtlObjPtr fedObj )

protectedvirtual

process the FEDVersion directive

virtual DtFedReadStatus DtFedReader13::readFedFilePtr	(	FILE *	filePointer,
		DtFedTarget *	fedTarget,
		DtFilename	fedFileName,
		unsigned int	strictCheckingMask = `DtFedReadStrictDisabled`,
		bool	useDTD = `false`,
		bool	dontParseSwitches = `false`
	)

virtual

Read the FED file fedFileName, setting values to fedTarget.

Note if fedTarget is NULL the fedfile will be read and verified only. Strict checking requires strict adherence to format and content

Implements DtFedReader.

Member Data Documentation

bool DtFedReader13::myReplacedInteractionRoot

protected

Indicates when federation's FOM is 1516(e) and root name has been replaced to match.

bool DtFedReader13::myReplacedObjectRoot

protected

Indicates when federation's FOM is 1516(e) and root name has been replaced to match.

The documentation for this class was generated from the following file:

fedReader13.h
