DtMunitionReloadRecord Class Reference

Inheritance diagram for DtMunitionReloadRecord:

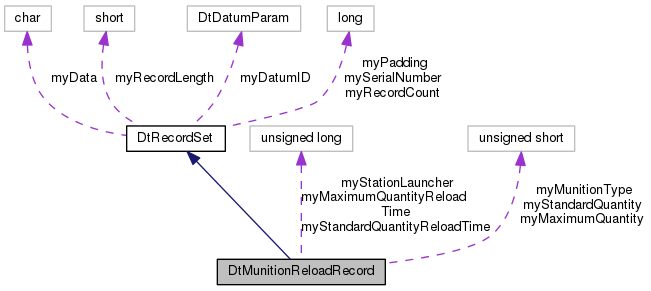

Collaboration diagram for DtMunitionReloadRecord:

Public Member Functions
	DtMunitionReloadRecord ()
	default Constructor More...
	DtMunitionReloadRecord (const DtMunitionReloadRecord &orig)
	copy constructor More...
	DtMunitionReloadRecord (DtEntityType munitionType, DtU32 stationLauncher, DtU16 standardQuantity, DtU16 maximumQuantity, DtU32 standardQuantityRT, DtU32 maximumQuantityRT)
	custom Constructor More...
DtMunitionReloadRecord &	operator= (const DtMunitionReloadRecord &orig)
	assignment Operators More...
virtual DtMunitionReloadRecord &	operator= (const DtNetRecordSet &orig)
void	setMunitionType (DtEntityType munitionType)
	Setter/Getter for Munition Type. More...
DtEntityType	munitionType ()
void	setStationLauncher (DtU32 stationLauncher)
	Setter/Getter for Station/Launcher Type. More...
DtU32	stationLauncher ()
void	setStandardQuantity (DtU16 standardQuantity)
	Setter/Getter for Standard Quantity. More...
DtU16	standardQuantity ()
void	setMaximumQuantity (DtU16 maximumQuantity)
	Setter/Getter for Maximum Quantity. More...
DtU16	maximumQuantity ()
void	setStandardQuantityReloadTime (DtU32 standardQuantityRT)
	Setter/Getter for Standard Quantity Reload Time. More...
DtU32	standardQuantityReloadTime ()
void	setMaximumQuantityReloadTime (DtU32 maximumQuantityRT)
	Setter/Getter for Maximum Quantity Reload Time. More...
DtU32	maximumQuantityReloadTime ()
virtual void	print () const
	print data. More...
virtual void	printDataToStream (std::ostream &stream) const
void	print (std::ostream &stream)
Public Member Functions inherited from DtRecordSet
	DtRecordSet ()
	Constructors. More...
	DtRecordSet (const DtRecordSet &orig)
virtual	~DtRecordSet ()
	Destructor. More...
DtRecordSet &	operator= (const DtRecordSet &orig)
	Assignment operators. More...
DtRecordSet &	operator= (const DtNetRecordSet &orig)
virtual bool	setDatumID (DtDatumParam value)
	Set/Get the datum ID. More...
virtual DtDatumParam	datumID () const
virtual void	setSerialNumber (DtU32 value)
	Set/Get the serial number. More...
virtual DtU32	serialNumber () const
virtual bool	setRecordBitLength (DtU16 bitLength)
	Set/Get the record length in bits. More...
virtual DtU16	recordBitLength () const
virtual bool	setRecordByteLength (int byteLength)
	Set/Get the record length in bytes. More...
virtual int	recordByteLength () const
virtual bool	setRecordCount (DtU32 bytes)
	Set/Get the number of of records in this set. More...
virtual DtU32	recordCount () const
virtual bool	setDataBytes (DtU32 recordIndex, const void *data)
	Set/Get multiple data bytes. More...
virtual bool	getDataBytes (DtU32 recordIndex, void *buff) const
virtual bool	setDataByte (DtU32 recordIndex, DtU8 value, int byteIndex=0)
	Set/Get a data byte. More...
virtual bool	getDataByte (DtU32 recordIndex, DtU8 &value, int byteIndex=0) const
virtual bool	setDataInt16 (DtU32 recordIndex, DtInt16 &value)
	Set/Get data in signed 16-bit integer format. More...
virtual bool	getDataInt16 (DtU32 recordIndex, DtInt16 &value) const
virtual bool	setDataU16 (DtU32 recordIndex, DtU16 &value)
	Set/Get data in unsigned 16-bit integer format. More...
virtual bool	getDataU16 (DtU32 recordIndex, DtU16 &value) const
virtual bool	setDataInt32 (DtU32 recordIndex, DtInt32 &value)
	Set/Get data in signed 32-bit integer format. More...
virtual bool	getDataInt32 (DtU32 recordIndex, DtInt32 &value) const
virtual bool	setDataU32 (DtU32 recordIndex, DtU32 &value)
	Set/Get data in unsigned 32-bit integer format. More...
virtual bool	getDataU32 (DtU32 recordIndex, DtU32 &value) const
virtual bool	setDataFloat32 (DtU32 recordIndex, DtFloat32 &value)
	Set/Get data in 32-bit floating point format. More...
virtual bool	getDataFloat32 (DtU32 recordIndex, DtFloat32 &value) const
virtual bool	setDataFloat64 (DtU32 recordIndex, DtFloat64 &value)
	Set/Get data in 64-bit floating point format. More...
virtual bool	getDataFloat64 (DtU32 recordIndex, DtFloat64 &value) const
virtual int	recordSetLength () const
	Get the total number of bytes required for the network representation of the record set. More...
virtual void	unloadNetRecordSet (const DtNetRecordSet &record, int dataLength=0)
	Load/unload data from a packet record. More...
virtual void	loadNetRecordSet (DtNetRecordSet &record) const

Public Attributes
DtU16 *	myMunitionType
DtU32 *	myStationLauncher
DtU16 *	myStandardQuantity
DtU16 *	myMaximumQuantity
DtU32 *	myStandardQuantityReloadTime
DtU32 *	myMaximumQuantityReloadTime

Additional Inherited Members
Protected Attributes inherited from DtRecordSet
DtDatumParam	myDatumID
DtU32	mySerialNumber
DtU32	myPadding
DtU16	myRecordLength
DtU32	myRecordCount
char *	myData

Constructor & Destructor Documentation

DtMunitionReloadRecord::DtMunitionReloadRecord

(

)

default Constructor

DtMunitionReloadRecord::DtMunitionReloadRecord

(

const DtMunitionReloadRecord &

orig

)

copy constructor

DtMunitionReloadRecord::DtMunitionReloadRecord	(	DtEntityType	munitionType,
		DtU32	stationLauncher,
		DtU16	standardQuantity,
		DtU16	maximumQuantity,
		DtU32	standardQuantityRT,
		DtU32	maximumQuantityRT
	)

custom Constructor

Member Function Documentation

DtU16 DtMunitionReloadRecord::maximumQuantity

(

)

DtU32 DtMunitionReloadRecord::maximumQuantityReloadTime

(

)

DtEntityType DtMunitionReloadRecord::munitionType

(

)

DtMunitionReloadRecord& DtMunitionReloadRecord::operator=

(

const DtMunitionReloadRecord &

orig

)

assignment Operators

virtual DtMunitionReloadRecord& DtMunitionReloadRecord::operator= ( const DtNetRecordSet &  orig )

virtual

virtual void DtMunitionReloadRecord::print ( ) const

virtual

print data.

Reimplemented from DtRecordSet.

void DtMunitionReloadRecord::print

(

std::ostream &

stream

)

virtual void DtMunitionReloadRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtRecordSet.

void DtMunitionReloadRecord::setMaximumQuantity

(

DtU16

maximumQuantity

)

Setter/Getter for Maximum Quantity.

void DtMunitionReloadRecord::setMaximumQuantityReloadTime

(

DtU32

maximumQuantityRT

)

Setter/Getter for Maximum Quantity Reload Time.

void DtMunitionReloadRecord::setMunitionType

(

DtEntityType

munitionType

)

Setter/Getter for Munition Type.

void DtMunitionReloadRecord::setStandardQuantity

(

DtU16

standardQuantity

)

Setter/Getter for Standard Quantity.

void DtMunitionReloadRecord::setStandardQuantityReloadTime

(

DtU32

standardQuantityRT

)

Setter/Getter for Standard Quantity Reload Time.

void DtMunitionReloadRecord::setStationLauncher

(

DtU32

stationLauncher

)

Setter/Getter for Station/Launcher Type.

DtU16 DtMunitionReloadRecord::standardQuantity

(

)

DtU32 DtMunitionReloadRecord::standardQuantityReloadTime

(

)

DtU32 DtMunitionReloadRecord::stationLauncher

(

)

Member Data Documentation

DtU16* DtMunitionReloadRecord::myMaximumQuantity

DtU32* DtMunitionReloadRecord::myMaximumQuantityReloadTime

DtU16* DtMunitionReloadRecord::myMunitionType

DtU16* DtMunitionReloadRecord::myStandardQuantity

DtU32* DtMunitionReloadRecord::myStandardQuantityReloadTime

DtU32* DtMunitionReloadRecord::myStationLauncher

---

The documentation for this class was generated from the following file:

• munitionReloadRecord.h
