DtUnknownHlaObject Class Reference

Instances of DtUnknownHlaObject are used to store attributes for HLA objects which are not known by our FOM. More...

Inheritance diagram for DtUnknownHlaObject:

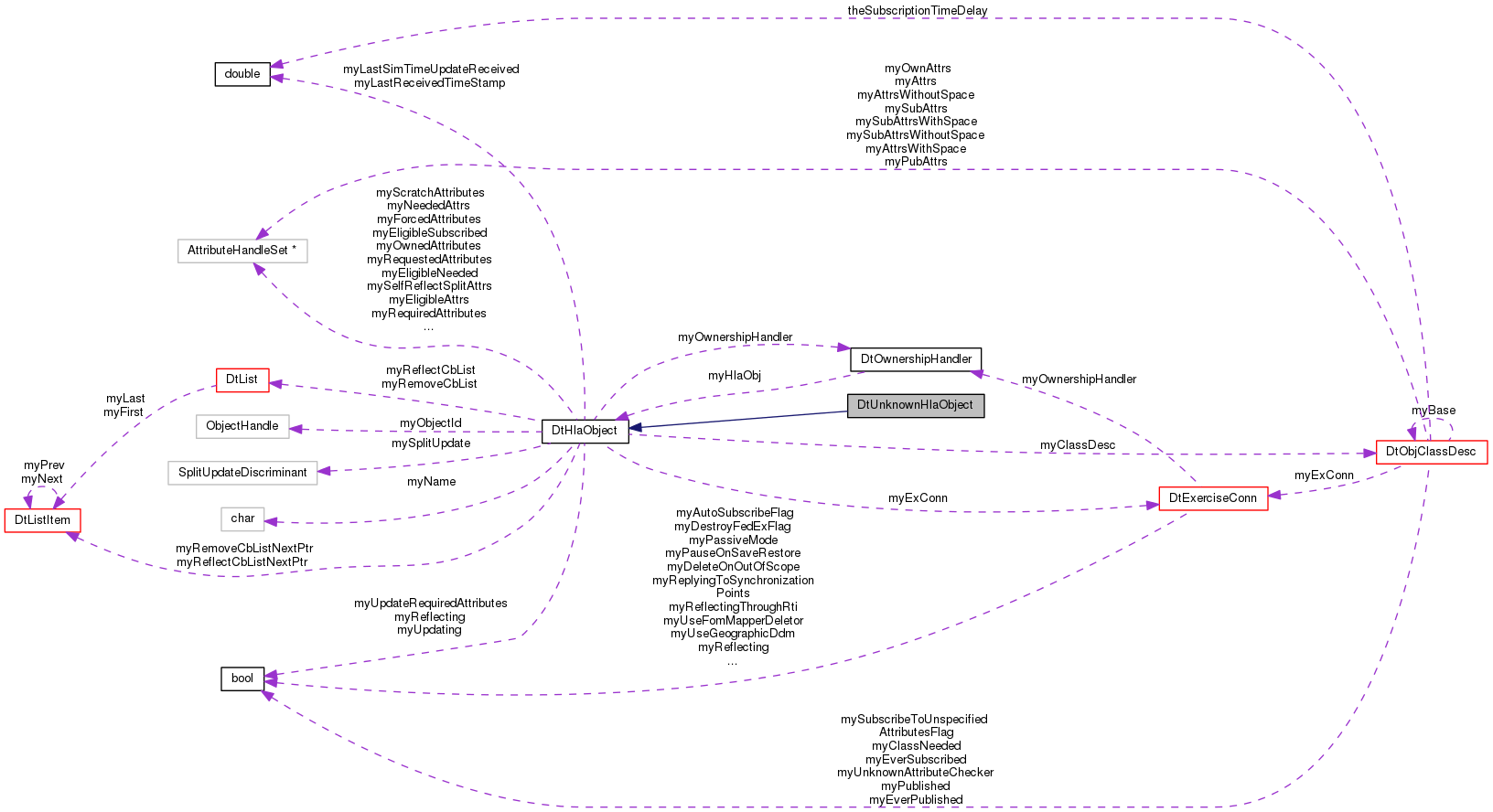

Collaboration diagram for DtUnknownHlaObject:

Public Member Functions
	DtUnknownHlaObject (DtExerciseConn *exConn, const char *name, DtObjClassDesc &classDesc)
	Constructor for local objects. More...
	DtUnknownHlaObject (DtExerciseConn *exConn, RTI::ObjectHandle id, const char *name, DtObjClassDesc &classDesc)
	Constructor for reflected objects. More...
virtual	~DtUnknownHlaObject ()
	destructor More...
virtual bool	update ()
	Does nothing. More...
virtual bool	update (const RTI::AttributeHandleValuePairSet &ahvps)
	Sends the ahpvs through our DtExerciseConn. More...
Public Member Functions inherited from DtHlaObject
	DtHlaObject (DtExerciseConn *conn, RTI::ObjectHandle id, const char *name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that we discover through an RTI callback. More...
	DtHlaObject (DtExerciseConn *conn, const char *name, DtObjClassDesc &classDesc, bool reflecting=false)
	Constructor - used to construct a DtHlaObject to represent an object that will be registered locally. More...
virtual	~DtHlaObject ()
	Destructor. More...
virtual const RTI::ObjectHandle &	objectId () const
	Get the object's handle. More...
virtual const RTI::AttributeHandleSet &	attrHandleSet ()
	Get the set of attributes associated with this object's FOM class. More...
virtual const RTI::AttributeHandleSet &	requestedAttributes ()
	Returns the union of all sets of attributes requested since the last call to clearRequestedAttributes. More...
virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle. More...
virtual const char *	name () const
	Get the object's name. More...
int	numAttributes () const
	Get the number of attributes associated with this object's FOM class. More...
virtual DtExerciseConn *	exerciseConn () const
	Get the exercise connection for this object. More...
virtual DtObjClassDesc &	classDesc () const
	Get the class descriptor for the object's class. More...
virtual void	setupUpdating ()
	Local Object specific functions. More...
virtual void	generateUpdate (const RTI::AttributeHandleSet &eligibileAttrs, const RTI::AttributeHandleSet &requiredAttrs, DtStateMsg *msg)
	Called by update to actually generate an outgoing message. More...
virtual void	cleanupFromUpdating ()
	Do the deinitialization required to stop updating attributes of this object. More...
virtual void	processProvideUpdate (const RTI::AttributeHandleSet &set)
	Set yourself up so that on the next tick, you send an update for the appropriate attributes. More...
virtual void	clearRequestedAttributes ()
	Clears the set of requested attributes. More...
virtual const RTI::AttributeHandleSet &	ownedAttributes ()
	Returns the set of attributes of this object that are owned by the local federate. More...
virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time update is called, even if they would not otherwise need to be sent. More...
virtual void	forceUpdate (const RTI::AttributeHandleSet &set)
virtual void	clearForcedAttributes ()
	Clear (empty) the set of forced attributes. More...
virtual const RTI::AttributeHandleSet &	attributesNeededByFederation ()
	Returns the set of attributes that are currently needed by the federation, i.e. More...
virtual const RTI::AttributeHandleSet &	eligibleAttributes ()
	Returns the set of attributes that eligible for sending. More...
virtual const RTI::AttributeHandleSet &	requiredAttributes ()
	Returns the set of attributes that should be included in the next update regardless of whether their update conditions have been met. More...
bool	classNeededByFederation ()
	Returns true if the class is needed by the federation, i.e. More...
void	setupClassForUpdating ()
	If the class has never been published, publish it with all attributes using DtObjClassDesc::publish. More...
virtual void	setupReflecting ()
	Remote Object specific functions. More...
virtual void	callReflect (const DtStateMsg &msg)
	Calls reflect, and any postReflect callbacks. More...
virtual void	callReflectLocal (const DtStateMsg &msg)
	Calls reflectLocal, and any postReflect callbacks. More...
virtual void	reflectLocal (const DtStateMsg &msg)=0
	Called by callReflectLocal to handle the reflection of updates that we are sending locally. More...
virtual void	cleanupFromReflecting ()
	Do the deinitialization required to stop handling reflection of object. More...
virtual void	requestUpdate (RTI::AttributeHandleSet *attrs=0)
	Request an update for the object for the set of attributes indicated by attrs (or all subscribed attributes if attrs is NULL). More...
virtual void	addRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Add (register) function to be called when object is about to be removed. More...
virtual void	removeRemoveObjectCb (DtRemoveObjectCb cb, void *usr)
	Remove (deregister) function to be called when object is about to be removed. More...
virtual void	addPostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Add (register) function to be called after each reflectAttrValues. More...
virtual void	removePostReflectCb (DtObjectReflectAttributeValuesCb cb, void *usr)
	Remove (deregister) function to be called after each reflectAttrValues. More...
virtual void	processRemoveObject ()
	Process notification of removal of the object from the network. More...
virtual DtOwnershipHandler *	setOwnershipHandler (DtOwnershipHandler *handler)
	Ownership-Management-related functions. More...
virtual void	unconditionalDivest (const RTI::AttributeHandleSet &attrs)
	Unconditionally divest ownership of attrs. More...
virtual void	negotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Try to divest ownership of attrs. More...
virtual void	divestAttributes (const RTI::AttributeHandleSet &attrs, bool ifAvailable=false)
	Try to divest ownership of attrs. More...
virtual void	divestObject (bool ifAvailable=false)
	Try to divest ownership of all attrs. More...
virtual void	cancelNegotiatedDivest (const RTI::AttributeHandleSet &attrs)
	Cancel a negotiated divestiture of attributes. More...
virtual void	acquireAttributes (const RTI::AttributeHandleSet &attrs, bool ifAvailable=false)
	Attempt to acquire ownership of attributes. More...
virtual void	acquireObject (bool ifAvailable=false)
	Attempt to acquire ownership of all attributes for an object. More...
virtual void	cancelAcquireAttributes (const RTI::AttributeHandleSet &attrs)
	Cancel the request to acquire ownership of attrs. More...
virtual DtTime	lastSimTimeUpdateReceived () const
	Returns the value of VR-Link simulation time at the time the last attribute update was received for this object. More...
virtual DtTime	lastReceivedTimeStamp () const
virtual void	setLastSimTimeUpdateReceived (DtTime tm)
	Set the time an update was last received or sent. More...
virtual void	setLastReceivedTimeStamp (DtTime tm)
virtual void	printMsg (const DtStateMsg &msg, bool fullReport=false) const
	Prints contents of a state msg. More...
virtual void	localSubscriptionChanged ()
	Called when local object class subscriptions change. More...
virtual void	publicationChanged ()
	Called when there is a change in the publication status of this object's object class. More...
virtual void	processRequestAssumption (const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipAssumption service. More...
virtual void	processRequestRelease (const RTI::AttributeHandleSet &attrs, const char *tag)
	Process RTI's requestAttributeOwnershipRelease service. More...
virtual void	processAttributeAcquisition (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipAcquisitionNotification service. More...
virtual void	processAttributeDivestiture (const RTI::AttributeHandleSet &attrs)
	Handle an invocation of the attributeOwnershipDivestitureNotification service. More...
virtual void	processConfirmAcquisitionCancellation (const RTI::AttributeHandleSet &attrs)
	Process RTI's conformAttributeOwnershipAcquisitionCancellation service. More...

Protected Member Functions
	DtUnknownHlaObject (const DtUnknownHlaObject &orig)
	copy constructor More...
DtUnknownHlaObject &	operator= (const DtUnknownHlaObject &orig)
	assignment operator More...
virtual void	reflect (const DtStateMsg &stateMsg)
	Does nothing. More...
Protected Member Functions inherited from DtHlaObject
	DtHlaObject ()
	Default constructor: not implemented; do not call. More...
	DtHlaObject (const DtHlaObject &src)
	Copy constructor: not implemented; do not call. More...
DtHlaObject &	operator= (const DtHlaObject &src)
	Assignment operator: not implemented; do not call. More...
virtual bool	handlesMatch (const RTI::AttributeHandleValuePairSet &handleValueSet, const RTI::AttributeHandleSet &handleSet) const
	Check if the handles in the given handle-value set are in the given handle set. More...
virtual void	copyToLocalAndRemote (const RTI::AttributeHandleValuePairSet &sourceList, const RTI::AttributeHandleSet &neededByRemote, const RTI::AttributeHandleSet &neededByLocal, RTI::AttributeHandleValuePairSet &toRemoteList, RTI::AttributeHandleValuePairSet &toLocalList)
	Copy attribute values from source into remote and local lists. More...
virtual void	clearUpdatedAttributes (const RTI::AttributeHandleValuePairSet &sourceList)
	Remove the attributes present in the given value set from the requested and forced handle sets. More...
void	wipeRemoveList ()
	Remove all callbacks from the remove callback list. More...
virtual void	clearRemoveList ()
	Virtual version of above. More...
void	wipeReflectList ()
	Remove all callbacks from the reflect callback list. More...
virtual void	applyPostReflectCallbacks (const DtStateMsg &msg)
	Apply callbacks after a state msg is reflected. More...
virtual void	loseOwnership (const RTI::AttributeHandleSet &attrs)
	Gets called whenever we lose ownership of a set of attributes. More...
virtual void	gainOwnership (const RTI::AttributeHandleSet &attrs, bool notifyOwnershipManagement=true)
	Gets called whenever we gain ownership of a set of attributes. More...
virtual void	processUpdatesOff (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOffForObjectInstance RTI call. More...
void	processUpdatesOn (const RTI::AttributeHandleSet &set)
	Callback for handling turnUpdatesOnForObjectInstance RTI call. More...
virtual bool	known () const
	Returns true if the object has been registered with, or discovered via the RTI. More...
virtual void	dumpRtiException (const char *functionName, const RTI::Exception *exc) const
	Print message to explain the RTI Exception. More...
virtual void	computeEligible ()
	Recomputes the set of attrs that are eligible for sending. More...
virtual void	justRegistered ()
	Called by DtHlaObjectManager right after a DtHlaObject is created, if it was created to represent a newly registered object. More...
virtual void	addHandlesToSet (RTI::AttributeHandleSet &destinationSet, const RTI::AttributeHandleSet &sourceSet)
	Add source attribute set to destination checking each handle for membership first Depracated - use DtFom::setInsert. More...

Additional Inherited Members
Static Public Member Functions inherited from DtHlaObject
static void	ownerAcquisitionIfAvailableCb (void *usr)
	The following four static fns are for use within ownership msg callbacks. More...
static void	ownerAcquisitionCb (void *usr)
static void	negotiatedDivestitureCb (void *usr)
static void	unconditionalDivestitureCb (void *usr)
Protected Types inherited from DtHlaObject
enum	SplitUpdateDiscriminant { UpdateBothLocalAndRemote, UpdateRemoteOnly, UpdateLocalOnly, UpdateSplit }
	When remotely needed and locally subscribed are the same, split is not necessary. More...
Static Protected Member Functions inherited from DtHlaObject
static void	reflectAttributeValuesCb (const DtStateMsg &stateMsg, void *hlaObj)
	Callback for handling state messages for the HLA object. More...
static void	updatesOnCb (RTI::ObjectHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOnForObjectInstance RTI call. More...
static void	updatesOffCb (RTI::ObjectHandle handle, const RTI::AttributeHandleSet &attributeSet, void *usr)
	Callback for handling turnUpdatesOffForObjectInstance RTI call. More...
Protected Attributes inherited from DtHlaObject
char *	myName
DtExerciseConn *	myExConn
bool	myReflecting
bool	myUpdating
DtList	myRemoveCbList
DtList	myReflectCbList
DtListItem *	myRemoveCbListNextPtr
DtListItem *	myReflectCbListNextPtr
DtTime	myLastSimTimeUpdateReceived
DtTime	myLastReceivedTimeStamp
DtObjClassDesc &	myClassDesc
SplitUpdateDiscriminant	mySplitUpdate
	Flag to indicate when to split values between update and self reflect. More...
RTI::ObjectHandle	myObjectId
RTI::AttributeHandleSet *	myEligibleAttrs
	Attributes that are eligible to be sent from within update() - passed to generateUpdate. More...
RTI::AttributeHandleSet *	myNeededAttrs
	Set of owned attributes for which we have received a turnUpdatesOn more recently than a turnUpdatesOff. More...
RTI::AttributeHandleSet *	myOwnedAttributes
	Set of attributes owned by the local federate. More...
RTI::AttributeHandleSet *	myRequestedAttributes
	Requested by other federates. More...
RTI::AttributeHandleSet *	myForcedAttributes
	Requested by a call to setForcedUpdate. More...
RTI::AttributeHandleSet *	myRequiredAttributes
	Union of forced and requested - not computed until needed. More...
bool	myUpdateRequiredAttributes
RTI::AttributeHandleSet *	mySelfReflectSplitAttrs
	When self reflecting, these attributes are the differences between eligible needed and eligible subscribed. More...
RTI::AttributeHandleSet *	myEligibleNeeded
	Eligible attributes that are needed remotely. More...
RTI::AttributeHandleSet *	myEligibleSubscribed
	Eligible attributes that are subscribed locally. More...
RTI::AttributeHandleSet *	myScratchAttributes
	Scratch set to use temporarily saves temporary allocation. More...
DtOwnershipHandler *	myOwnershipHandler

Detailed Description

Instances of DtUnknownHlaObject are used to store attributes for HLA objects which are not known by our FOM.

Constructor & Destructor Documentation

DtUnknownHlaObject::DtUnknownHlaObject	(	DtExerciseConn *	exConn,
		const char *	name,
		DtObjClassDesc &	classDesc
	)

Constructor for local objects.

DtUnknownHlaObject::DtUnknownHlaObject	(	DtExerciseConn *	exConn,
		RTI::ObjectHandle	id,
		const char *	name,
		DtObjClassDesc &	classDesc
	)

Constructor for reflected objects.

virtual DtUnknownHlaObject::~DtUnknownHlaObject ( )

virtual

destructor

DtUnknownHlaObject::DtUnknownHlaObject ( const DtUnknownHlaObject &  orig )

protected

copy constructor

Member Function Documentation

DtUnknownHlaObject& DtUnknownHlaObject::operator= ( const DtUnknownHlaObject &  orig )

protected

assignment operator

virtual void DtUnknownHlaObject::reflect ( const DtStateMsg &  stateMsg )

protectedvirtual

Does nothing.

You can access information from incoming update messages by using DtHlaObject::addPostReflectCb to register a function that will be called whenever an update msg is received.

Implements DtHlaObject.

virtual bool DtUnknownHlaObject::update ( )

virtual

Does nothing.

Use the version of update that takes an ahpvs to send data for a DtUnknownHlaObject. Will return true if data sent.

Reimplemented from DtHlaObject.

virtual bool DtUnknownHlaObject::update ( const RTI::AttributeHandleValuePairSet &  ahvps )

virtual

Sends the ahpvs through our DtExerciseConn.

Does not look at the contents of ahvps. It is the caller's responsibility to insure that all attributes in the message are in the set of attributes needed by the federation (obtained using attributesNeededByFederation). It is also the responsibility of the user of DtUnknownHlaObject to insure that requested attributes (obtained via requestedAttributes) get updated in a timely manner. clearRequestedAttributes should be called after each time requested attributes are updated. Will return true if data sent.

---

The documentation for this class was generated from the following file:

• unknownHlaObject.h
