DtUuidRecord Class Reference

Variable record for sending a single Uuid and used for UniqueID record and Source Unit Record. More...

Inheritance diagram for DtUuidRecord:

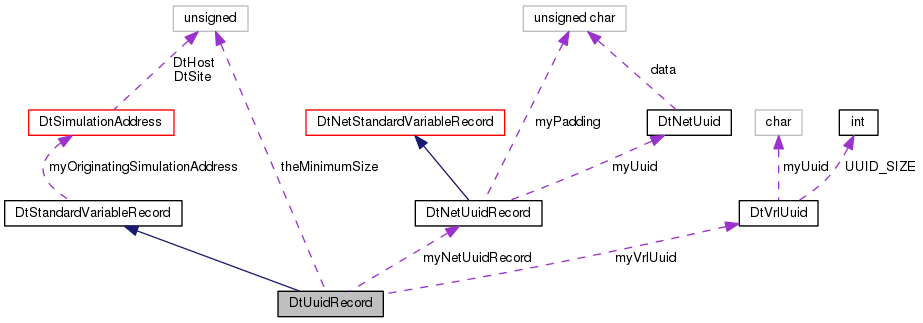

Collaboration diagram for DtUuidRecord:

Public Member Functions
	DtUuidRecord ()
	Constructor. More...
	DtUuidRecord (unsigned int dataType)
	Constructor with record type specified. More...
	DtUuidRecord (const DtUuidRecord &orig)
	Copy Constructor. More...
	DtUuidRecord (void *netBuffer, unsigned int size)
	Net Constructor. More...
virtual	~DtUuidRecord ()
	Destructor. More...
virtual bool	operator== (const DtUuidRecord &other)
	Equals operator. More...
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from Network Representation from the given location. More...
virtual unsigned	unpaddedNetsize () const
	This is the network size of the record without padding. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual unsigned int	recordType () const
	Get/Set Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Get/Set Record Length. More...
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes. More...
virtual const DtVrlUuid &	uuid () const
	Get/Set UUID. More...
virtual void	setUuid (DtVrlUuid uuid)
	Get/Set UUID. More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Creator of an unknown record for registering in a factory. More...
static unsigned int	recordTypeToUseUuidRecord ()
	Return the DI-Guy Action record type for uuid. More...
static unsigned int	recordTypeToUseSourceUnitRecord ()
	Return the DI-Guy Action record type for source unit. More...
static void	setRecordTypeToUse (unsigned int typeToUse)
	Set the record type to use. More...

Protected Attributes
DtVrlUuid	myVrlUuid
DtNetUuidRecord	myNetUuidRecord
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Static Protected Attributes
static const unsigned int	theMinimumSize

Detailed Description

Variable record for sending a single Uuid and used for UniqueID record and Source Unit Record.

Constructor & Destructor Documentation

DtUuidRecord::DtUuidRecord

(

)

Constructor.

DtUuidRecord::DtUuidRecord

(

unsigned int

dataType

)

Constructor with record type specified.

DtUuidRecord::DtUuidRecord

(

const DtUuidRecord &

orig

)

Copy Constructor.

DtUuidRecord::DtUuidRecord	(	void *	netBuffer,
		unsigned int	size
	)

Net Constructor.

virtual DtUuidRecord::~DtUuidRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtUuidRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtUuidRecord::create ( void *  addr, unsigned int  length  )

static

Creator of an unknown record for registering in a factory.

virtual unsigned int DtUuidRecord::netSize ( )

virtual

Returns the size of the network representation (including padding bytes)

Reimplemented from DtStandardVariableRecord.

virtual bool DtUuidRecord::operator== ( const DtUuidRecord &  other )

virtual

Equals operator.

virtual bool DtUuidRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Implements DtStandardVariableRecord.

virtual void DtUuidRecord::printData ( ) const

virtual

Prints the data to DtInfo.

Reimplemented from DtStandardVariableRecord.

virtual void DtUuidRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtUuidRecord::recordLength ( ) const

virtual

Get/Set Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtUuidRecord::recordType ( ) const

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static unsigned int DtUuidRecord::recordTypeToUseSourceUnitRecord ( )

static

Return the DI-Guy Action record type for source unit.

static unsigned int DtUuidRecord::recordTypeToUseUuidRecord ( )

static

Return the DI-Guy Action record type for uuid.

virtual void DtUuidRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from Network Representation from the given location.

Memory must exist for life of the variable record

Implements DtStandardVariableRecord.

virtual void DtUuidRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtUuidRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static void DtUuidRecord::setRecordTypeToUse ( unsigned int  typeToUse )

static

Set the record type to use.

virtual void DtUuidRecord::setUuid ( DtVrlUuid  uuid )

virtual

Get/Set UUID.

virtual unsigned DtUuidRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Implements DtStandardVariableRecord.

virtual const DtVrlUuid& DtUuidRecord::uuid ( ) const

virtual

Get/Set UUID.

virtual void DtUuidRecord::writeRecord ( void *  addr ) const

virtual

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetUuidRecord DtUuidRecord::myNetUuidRecord

protected

DtVrlUuid DtUuidRecord::myVrlUuid

protected

const unsigned int DtUuidRecord::theMinimumSize

staticprotected

---

The documentation for this class was generated from the following file:

• uuidRecord.h
