DtXmlFedReader Class Reference

Instances of DtXmlFedReader are used to read a FED file, and fill in a DtFedTarget with the information read. More...

Inheritance diagram for DtXmlFedReader:

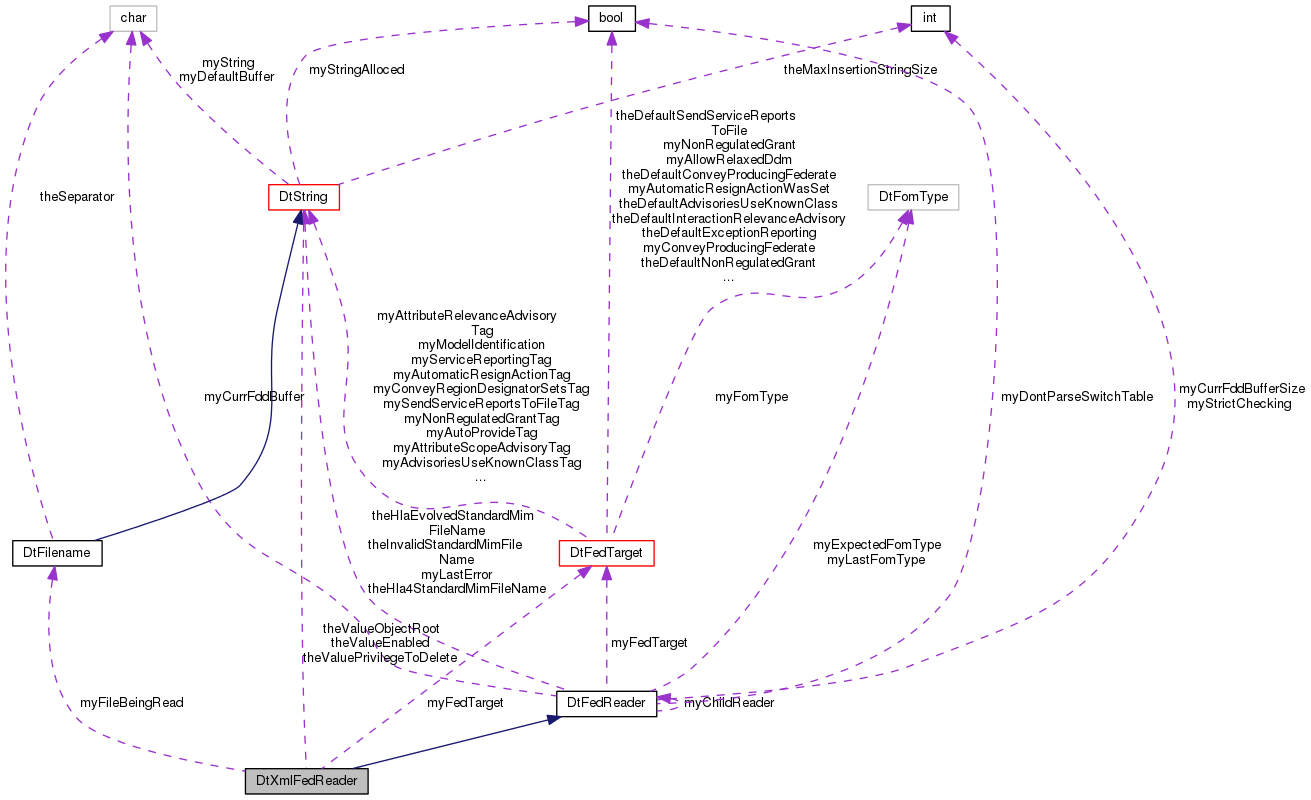

Collaboration diagram for DtXmlFedReader:

Public Member Functions
	DtXmlFedReader ()
	Constructor. More...
virtual	~DtXmlFedReader ()
	Destructor. More...
virtual DtFedReadStatus	readFedFilePtr (FILE *filePointer, DtFedTarget *fedTarget, DtFilename fileName, unsigned int strictCheckingMask=DtFedReadStrictDisabled, bool useDTD=false, bool dontParseSwitches=false)=0
	Read the FED file fedFileName, setting values to fedTarget. More...
Public Member Functions inherited from DtFedReader
	DtFedReader ()
	Constructor. More...
virtual	~DtFedReader ()
	Destructor. More...
virtual DtFedReadStatus	readFed (const char *fedFileName, DtFedTarget *fedTarget, unsigned int strictCheckingMask=DtFedReadStrictDisabled, bool useDTD=false, bool dontParseSwitches=false)
	Read the FED file fedFileName, setting values to fedTarget. More...
virtual FILE *	openFedFileWithErrCheck (const char *fileName, bool isBinary=false)
	get the a file handle to the FED File for reading in text or binary mode More...
virtual unsigned int	setStrictChecking (unsigned int checkMask)
	Set status of strict checking. More...
virtual bool	strictChecking (unsigned int checkMask) const
	Returns bool: strictChecking enabled for types of checks provided. More...
virtual void	setExpectedFomType (DtFomType fomType)
	Set/Get expected FOM type. More...
virtual DtFomType	expectedFomType () const
virtual DtFomType	lastFomType () const
	Returns the FOM type of the last FOM read. More...
virtual const DtString &	lastError () const
	Get the last error. More...
char *	takeCurrFddData ()

Static Public Member Functions
static xmlNode *	getNodeByName (xmlNode *currentNode, const xmlChar *nodeName)
	get the specified node More...
static const xmlChar *	childContentByName (xmlNode *node, const xmlChar *name)
	Return the data for the specified child of the given node. More...
static DtFomType	fomType (void *fedFilePtr)
	Inspect the file for indicators of what type of FOM file it is (1516, Evolved, 1516_2025, ...) More...
static DtFomType	fomType (xmlNode *rootNode)
	Inspect the file for indicators of what type of FOM file it is (1516, Evolved, 1516_2025, ...) More...
Static Public Member Functions inherited from DtFedReader
static const DtString &	standardMimFileName (DtFomType fomType)
	Return the standard MIM filename given the FOM type. More...
static bool	isStandardMimFileName (DtString const &fileName, DtFomType fomType)
	Return true if file is the standard MIM file of the given type. More...
static FILE *	openFedFile (const char *fileName, bool isBinary=false)
	Open file from name and return FILE*. More...
static bool	readFileIntoBuffer (FILE *fileHandle, char **fileBuffer, unsigned int *fileSize)
	Read the file from the FILE* into the buffer. More...
static DtFomType	checkFomType (const char *fedFileName, void *fedFilePtr)
	Get the FOM Type. More...
static DtFomType	checkFomType (const char *fedFileName)
	Get the FOM Type. More...

Protected Member Functions
virtual DtFedReadStatus	processFed (xmlNode *fedObj)=0
	process the FED directive More...
virtual DtFedReadStatus	parseTransportationsList (xmlNode *currentNode)=0
	process the transportations directive More...
virtual DtFedReadStatus	processObjects (xmlNode *currentNode)=0
	process the Objects directive More...
virtual DtFedReadStatus	processInteractions (xmlNode *currentNode)=0
	process the Interactions directive More...
virtual DtFedReadStatus	parseObjectTree (xmlNode *currentNode, const DtString &parentName)=0
	process the list object of classes More...
virtual DtFedReadStatus	parseAttribute (xmlNode *currentNode, const DtString &parentName)=0
	process an attribute of an object class More...
virtual DtFedReadStatus	parseAttributeDimensions (xmlNode *currentNode, DtString const &objectClass, DtString const &attribute)=0
	process attribute dimension associations More...
virtual DtFedReadStatus	parseInteractionTree (xmlNode *currentNode, const DtString &parentName)=0
	process the list of interaction classes More...
virtual DtFedReadStatus	parseInteractionDimensions (xmlNode *currentNode, DtString const &interactionClass)=0
	process attribute dimension associations More...
virtual DtFedReadStatus	parseDimensionList (xmlNode *currentNode)=0
	process the list of dimensions More...
virtual DtFedReadStatus	parseDimension (xmlNode *currentNode)=0
	process a dimension More...
virtual DtFedReadStatus	parseSwitches (xmlNode *currentNode)=0
	process switches More...
virtual DtFedReadStatus	parseParameter (xmlNode *currentNode, const DtString &parentName)=0
	process a parameter of an interaction class More...
virtual DtFedReadStatus	parseTransportationTree (xmlNode *currentNode)
	process the list of transportation classes More...
virtual DtFedReadStatus	parseDataTypeTree (xmlNode *currentNode)=0
	process the list of datatype classes More...
virtual DtFedReadStatus	parseNotesTree (xmlNode *currentNode)=0
	process the list of notes classes More...
virtual DtFedReadStatus	parseTagsTree (xmlNode *currentNode)=0
	process the list of user defined tags. More...
virtual DtFedReadStatus	parseBasicDataTypesTree (xmlNode *currentNode)=0
	process the list of basic data representations More...
virtual DtFedReadStatus	parseSimpleDataTypesTree (xmlNode *currentNode)=0
	process the list of simple data types More...
virtual DtFedReadStatus	parseArrayDataTypesTree (xmlNode *currentNode)=0
	process the list of array data types More...
virtual DtFedReadStatus	parseEnumeratedDataTypesTree (xmlNode *currentNode)=0
	process the list of enumerated data types More...
virtual DtFedReadStatus	parseFixedRecordDataTypesTree (xmlNode *currentNode)=0
	process the list of fixed record data types More...
virtual DtFedReadStatus	parseVariantRecordDataTypesTree (xmlNode *currentNode)=0
	process the list of variant record data types More...
virtual void	appendNodeProperties (xmlNode *currentNode, DtString &output) const
	Appends the list of properties attached to an XML node to the given string. More...
virtual void	appendNodeContent (xmlNode *node, DtString &output) const
	Appends the name and content of the given node to the given string. More...
virtual bool	isBlankText (xmlNode *node) const
	Return true if the node is blank text (space, tab, newline) More...
virtual const xmlChar *	propertyByName (xmlNode *node, const xmlChar *name)
	Return the data for the specified property of the given node. More...
virtual bool	getPropertyByName (xmlNode *node, const xmlChar *name, DtString &propertyContent)
	Fill in a string with the data for the specified property of the given node (empty string if property not found) Return true if property is found. More...
virtual bool	getChildrenContent (xmlNode *node, DtString &content) const
	Get the children content of the given node into the given string. More...
virtual DtString	childrenContent (xmlNode *node) const
	Return the children content of the given node. More...
virtual bool	getChildContentByName (xmlNode *node, const xmlChar *name, DtString &childContent)
	Fill in a string with the data for the specified child of the given node (empty string if child not found) Return true if child is found. More...
virtual bool	convertStringToULong (std::string numericString, unsigned long &value)
	Convert the given string to a long value. More...
template<typename stringType , typename charType >
void	clipPrefix (stringType &valueSpec, charType c)
	Clip the characters from beginning of string up to the first occurrence of the given character. More...
Protected Member Functions inherited from DtFedReader
void	appendErrorLine (xmlNode *node, DtString &output) const

Protected Attributes
DtFedTarget *	myFedTarget
DtFilename	myFileBeingRead
Protected Attributes inherited from DtFedReader
DtFedTarget *	myFedTarget
DtFedReader *	myChildReader
unsigned int	myStrictChecking
bool	myDontParseSwitchTable
DtFomType	myExpectedFomType
	When set, the FOM must conform to this type. More...
DtFomType	myLastFomType
	The type of FOM format that was last read. More...
DtString	myLastError
	Description of last encountered error. More...

Static Protected Attributes
static const DtString	theValueObjectRoot
static const DtString	theValuePrivilegeToDelete
static const DtString	theValueEnabled

Private Member Functions
	DtXmlFedReader (const DtXmlFedReader &)
	Copy constructor and Assignment operator - Unimplemented. More...
DtXmlFedReader &	operator= (const DtXmlFedReader &)

Additional Inherited Members
Public Attributes inherited from DtFedReader
char *	myCurrFddBuffer
	Buffer containing the most recently read FDD file. More...
unsigned int	myCurrFddBufferSize
	Size of the buffer for the most recently read FDD file. More...
Static Public Attributes inherited from DtFedReader
static const DtString	theHlaEvolvedStandardMimFileName
static const DtString	theHla4StandardMimFileName
static const DtString	theInvalidStandardMimFileName

Detailed Description

Instances of DtXmlFedReader are used to read a FED file, and fill in a DtFedTarget with the information read.

The FED file must be in a RTI 1516+ XML file format

Constructor & Destructor Documentation

DtXmlFedReader::DtXmlFedReader

(

)

Constructor.

virtual DtXmlFedReader::~DtXmlFedReader ( )

virtual

Destructor.

DtXmlFedReader::DtXmlFedReader ( const DtXmlFedReader &  )

private

Copy constructor and Assignment operator - Unimplemented.

Member Function Documentation

virtual void DtXmlFedReader::appendNodeContent ( xmlNode *  node, DtString &  output  ) const

protectedvirtual

Appends the name and content of the given node to the given string.

Reimplemented in DtFedReader1516e.

virtual void DtXmlFedReader::appendNodeProperties ( xmlNode *  currentNode, DtString &  output  ) const

protectedvirtual

Appends the list of properties attached to an XML node to the given string.

Reimplemented in DtFedReader1516e.

static const xmlChar* DtXmlFedReader::childContentByName ( xmlNode *  node, const xmlChar *  name  )

static

Return the data for the specified child of the given node.

virtual DtString DtXmlFedReader::childrenContent ( xmlNode *  node ) const

protectedvirtual

Return the children content of the given node.

template<typename stringType , typename charType >

void DtXmlFedReader::clipPrefix ( stringType &  valueSpec, charType  c  )

protected

Clip the characters from beginning of string up to the first occurrence of the given character.

virtual bool DtXmlFedReader::convertStringToULong ( std::string  numericString, unsigned long &  value  )

protectedvirtual

Convert the given string to a long value.

static DtFomType DtXmlFedReader::fomType ( void *  fedFilePtr )

static

Inspect the file for indicators of what type of FOM file it is (1516, Evolved, 1516_2025, ...)

static DtFomType DtXmlFedReader::fomType ( xmlNode *  rootNode )

static

Inspect the file for indicators of what type of FOM file it is (1516, Evolved, 1516_2025, ...)

virtual bool DtXmlFedReader::getChildContentByName ( xmlNode *  node, const xmlChar *  name, DtString &  childContent  )

protectedvirtual

Fill in a string with the data for the specified child of the given node (empty string if child not found) Return true if child is found.

virtual bool DtXmlFedReader::getChildrenContent ( xmlNode *  node, DtString &  content  ) const

protectedvirtual

Get the children content of the given node into the given string.

static xmlNode* DtXmlFedReader::getNodeByName ( xmlNode *  currentNode, const xmlChar *  nodeName  )

static

get the specified node

virtual bool DtXmlFedReader::getPropertyByName ( xmlNode *  node, const xmlChar *  name, DtString &  propertyContent  )

protectedvirtual

Fill in a string with the data for the specified property of the given node (empty string if property not found) Return true if property is found.

Reimplemented in DtFedReader1516e.

virtual bool DtXmlFedReader::isBlankText ( xmlNode *  node ) const

protectedvirtual

Return true if the node is blank text (space, tab, newline)

DtXmlFedReader& DtXmlFedReader::operator= ( const DtXmlFedReader &  )

private

virtual DtFedReadStatus DtXmlFedReader::parseArrayDataTypesTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of array data types

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseAttribute ( xmlNode *  currentNode, const DtString &  parentName  )

protectedpure virtual

process an attribute of an object class

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseAttributeDimensions ( xmlNode *  currentNode, DtString const &  objectClass, DtString const &  attribute  )

protectedpure virtual

process attribute dimension associations

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseBasicDataTypesTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of basic data representations

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseDataTypeTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of datatype classes

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseDimension ( xmlNode *  currentNode )

protectedpure virtual

process a dimension

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseDimensionList ( xmlNode *  currentNode )

protectedpure virtual

process the list of dimensions

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseEnumeratedDataTypesTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of enumerated data types

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseFixedRecordDataTypesTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of fixed record data types

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseInteractionDimensions ( xmlNode *  currentNode, DtString const &  interactionClass  )

protectedpure virtual

process attribute dimension associations

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseInteractionTree ( xmlNode *  currentNode, const DtString &  parentName  )

protectedpure virtual

process the list of interaction classes

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseNotesTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of notes classes

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseObjectTree ( xmlNode *  currentNode, const DtString &  parentName  )

protectedpure virtual

process the list object of classes

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseParameter ( xmlNode *  currentNode, const DtString &  parentName  )

protectedpure virtual

process a parameter of an interaction class

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseSimpleDataTypesTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of simple data types

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseSwitches ( xmlNode *  currentNode )

protectedpure virtual

process switches

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseTagsTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of user defined tags.

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseTransportationsList ( xmlNode *  currentNode )

protectedpure virtual

process the transportations directive

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::parseTransportationTree ( xmlNode *  currentNode )

protectedvirtual

process the list of transportation classes

virtual DtFedReadStatus DtXmlFedReader::parseVariantRecordDataTypesTree ( xmlNode *  currentNode )

protectedpure virtual

process the list of variant record data types

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::processFed ( xmlNode *  fedObj )

protectedpure virtual

process the FED directive

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::processInteractions ( xmlNode *  currentNode )

protectedpure virtual

process the Interactions directive

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual DtFedReadStatus DtXmlFedReader::processObjects ( xmlNode *  currentNode )

protectedpure virtual

process the Objects directive

Implemented in DtFedReader1516e, and DtFedReader1516.

virtual const xmlChar* DtXmlFedReader::propertyByName ( xmlNode *  node, const xmlChar *  name  )

protectedvirtual

Return the data for the specified property of the given node.

Reimplemented in DtFedReader1516e.

virtual DtFedReadStatus DtXmlFedReader::readFedFilePtr ( FILE *  filePointer, DtFedTarget *  fedTarget, DtFilename  fileName, unsigned int  strictCheckingMask = DtFedReadStrictDisabled, bool  useDTD = false, bool  dontParseSwitches = false  )

pure virtual

Read the FED file fedFileName, setting values to fedTarget.

Note if fedTarget is NULL the fedfile will be read and verified only.

Implements DtFedReader.

Implemented in DtFedReader1516e, DtFedReader1516, and DtFedReader1516_4.

Member Data Documentation

DtFedTarget* DtXmlFedReader::myFedTarget

protected

DtFilename DtXmlFedReader::myFileBeingRead

protected

const DtString DtXmlFedReader::theValueEnabled

staticprotected

const DtString DtXmlFedReader::theValueObjectRoot

staticprotected

const DtString DtXmlFedReader::theValuePrivilegeToDelete

staticprotected

---

The documentation for this class was generated from the following file:

• xmlFedReader.h
