Instances of DtAerodromePublisher publish Aerodrome objects to the network. More...

Inheritance diagram for DtAerodromePublisher:

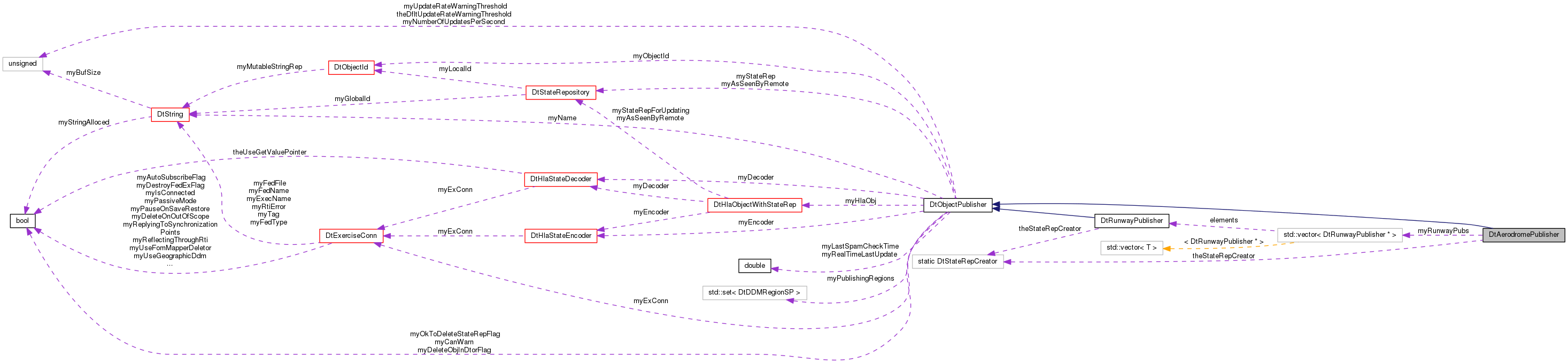

Collaboration diagram for DtAerodromePublisher:

Public Types
typedef DtAerodromeStateRepository (	DtStateRepCreator )()
	Function prototype for a function that creates a DtAerodromeStateRepository. More...

Public Member Functions
	DtAerodromePublisher (DtAerodromeStateRepository stateRepToUse, DtExerciseConn conn, const char name=0, const DtDDMRegionSet regionSetToUse=0)
	Constructor. More...

	DtAerodromePublisher (RTI::ObjectClassHandle h, DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtAerodromePublisher (DtExerciseConn conn, const char name=0, const DtDDMRegionSet *regionSetToUse=0)
	Constructor. More...

	DtAerodromePublisher (DtHlaObjectWithStateRep obj, DtExerciseConn conn)
	Constructor that creates a publisher for an existing DtHlaObject. More...

virtual const char *	objectClassName ()
	The Object class name (MAK_Aerodrome) Returns the name of the FOM object class to use. More...

virtual	~DtAerodromePublisher ()
	Destructor. More...

virtual bool	tick ()
	Tick (update) this object and call syncRunwayList. More...

virtual DtAerodromeStateRepository *	aerodromeStateRep ()
	Returns a pointer to the DtAerodromeStateRepository - through which you can set or inspect current state information. More...

virtual DtAerodromeStateRepository *	asr ()
	Synonym for aerodromeStateRep(). More...

Public Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet regionSet=0)
	Constructor. More...

virtual	~DtObjectPublisher ()
	Destructor. More...

virtual void	setHlaObject (const char className, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called. More...

virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you. More...

virtual void	setHlaObject (DtHlaObjectWithStateRep obj, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it. More...

virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called. More...

virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtStateRepository *	sr ()
	Synonym for stateRep(). More...

virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...

virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR. More...

virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message. More...

virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject. More...

virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...

virtual const DtObjectId &	id () const
	Get the object's local identifier. More...

virtual const DtObjectId &	objectId () const
	Get the object's local identifier. More...

virtual const DtObjectId &	localId () const
	Get the object's local identifier. More...

virtual const DtString &	name () const
	Get the object's name. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3. More...

virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent. More...

virtual void	forceUpdate (const RTI::AttributeHandleSet &set)

virtual bool	parallelTick ()
	Tick (update) this object in parallel threads. More...

virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher. More...

virtual bool	deleteObjInDtorFlag () const

virtual const DtDDMRegionSet &	publishingRegions () const

virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador. More...

virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador. More...

virtual void	setUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets & overrides the default (static) updates per second for a specific instance If a negative integer is passed to it, it will use the difference of the max value of an unsigned short and the absolute value of the negative integer. More...

virtual unsigned short	updateRateWarningThreshold () const
	Returns the value of the overridden rate warning threshold. More...

virtual void	checkForUpdateRateWarning ()
	Helper function that determines whether or not to trigger a spam warning. More...

	DtObjectPublisher (DtExerciseConn conn, const char name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases. More...

void	init (RTI::ObjectClassHandle hand, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0)

void	init (const char className, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Static Public Member Functions inherited from DtObjectPublisher
static void	removeObjectCb (DtHlaObject obj, void pub)
	Callback to be called when our underlying DtHlaObject goes away. More...

static void	setDfltUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets the default (static) updates per second for any instance. More...

static unsigned short	dfltUpdateRateWarningThreshold ()
	Return the value of theDfltUpdateRateWarningThreshold. More...

Protected Member Functions
virtual void	syncRunwayList ()
	Update myRunwayPubs to match the Runway list from the state repository. More...

virtual bool	publisherForRsr (DtRunwayStateRepository *rsr)
	Checks if there is a DtRunwayPublisher in myRunwayPubs for the specified DtRunwayStateRepository. More...

virtual bool	runwayStateRepForPublisher (DtRunwayPublisher *runwayPub)
	Checks if there is a DtRunwayStateRepository in the DtAerodromeStateRepository runwayList for the given DtRunwayPublisher from myRunwayPubs. More...

Protected Member Functions inherited from DtObjectPublisher
	DtObjectPublisher (DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor which does not include the DtExerciseConn. More...

virtual void	setExerciseConn (DtExerciseConn *conn)
	Allows the DtExerciseConn to be set after initial publisher creation. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away. More...

Protected Attributes
DtRunwayPublisherList	myRunwayPubs

Protected Attributes inherited from DtObjectPublisher
DtExerciseConn *	myExConn

DtHlaObjectWithStateRep *	myHlaObj

DtStateRepository *	myStateRep

DtStateRepository *	myAsSeenByRemote

DtHlaStateEncoder *	myEncoder

DtHlaStateDecoder *	myDecoder

DtObjectId	myObjectId

bool	myOkToDeleteStateRepFlag

DtString	myName

bool	myDeleteObjInDtorFlag

DtDDMRegionSet	myPublishingRegions

DtTime	myRealTimeLastUpdate

DtTime	myLastSpamCheckTime

unsigned short	myNumberOfUpdatesPerSecond

unsigned short	myUpdateRateWarningThreshold

bool	myCanWarn

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Static Protected Attributes inherited from DtObjectPublisher
static unsigned short	theDfltUpdateRateWarningThreshold
	Static member that holds the value of the number of updates to be sent to trigger a spam warning. More...

Private Member Functions
	DtAerodromePublisher (const DtAerodromePublisher &orig)
	Copy Constructor – not implemented. More...

DtAerodromePublisher &	operator= (const DtAerodromePublisher &orig)
	Assignment operator – not implemented. More...

Detailed Description

Instances of DtAerodromePublisher publish Aerodrome objects to the network.

Member Typedef Documentation

typedef DtAerodromeStateRepository*(* DtAerodromePublisher::DtStateRepCreator)()

Function prototype for a function that creates a DtAerodromeStateRepository.

Constructor & Destructor Documentation

DtAerodromePublisher::DtAerodromePublisher	(	DtAerodromeStateRepository *	stateRepToUse,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtAerodromePublisher::DtAerodromePublisher	(	RTI::ObjectClassHandle	h,
		DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtAerodromePublisher::DtAerodromePublisher	(	DtExerciseConn *	conn,
		const char *	name = `0`,
		const DtDDMRegionSet *	regionSetToUse = `0`
	)

Constructor.

DtAerodromePublisher::DtAerodromePublisher	(	DtHlaObjectWithStateRep *	obj,
		DtExerciseConn *	conn
	)

Constructor that creates a publisher for an existing DtHlaObject.

(DtHlaObjectWithStateRep is derived from DtHlaObject.) Typically used in conjunction with ownership management, when you want to take ownership and begin updating some attributes of an object that you have already discovered.

virtual DtAerodromePublisher::~DtAerodromePublisher ( )

virtual

Destructor.

DtAerodromePublisher::DtAerodromePublisher ( const DtAerodromePublisher & orig )

private

Copy Constructor – not implemented.

Member Function Documentation

DtAerodromeStateRepository * DtAerodromePublisher::aerodromeStateRep ( )

inlinevirtual

Returns a pointer to the DtAerodromeStateRepository - through which you can set or inspect current state information.

References DtObjectPublisher::myStateRep.

DtAerodromeStateRepository * DtAerodromePublisher::asr ( )

inlinevirtual

Synonym for aerodromeStateRep().

References DtObjectPublisher::myStateRep.

virtual const char* DtAerodromePublisher::objectClassName ( )

virtual

The Object class name (MAK_Aerodrome) Returns the name of the FOM object class to use.

Default implementation is to ask the FOM Mapper.

DtAerodromePublisher& DtAerodromePublisher::operator= ( const DtAerodromePublisher & orig )

private

Assignment operator – not implemented.

virtual bool DtAerodromePublisher::publisherForRsr ( DtRunwayStateRepository * rsr )

protectedvirtual

Checks if there is a DtRunwayPublisher in myRunwayPubs for the specified DtRunwayStateRepository.

Used during syncRunwayList() to create new publisher for added runways

virtual bool DtAerodromePublisher::runwayStateRepForPublisher ( DtRunwayPublisher * runwayPub )

protectedvirtual

Checks if there is a DtRunwayStateRepository in the DtAerodromeStateRepository runwayList for the given DtRunwayPublisher from myRunwayPubs.

Used during syncRunwayList to delete publishers for removed runways

static DtStateRepCreator DtAerodromePublisher::setStateRepCreator ( DtStateRepCreator creator )

static

Give us a function to be used for creating SRs.

virtual void DtAerodromePublisher::syncRunwayList ( )

protectedvirtual

Update myRunwayPubs to match the Runway list from the state repository.

Creates a new DtRunwayPublisher for any new Runways added to the state rep since the last tick Deletes any publishers for Runways that have been removed since the last tick.

virtual bool DtAerodromePublisher::tick ( )

virtual

Tick (update) this object and call syncRunwayList.

Will tick all DtRunwayPublishers in the runwayPub list. Will return true if data was sent.

Reimplemented from DtObjectPublisher.

Member Data Documentation

DtRunwayPublisherList DtAerodromePublisher::myRunwayPubs

protected

DtStateRepCreator DtAerodromePublisher::theStateRepCreator

staticprotected

The documentation for this class was generated from the following file:

aerodromePublisherHLA.h
