DtExpendableRecord Class Reference

Inheritance diagram for DtExpendableRecord:

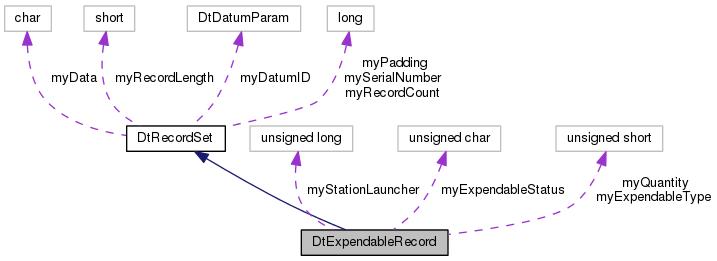

Collaboration diagram for DtExpendableRecord:

Public Member Functions
	DtExpendableRecord ()
	default Constructor More...
	DtExpendableRecord (const DtExpendableRecord &orig)
	copy constructor More...
	DtExpendableRecord (DtEntityType ExpendableType, DtU32 stationLauncher, DtU16 quantity, DtU8 ExpendableStatus)
	custom Constructor More...
DtExpendableRecord &	operator= (const DtExpendableRecord &orig)
	assignment Operators More...
virtual DtExpendableRecord &	operator= (const DtNetRecordSet &orig)
void	setExpendableType (DtEntityType ExpendableType)
	Setter/Getter for Expendable Type. More...
DtEntityType	expendableType ()
void	setStationLauncher (DtU32 stationLauncher)
	Setter/Getter for Station/Launcher Type. More...
DtU32	stationLauncher ()
void	setQuantity (DtU16 quantity)
	Setter/Getter for Quantity. More...
DtU16	quantity ()
void	setExpendableStatus (DtU8 quantity)
	Setter/Getter for Expendable Status. More...
DtU8	expendableStatus ()
virtual void	print () const
	print data. More...
virtual void	printDataToStream (std::ostream &stream) const
Public Member Functions inherited from DtRecordSet
	DtRecordSet ()
	Constructors. More...
	DtRecordSet (const DtRecordSet &orig)
virtual	~DtRecordSet ()
	Destructor. More...
DtRecordSet &	operator= (const DtRecordSet &orig)
	Assignment operators. More...
DtRecordSet &	operator= (const DtNetRecordSet &orig)
virtual bool	setDatumID (DtDatumParam value)
	Set/Get the datum ID. More...
virtual DtDatumParam	datumID () const
virtual void	setSerialNumber (DtU32 value)
	Set/Get the serial number. More...
virtual DtU32	serialNumber () const
virtual bool	setRecordBitLength (DtU16 bitLength)
	Set/Get the record length in bits. More...
virtual DtU16	recordBitLength () const
virtual bool	setRecordByteLength (int byteLength)
	Set/Get the record length in bytes. More...
virtual int	recordByteLength () const
virtual bool	setRecordCount (DtU32 bytes)
	Set/Get the number of of records in this set. More...
virtual DtU32	recordCount () const
virtual bool	setDataBytes (DtU32 recordIndex, const void *data)
	Set/Get multiple data bytes. More...
virtual bool	getDataBytes (DtU32 recordIndex, void *buff) const
virtual bool	setDataByte (DtU32 recordIndex, DtU8 value, int byteIndex=0)
	Set/Get a data byte. More...
virtual bool	getDataByte (DtU32 recordIndex, DtU8 &value, int byteIndex=0) const
virtual bool	setDataInt16 (DtU32 recordIndex, DtInt16 &value)
	Set/Get data in signed 16-bit integer format. More...
virtual bool	getDataInt16 (DtU32 recordIndex, DtInt16 &value) const
virtual bool	setDataU16 (DtU32 recordIndex, DtU16 &value)
	Set/Get data in unsigned 16-bit integer format. More...
virtual bool	getDataU16 (DtU32 recordIndex, DtU16 &value) const
virtual bool	setDataInt32 (DtU32 recordIndex, DtInt32 &value)
	Set/Get data in signed 32-bit integer format. More...
virtual bool	getDataInt32 (DtU32 recordIndex, DtInt32 &value) const
virtual bool	setDataU32 (DtU32 recordIndex, DtU32 &value)
	Set/Get data in unsigned 32-bit integer format. More...
virtual bool	getDataU32 (DtU32 recordIndex, DtU32 &value) const
virtual bool	setDataFloat32 (DtU32 recordIndex, DtFloat32 &value)
	Set/Get data in 32-bit floating point format. More...
virtual bool	getDataFloat32 (DtU32 recordIndex, DtFloat32 &value) const
virtual bool	setDataFloat64 (DtU32 recordIndex, DtFloat64 &value)
	Set/Get data in 64-bit floating point format. More...
virtual bool	getDataFloat64 (DtU32 recordIndex, DtFloat64 &value) const
virtual int	recordSetLength () const
	Get the total number of bytes required for the network representation of the record set. More...
virtual void	unloadNetRecordSet (const DtNetRecordSet &record, int dataLength=0)
	Load/unload data from a packet record. More...
virtual void	loadNetRecordSet (DtNetRecordSet &record) const

Public Attributes
DtU16 *	myExpendableType
DtU32 *	myStationLauncher
DtU16 *	myQuantity
DtU8 *	myExpendableStatus

Additional Inherited Members
Protected Attributes inherited from DtRecordSet
DtDatumParam	myDatumID
DtU32	mySerialNumber
DtU32	myPadding
DtU16	myRecordLength
DtU32	myRecordCount
char *	myData

Constructor & Destructor Documentation

DtExpendableRecord::DtExpendableRecord

(

)

default Constructor

DtExpendableRecord::DtExpendableRecord

(

const DtExpendableRecord &

orig

)

copy constructor

DtExpendableRecord::DtExpendableRecord	(	DtEntityType	ExpendableType,
		DtU32	stationLauncher,
		DtU16	quantity,
		DtU8	ExpendableStatus
	)

custom Constructor

Member Function Documentation

DtU8 DtExpendableRecord::expendableStatus

(

)

DtEntityType DtExpendableRecord::expendableType

(

)

DtExpendableRecord& DtExpendableRecord::operator=

(

const DtExpendableRecord &

orig

)

assignment Operators

virtual DtExpendableRecord& DtExpendableRecord::operator= ( const DtNetRecordSet &  orig )

virtual

virtual void DtExpendableRecord::print ( ) const

virtual

print data.

Reimplemented from DtRecordSet.

virtual void DtExpendableRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Reimplemented from DtRecordSet.

DtU16 DtExpendableRecord::quantity

(

)

void DtExpendableRecord::setExpendableStatus

(

DtU8

quantity

)

Setter/Getter for Expendable Status.

void DtExpendableRecord::setExpendableType

(

DtEntityType

ExpendableType

)

Setter/Getter for Expendable Type.

void DtExpendableRecord::setQuantity

(

DtU16

quantity

)

Setter/Getter for Quantity.

void DtExpendableRecord::setStationLauncher

(

DtU32

stationLauncher

)

Setter/Getter for Station/Launcher Type.

DtU32 DtExpendableRecord::stationLauncher

(

)

Member Data Documentation

DtU8* DtExpendableRecord::myExpendableStatus

DtU16* DtExpendableRecord::myExpendableType

DtU16* DtExpendableRecord::myQuantity

DtU32* DtExpendableRecord::myStationLauncher

---

The documentation for this class was generated from the following file:

• expendableRecord.h
