DtInetSocket Class Reference

The DtInetSocket class provides a protocol independant, address family independant base class for TCP or UDP socket subclasses. More...

Inheritance diagram for DtInetSocket:

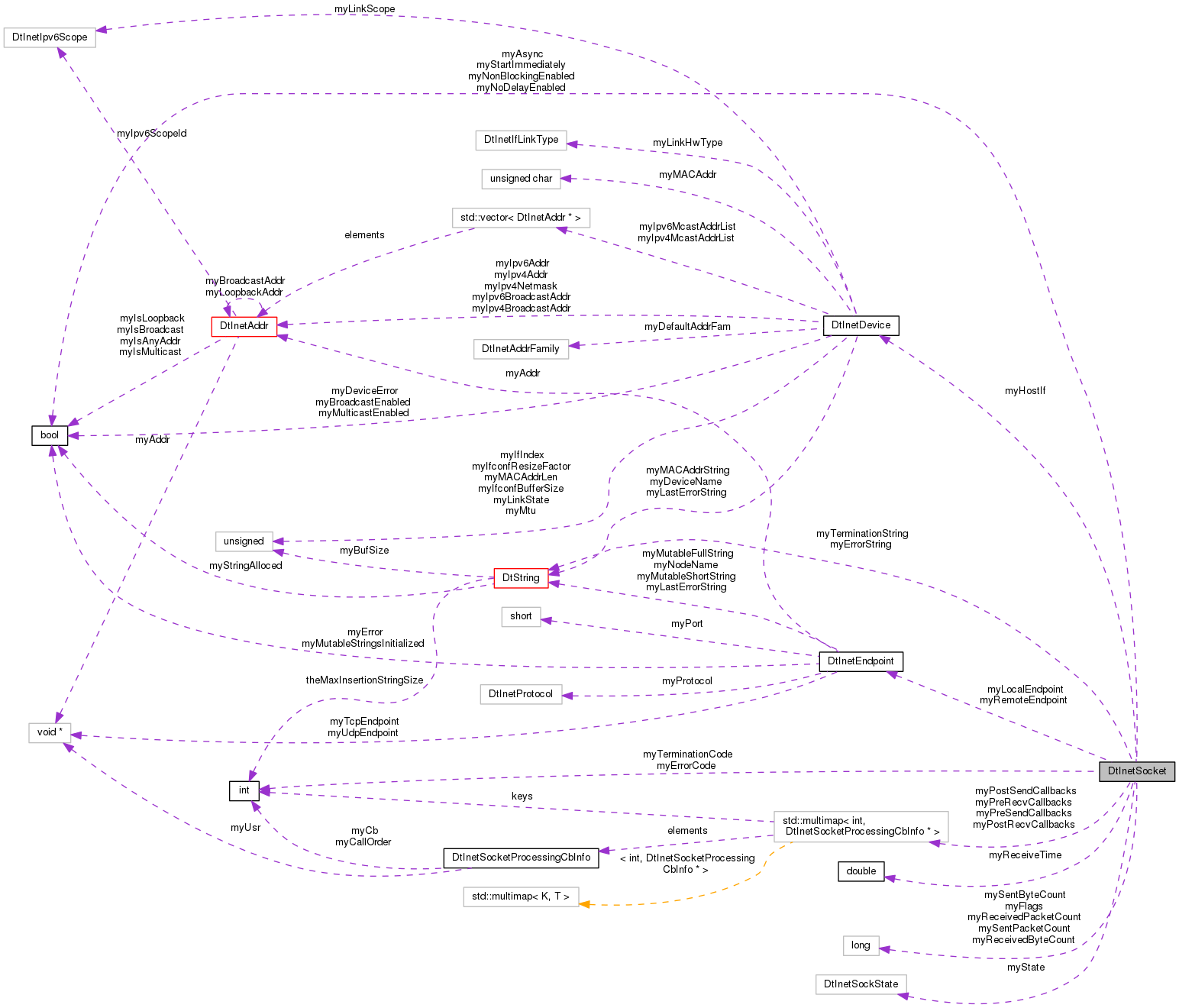

Collaboration diagram for DtInetSocket:

Public Member Functions
	DtInetSocket ()
	Default Constructor. More...
virtual	~DtInetSocket ()
	Destructor. More...
virtual bool	setDestination (const DtInetEndpoint &dest)=0
	Set / get the destination endpoint for the socket. More...
virtual const DtInetEndpoint &	destination () const
virtual const DtInetEndpoint &	localEndpoint () const
	Get the local endpoint for the socket. More...
virtual bool	setLocalPort (DtU16 port)
	Set / get the local port number of the socket. More...
virtual DtU16	localPort () const
virtual bool	bindToDevice (const DtInetDevice *hostIf=NULL)=0
	Bind the socket to a network interface device on the local host. More...
virtual const DtInetDevice *	hostIf () const
	Get the host network interface device the socket is bound to. More...
virtual bool	openSocket ()=0
	Enable sending and receiving of packets. More...
virtual bool	closeSocket ()=0
	Close a socket. More...
virtual bool	connectToDestination ()=0
	Initiate a connection to the destination endpoint. More...
virtual DtInetSockState	state ()
	Return the present state of the socket. More...
virtual bool	isOk ()
	Deprecated. More...
virtual DtU32	protocol () const
	Get the protocol (DtInetProtocol_TCP or DtInetProtocol_UDP) More...
virtual DtInetUtils::DtInetAddrFamily	family () const
	Get the address family, IPv4 or IPv6. More...
virtual unsigned	descriptor () const =0
	Get the socket's descriptor. More...
virtual DtU32	flags ()
	Get the flags for this socket. More...
virtual bool	setSocket (const DtInetEndpoint &dest, DtU16 localPort=0, DtInetDevice *hostIf=NULL, DtU32 flags=DtDefaultSockOpts)=0
	Set all socket parameters at once. More...
virtual int	getLastError ()
	Return code or string describing last error. More...
virtual DtString	getLastErrorString ()
virtual bool	isErrorWouldBlockOrTryAgain ()
virtual void	clearError ()
virtual int	getTerminationCode ()
	Return code or string describing termination cause. More...
virtual DtString	getTerminationString ()
virtual DtU64	totalBytesSent () const
	Get traffic statistics. More...
virtual DtU64	totalPacketsSent () const
virtual DtU64	totalBytesReceived () const
virtual DtU64	totalPacketsReceived () const
virtual void	clearStats ()
	Reset all statistics. More...
virtual bool	addProcessingCallback (DtInetSockProcessingType kind, DtInetSocketProcessingCallback cb, void *usr, int callSequence=-1)
	Add / remove pre- and post- processing callbacks. More...
virtual bool	removeProcessingCallback (DtInetSockProcessingType kind, DtInetSocketProcessingCallback cb)
virtual DtTime	receiveTime ()
Send methods.
These are pure virtual methods which must be overridden by subclasses that implement the underlying protocol (TCP, UDP, etc). Return the number of bytes sent or -1 if an error occurs. Use getLastError() and getLastErrorString() to retrieve cause of failure.
virtual int	send (caddr_t packet, size_t size, DtU32 flags=0)=0
	Simple send methods. More...
virtual int	sendTo (caddr_t packet, size_t size, DtInetEndpoint &dest, DtU32 flags=0)=0
	Simple send methods. More...
virtual int	sendChain (DtInetBufferChain &packets, DtU32 flags=0)=0
	Send from a chain of buffers. More...
virtual int	sendChainTo (DtInetBufferChain &packets, DtInetEndpoint &dest, DtU32 flags=0)=0
	Simple send methods. More...
Receive methods.
These are pure virtual methods which must be overridden by subclasses that implement the underlying protocol (TCP, UDP, etc). Return a status code if an error occurs or if the received packet is discarded. Otherwise the number of bytes received is returned in which case the return value should be cast to an integer type. If an error occurs. Use getLastError() and getLastErrorString() to retrieve the cause of the failure.
virtual DtInetSockRcvStatus	recv (caddr_t buff, size_t buffSize, DtU32 flags=0)=0
	Simple receive method. More...
virtual DtInetSockRcvStatus	recvToChain (DtInetBufferChain &packets, DtU32 flags=0)=0
	Receives into a buffer chain. More...
virtual DtInetSockRcvStatus	recvFrom (caddr_t buff, size_t buffSize, DtInetEndpoint &src, DtU32 flags=0)=0
	Same as above, but sets 'src' to reflect peer from which the packet was received. More...
virtual DtInetSockRcvStatus	recvToChainFrom (DtInetBufferChain &packets, DtInetEndpoint &src, DtU32 flags=0)=0
	Simple receive method. More...
Get / Set methods.
These methods provides an interface all supported socket options. Subclasses must override these functions to perform the set or get operation on the underlying socket if the socket supports the operation. The socket must be open in order to use these methods.
virtual bool	setNonBlockingOption (bool onOrOff)=0
virtual bool	setReuseAddressOption (bool onOrOff)=0
virtual bool	setSendBufferSize (DtU32 size)=0
virtual bool	setReceiveBufferSize (DtU32 size)=0
virtual bool	setDoNotRouteOption (bool onOrOff)=0
virtual bool	setSendLowWatermark (DtU32 size)=0
virtual bool	setReceiveLowWatermark (DtU32 size)=0
virtual bool	isNonBlocking () const
virtual bool	isNoDelay () const
virtual bool	getReuseAddressOption ()=0
virtual bool	getDoNotRouteOption ()=0
virtual DtU32	getSendBufferSize ()=0
virtual DtU32	getReceiveBufferSize ()=0
virtual DtU32	getBytesAvailable ()=0
virtual DtU32	getSendLowWatermark ()=0
virtual DtU32	getReceiveLowWatermark ()=0
virtual bool	isIPv4 () const
	Return true if the socket matches the queried family or protocol. More...
virtual bool	isIPv6 () const
	Return true if the socket matches the queried family or protocol. More...
virtual bool	isTcp () const
	Return true if the socket matches the queried family or protocol. More...
virtual bool	isUdp () const
	Return true if the socket matches the queried family or protocol. More...

Protected Member Functions
virtual bool	findAndRemoveCallback (DtInetSockCallbackList &cbList, DtInetSocketProcessingCallback cb)

Protected Attributes
DtInetEndpoint	myLocalEndpoint
DtInetEndpoint	myRemoteEndpoint
DtInetDevice *	myHostIf
DtInetSockState	myState
DtU32	myFlags
bool	myAsync
bool	myNonBlockingEnabled
bool	myNoDelayEnabled
bool	myStartImmediately
int	myErrorCode
DtString	myErrorString
int	myTerminationCode
DtString	myTerminationString
DtInetSockCallbackList	myPreRecvCallbacks
DtInetSockCallbackList	myPostRecvCallbacks
DtInetSockCallbackList	myPreSendCallbacks
DtInetSockCallbackList	myPostSendCallbacks
DtU64	mySentByteCount
DtU64	mySentPacketCount
DtU64	myReceivedByteCount
DtU64	myReceivedPacketCount
DtTime	myReceiveTime

Private Member Functions
	DtInetSocket (const DtInetSocket &orig)
	Copy constructor not implemented. More...
DtInetSocket &	operator= (const DtInetSocket &orig)
	Assignment not implemented. More...

Detailed Description

The DtInetSocket class provides a protocol independant, address family independant base class for TCP or UDP socket subclasses.

The DtInetSocket class provides no communications facilities. All send and receive functionality is provided by protocol-specific subclasses

Constructor & Destructor Documentation

DtInetSocket::DtInetSocket

(

)

Default Constructor.

This ctor will create a skeleton socket object that has no socket descriptor or destination address and is not bound to any interface.

virtual DtInetSocket::~DtInetSocket ( )

virtual

Destructor.

DtInetSocket::DtInetSocket ( const DtInetSocket &  orig )

private

Copy constructor not implemented.

Member Function Documentation

virtual bool DtInetSocket::addProcessingCallback ( DtInetSockProcessingType  kind, DtInetSocketProcessingCallback  cb, void *  usr, int  callSequence = -1  )

virtual

Add / remove pre- and post- processing callbacks.

The order in which callbacks are processed is determined by the callSequence value for each callback. The lower the sequence value, the earlier the callback is executed in the sequence. If no specific order is specified for a callback (callSequence == -1) the callback will be added to the end of the callback chain.

virtual bool DtInetSocket::bindToDevice ( const DtInetDevice *  hostIf = NULL )

pure virtual

Bind the socket to a network interface device on the local host.

If hostIf is NULL the socket will bind to the first device with an assigned IP address that most closely matches the destination endpoint family and prefix. If the socket's destination endpoint specifies a broadcast address the socket will bind to the specified interface's default broadcast address even if it does not match the broadcast address in the destination endpoint (ie. it's idiot-proof). Returns true on success and false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure. All subclasses must override this pure virtual function in order to perform the bind() call on the underlying socket.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual void DtInetSocket::clearError ( )

virtual

void DtInetSocket::clearStats ( )

inlinevirtual

Reset all statistics.

virtual bool DtInetSocket::closeSocket ( )

pure virtual

Close a socket.

Returns true on successful close or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure. All subclasses must override this pure virtual function to perform the close() operation on the underlying socket.

Implemented in DtDisSocket, DtInetTcpSocket, and DtInetUdpSocket.

virtual bool DtInetSocket::connectToDestination ( )

pure virtual

Initiate a connection to the destination endpoint.

For UDP sockets connectToDestination() limits the socket to only communicating with the specified destination endpoint (which must be a unicast address). Returns true on successful initiation of connection or false on failure. Note that initiation of connection does not necessarily mean completion of connection. Call socket state() method to determine when connection has been successfully completed. Call getLastError() and getLastErrorString() to retrieve cause of failure.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual unsigned DtInetSocket::descriptor ( ) const

pure virtual

Get the socket's descriptor.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual const DtInetEndpoint& DtInetSocket::destination ( ) const

virtual

virtual DtInetUtils::DtInetAddrFamily DtInetSocket::family ( ) const

virtual

Get the address family, IPv4 or IPv6.

bool DtInetSocket::findAndRemoveCallback ( DtInetSockCallbackList &  cbList, DtInetSocketProcessingCallback  cb  )

inlineprotectedvirtual

References DtDELETE.

virtual DtU32 DtInetSocket::flags ( )

inlinevirtual

Get the flags for this socket.

virtual DtU32 DtInetSocket::getBytesAvailable ( )

pure virtual

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual bool DtInetSocket::getDoNotRouteOption ( )

pure virtual

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual int DtInetSocket::getLastError ( )

virtual

Return code or string describing last error.

virtual DtString DtInetSocket::getLastErrorString ( )

virtual

virtual DtU32 DtInetSocket::getReceiveBufferSize ( )

pure virtual

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual DtU32 DtInetSocket::getReceiveLowWatermark ( )

pure virtual

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual bool DtInetSocket::getReuseAddressOption ( )

pure virtual

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual DtU32 DtInetSocket::getSendBufferSize ( )

pure virtual

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual DtU32 DtInetSocket::getSendLowWatermark ( )

pure virtual

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual int DtInetSocket::getTerminationCode ( )

virtual

Return code or string describing termination cause.

virtual DtString DtInetSocket::getTerminationString ( )

virtual

virtual const DtInetDevice* DtInetSocket::hostIf ( ) const

virtual

Get the host network interface device the socket is bound to.

Returns NULL if the socket is not yet bound to a device. Note that if the socket was not deliberately bound to a particular interface upon creation it may be bound to an interface automatically depending on the nature of the connection.

virtual bool DtInetSocket::isErrorWouldBlockOrTryAgain ( )

virtual

virtual bool DtInetSocket::isIPv4 ( ) const

virtual

Return true if the socket matches the queried family or protocol.

virtual bool DtInetSocket::isIPv6 ( ) const

virtual

Return true if the socket matches the queried family or protocol.

virtual bool DtInetSocket::isNoDelay ( ) const

virtual

virtual bool DtInetSocket::isNonBlocking ( ) const

virtual

virtual bool DtInetSocket::isOk ( )

virtual

Deprecated.

Provided for compatibility with DtSocket. For TCP sockets returns true if socket is not disconnected (client type sockets) or is stull listening (server-type sockets). Intermediate states (like INPROGRESS) also return true, even though the socket is not in a state suitable for sending/receiving packets or accepting connections. For UDP sockets returns true if socket creation succeeded.

Reimplemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual bool DtInetSocket::isTcp ( ) const

virtual

Return true if the socket matches the queried family or protocol.

virtual bool DtInetSocket::isUdp ( ) const

virtual

Return true if the socket matches the queried family or protocol.

virtual const DtInetEndpoint& DtInetSocket::localEndpoint ( ) const

virtual

Get the local endpoint for the socket.

The local endpoint object is created by the socket object once a connection is established by TCP sockets or UDP sockets when connectToDestination() is invoked, or when packets are first transmitted for unconnected UDP sockets.

virtual DtU16 DtInetSocket::localPort ( ) const

virtual

virtual bool DtInetSocket::openSocket ( )

pure virtual

Enable sending and receiving of packets.

For TCP sockets openSocket() has the same effect as connectToDestination(). Returns true on success or false on failure. Call getLastError() and getLastErrorString() to retrieve cause of failure.

Implemented in DtDisSocket, DtInetTcpSocket, and DtInetUdpSocket.

DtInetSocket& DtInetSocket::operator= ( const DtInetSocket &  orig )

private

Assignment not implemented.

virtual DtU32 DtInetSocket::protocol ( ) const

virtual

Get the protocol (DtInetProtocol_TCP or DtInetProtocol_UDP)

virtual DtTime DtInetSocket::receiveTime ( )

inlinevirtual

virtual DtInetSockRcvStatus DtInetSocket::recv ( caddr_t  buff, size_t  buffSize, DtU32  flags = 0  )

pure virtual

Simple receive method.

This method does NOT perform pre- or post- reception callbacks. It receives into a single user-supplied buffer.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual DtInetSockRcvStatus DtInetSocket::recvFrom ( caddr_t  buff, size_t  buffSize, DtInetEndpoint &  src, DtU32  flags = 0  )

pure virtual

Same as above, but sets 'src' to reflect peer from which the packet was received.

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual DtInetSockRcvStatus DtInetSocket::recvToChain ( DtInetBufferChain &  packets, DtU32  flags = 0  )

pure virtual

Receives into a buffer chain.

This method CAN perform pre- and post- reception callbacks. The chain can be populated with buffers by the user or an empty chain can be supplied in which case the method will allocate buffers and add them to the chain to be returned to the caller.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual DtInetSockRcvStatus DtInetSocket::recvToChainFrom ( DtInetBufferChain &  packets, DtInetEndpoint &  src, DtU32  flags = 0  )

pure virtual

Simple receive method.

This method does NOT perform pre- or post- reception callbacks. It receives into a single user-supplied buffer.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual bool DtInetSocket::removeProcessingCallback ( DtInetSockProcessingType  kind, DtInetSocketProcessingCallback  cb  )

virtual

virtual int DtInetSocket::send ( caddr_t  packet, size_t  size, DtU32  flags = 0  )

pure virtual

Simple send methods.

The send() and sendChain() methods DO NOT support pre- or post- processing callbacks (eg. bundling, backlog queueing)

Implemented in DtInetTcpSocket, DtDisSocket, and DtInetUdpSocket.

virtual int DtInetSocket::sendChain ( DtInetBufferChain &  packets, DtU32  flags = 0  )

pure virtual

Send from a chain of buffers.

For 'gather' send operations or when pre- or post- processing callbacks are used (eg. bundling, backlog queueing)

Implemented in DtInetTcpSocket, DtDisSocket, and DtInetUdpSocket.

virtual int DtInetSocket::sendChainTo ( DtInetBufferChain &  packets, DtInetEndpoint &  dest, DtU32  flags = 0  )

pure virtual

Simple send methods.

The send() and sendChain() methods DO NOT support pre- or post- processing callbacks (eg. bundling, backlog queueing)

Implemented in DtInetTcpSocket, DtDisSocket, and DtInetUdpSocket.

virtual int DtInetSocket::sendTo ( caddr_t  packet, size_t  size, DtInetEndpoint &  dest, DtU32  flags = 0  )

pure virtual

Simple send methods.

The send() and sendChain() methods DO NOT support pre- or post- processing callbacks (eg. bundling, backlog queueing)

Implemented in DtInetTcpSocket, DtDisSocket, and DtInetUdpSocket.

virtual bool DtInetSocket::setDestination ( const DtInetEndpoint &  dest )

pure virtual

Set / get the destination endpoint for the socket.

The address family (IPv4 or IPv6) and protocol (TCP or UDP) are assumed from the destin- ation endpoint. The socket will not automatically connect when the destination is set. Use connectToDestination() to initiate connection. All subclasses must override setDestination() method to verify the destination endpoint protocol matches the underlying socket.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual bool DtInetSocket::setDoNotRouteOption ( bool  onOrOff )

pure virtual

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual bool DtInetSocket::setLocalPort ( DtU16  port )

virtual

Set / get the local port number of the socket.

The setLocalPort() method always returns true. Subclasses should override setLocalPort() to enforce any port restriction requirements the subclass may impose.

virtual bool DtInetSocket::setNonBlockingOption ( bool  onOrOff )

pure virtual

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual bool DtInetSocket::setReceiveBufferSize ( DtU32  size )

pure virtual

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual bool DtInetSocket::setReceiveLowWatermark ( DtU32  size )

pure virtual

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual bool DtInetSocket::setReuseAddressOption ( bool  onOrOff )

pure virtual

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual bool DtInetSocket::setSendBufferSize ( DtU32  size )

pure virtual

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual bool DtInetSocket::setSendLowWatermark ( DtU32  size )

pure virtual

Implemented in DtInetTcpSocket, DtInetUdpSocket, and DtDisSocket.

virtual bool DtInetSocket::setSocket ( const DtInetEndpoint &  dest, DtU16  localPort = 0, DtInetDevice *  hostIf = NULL, DtU32  flags = DtDefaultSockOpts  )

pure virtual

Set all socket parameters at once.

A new Boost socket object will be created. The socket will not immediately try to bind or connect to the destination. All subclasses must override this pure virtual function to verify the destination endpoint protocol matches the underlying socket. This method will have no effect after the socket has been opened.

Implemented in DtInetTcpSocket, and DtInetUdpSocket.

virtual DtInetSockState DtInetSocket::state ( )

virtual

Return the present state of the socket.

DtU64 DtInetSocket::totalBytesReceived ( ) const

inlinevirtual

DtU64 DtInetSocket::totalBytesSent ( ) const

inlinevirtual

Get traffic statistics.

These do not account for integer overflow but you really gotta have an awful lot of traffic to overflow a 64 bit unsigned integer. In synchronous operation these are updated immediately as packets are sent or when they are received. In asynchronous operation they are updated asynchronously so should provide an accurate means of gauging latency and throughput.

DtU64 DtInetSocket::totalPacketsReceived ( ) const

inlinevirtual

DtU64 DtInetSocket::totalPacketsSent ( ) const

inlinevirtual

Member Data Documentation

bool DtInetSocket::myAsync

protected

int DtInetSocket::myErrorCode

protected

DtString DtInetSocket::myErrorString

protected

DtU32 DtInetSocket::myFlags

protected

DtInetDevice* DtInetSocket::myHostIf

protected

DtInetEndpoint DtInetSocket::myLocalEndpoint

protected

bool DtInetSocket::myNoDelayEnabled

protected

bool DtInetSocket::myNonBlockingEnabled

protected

DtInetSockCallbackList DtInetSocket::myPostRecvCallbacks

protected

DtInetSockCallbackList DtInetSocket::myPostSendCallbacks

protected

DtInetSockCallbackList DtInetSocket::myPreRecvCallbacks

protected

DtInetSockCallbackList DtInetSocket::myPreSendCallbacks

protected

DtU64 DtInetSocket::myReceivedByteCount

protected

DtU64 DtInetSocket::myReceivedPacketCount

protected

DtTime DtInetSocket::myReceiveTime

protected

DtInetEndpoint DtInetSocket::myRemoteEndpoint

protected

DtU64 DtInetSocket::mySentByteCount

protected

DtU64 DtInetSocket::mySentPacketCount

protected

bool DtInetSocket::myStartImmediately

protected

DtInetSockState DtInetSocket::myState

protected

int DtInetSocket::myTerminationCode

protected

DtString DtInetSocket::myTerminationString

protected

---

The documentation for this class was generated from the following file:

• vlInetSocket.h
