DtMode3CStateRepository Class Reference

Instances of DtMode3CStateRepository are used to store state data for IFFData.ModeC objects. More...

Inheritance diagram for DtMode3CStateRepository:

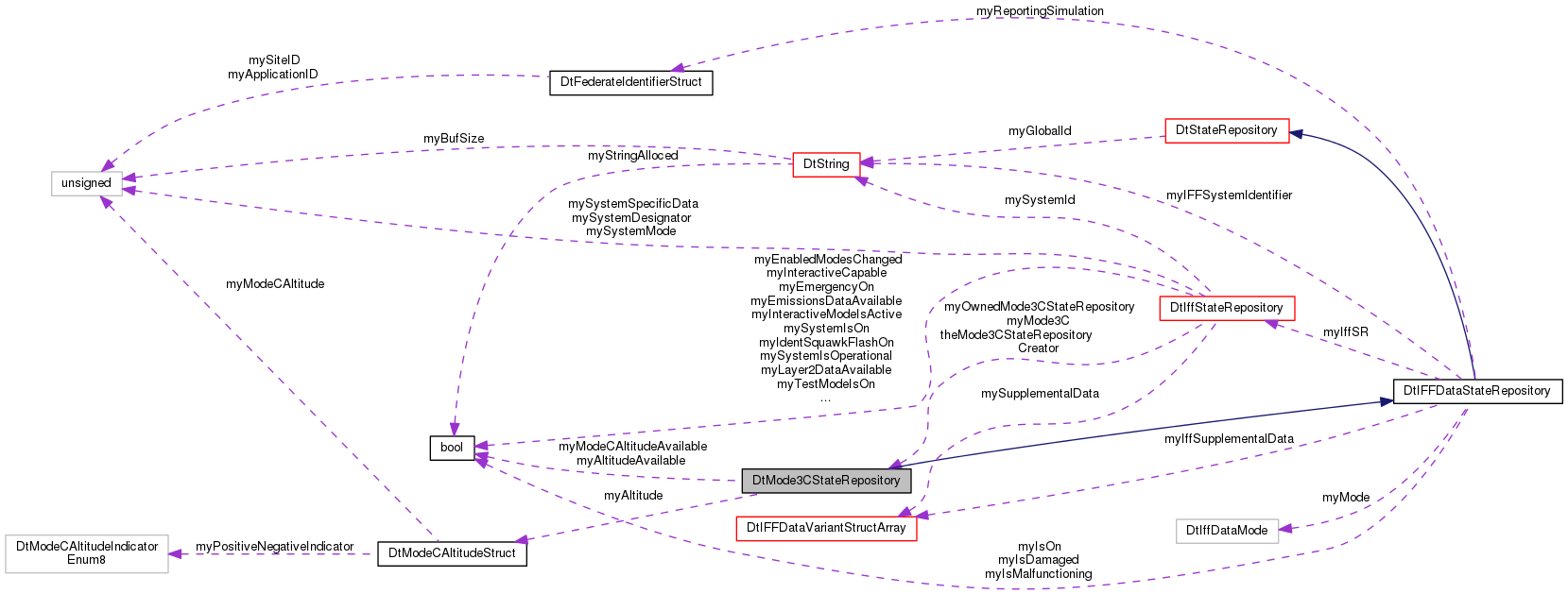

Collaboration diagram for DtMode3CStateRepository:

Public Member Functions
	DtMode3CStateRepository ()
	Constructor. More...
virtual	~DtMode3CStateRepository ()
	Destructor. More...
	DtMode3CStateRepository (const DtMode3CStateRepository &orig)
	Copy Constructor. More...
DtMode3CStateRepository &	operator= (const DtMode3CStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setAltitudeAvailable (bool val)
	Set the AltitudeAvailable attribute. More...
virtual bool	altitudeAvailable () const
	Get the AltitudeAvailable attribute. More...
virtual void	setAltitude (const DtInt16 alt)
	Set the Altitude attribute. More...
virtual void	setAltitude (const DtModeCAltitudeStruct &val)
	Set the Altitude attribute. More...
virtual const DtModeCAltitudeStruct &	altitude () const
	Get the Altitude attribute Note: To get the altitude value as a decimal integer value, use DtModeCAltitudeStruct::modeCAltitude() More...
RPR 2.0 NatoIFF-Specific Attributes
Set/Get Nato Transponder ModeCAltitude record. Units are 100s of feet. Value should be between -1260 and 1260. Parameters val An integer value depicting altitude within the range -1260-1260 Returns The Mode C Altitude
virtual void	setModeCAltitude (DtInt16 val)
virtual DtInt16	modeCAltitude () const
Public Member Functions inherited from DtIFFDataStateRepository
	DtIFFDataStateRepository (DtIffDataMode mode=DtIffModeUnk)
	Constructor. More...
virtual	~DtIFFDataStateRepository ()
	Destructor. More...
	DtIFFDataStateRepository (const DtIFFDataStateRepository &orig)
	Copy Constructor. More...
DtIFFDataStateRepository &	operator= (const DtIFFDataStateRepository &orig)
	Assignment Operator. More...
virtual void	setIsOn (bool val)
	Set the IsOn attribute. More...
virtual bool	isOn () const
	Get the IsOn attribute. More...
virtual void	setIsDamaged (bool val)
	Set the IsDamaged attribute. More...
virtual bool	isDamaged () const
	Get the IsDamaged attribute. More...
virtual void	setIsMalfunctioning (bool val)
	Set the IsMalfunctioning attribute. More...
virtual bool	isMalfunctioning () const
	Get the IsMalfunctioning attribute. More...
virtual void	setIFFSystemIdentifier (const DtGlobalObjectDesignator &val)
	Set the IFFSystemIdentifier. More...
virtual const DtGlobalObjectDesignator &	IFFSystemIdentifier () const
	Get the IFFSystemIdentifier. More...
virtual void	setIFFData (const DtIFFDataVariantStructArray &val)
	Set the SupplementalData. More...
virtual const DtIFFDataVariantStructArray &	IFFData () const
	Get the IFFSystemIdentifier. More...
virtual void	setReportingSimulation (const DtFederateIdentifierStruct &val)
	Set the ReportingSimulation attribute. More...
virtual const DtFederateIdentifierStruct &	reportingSimulation () const
	Get the ReportingSimulation. More...
virtual void	setIffStateRepository (const DtIffStateRepository *sr)
virtual const DtIffStateRepository *	isr () const
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtMode3CStateRepository *	create ()
	Create a DtMode3CStateRepository. More...
Static Public Member Functions inherited from DtIFFDataStateRepository
static DtIFFDataStateRepository *	create ()
	Create a DtIFFDataStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
bool	myAltitudeAvailable
DtModeCAltitudeStruct	myAltitude
bool	myModeCAltitudeAvailable
Protected Attributes inherited from DtIFFDataStateRepository
DtGlobalObjectDesignator	myIFFSystemIdentifier
DtIFFDataVariantStructArray	myIffSupplementalData
DtFederateIdentifierStruct	myReportingSimulation
DtIffDataMode	myMode
const DtIffStateRepository *	myIffSR
bool	myIsOn
bool	myIsDamaged
bool	myIsMalfunctioning

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtMode3CStateRepository are used to store state data for IFFData.ModeC objects.

Constructor & Destructor Documentation

DtMode3CStateRepository::DtMode3CStateRepository

(

)

Constructor.

virtual DtMode3CStateRepository::~DtMode3CStateRepository ( )

virtual

Destructor.

DtMode3CStateRepository::DtMode3CStateRepository

(

const DtMode3CStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual const DtModeCAltitudeStruct& DtMode3CStateRepository::altitude ( ) const

virtual

Get the Altitude attribute Note: To get the altitude value as a decimal integer value, use DtModeCAltitudeStruct::modeCAltitude()

virtual bool DtMode3CStateRepository::altitudeAvailable ( ) const

virtual

Get the AltitudeAvailable attribute.

virtual DtStateRepository* DtMode3CStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtIFFDataStateRepository.

static DtMode3CStateRepository* DtMode3CStateRepository::create ( )

static

Create a DtMode3CStateRepository.

virtual DtInt16 DtMode3CStateRepository::modeCAltitude ( ) const

virtual

DtMode3CStateRepository& DtMode3CStateRepository::operator=

(

const DtMode3CStateRepository &

orig

)

Assignment Operator.

virtual void DtMode3CStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtMode3CStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtIFFDataStateRepository.

virtual void DtMode3CStateRepository::setAltitude ( const DtInt16  alt )

virtual

Set the Altitude attribute.

The actual Mode C altitude, in the range 0 feet to 126 000 feet in 100-foot increments based on the PositiveNegativeIndicator field only 11 bits of the alt are taken into account (2^11 max value) [i.e. -1260 to 1260 range] Use modeCAltitude() to return a signed integer in the range of -1260 and 1260

Parameters

alt	Mode C Altitude as signed integer in the range of -1260 and 1260

virtual void DtMode3CStateRepository::setAltitude ( const DtModeCAltitudeStruct &  val )

virtual

Set the Altitude attribute.

Parameters

val	The actual Mode C altitude.

virtual void DtMode3CStateRepository::setAltitudeAvailable ( bool  val )

virtual

Set the AltitudeAvailable attribute.

Parameters

val	Indicates whether the actual Mode C altitude is available in the attribute Altitude or is to be derived from entity truth data

virtual void DtMode3CStateRepository::setModeCAltitude ( DtInt16  val )

virtual

Member Data Documentation

DtModeCAltitudeStruct DtMode3CStateRepository::myAltitude

protected

bool DtMode3CStateRepository::myAltitudeAvailable

protected

bool DtMode3CStateRepository::myModeCAltitudeAvailable

protected

---

The documentation for this class was generated from the following file:

• iffMode3CStateRepository.h
