This class decodes the Test interaction into the TestInteraction class. More...

Inheritance diagram for TestDecoder:

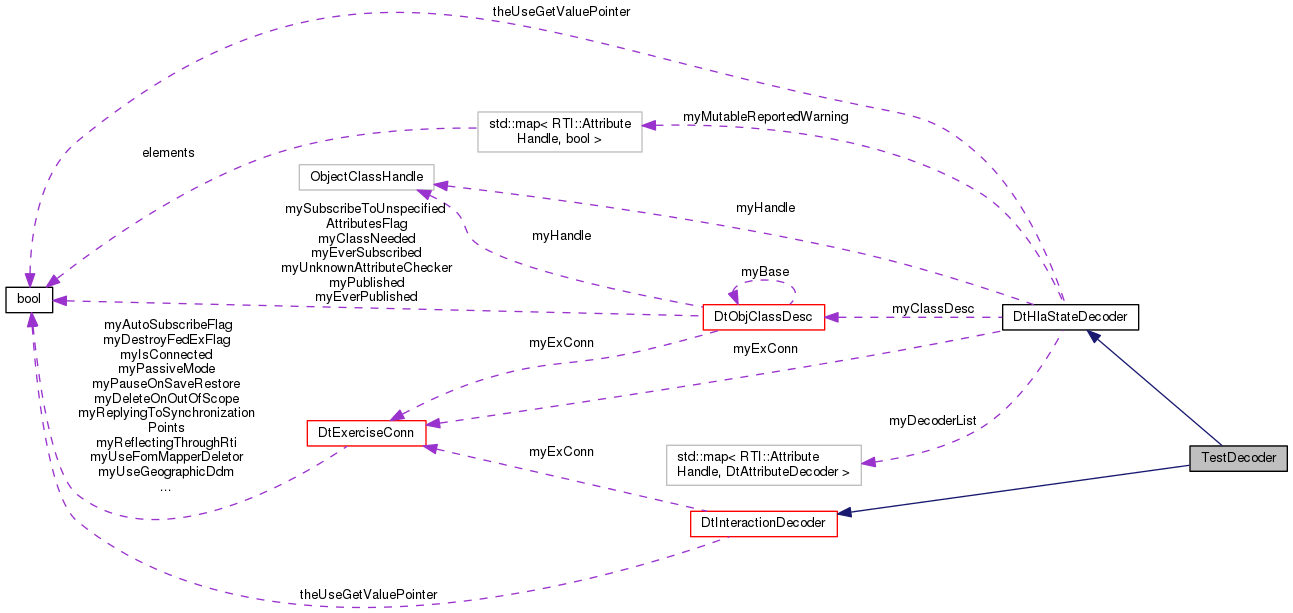

Collaboration diagram for TestDecoder:

Public Member Functions
	TestDecoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	Constructor. More...

virtual	~TestDecoder ()
	Destructor. More...

	TestDecoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	default constructor More...

virtual	~TestDecoder ()
	destructor More...

Public Member Functions inherited from DtHlaStateDecoder
	DtHlaStateDecoder (DtExerciseConn exConn, DtObjClassDesc classDesc)
	constructor More...

virtual	~DtHlaStateDecoder ()
	destructor More...

	DtHlaStateDecoder (const DtHlaStateDecoder &orig)
	copy constructor More...

DtHlaStateDecoder &	operator= (const DtHlaStateDecoder &orig)
	assignment operator More...

DtAttributeDecoder	addDecoder (RTI::AttributeHandle h, DtAttributeDecoder func)
	Add/Remove a decoding function for the attribute specified by handle. More...

DtAttributeDecoder	removeDecoder (RTI::AttributeHandle h)

DtAttributeDecoder	addDecoder (char *attrName, DtAttributeDecoder func, bool complain=true)
	Add/Remove a decoding function for the attribute specified by name. More...

DtAttributeDecoder	removeDecoder (char *attrName, bool complain=true)

virtual DtAttributeDecoder	decoder (const RTI::AttributeHandle &handle) const
	Get the attribute decoder for the specified handle. More...

virtual void	decode (const DtStateMsg &msg, DtStateRepository *stateRep) const
	Decode the state message into the state repository. More...

virtual RTI::ObjectClassHandle	objectClassHandle () const
	Get the object's class handle. More...

virtual DtHlaStateDecoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual DtHlaStateDecoder *	clone (DtObjClassDesc *classDesc) const
	Returns a new-ed clone of this object which corresponds to the class description classDesc. More...

Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn exConn, DtInterClassDesc classDesc)
	constructor More...

virtual	~DtInteractionDecoder ()
	destructor More...

DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle. More...

DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name. More...

virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle. More...

virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValuePairSet &pvList)
	Decode the interaction. More...

virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle. More...

virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object. More...

virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc. More...

Protected Member Functions
	DtDECLARE_TEST_PARAM_DECODER (Number)
	Individual parameter decoding functions - one for each parameter. More...

	DtDECLARE_TEST_PARAM_DECODER (Vector)
	Individual parameter decoding functions - one for each parameter. More...

	DtDECLARE_TEST_ATTR_DECODER (Number)
	Individual attribute decoding functions - one for each attribute. More...

	DtDECLARE_TEST_ATTR_DECODER (Vector)

Protected Member Functions inherited from DtHlaStateDecoder
virtual void	decodeAttribute (DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &attrs, unsigned long pairSetIndex) const
	Decode the attribute at the specified index in the attribute handle pair set. More...

virtual void	copyDecFuncs (const DtHlaStateDecoder &orig)

Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented. More...

DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented. More...

virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter. More...

Additional Inherited Members
Public Types inherited from DtHlaStateDecoder
typedef void(*	DtAttributeDecoder )(DtStateRepository *stateRep, const RTI::AttributeHandleValuePairSet &avlist, unsigned long pairSetIndex)
	Attribute decoding function declaration. More...

Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature. More...

Static Public Member Functions inherited from DtHlaStateDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...

static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length)
	Returns a pointer to the attribute data. More...

static char *	attributeData (const RTI::AttributeHandleValuePairSet &attrs, int index, RTI::ULong &length, unsigned int expectedDataSize, char *attrName)
	Gets the attribute data and checks the expected size. More...

static DtNetEventId *	eventIdAttributeData (const RTI::AttributeHandleValuePairSet &attrs, int index)
	Get the attribute data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the attribute data. More...

static std::wstring	wideStringFromHlaUnicodeString (char buffer, int size, bool error=nullptr)
	Gets data from an incoming buffer as a HlaUnicodeString and decodes it as a wide string. More...

static bool	getVectorFromArrayOfUuid (char *buffer, int size, std::vector< DtVrlUuid > &uuids)
	Gets data from an incoming buffer as an ArrayOfUuid and decodes it as a vector of type DtVrlUuid. More...

Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps. More...

static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data. More...

static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, const char *paramName)
	Gets the parameter data and checks the expected size. More...

static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data. More...

static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class. More...

Static Public Attributes inherited from DtHlaStateDecoder
static bool	theUseGetValuePointer

Static Public Attributes inherited from DtInteractionDecoder
static bool	theUseGetValuePointer

Protected Types inherited from DtHlaStateDecoder
typedef std::map < RTI::AttributeHandle, DtAttributeDecoder >	AttributeHandleDecoderMap

typedef std::map < RTI::AttributeHandle, bool >	AttributeHandleBoolMap

Protected Attributes inherited from DtHlaStateDecoder
DtExerciseConn *	myExConn

DtObjClassDesc *	myClassDesc

RTI::ObjectClassHandle	myHandle

AttributeHandleDecoderMap	myDecoderList
	myDecoderList is a map of decoders for each attribute registered to this state. More...

Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn

DtInterClassDesc *	myClassDesc

RTI::InteractionClassHandle	myClassHandle

std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items. More...

Detailed Description

This class decodes the Test interaction into the TestInteraction class.

The TestDecoder class.

Constructor & Destructor Documentation

TestDecoder::TestDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

Constructor.

virtual TestDecoder::~TestDecoder ( )

virtual

Destructor.

TestDecoder::TestDecoder	(	DtExerciseConn *	exConn,
		DtObjClassDesc *	classDesc
	)

default constructor

virtual TestDecoder::~TestDecoder ( )

virtual

destructor

Member Function Documentation

TestDecoder::DtDECLARE_TEST_ATTR_DECODER ( Number )

protected

Individual attribute decoding functions - one for each attribute.

These macros expand to look like this: static void decodeNumber(TestStateRepository* stateRep, const RTI::AttributeHandleValuePairSet& attrs, int pairSetIndex)

TestDecoder::DtDECLARE_TEST_ATTR_DECODER ( Vector )

protected

TestDecoder::DtDECLARE_TEST_PARAM_DECODER ( Number )

protected

Individual parameter decoding functions - one for each parameter.

These macros expand to look like this: static void decodeNumber(TestInteraction* inter, const RTI::ParameterHandleValuePairSet& params, int index);

TestDecoder::DtDECLARE_TEST_PARAM_DECODER ( Vector )

protected

Individual parameter decoding functions - one for each parameter.

These macros expand to look like this: static void decodeNumber(TestInteraction* inter, const RTI::ParameterHandleValuePairSet& params, int index);

The documentation for this class was generated from the following files:
