Loads entity type enumerations from an XML file into a DtEnumDictionary. More...

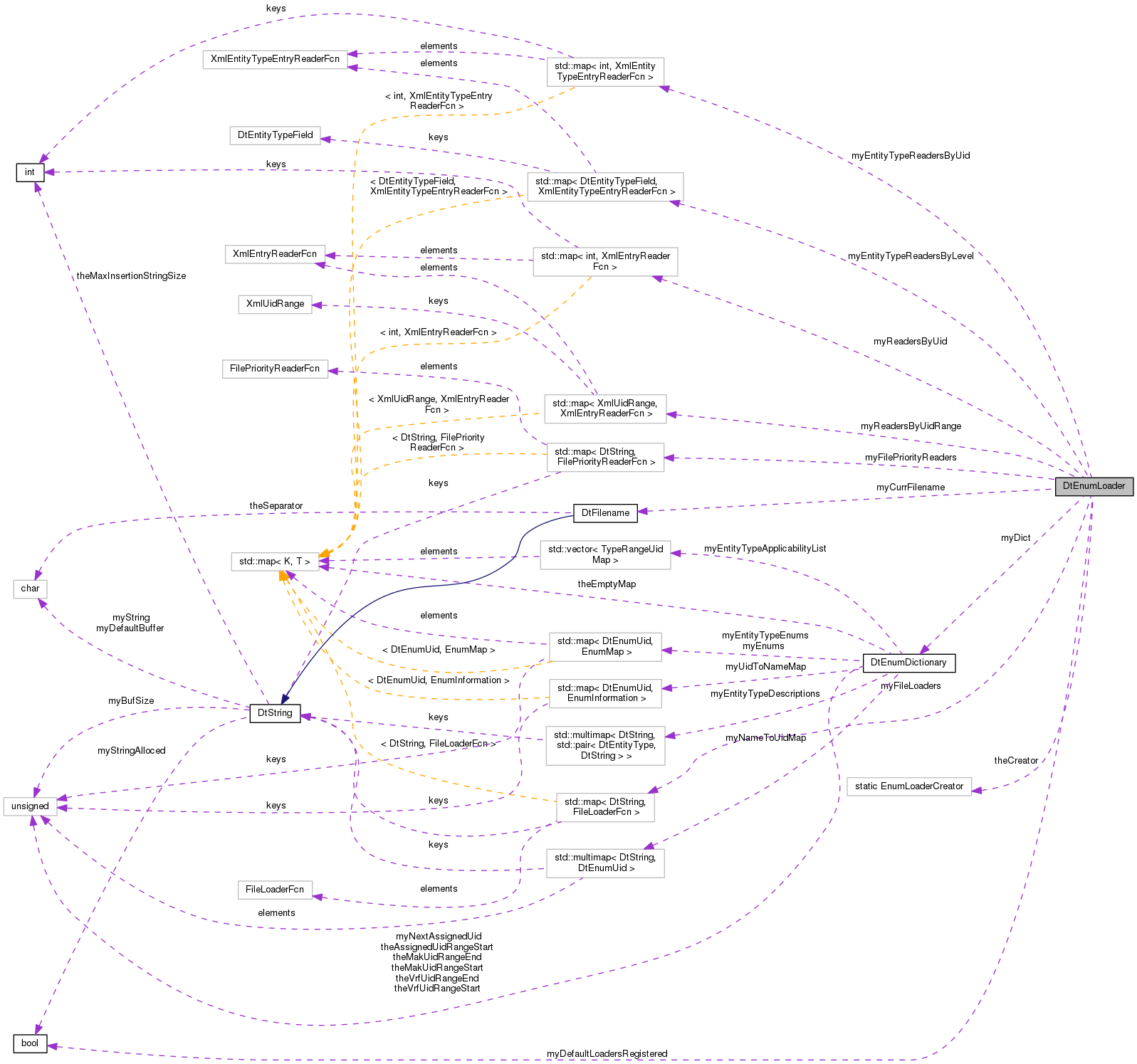

Collaboration diagram for DtEnumLoader:

Public Types
typedef DtEnumLoader (	EnumLoaderCreator )()
	Type for the creator function for this class. See setCreator. More...

typedef std::list < DtEntityTypeRange >	Applicability
	Type for specifying the applicability of an enumeration. More...

typedef std::function< bool(const DtFilename &, DtEnumDictionary &)>	FileLoaderFcn
	The function prototype for loading an enumerations file. More...

typedef std::function < unsigned(const DtFilename &)>	FilePriorityReaderFcn
	The function prototype for loading an enumerations file. More...

typedef std::function< void(xmlNodePtr, const Applicability &, DtEnumDictionary &)>	XmlEntityTypeEntryReaderFcn
	The function prototype for loading an individual entity type from an xml node. More...

typedef std::function< void(xmlNodePtr, DtEnumDictionary &)>	XmlEntryReaderFcn
	The function prototype for loading a individual enumeration from an xml node. More...

Public Member Functions
virtual	~DtEnumLoader ()
	Destructor. More...

virtual bool	loadFromDirectory (const DtFilename &directory, DtEnumDictionary &dict)
	Loads all enumeration files from the given directory into the dictionary. More...

virtual bool	loadFile (const DtFilename &file, DtEnumDictionary &dict)
	Loads the individual file. More...

Add Interest in Enumerations
These methods can be used to tell the loader to read in enumerations that it does not support by default use standard formats.
virtual void	addInterestInEnum (DtEnumUid uid)
	Adds interest in a general enumeration. More...

virtual void	addInterestInEnumRange (DtEnumUid lowerUid, DtEnumUid upperUid)
	Adds interest in a range of general enumerations. More...

virtual void	addInterestInEntityTypeEnum (DtEnumUid uid, DtEntityTypeField)
	Adds interest in an entity type enumeration. More...

Registration/unregistration of Enumeration Reader Functions
These methods allow you to define custom functions for reading new file types or customizing how specific xml entries should be processed. Generally they are not needed by most users. If you wish the DtEnumLoader to read enumerations using existing functions for uids not read in by default, use #addInterestInEnumeration, addInterestInEnumRange, or addInterestInEntityTypeEnum.
virtual void	registerFileLoader (const DtString &fileExt, FileLoaderFcn fcn)
	Registers a function to load a specific file type. More...

virtual void	unregisterFileLoader (const DtString &fileExt)
	Remove a registered file loader. More...

virtual void	registerFilePriorityReader (const DtString &fileExt, FilePriorityReaderFcn fcn)
	Registers a function to read the load priority from a file. More...

virtual void	unregisterFilePriorityReader (const DtString &fileExt)
	Remove a registered priority reader. More...

virtual void	registerUidEntryReader (DtEnumUid uid, XmlEntryReaderFcn fcn)
	Registers a reader function for an enumeration with a specific uid. More...

virtual void	unregisterUidEntryReader (DtEnumUid uid)
	Remove a registered enumeration reader function. More...

virtual void	registerUidRangeEntryReader (DtEnumUid lowerUid, DtEnumUid upperUid, XmlEntryReaderFcn fcn)
	Registers a reader function for enumerations with a uid within a range of uid values (exclusive of the upperId). More...

virtual void	unregisterUidRangeEntryReader (DtEnumUid lowerUid, DtEnumUid upperUid)
	Remove a registered enumeration reader function that was defined by a range of uids. More...

virtual void	registerEntityTypeUidEntryReader (DtEnumUid uid, XmlEntityTypeEntryReaderFcn fcn)
	Registers a reader function for an entity type enumeration with a specific uid. More...

virtual void	unregisterEntityTypeUidEntryReader (DtEnumUid uid)
	Remove a registered entity type enumeration reader function. More...

virtual void	registerEntityTypeFieldEntryReader (DtEntityTypeField lvl, XmlEntityTypeEntryReaderFcn fcn)
	Registers a general reader function for an entity type enumeration for a specific field level (e.g kind, domain, etc.). More...

virtual void	unregisterEntityTypeFieldEntryReader (DtEntityTypeField lvl)
	Remove a registered entity type enumeration reader function that was defined by for a field level. More...

Static Public Member Functions
static DtEnumLoader *	create ()
	Creates a new DtEnumLoader using the registered creator function. More...

static void	setCreator (EnumLoaderCreator creator)
	Sets the creator function used by create(). More...

Protected Types
typedef std::map< DtString, FileLoaderFcn >	FileLoaderMap

typedef std::map< DtString, FilePriorityReaderFcn >	FilePriorityReaderMap

typedef std::map< int, XmlEntryReaderFcn >	XmlUidReaderMap

typedef std::pair< int, int >	XmlUidRange

typedef std::map< XmlUidRange, XmlEntryReaderFcn >	XmlUidRangeReaderMap

typedef std::map< int, XmlEntityTypeEntryReaderFcn >	XmlEntityTypeUidReaderMap

typedef std::map < DtEntityTypeField, XmlEntityTypeEntryReaderFcn >	XmlEntityTypeLevelReaderMap

Protected Member Functions
	DtEnumLoader ()
	Constructor is protected. More...

virtual void	registerDefaultLoaders ()
	Registers default loader and reader functions for processing enums files. More...

virtual bool	loadFromXml (const DtFilename &fn, DtEnumDictionary &dict)
	Default function used to load an xml enumerations file, such as SISO-REF-010.xml or MAK-Enums.xml. More...

virtual unsigned	readPriorityFromXml (const DtFilename &fn)
	Default function used to read the priority from an xml enumerations file, such as MAK-Enums.xml. More...

virtual DtEnumUid	processSingleLevelEntry (xmlNodePtr node, DtEnumDictionary::EnumMap &enums, DtString &name) const
	Processes the node, fills the enums map and name, and returns the uid of the enumeration. More...

virtual void	processMultiLevelEntry (xmlNodePtr node, DtEntityTypeField field, const DtEntityTypeRange &applic, DtEnumDictionary &dict, DtEnumUid parentUid) const
	Processes the node, including any child nodes that also require processing, and adds all new enumerations to the dictionary. More...

virtual void	setEntityTypeLevel (unsigned lvl, int lowerVal, int upperVal, DtEntityTypeRange &etRange) const
	Sets the range of values for the field at the specified level of the entity type. More...

virtual DtEntityTypeField	parseApplicability (const xmlChar *c, std::list< DtEntityTypeRange > &applics) const
	Parses the applicability from the the xml text. More...

virtual int	xmlCharToInt (const xmlChar *c) const
	Converts an xmlChar string to an integer. More...

Default xml reader functions.
virtual void	readEntityTypeEnum (xmlNodePtr node, DtEntityTypeField field, const Applicability &applics, DtEnumDictionary &dict) const

virtual void	readEntityTypesHierarchy (xmlNodePtr node, DtEnumDictionary &dict) const

virtual void	readEnum (xmlNodePtr node, DtEnumDictionary &dict) const

Protected Attributes
bool	myDefaultLoadersRegistered

FileLoaderMap	myFileLoaders

FilePriorityReaderMap	myFilePriorityReaders

XmlUidReaderMap	myReadersByUid

XmlUidRangeReaderMap	myReadersByUidRange

XmlEntityTypeUidReaderMap	myEntityTypeReadersByUid

XmlEntityTypeLevelReaderMap	myEntityTypeReadersByLevel

DtEnumDictionary *	myDict

DtFilename	myCurrFilename

Static Protected Attributes
static EnumLoaderCreator	theCreator

Detailed Description

Loads entity type enumerations from an XML file into a DtEnumDictionary.

Member Typedef Documentation

typedef std::list<DtEntityTypeRange> DtEnumLoader::Applicability

Type for specifying the applicability of an enumeration.

This indicates what higher level entity type fields a given enumeration can be used with. DtEntityTypeRange supports a range of values within a given level, but you may need multiple different ranges, hence the list.

typedef DtEnumLoader*(* DtEnumLoader::EnumLoaderCreator)()

Type for the creator function for this class. See setCreator.

typedef std::function<bool(const DtFilename&, DtEnumDictionary&)> DtEnumLoader::FileLoaderFcn

The function prototype for loading an enumerations file.

typedef std::map<DtString, FileLoaderFcn> DtEnumLoader::FileLoaderMap

protected

typedef std::function<unsigned(const DtFilename&)> DtEnumLoader::FilePriorityReaderFcn

The function prototype for loading an enumerations file.

typedef std::map<DtString, FilePriorityReaderFcn> DtEnumLoader::FilePriorityReaderMap

protected

typedef std::function<void(xmlNodePtr, const Applicability&, DtEnumDictionary&)> DtEnumLoader::XmlEntityTypeEntryReaderFcn

The function prototype for loading an individual entity type from an xml node.

typedef std::map<DtEntityTypeField, XmlEntityTypeEntryReaderFcn> DtEnumLoader::XmlEntityTypeLevelReaderMap

protected

typedef std::map<int, XmlEntityTypeEntryReaderFcn> DtEnumLoader::XmlEntityTypeUidReaderMap

protected

typedef std::function<void(xmlNodePtr, DtEnumDictionary&)> DtEnumLoader::XmlEntryReaderFcn

The function prototype for loading a individual enumeration from an xml node.

typedef std::pair<int, int> DtEnumLoader::XmlUidRange

protected

typedef std::map<XmlUidRange, XmlEntryReaderFcn> DtEnumLoader::XmlUidRangeReaderMap

protected

typedef std::map<int, XmlEntryReaderFcn> DtEnumLoader::XmlUidReaderMap

protected

Constructor & Destructor Documentation

virtual DtEnumLoader::~DtEnumLoader ( )

virtual

Destructor.

DtEnumLoader::DtEnumLoader ( )

protected

Constructor is protected.

Should call create() to create your loader. Ensures the registered creator function is called.

Member Function Documentation

virtual void DtEnumLoader::addInterestInEntityTypeEnum	(	DtEnumUid	uid,
		DtEntityTypeField
	)

virtual

Adds interest in an entity type enumeration.

virtual void DtEnumLoader::addInterestInEnum ( DtEnumUid uid )

virtual

Adds interest in a general enumeration.

virtual void DtEnumLoader::addInterestInEnumRange	(	DtEnumUid	lowerUid,
		DtEnumUid	upperUid
	)

virtual

Adds interest in a range of general enumerations.

static DtEnumLoader* DtEnumLoader::create ( )

static

Creates a new DtEnumLoader using the registered creator function.

virtual bool DtEnumLoader::loadFile	(	const DtFilename &	file,
		DtEnumDictionary &	dict
	)

virtual

Loads the individual file.

virtual bool DtEnumLoader::loadFromDirectory	(	const DtFilename &	directory,
		DtEnumDictionary &	dict
	)

virtual

Loads all enumeration files from the given directory into the dictionary.

Returns true if successful.

virtual bool DtEnumLoader::loadFromXml	(	const DtFilename &	fn,
		DtEnumDictionary &	dict
	)

protectedvirtual

Default function used to load an xml enumerations file, such as SISO-REF-010.xml or MAK-Enums.xml.

virtual DtEntityTypeField DtEnumLoader::parseApplicability	(	const xmlChar *	c,
		std::list< DtEntityTypeRange > &	applics
	)		const

protectedvirtual

Parses the applicability from the the xml text.

virtual void DtEnumLoader::processMultiLevelEntry	(	xmlNodePtr	node,
		DtEntityTypeField	field,
		const DtEntityTypeRange &	applic,
		DtEnumDictionary &	dict,
		DtEnumUid	parentUid
	)		const

protectedvirtual

Processes the node, including any child nodes that also require processing, and adds all new enumerations to the dictionary.

virtual DtEnumUid DtEnumLoader::processSingleLevelEntry	(	xmlNodePtr	node,
		DtEnumDictionary::EnumMap &	enums,
		DtString &	name
	)		const

protectedvirtual

Processes the node, fills the enums map and name, and returns the uid of the enumeration.

virtual void DtEnumLoader::readEntityTypeEnum	(	xmlNodePtr	node,
		DtEntityTypeField	field,
		const Applicability &	applics,
		DtEnumDictionary &	dict
	)		const

protectedvirtual

virtual void DtEnumLoader::readEntityTypesHierarchy	(	xmlNodePtr	node,
		DtEnumDictionary &	dict
	)		const

protectedvirtual

virtual void DtEnumLoader::readEnum	(	xmlNodePtr	node,
		DtEnumDictionary &	dict
	)		const

protectedvirtual

virtual unsigned DtEnumLoader::readPriorityFromXml ( const DtFilename & fn )

protectedvirtual

Default function used to read the priority from an xml enumerations file, such as MAK-Enums.xml.

SISO-REF-010.xml is always priority 0 and is loaded first.

virtual void DtEnumLoader::registerDefaultLoaders ( )

protectedvirtual

Registers default loader and reader functions for processing enums files.

If not previously called, will be called by loadFromFiles() before starting load. Can be overridden in a subclass to provide different or additional default loaders.

virtual void DtEnumLoader::registerEntityTypeFieldEntryReader	(	DtEntityTypeField	lvl,
		XmlEntityTypeEntryReaderFcn	fcn
	)

virtual

Registers a general reader function for an entity type enumeration for a specific field level (e.g kind, domain, etc.).

This will be used only if there is no specific uid reader specified via registerEntityTypeUidEntryReader.

virtual void DtEnumLoader::registerEntityTypeUidEntryReader	(	DtEnumUid	uid,
		XmlEntityTypeEntryReaderFcn	fcn
	)

virtual

Registers a reader function for an entity type enumeration with a specific uid.

virtual void DtEnumLoader::registerFileLoader	(	const DtString &	fileExt,
		FileLoaderFcn	fcn
	)

virtual

Registers a function to load a specific file type.

virtual void DtEnumLoader::registerFilePriorityReader	(	const DtString &	fileExt,
		FilePriorityReaderFcn	fcn
	)

virtual

Registers a function to read the load priority from a file.

virtual void DtEnumLoader::registerUidEntryReader	(	DtEnumUid	uid,
		XmlEntryReaderFcn	fcn
	)

virtual

Registers a reader function for an enumeration with a specific uid.

virtual void DtEnumLoader::registerUidRangeEntryReader	(	DtEnumUid	lowerUid,
		DtEnumUid	upperUid,
		XmlEntryReaderFcn	fcn
	)

virtual

Registers a reader function for enumerations with a uid within a range of uid values (exclusive of the upperId).

This will be used only if there is no specific uid reader specified via registerUidEntryReader.

static void DtEnumLoader::setCreator ( EnumLoaderCreator creator )

static

Sets the creator function used by create().

Use this to override what DtEnumLoader is created by the application. This is how a user would register their own subclass that might add functions for reading new all new file types or for specific enumerations.

virtual void DtEnumLoader::setEntityTypeLevel	(	unsigned	lvl,
		int	lowerVal,
		int	upperVal,
		DtEntityTypeRange &	etRange
	)		const

protectedvirtual

Sets the range of values for the field at the specified level of the entity type.

virtual void DtEnumLoader::unregisterEntityTypeFieldEntryReader ( DtEntityTypeField lvl )

virtual

Remove a registered entity type enumeration reader function that was defined by for a field level.

virtual void DtEnumLoader::unregisterEntityTypeUidEntryReader ( DtEnumUid uid )

virtual

Remove a registered entity type enumeration reader function.

virtual void DtEnumLoader::unregisterFileLoader ( const DtString & fileExt )

virtual

Remove a registered file loader.

virtual void DtEnumLoader::unregisterFilePriorityReader ( const DtString & fileExt )

virtual

Remove a registered priority reader.

virtual void DtEnumLoader::unregisterUidEntryReader ( DtEnumUid uid )

virtual

Remove a registered enumeration reader function.

virtual void DtEnumLoader::unregisterUidRangeEntryReader	(	DtEnumUid	lowerUid,
		DtEnumUid	upperUid
	)

virtual

Remove a registered enumeration reader function that was defined by a range of uids.

virtual int DtEnumLoader::xmlCharToInt ( const xmlChar * c ) const

protectedvirtual

Converts an xmlChar string to an integer.

Member Data Documentation

DtFilename DtEnumLoader::myCurrFilename

protected

bool DtEnumLoader::myDefaultLoadersRegistered

protected

DtEnumDictionary* DtEnumLoader::myDict

protected

XmlEntityTypeLevelReaderMap DtEnumLoader::myEntityTypeReadersByLevel

protected

XmlEntityTypeUidReaderMap DtEnumLoader::myEntityTypeReadersByUid

protected

FileLoaderMap DtEnumLoader::myFileLoaders

protected

FilePriorityReaderMap DtEnumLoader::myFilePriorityReaders

protected

XmlUidReaderMap DtEnumLoader::myReadersByUid

protected

XmlUidRangeReaderMap DtEnumLoader::myReadersByUidRange

protected

EnumLoaderCreator DtEnumLoader::theCreator

staticprotected

The documentation for this class was generated from the following file:

enumLoader.h

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
