DtEnvObjectSync Class Reference

Synchronizes an environment object to a C++ object. More...

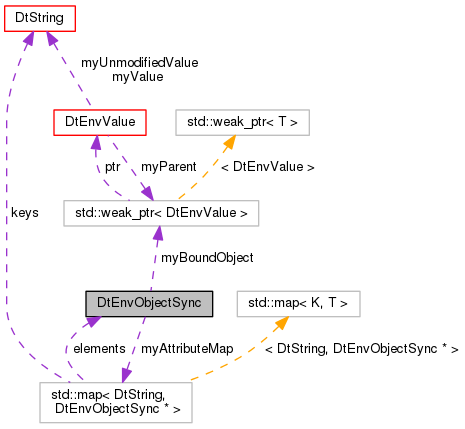

Collaboration diagram for DtEnvObjectSync:

Public Member Functions
	DtEnvObjectSync ()
virtual	~DtEnvObjectSync ()
virtual void	generateObject (DtEnvironment &, const DtString &name)
	Create a new object in the environment and bind to it Calls unbind, if currently bound to an object. More...
virtual void	bind (DtEnvValueSP value, bool createMissingAttributes)
	Bind to existing object, all attributes will also bind, if an attribute is missing, a new value will be created if the createMissingAttributes is set to true, else the attribute is unbounded. More...
virtual void	unbind ()
	Unbind from object in environment Note environment object still exists. More...
virtual DtEnvValueSP	binding () const
	Returns object sync is bound to If unbound returns null. More...
virtual void	addAttributeSync (const DtString &, DtEnvObjectSync *)
	Add attribute sync, note DtEnvObjectSync*, must not outlive, parent If currently bound, attribute sync will bind. More...
virtual void	removeAttributeSync (const DtString &)
	Remove attribute sync If currently bound, attribute sync will unbind. More...
virtual void	removeAllAttributeSyncs ()
	Remove all the attributes. More...
virtual DtEnvObjectSync *	attributeSync (const DtString &)
	Will return sync object for attribute (or null) More...
virtual void	syncInCB (const DtEnvObject &)=0
	Update native object using environment Called when environment has changed Not this will not be called when changed from syncOutCB. More...
virtual void	syncOutCB (DtEnvObject &) const =0
	Update environment using native object Called when environment needs to be updated. More...
virtual DtString	syncType () const =0
	Provide environment type for encoding. More...
virtual void	unboundAttributeSyncInCB (DtEnvValue *)
	Unbound attribute in environment changed. More...
virtual void	attributeAddedCB (DtEnvValueSP)
	Called when attribute is added to environment object. More...
virtual void	attributeRemovedCB (DtEnvValueSP)
	Called when attribute is removed from environment object. More...

Protected Types
typedef std::map< DtString, DtEnvObjectSync * >	DtAttributeSyncMap

Protected Attributes
DtAttributeSyncMap	myAttributeMap
DtEnvValueWP	myBoundObject

Detailed Description

Synchronizes an environment object to a C++ object.

Member Typedef Documentation

typedef std::map<DtString,DtEnvObjectSync*> DtEnvObjectSync::DtAttributeSyncMap

protected

Constructor & Destructor Documentation

DtEnvObjectSync::DtEnvObjectSync

(

)

virtual DtEnvObjectSync::~DtEnvObjectSync ( )

virtual

Member Function Documentation

virtual void DtEnvObjectSync::addAttributeSync ( const DtString &  , DtEnvObjectSync *    )

virtual

Add attribute sync, note DtEnvObjectSync*, must not outlive, parent If currently bound, attribute sync will bind.

virtual void DtEnvObjectSync::attributeAddedCB ( DtEnvValueSP  )

virtual

Called when attribute is added to environment object.

virtual void DtEnvObjectSync::attributeRemovedCB ( DtEnvValueSP  )

virtual

Called when attribute is removed from environment object.

virtual DtEnvObjectSync* DtEnvObjectSync::attributeSync ( const DtString &  )

virtual

Will return sync object for attribute (or null)

virtual void DtEnvObjectSync::bind ( DtEnvValueSP  value, bool  createMissingAttributes  )

virtual

Bind to existing object, all attributes will also bind, if an attribute is missing, a new value will be created if the createMissingAttributes is set to true, else the attribute is unbounded.

virtual DtEnvValueSP DtEnvObjectSync::binding ( ) const

virtual

Returns object sync is bound to If unbound returns null.

virtual void DtEnvObjectSync::generateObject ( DtEnvironment &  , const DtString &  name  )

virtual

Create a new object in the environment and bind to it Calls unbind, if currently bound to an object.

virtual void DtEnvObjectSync::removeAllAttributeSyncs ( )

virtual

Remove all the attributes.

virtual void DtEnvObjectSync::removeAttributeSync ( const DtString &  )

virtual

Remove attribute sync If currently bound, attribute sync will unbind.

virtual void DtEnvObjectSync::syncInCB ( const DtEnvObject &  )

pure virtual

Update native object using environment Called when environment has changed Not this will not be called when changed from syncOutCB.

virtual void DtEnvObjectSync::syncOutCB ( DtEnvObject &  ) const

pure virtual

Update environment using native object Called when environment needs to be updated.

virtual DtString DtEnvObjectSync::syncType ( ) const

pure virtual

Provide environment type for encoding.

virtual void DtEnvObjectSync::unbind ( )

virtual

Unbind from object in environment Note environment object still exists.

all attributes will also unbind

virtual void DtEnvObjectSync::unboundAttributeSyncInCB ( DtEnvValue *  )

virtual

Unbound attribute in environment changed.

Member Data Documentation

DtAttributeSyncMap DtEnvObjectSync::myAttributeMap

protected

DtEnvValueWP DtEnvObjectSync::myBoundObject

protected

---

The documentation for this class was generated from the following file:

• envObjectSync.h
