DtEventId Class Reference

Represents Events in the RPR FOM. More...

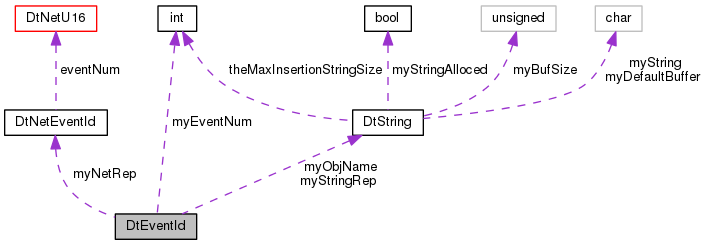

Collaboration diagram for DtEventId:

Public Member Functions
	DtEventId (const char *str)
	Construct a DtEventId from a character string consisting of the event number followed by a colon, and then an object name. More...
	DtEventId (const DtGlobalObjectDesignator &des, int eventNum)
	Construct a DtEventId from a name and an event number. More...
	DtEventId (const DtNetEventId &netId)
	Construct a DtEventId from network representation. More...
	DtEventId (const DtEventId &netId)
	Copy constructor. More...
DtEventId &	operator= (const DtEventId &orig)
	Assignment operator. More...
	DtEventId ()
	Same as DtEventId("", 0);. More...
	~DtEventId ()
	Destructor. More...
void	setFromNet (const DtNetEventId &netId)
	Set from network representation. More...
DtNetEventId *	netRep () const
	Convert to network representation. Returns ptr to internal memory. More...
int	netSize () const
	Return the size of the network implementation. More...
int	operator== (const DtEventId &otherGuy) const
	Equivalence operators. More...
int	operator!= (const DtEventId &otherGuy) const
void	setEventNum (int eventNum)
	Set event number component. More...
int	eventNum () const
	Get event number component. More...
const DtGlobalObjectDesignator &	objectId () const
	Get object designator component. More...
void	setObjectId (const DtGlobalObjectDesignator &name)
	Set object designator component. More...
const DtGlobalObjectDesignator &	globalId () const
	Get object designator component. More...
void	setGlobalId (const DtGlobalObjectDesignator &name)
	Set object designator component. More...
const char *	string () const
	Convert to string. More...

Static Public Member Functions
static const DtEventId &	nullId ()
	Return a null DtEventId. More...

Protected Member Functions
void	init (const DtGlobalObjectDesignator &des, int eventNum)
	initialize More...

Protected Attributes
DtString	myObjName
int	myEventNum
DtNetEventId *	myNetRep
DtString	myStringRep

Detailed Description

Represents Events in the RPR FOM.

Events are represented in the form num:string, where num is the eventId and string an DtGlobalObjectIdentifier

Constructor & Destructor Documentation

DtEventId::DtEventId

(

const char *

str

)

Construct a DtEventId from a character string consisting of the event number followed by a colon, and then an object name.

For example: DtEventId event("36:Object1");

DtEventId::DtEventId	(	const DtGlobalObjectDesignator &	des,
		int	eventNum
	)

Construct a DtEventId from a name and an event number.

DtEventId::DtEventId

(

const DtNetEventId &

netId

)

Construct a DtEventId from network representation.

DtEventId::DtEventId

(

const DtEventId &

netId

)

Copy constructor.

DtEventId::DtEventId

(

)

Same as DtEventId("", 0);.

DtEventId::~DtEventId

(

)

Destructor.

Member Function Documentation

int DtEventId::eventNum

(

)

const

Get event number component.

const DtGlobalObjectDesignator& DtEventId::globalId

(

)

const

Get object designator component.

void DtEventId::init ( const DtGlobalObjectDesignator &  des, int  eventNum  )

protected

initialize

DtNetEventId* DtEventId::netRep

(

)

const

Convert to network representation. Returns ptr to internal memory.

int DtEventId::netSize

(

)

const

Return the size of the network implementation.

static const DtEventId& DtEventId::nullId ( )

static

Return a null DtEventId.

const DtGlobalObjectDesignator& DtEventId::objectId

(

)

const

Get object designator component.

int DtEventId::operator!=

(

const DtEventId &

otherGuy

)

const

DtEventId& DtEventId::operator=

(

const DtEventId &

orig

)

Assignment operator.

int DtEventId::operator==

(

const DtEventId &

otherGuy

)

const

Equivalence operators.

void DtEventId::setEventNum

(

int

eventNum

)

Set event number component.

void DtEventId::setFromNet

(

const DtNetEventId &

netId

)

Set from network representation.

void DtEventId::setGlobalId

(

const DtGlobalObjectDesignator &

name

)

Set object designator component.

void DtEventId::setObjectId

(

const DtGlobalObjectDesignator &

name

)

Set object designator component.

const char* DtEventId::string

(

)

const

Convert to string.

Member Data Documentation

int DtEventId::myEventNum

protected

DtNetEventId* DtEventId::myNetRep

protected

DtString DtEventId::myObjName

protected

DtString DtEventId::myStringRep

protected

---

The documentation for this class was generated from the following file:

• eventId.h
