Represents a particular FOM, as described by a FED file. More...

Inheritance diagram for DtFom:

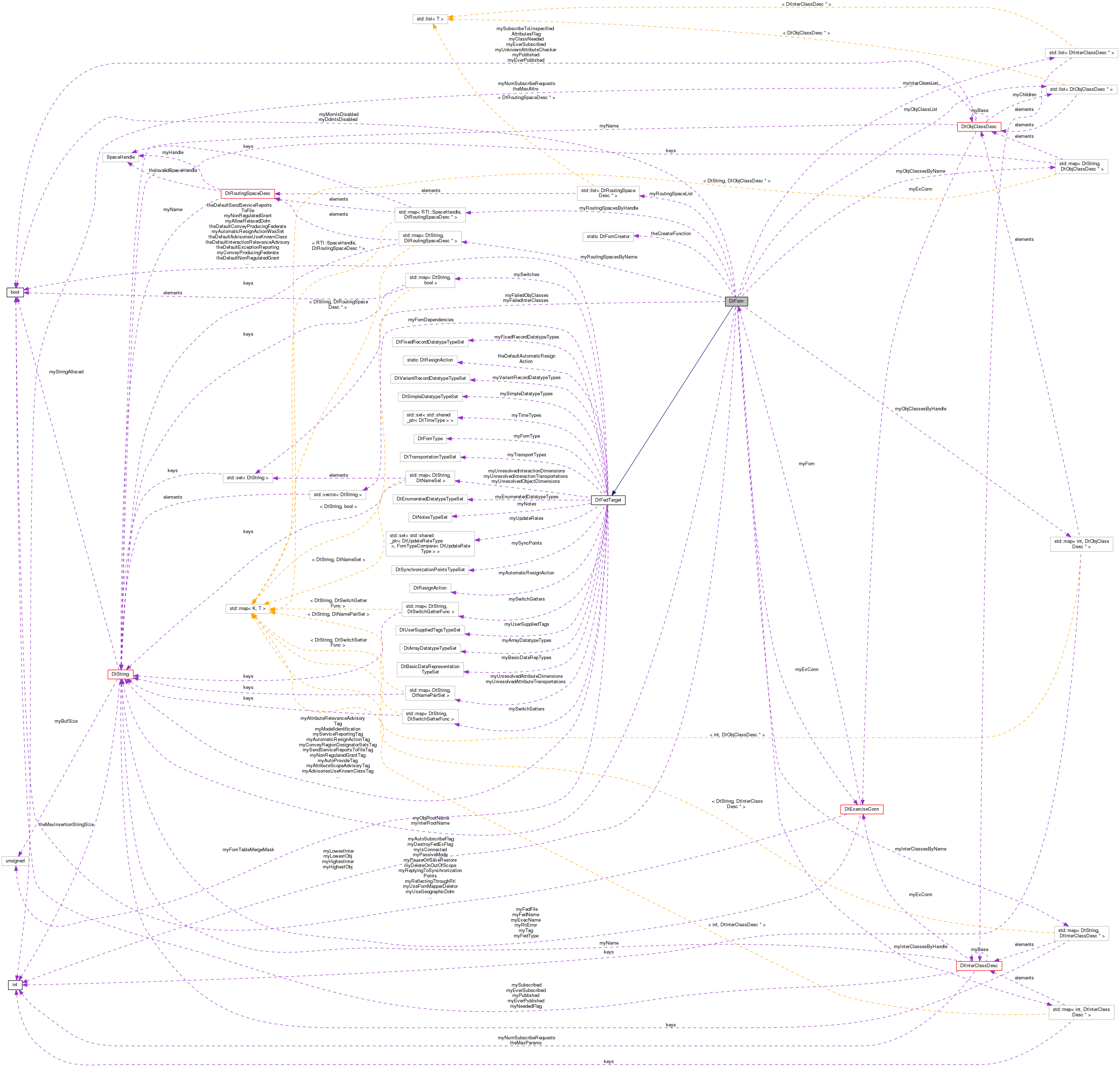

Collaboration diagram for DtFom:

Public Member Functions
	DtFom (DtExerciseConn *exConn)
	Constructor. More...

virtual	~DtFom ()
	Destructor. More...

	DtFom (const DtFom &orig)
	copy constructor More...

DtFom &	operator= (const DtFom &orig)
	assignment operator More...

virtual DtFedReadStatus	readFed (const DtString &fedFile, const std::vector< std::wstring > &fomModules, const DtString &mimModule, bool strictCheckingEnabled, bool useDTD, bool dontParseSwitches)
	Read a vector of create merging them into this as they're read. More...

virtual void	addSpace (const char *name)
	Define a routing space. Used when initializing from FED file. More...

virtual void	addDimension (const char spaceName, const char dimName)
	Define a dimension within a routing space. More...

virtual bool	addInterClass (const char name, const char baseName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define a class. More...

virtual bool	shouldPrintMissingClass (const char *name)
	Controls whether to print missing classes. More...

virtual bool	addObjClass (const char name, const char baseName)
	Define a class. More...

virtual bool	addObjectDimension (const char objectClassName, const char dimension)
	Add a dimension to the object class Return true if add was successful (i.e., dimension is valid) More...

virtual void	addParameter (const char className, const char paramName)
	Define an parameter of a class. More...

virtual bool	addInteractionDimension (const char interactionName, const char dimension)
	Add regions to the class Return true if add was successful (i.e., dimension is valid) More...

virtual void	addAttribute (const char className, const char attrName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define an attribute of a class. More...

void	addAttribute (const char className, const char attrName, DtTransportType transport, DtOrderType order, DtSharingType sharing, DtFomUpdateType updateType, const DtString &updateCondition, DtOwnershipType ownershipType, const DtString &semantics, const char *spaceName=NULL)
	Define an attribute of a class. More...

virtual bool	addAttributeDimension (const char className, const char attrName, const char *dimName)
	Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid) More...

virtual DtRoutingSpaceDesc *	spaceByName (const char *name) const
	Returns the space descriptor for the name. More...

virtual DtRoutingSpaceDesc *	spaceByHandle (RTI::SpaceHandle handle) const
	Returns the space descriptor for the handle. More...

virtual RTI::DimensionHandle	dimensionHandle (const char spaceName, const char dimensionName) const
	Returns the handle for the name. More...

virtual const DtString &	dimensionName (const char *spaceName, RTI::DimensionHandle dimHandle) const
	Returns the name for the handle. More...

virtual DtObjClassDesc *	rootObjClass () const
	Returns the root object class descriptor. More...

virtual DtObjClassDesc *	rootMomObjClass () const
	Returns the root MOM object class descriptor. More...

virtual DtObjClassDesc *	objClassByName (const char *name) const
	Returns the object class descriptor for the name. More...

virtual DtObjClassDesc *	objClassByHandle (RTI::ObjectClassHandle handle) const
	Returns the object class descriptor for the handle. More...

virtual const std::list < DtObjClassDesc * > &	objClassList () const
	Return a list of object classes. More...

int	numObjClasses () const
	Returns number of object classes in the FOM. More...

int	minObjClassHandle () const
	Returns the minimum and maximum object class handles in the FOM. More...

int	maxObjClassHandle () const

virtual DtObjClassDesc *	firstObjClass () const
	Returns the first, last and next object classes in the FOM. More...

virtual DtObjClassDesc *	lastObjClass () const

virtual DtObjClassDesc *	nextObjClass (DtObjClassDesc *current) const

virtual DtInterClassDesc *	rootInterClass () const
	Returns the root interaction class descriptor. More...

virtual DtInterClassDesc *	rootMomInterClass () const
	Returns the root MOM interaction class descriptor. More...

virtual DtInterClassDesc *	interClassByName (const char *name) const
	Returns the interaction class descriptor for the name. More...

virtual DtInterClassDesc *	interClassByHandle (RTI::InteractionClassHandle handle) const
	Returns the interaction class descriptor for the handle. More...

virtual const std::list < DtInterClassDesc * > &	interClassList () const
	Return a list of interaction classes. More...

int	numInterClasses () const
	Returns number of interaction classes in the FOM. More...

int	minInterClassHandle () const
	Returns the minimum and maximum interaction class handles in the FOM. More...

int	maxInterClassHandle () const

virtual DtInterClassDesc *	firstInterClass () const
	Returns the first, last and next interaction class in the FOM. More...

virtual DtInterClassDesc *	lastInterClass () const

virtual DtInterClassDesc *	nextInterClass (DtInterClassDesc *current) const

virtual DtVrlRtiAmbassador *	rtiAmb () const
	Returns our RTI ambassador. More...

virtual void	print () const
	Prints the contents of the FOM. More...

bool	isDdmDisabled () const
	These variables determine if certain HLA services do not exist (For example, on lightweight mode). More...

void	setIsDdmDisabled (bool val)

bool	isMomIsDisabled () const

void	setIsMomIsDisabled (bool val)

Public Member Functions inherited from DtFedTarget
	DtFedTarget ()
	Constructor. More...

virtual	~DtFedTarget ()
	Destructor. More...

	DtFedTarget (const DtFedTarget &orig)
	copy constructor More...

DtFedTarget &	operator= (const DtFedTarget &orig)
	assignment operator More...

virtual void	addDimension (const char *dimName, unsigned long upperBound, unsigned long defaultLowerBound, unsigned long defaultUpperBound, bool excluded, const DtString &normalization)
	Define a dimension. Used when initializing from FED file. More...

virtual void	setMergeTableMask (DtU64 mergeTableMask)
	Set the mask that determines which tables are merged. More...

virtual bool	fomTableMergeEnabled (DtMergeFomTableMask fomTableMask) const
	Return true if provided FOM table type should be merged; otherwise, false. More...

virtual DtMergeFomStatus	mergeTarget (DtFedTarget const &module, bool allowCreateMerges)
	Merge the given FOM Module with this one Indicate if merge allows new switches and other merges allowed during create or from FOM modules provided by federation execution. More...

virtual DtMergeFomStatus	mergeSpaces (DtFedTarget const &module)
	Merge the spaces from the given FOM Module with this one. More...

virtual DtMergeFomStatus	postMergeCheckTarget (DtString &errorString)
	Post merge check and resolve cross references. More...

virtual const DtString &	modelIdentification () const
	Get the model identification. More...

virtual const DtString &	lastError () const
	Get the last error. More...

virtual bool	isStrictChecking () const
	Set/Get whether to perform strict FOM checking when merging FOMs. More...

virtual void	setStrictChecking (bool doStrictChecking)

virtual void	setFomType (DtFomType type)
	Set/Get the FOM type. More...

virtual DtFomType	fomType () const
	Set/Get the FOM type. More...

virtual bool	autoProvide () const
	Get/Set Switch. More...

virtual void	setAutoProvide (bool value)
	Get/Set Switch. More...

virtual bool	conveyRegionDesignatorSets () const
	Get/Set Switch. More...

virtual void	setConveyRegionDesignatorSets (bool value)
	Get/Set Switch. More...

virtual bool	conveyProducingFederate () const
	Get/Set Switch. More...

virtual void	setConveyProducingFederate (bool value)
	Get/Set Switch. More...

virtual bool	attributeScopeAdvisory () const
	Get/Set Switch. More...

virtual void	setAttributeScopeAdvisory (bool value)
	Get/Set Switch. More...

virtual bool	attributeRelevanceAdvisory () const
	Get/Set Switch. More...

virtual void	setAttributeRelevanceAdvisory (bool value)
	Get/Set Switch. More...

virtual bool	objectClassRelevanceAdvisory () const
	Get/Set Switch. More...

virtual void	setObjectClassRelevanceAdvisory (bool value)
	Get/Set Switch. More...

virtual bool	interactionRelevanceAdvisory () const
	Get/Set Switch. More...

virtual void	setInteractionRelevanceAdvisory (bool value)
	Get/Set Switch. More...

virtual bool	serviceReporting () const
	Get/Set Switch. More...

virtual void	setServiceReporting (bool value)
	Get/Set Switch. More...

virtual bool	exceptionReporting () const
	Get/Set Switch. More...

virtual void	setExceptionReporting (bool value)
	Get/Set Switch. More...

virtual bool	delaySubscriptionEvaluation () const
	Get/Set Switch. More...

virtual void	setDelaySubscriptionEvaluation (bool value)
	Get/Set Switch. More...

virtual DtResignAction	automaticResignAction () const
	Get/Set Switch. More...

virtual void	setAutomaticResignAction (DtResignAction value)
	Get/Set Switch. More...

virtual bool	nonRegulatedGrant () const
	Get/Set Switch. More...

virtual void	setNonRegulatedGrant (bool value)
	Get/Set Switch. More...

virtual bool	sendServiceReportsToFile () const
	Get/Set Switch. More...

virtual void	setSendServiceReportsToFile (bool value)
	Get/Set Switch. More...

virtual bool	advisoriesUseKnownClass () const
	Get/Set Switch. More...

virtual void	setAdvisoriesUseKnownClass (bool value)
	Get/Set Switch. More...

virtual bool	allowRelaxedDdm () const
	Get/Set Switch. More...

virtual void	setAllowRelaxedDdm (bool value)
	Get/Set Switch. More...

virtual unsigned int	numUpdateRates () const
	Manage update rate. More...

virtual void	addUpdateRate (DtUpdateRateType *updateRate)
	Manage update rate. More...

virtual bool	knownUpdateRate (const DtUpdateRateType &updateRate) const
	Manage update rate. More...

virtual unsigned int	numSyncPoints () const
	Merging and consistency performed using private template functions. More...

virtual void	addSyncPoint (DtSynchronizationPointsType *syncName)
	Merging and consistency performed using private template functions. More...

virtual bool	knownSyncPoint (const DtSynchronizationPointsType &syncName) const
	Merging and consistency performed using private template functions. More...

virtual unsigned int	numTransports () const
	Merging and consistency performed using private template functions. More...

virtual void	addTransportType (DtTransportationType *transportName)
	Merging and consistency performed using private template functions. More...

virtual bool	knownTransportType (const DtTransportationType &transportName) const
	Merging and consistency performed using private template functions. More...

virtual bool	transportTypeConsistencyTest (const DtTransportationType &transportName)
	Merging and consistency performed using private template functions. More...

virtual DtTransportType	transportTypeFromTransportation (const DtString &transportTypeName) const
	Merging and consistency performed using private template functions. More...

virtual DtMergeFomStatus	mergeTransportTypes (DtFedTarget const &module)
	Merging and consistency performed using private template functions. More...

virtual unsigned int	numUserSuppliedTags () const
	Manage User Defined Tags. More...

virtual void	addUserSuppliedTag (DtUserSuppliedTagsType *tag)
	Manage User Defined Tags. More...

virtual bool	knownUserSuppliedTag (const DtUserSuppliedTagsType &tag) const
	Manage User Defined Tags. More...

virtual unsigned int	numNotes () const
	Merging and consistency performed using private template functions. More...

virtual void	addNote (DtNotesType *noteName)
	Merging and consistency performed using private template functions. More...

virtual bool	knownNote (const DtNotesType &noteName) const
	Merging and consistency performed using private template functions. More...

virtual unsigned int	numSwitches () const
	Merging and consistency performed using private template functions. More...

virtual void	addSwitch (const DtString &switchName, bool switchVal)
	Merging and consistency performed using private template functions. More...

virtual bool	knownSwitch (const DtString &switchName) const
	Merging and consistency performed using private template functions. More...

virtual bool	isStandardSwitch (const DtString &switchName) const
	Return true if the given name is a recognized standard swtich. More...

virtual bool	switchValue (const DtString &switchName) const
	Merging and consistency performed using private template functions. More...

virtual DtMergeFomStatus	mergeSwitches (DtFedTarget const &module, bool allowCreateMerges)
	Merge switches from given module into this one Note: Only call when processing create Indicate if create merges are allowed (i.e., addition of unset switches) More...

virtual unsigned int	numTimeTypes () const
	Manage Time Types. More...

virtual void	addTime (DtTimeType *timeName)
	Manage Time Types. More...

virtual bool	knownTime (const DtTimeType &timeName) const
	Manage Time Types. More...

virtual bool	timeTypesSame (DtFedTarget const &module) const
	Manage Time Types. More...

virtual DtMergeFomStatus	mergeTimeTypes (DtFedTarget const &module)
	Manage Time Types. More...

virtual void	addBasicDataRepresentation (DtBasicDataRepresentationType *theBasicDataRepresentation)
	Manage Basic Data Representations. More...

virtual bool	knownBasicDataRepresentation (const DtBasicDataRepresentationType &theBasicDataRepresentation) const
	Manage Basic Data Representations. More...

virtual void	addSimpleDataType (DtSimpleDatatypeType *theSimpleDataType)
	Merging and consistency performed using private template functions. More...

virtual bool	knownSimpleDatatype (const DtSimpleDatatypeType &theSimpleDatatype) const
	Merging and consistency performed using private template functions. More...

virtual void	addEnumeratedDataType (DtEnumeratedDatatypeType *theEnumeratedDataType)
	Merging and consistency performed using private template functions. More...

virtual bool	knownEnumeratedDatatype (const DtEnumeratedDatatypeType &theEnumeratedDatatype) const
	Merging and consistency performed using private template functions. More...

virtual void	addArrayDataType (DtArrayDatatypeType *theArrayDataType)
	Merging and consistency performed using private template functions. More...

virtual bool	knownArrayDatatype (const DtArrayDatatypeType &theArrayDatatype) const
	Merging and consistency performed using private template functions. More...

virtual void	addFixedRecordDataType (DtFixedRecordDatatypeType *theFixedRecordDataType)
	Merging and consistency performed using private template functions. More...

virtual bool	knownFixedRecordDatatype (const DtFixedRecordDatatypeType theFixedRecordDatatype) const
	Merging and consistency performed using private template functions. More...

virtual void	addVariantRecordDataType (DtVariantRecordDatatypeType *theVariantRecordDataType)
	Merging and consistency performed using private template functions. More...

virtual bool	knownVariantRecordDatatype (const DtVariantRecordDatatypeType &theVariantRecordDatatype) const
	Merging and consistency performed using private template functions. More...

virtual void	addModelIdentification (const char *nameTag)
	Merging and consistency performed using private template functions. More...

virtual bool	knownModelIdentification (DtString const &nameTag) const
	Merging and consistency performed using private template functions. More...

virtual bool	modelIdentificationSame (DtFedTarget const &module) const
	Merging and consistency performed using private template functions. More...

virtual void	setFomDependencies (const DtNameVector &fomDependencies)
	Set/Get FOM Dependencies. More...

virtual const DtNameVector &	fomDependencies ()
	Set/Get FOM Dependencies. More...

virtual const DtNameVector &	fomDependencies () const
	Set/Get FOM Dependencies. More...

virtual void	addUnresolvedAttributeTransportation (const DtString &transportationName, const DtString &className, const DtString &attrName)
	Add/Remove unresolved attribute transportation. More...

virtual void	removeResolvedAttributeTransportation (const DtString &transportationName, DtNamePair classAttrPair)
	Add/Remove unresolved attribute transportation. More...

virtual void	addUnresolvedInteractionTransportation (const DtString &transportationName, const DtString &interactionName)
	Add/Remove unresolved interaction transportation. More...

virtual void	removeResolvedInteractionTransportation (const DtString &transportationName, const DtString &interactionName)
	Add/Remove unresolved interaction transportation. More...

Static Public Member Functions
static void	setFomCreator (DtFomCreator)
	set creator function More...

static DtFom *	create (DtExerciseConn *exConn)
	creator function More...


static void	setIntersection (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Attribute Handle Set operations These operations append to destination (i.e., do not begin by clearing out destination) More...

static void	setUnion (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Union of attribute handle sets is added to the destination. More...

static void	setDifference (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Difference of attribute handle set2 from set1 is added to the destination. More...

static void	setSymmetricDifference (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Symmetric difference of attribute handle set1 and set2 is added to the destination (s1-s2 U s2-s1) More...

static bool	setsEqual (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2)
	Determine if the 2 sets are equal Return bool: s1 == set2. More...

static void	setInsert (RTI::AttributeHandleSet &handleSet, const RTI::AttributeHandle &handle)
	Add handle to set. More...

static void	setInsert (RTI::AttributeHandleSet &destinationSet, const RTI::AttributeHandleSet &sourceSet)
	Add source attributes to destination set. More...

static void	setRemove (RTI::AttributeHandleSet &handleSet, const RTI::AttributeHandle &handle)
	Remove handle from set. More...

static void	setRemove (RTI::AttributeHandleSet &destinationSet, const RTI::AttributeHandleSet &sourceSet)
	Remove source attributes from destination set. More...

static void	setClear (RTI::AttributeHandleSet &handleSet)
	Clear or empty the given set. More...

Static Public Member Functions inherited from DtFedTarget
static char const *	enumAsString (DtResignAction action)
	Return string representation of automatic resign action. More...

static char const *	enumAsString (DtMergeFomTableMask mergeTable)
	Return string representation of merge fom table mask. More...

static void	setDefaultAutoProvide (bool onOff)
	switches default values More...

static bool	defaultAutoProvide ()
	switches default values More...

static void	setDefaultConveyRegionDesignatorSets (bool onOff)
	Set/Get the default convey region. More...

static bool	defaultConveyRegionDesignatorSets ()
	switches default values More...

static void	setDefaultConveyProducingFederate (bool onOff)
	Set/Get the default convey producing federate. More...

static bool	defaultConveyProducingFederate ()
	switches default values More...

static void	setDefaultObjectClassRelevanceAdvisory (bool onOff)
	Set/Get the default class relevance advisory. More...

static bool	defaultObjectClassRelevanceAdvisory ()
	switches default values More...

static void	setDefaultAttributeRelevanceAdvisory (bool onOff)
	Set/Get the default attribute relevance advisory. More...

static bool	defaultAttributeRelevanceAdvisory ()
	switches default values More...

static void	setDefaultAttributeScopeAdvisory (bool onOff)
	Set/Get the default attribute scope advisory. More...

static bool	defaultAttributeScopeAdvisory ()
	switches default values More...

static void	setDefaultInteractionRelevanceAdvisory (bool onOff)
	Set/Get the default interaction relevance advisory. More...

static bool	defaultInteractionRelevanceAdvisory ()
	switches default values More...

static void	setDefaultServiceReporting (bool onOff)
	Set/Get the default service reporting. More...

static bool	defaultServiceReporting ()
	switches default values More...

static void	setDefaultExceptionReporting (bool onOff)
	set/get the default exception reporting More...

static bool	defaultExceptionReporting ()
	switches default values More...

static void	setDefaultAutomaticResignAction (DtResignAction val)
	set/get the default automatic resign action More...

static DtResignAction	defaultAutomaticResignAction ()
	switches default values More...

static void	setDefaultDelaySubscriptionEvaluation (bool value)
	Set/Get delay subscription evaluation switch. More...

static bool	defaultDelaySubscriptionEvaluation ()
	switches default values More...

static void	setDefaultNonRegulatedGrant (bool value)
	Set/Get non-regulated grant switch. More...

static bool	defaultNonRegulatedGrant ()
	switches default values More...

static void	setDefaultSendServiceReportsToFile (bool value)
	Set/Get non-regulated grant switch. More...

static bool	defaultSendServiceReportsToFile ()
	switches default values More...

static void	setDefaultAdvisoriesUseKnownClass (bool value)
	Set/Get non-regulated grant switch. More...

static bool	defaultAdvisoriesUseKnownClass ()
	switches default values More...

static void	setDefaultAllowRelaxedDdm (bool value)
	Set/Get non-regulated grant switch. More...

static bool	defaultAllowRelaxedDdm ()
	switches default values More...

Protected Member Functions
virtual DtMergeFomStatus	mergeObjectClasses (const DtFom &module)
	Merge the object classes of the specified FomMgr with this. More...

virtual DtMergeFomStatus	mergeObjClassDesc (const DtObjClassDesc *desc)
	Merge the contents of the objClassDesc with this. More...

virtual DtMergeFomStatus	mergeInteractionClasses (const DtFom &module)
	Merge the contents of the specified interactionClasses with this. More...

virtual DtMergeFomStatus	mergeIntClassDesc (const DtInterClassDesc *desc)
	Merge the contents of the InteractionClassDescription with this. More...

virtual DtMergeFomStatus	mergeObjectClasses (const DtFedTarget &module)
	Merge the object classes of the specified FomMgr with this. More...

virtual DtMergeFomStatus	mergeInteractionClasses (const DtFedTarget &module)
	Merge the contents of the specified interactionClasses with this. More...

virtual bool	resolveAttributeDimensions ()

Protected Member Functions inherited from DtFedTarget
void	initSwitchSetters ()
	Initialize the list of switch setters Called in constructor. More...

virtual bool	checkStringsIgnoringWhiteSpaceAndNewline (const DtString &left, const DtString &right)

virtual void	addUnresolvedObjectDimension (const DtString &dimensionName, const DtString &objectClassName)
	Add/Remove unresolved object class dimension. More...

virtual void	removeResolvedObjectDimension (const DtString &dimensionName, const DtString &objectClassName)
	Add/Remove unresolved object class dimension. More...

virtual void	addUnresolvedAttributeDimension (const DtString &dimensionName, const DtString &className, const DtString &attrName)
	Add/Remove unresolved attribute dimension. More...

virtual void	removeResolvedAttribute (const DtString &dimensionName, DtNamePair classAttrPair)
	Add/Remove unresolved attribute dimension. More...

virtual void	addUnresolvedInteractionDimension (const DtString &dimensionName, const DtString &interactionName)
	Add/Remove unresolved interaction dimension. More...

virtual void	removeResolvedInteractionDimension (const DtString &dimensionName, const DtString &interactionName)
	Add/Remove unresolved interaction dimension. More...

virtual void	mergeUnresolved (DtFedTarget const &module)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveObjectModelIdentification (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveObjectClasses (DtString &errorString, bool &fomReadError)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveInteractionClasses (DtString &errorString, bool &fomReadError)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveAttributes (DtString &errorString, bool &fomReadError)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveParameters (DtString &errorString, bool &fomReadError)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveDimensions (DtString &errorString, bool &fomReadError)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveTimeRepresentations (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveUserSuppliedTags (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveSynchronizationPoints (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveTranportationTypes (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveUpdateRates (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveSwitches (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual void	checkSpecificSwitch (const DtString &switchName, bool &mySwitchMissing, DtString &mySwitchesError)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveDatatypes (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveNotes (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual bool	resolveServiceUsage (DtString &errorString)
	Post Merge checks and resolve cross references. More...

virtual void	unionUnresolvedClassDimensions (DtNameToNameSetMap &thisUnresolvedClassDimensions, DtNameToNameSetMap const &otherUnresolvedObjectDimensions)
	Post Merge checks and resolve cross references. More...

virtual void	unionUnresolvedAttributeDimensions (const DtNameToNamePairSetMap &unresolvedAttributeDimensions)
	Post Merge checks and resolve cross references. More...

virtual void	unionUnresolvedAttributeTransportation (const DtNameToNamePairSetMap &unresolvedAttributetransportations)
	Post Merge checks and resolve cross references. More...

virtual void	unionUnresolvedInteractionTransportation (const DtNameToNameSetMap &unresolvedInteractiontransportations)
	Post Merge checks and resolve cross references. More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtNotesType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtSynchronizationPointsType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtUserSuppliedTagsType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtTransportationType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtBasicDataRepresentationType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtSimpleDatatypeType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtEnumeratedDatatypeType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtArrayDatatypeType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtFixedRecordDatatypeType)
	no ordering needed for sets consisting of these types: More...

	DEFINE_COMPONENT_SET_TYPEDEF (DtVariantRecordDatatypeType)
	no ordering needed for sets consisting of these types: More...

Protected Attributes
DtExerciseConn *	myExConn

std::map< DtString, DtRoutingSpaceDesc * >	myRoutingSpacesByName
	Hash lists that map class names (DtStringHashKeys) to descriptor pointers. More...

std::map< DtString, DtInterClassDesc * >	myInterClassesByName

std::map< DtString, DtObjClassDesc * >	myObjClassesByName

std::map< RTI::SpaceHandle, DtRoutingSpaceDesc * >	myRoutingSpacesByHandle
	Hash lists that map class handles (DtIntHashKeys) to DtObjClassDesc pointers. More...

std::map< int, DtInterClassDesc * >	myInterClassesByHandle

std::map< int, DtObjClassDesc * >	myObjClassesByHandle

std::list< DtRoutingSpaceDesc * >	myRoutingSpaceList
	List of descriptors. More...

std::list< DtObjClassDesc * >	myObjClassList

std::list< DtInterClassDesc * >	myInterClassList

int	myLowestObj

int	myHighestObj

int	myLowestInter

int	myHighestInter

DtString	myObjRootName

DtString	myInterRootName

std::set< DtString >	myFailedObjClasses

std::set< DtString >	myFailedInterClasses

bool	myDdmIsDisabled

bool	myMomIsDisabled

Protected Attributes inherited from DtFedTarget
DtFomType	myFomType

DtU64	myFomTableMergeMask

const DtString	myAdvisoriesUseKnownClassTag = "advisoriesUseKnownClass"

const DtString	myAllowRelaxedDdmTag = "allowRelaxedDDM"

const DtString	myAttributeRelevanceAdvisoryTag = "attributeRelevanceAdvisory"

const DtString	myAttributeScopeAdvisoryTag = "attributeScopeAdvisory"

const DtString	myAutomaticResignActionTag = "automaticResignAction"

const DtString	myAutoProvideTag = "autoProvide"

const DtString	myConveyProducingFederateTag = "conveyProducingFederate"

const DtString	myConveyRegionDesignatorSetsTag = "conveyRegionDesignatorSets"

const DtString	myDelaySubscriptionEvaluationTag = "delaySubscriptionEvaluation"

const DtString	myExceptionReportingTag = "exceptionReporting"

const DtString	myInteractionRelevanceAdvisoryTag = "interactionRelevanceAdvisory"

const DtString	myNonRegulatedGrantTag = "nonRegulatedGrant"

const DtString	myObjectClassRelevanceAdvisoryTag = "objectClassRelevanceAdvisory"

const DtString	myServiceReportingTag = "serviceReporting"

const DtString	mySendServiceReportsToFileTag = "sendServiceReportsToFile"

DtString	myModelIdentification

DtNameVector	myFomDependencies

DtTimeTypeSet	myTimeTypes

DtUserSuppliedTagsTypeSet	myUserSuppliedTags

DtSynchronizationPointsTypeSet	mySyncPoints

DtTransportationTypeSet	myTransportTypes

DtUpdateRateSetT	myUpdateRates

DtNotesTypeSet	myNotes

DtSwitchesMap	mySwitches

DtBasicDataRepresentationTypeSet	myBasicDataRepTypes

DtSimpleDatatypeTypeSet	mySimpleDatatypeTypes

DtEnumeratedDatatypeTypeSet	myEnumeratedDatatypeTypes

DtArrayDatatypeTypeSet	myArrayDatatypeTypes

DtFixedRecordDatatypeTypeSet	myFixedRecordDatatypeTypes

DtVariantRecordDatatypeTypeSet	myVariantRecordDatatypeTypes

bool	myAdvisoriesUseKnownClass
	Switches. More...

bool	myAllowRelaxedDdm
	Switches. More...

bool	myAttributeScopeAdvisory
	Switches. More...

bool	myAttributeRelevanceAdvisory
	Switches. More...

DtResignAction	myAutomaticResignAction
	Switches. More...

bool	myAutomaticResignActionWasSet
	Switches. More...

bool	myAutoProvide
	Switches. More...

bool	myConveyRegionDesignatorSets
	Switches. More...

bool	myConveyProducingFederate
	Switches. More...

bool	myDelaySubscriptionEvaluation
	Switches. More...

bool	myExceptionReporting
	Switches. More...

bool	myInteractionRelevanceAdvisory
	Switches. More...

bool	myObjectClassRelevanceAdvisory
	Switches. More...

bool	myNonRegulatedGrant
	Switches. More...

bool	mySendServiceReportsToFile
	Switches. More...

bool	myServiceReporting
	Switches. More...

bool	myStrictChecking
	Indicates a FOM module merge is taking place. More...

DtSwitchSetterMap	mySwitchSetters
	Indicates a FOM module merge is taking place. More...

DtSwitchGetterMap	mySwitchGetters
	Indicates a FOM module merge is taking place. More...

bool	myMergingFomModule
	Indicates a FOM module merge is taking place. More...

DtNameToNameSetMap	myUnresolvedObjectDimensions
	Indicates a FOM module merge is taking place. More...

DtNameToNamePairSetMap	myUnresolvedAttributeDimensions
	Indicates a FOM module merge is taking place. More...

DtNameToNameSetMap	myUnresolvedInteractionDimensions
	Indicates a FOM module merge is taking place. More...

DtNameToNamePairSetMap	myUnresolvedAttributeTransportations
	Indicates a FOM module merge is taking place. More...

DtNameToNameSetMap	myUnresolvedInteractionTransportations
	Indicates a FOM module merge is taking place. More...

DtString	myLastError
	Indicates a FOM module merge is taking place. More...

bool	myErrorFlag
	Indicates a FOM module merge is taking place. More...

Static Protected Attributes
static DtFomCreator	theCreatorFunction

Static Protected Attributes inherited from DtFedTarget
static bool	theDefaultAdvisoriesUseKnownClass

static bool	theDefaultAllowRelaxedDdm

static bool	theDefaultAttributeRelevanceAdvisory

static bool	theDefaultAttributeScopeAdvisory

static DtResignAction	theDefaultAutomaticResignAction

static bool	theDefaultAutoProvide

static bool	theDefaultConveyProducingFederate

static bool	theDefaultConveyRegionDesignatorSets

static bool	theDefaultDelaySubscriptionEvaluation

static bool	theDefaultExceptionReporting

static bool	theDefaultInteractionRelevanceAdvisory

static bool	theDefaultObjectClassRelevanceAdvisory

static bool	theDefaultNonRegulatedGrant

static bool	theDefaultServiceReporting

static bool	theDefaultSendServiceReportsToFile

Additional Inherited Members
Protected Types inherited from DtFedTarget
typedef void(*	DtSwitchSetterFunc )(DtFedTarget *target, bool enableSwitch)
	Function type to set switch value. More...

typedef bool(*	DtSwitchGetterFunc )(DtFedTarget const *target)
	Function type to get switch value. More...

typedef std::map< DtString, DtSwitchSetterFunc >	DtSwitchSetterMap
	List of switch setters by switch name. More...

typedef std::map< DtString, DtSwitchGetterFunc >	DtSwitchGetterMap
	List of switch getters by switch name. More...

typedef std::set < std::shared_ptr< DtTimeType > >	DtTimeTypeSet
	no ordering needed for sets consisting of these types: More...

Static Protected Member Functions inherited from DtFedTarget
static void	setAutoProvide (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	autoProvide (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setConveyRegionDesignatorSets (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	conveyRegionDesignatorSets (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setConveyProducingFederate (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	conveyProducingFederate (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setObjectClassRelevanceAdvisory (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	objectClassRelevanceAdvisory (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setAttributeRelevanceAdvisory (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	attributeRelevanceAdvisory (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setAttributeScopeAdvisory (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	attributeScopeAdvisory (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setInteractionRelevanceAdvisory (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	interactionRelevanceAdvisory (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setServiceReporting (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	serviceReporting (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setExceptionReporting (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	exceptionReporting (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setDelaySubscriptionEvaluation (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	delaySubscriptionEvaluation (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setNonRegulatedGrant (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	nonRegulatedGrant (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setSendServiceReportsToFile (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	sendServiceReportsToFile (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setAdvisoriesUseKnownClass (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	advisoriesUseKnownClass (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

static void	setAllowRelaxedDdm (DtFedTarget *, bool onOff)
	switch setter/getter function to use as function pointers More...

static bool	allowRelaxedDdm (DtFedTarget const *)
	switch setter/getter function to use as function pointers More...

Detailed Description

Represents a particular FOM, as described by a FED file.

Object classes are represented by DtObjClassDescs; Interaction classes by DtInterClassDescs. Being a DtFedTarget, a DtFom can be filled in by a DtFedReader. Alternatively, you can fill it in programatically, with addObjClass, addInterClass, addParameter and addAttribute. Once so initialized, you can query for a class descriptor associated with a class.

Constructor & Destructor Documentation

DtFom::DtFom ( DtExerciseConn * exConn )

Constructor.

virtual DtFom::~DtFom ( )

virtual

Destructor.

DtFom::DtFom ( const DtFom & orig )

copy constructor

Member Function Documentation

virtual void DtFom::addAttribute	(	const char *	className,
		const char *	attrName,
		DtTransportType	transport,
		DtOrderType	order,
		const char *	space = `NULL`
	)

virtual

Define an attribute of a class.

Used when initializing from FED file.

Implements DtFedTarget.

void DtFom::addAttribute	(	const char *	className,
		const char *	attrName,
		DtTransportType	transport,
		DtOrderType	order,
		DtSharingType	sharing,
		DtFomUpdateType	updateType,
		const DtString &	updateCondition,
		DtOwnershipType	ownershipType,
		const DtString &	semantics,
		const char *	spaceName = `NULL`
	)

virtual

Define an attribute of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual bool DtFom::addAttributeDimension	(	const char *	className,
		const char *	attrName,
		const char *	dimName
	)

virtual

Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual void DtFom::addDimension	(	const char *	spaceName,
		const char *	dimName
	)

virtual

Define a dimension within a routing space.

Used when initializing from FED file.

Reimplemented from DtFedTarget.

virtual bool DtFom::addInteractionDimension	(	const char *	interactionName,
		const char *	dimension
	)

virtual

Add regions to the class Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual bool DtFom::addInterClass	(	const char *	name,
		const char *	baseName,
		DtTransportType	transport,
		DtOrderType	order,
		const char *	space = `NULL`
	)

virtual

Define a class.

Used when initializing from FED file. Return bool: add was successful?

Implements DtFedTarget.

virtual bool DtFom::addObjClass	(	const char *	name,
		const char *	baseName
	)

virtual

Define a class.

Used when initializing from FED file. Return bool: add was successful?

Implements DtFedTarget.

virtual bool DtFom::addObjectDimension	(	const char *	objectClassName,
		const char *	dimension
	)

virtual

Add a dimension to the object class Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual void DtFom::addParameter	(	const char *	className,
		const char *	paramName
	)

virtual

Define an parameter of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addSpace ( const char * name )

virtual

Define a routing space. Used when initializing from FED file.

Reimplemented from DtFedTarget.

static DtFom* DtFom::create ( DtExerciseConn * exConn )

static

creator function

virtual RTI::DimensionHandle DtFom::dimensionHandle	(	const char *	spaceName,
		const char *	dimensionName
	)		const

virtual

Returns the handle for the name.

virtual const DtString& DtFom::dimensionName	(	const char *	spaceName,
		RTI::DimensionHandle	dimHandle
	)		const

virtual

Returns the name for the handle.

virtual DtInterClassDesc* DtFom::firstInterClass ( ) const

virtual

Returns the first, last and next interaction class in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstInterClass; desc; desc = nextInterClass(desc))

virtual DtObjClassDesc* DtFom::firstObjClass ( ) const

virtual

Returns the first, last and next object classes in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstObjClass; desc; desc = nextObjClass(desc))

virtual DtInterClassDesc* DtFom::interClassByHandle ( RTI::InteractionClassHandle handle ) const

virtual

Returns the interaction class descriptor for the handle.

virtual DtInterClassDesc* DtFom::interClassByName ( const char * name ) const

virtual

Returns the interaction class descriptor for the name.

virtual const std::list<DtInterClassDesc*>& DtFom::interClassList ( ) const

virtual

Return a list of interaction classes.

These lists contain pointers to DtInterClassDesc, which can be accessed using the DtList API. It is provided to replace the firstInterClass/lastInterClass/nextInterClass functionality below.

bool DtFom::isDdmDisabled ( ) const

These variables determine if certain HLA services do not exist (For example, on lightweight mode).

You can set them manually or they will be set automatically when we try to use these services.

bool DtFom::isMomIsDisabled ( ) const

virtual DtInterClassDesc* DtFom::lastInterClass ( ) const

virtual

virtual DtObjClassDesc* DtFom::lastObjClass ( ) const

virtual

int DtFom::maxInterClassHandle ( ) const

int DtFom::maxObjClassHandle ( ) const

virtual DtMergeFomStatus DtFom::mergeIntClassDesc ( const DtInterClassDesc * desc )

protectedvirtual

Merge the contents of the InteractionClassDescription with this.

virtual DtMergeFomStatus DtFom::mergeInteractionClasses ( const DtFom & module )

protectedvirtual

Merge the contents of the specified interactionClasses with this.

virtual DtMergeFomStatus DtFom::mergeInteractionClasses ( const DtFedTarget & module )

protectedvirtual

Merge the contents of the specified interactionClasses with this.

Reimplemented from DtFedTarget.

virtual DtMergeFomStatus DtFom::mergeObjClassDesc ( const DtObjClassDesc * desc )

protectedvirtual

Merge the contents of the objClassDesc with this.

virtual DtMergeFomStatus DtFom::mergeObjectClasses ( const DtFom & module )

protectedvirtual

Merge the object classes of the specified FomMgr with this.

virtual DtMergeFomStatus DtFom::mergeObjectClasses ( const DtFedTarget & module )

protectedvirtual

Merge the object classes of the specified FomMgr with this.

Reimplemented from DtFedTarget.

int DtFom::minInterClassHandle ( ) const

Returns the minimum and maximum interaction class handles in the FOM.

Not every handle between min and max must be valid.

int DtFom::minObjClassHandle ( ) const

Returns the minimum and maximum object class handles in the FOM.

Not every handle between min and max must be valid.

virtual DtInterClassDesc* DtFom::nextInterClass ( DtInterClassDesc * current ) const

virtual

virtual DtObjClassDesc* DtFom::nextObjClass ( DtObjClassDesc * current ) const

virtual

int DtFom::numInterClasses ( ) const

Returns number of interaction classes in the FOM.

int DtFom::numObjClasses ( ) const

Returns number of object classes in the FOM.

virtual DtObjClassDesc* DtFom::objClassByHandle ( RTI::ObjectClassHandle handle ) const

virtual

Returns the object class descriptor for the handle.

virtual DtObjClassDesc* DtFom::objClassByName ( const char * name ) const

virtual

Returns the object class descriptor for the name.

virtual const std::list<DtObjClassDesc*>& DtFom::objClassList ( ) const

virtual

Return a list of object classes.

These lists contain pointers to DtObjClassDesc, which can be accessed using the DtList API. It is provided to replace the firstObjClass/lastObjClass/nextObjClass functionality below.

DtFom& DtFom::operator= ( const DtFom & orig )

assignment operator

virtual void DtFom::print ( ) const

virtual

Prints the contents of the FOM.

virtual DtFedReadStatus DtFom::readFed	(	const DtString &	fedFile,
		const std::vector< std::wstring > &	fomModules,
		const DtString &	mimModule,
		bool	strictCheckingEnabled,
		bool	useDTD,
		bool	dontParseSwitches
	)

virtual

Read a vector of create merging them into this as they're read.

virtual bool DtFom::resolveAttributeDimensions ( )

protectedvirtual

virtual DtInterClassDesc* DtFom::rootInterClass ( ) const

virtual

Returns the root interaction class descriptor.

virtual DtInterClassDesc* DtFom::rootMomInterClass ( ) const

virtual

Returns the root MOM interaction class descriptor.

virtual DtObjClassDesc* DtFom::rootMomObjClass ( ) const

virtual

Returns the root MOM object class descriptor.

virtual DtObjClassDesc* DtFom::rootObjClass ( ) const

virtual

Returns the root object class descriptor.

DtVrlRtiAmbassador * DtFom::rtiAmb ( ) const

inlinevirtual

Returns our RTI ambassador.

References myExConn, and DtExerciseConn::rtiAmb().

static void DtFom::setClear ( RTI::AttributeHandleSet & handleSet )

static

Clear or empty the given set.

static void DtFom::setDifference	(	const RTI::AttributeHandleSet &	set1,
		const RTI::AttributeHandleSet &	set2,
		RTI::AttributeHandleSet &	destinationSet
	)

static

Difference of attribute handle set2 from set1 is added to the destination.

static void DtFom::setFomCreator ( DtFomCreator )

static

set creator function

static void DtFom::setInsert	(	RTI::AttributeHandleSet &	handleSet,
		const RTI::AttributeHandle &	handle
	)

static

Add handle to set.

static void DtFom::setInsert	(	RTI::AttributeHandleSet &	destinationSet,
		const RTI::AttributeHandleSet &	sourceSet
	)

static

Add source attributes to destination set.

static void DtFom::setIntersection	(	const RTI::AttributeHandleSet &	set1,
		const RTI::AttributeHandleSet &	set2,
		RTI::AttributeHandleSet &	destinationSet
	)

static

Attribute Handle Set operations These operations append to destination (i.e., do not begin by clearing out destination)

Intersection of attribute handle sets is added to the destination

void DtFom::setIsDdmDisabled ( bool val )

void DtFom::setIsMomIsDisabled ( bool val )

static void DtFom::setRemove	(	RTI::AttributeHandleSet &	handleSet,
		const RTI::AttributeHandle &	handle
	)

static

Remove handle from set.

static void DtFom::setRemove	(	RTI::AttributeHandleSet &	destinationSet,
		const RTI::AttributeHandleSet &	sourceSet
	)

static

Remove source attributes from destination set.

static bool DtFom::setsEqual	(	const RTI::AttributeHandleSet &	set1,
		const RTI::AttributeHandleSet &	set2
	)

static

Determine if the 2 sets are equal Return bool: s1 == set2.

static void DtFom::setSymmetricDifference	(	const RTI::AttributeHandleSet &	set1,
		const RTI::AttributeHandleSet &	set2,
		RTI::AttributeHandleSet &	destinationSet
	)

static

Symmetric difference of attribute handle set1 and set2 is added to the destination (s1-s2 U s2-s1)

static void DtFom::setUnion	(	const RTI::AttributeHandleSet &	set1,
		const RTI::AttributeHandleSet &	set2,
		RTI::AttributeHandleSet &	destinationSet
	)

static

Union of attribute handle sets is added to the destination.

virtual bool DtFom::shouldPrintMissingClass ( const char * name )

virtual

Controls whether to print missing classes.

This returns true if the name passed in must be present when mixing protocols (do not print MOM failures)

virtual DtRoutingSpaceDesc* DtFom::spaceByHandle ( RTI::SpaceHandle handle ) const

virtual

Returns the space descriptor for the handle.

virtual DtRoutingSpaceDesc* DtFom::spaceByName ( const char * name ) const

virtual

Returns the space descriptor for the name.

Member Data Documentation

bool DtFom::myDdmIsDisabled

protected

DtExerciseConn* DtFom::myExConn

protected

Referenced by rtiAmb().

std::set<DtString> DtFom::myFailedInterClasses

protected

std::set<DtString> DtFom::myFailedObjClasses

protected

int DtFom::myHighestInter

protected

int DtFom::myHighestObj

protected

std::map<int, DtInterClassDesc*> DtFom::myInterClassesByHandle

protected

std::map<DtString, DtInterClassDesc*> DtFom::myInterClassesByName

protected

std::list<DtInterClassDesc*> DtFom::myInterClassList

protected

DtString DtFom::myInterRootName

protected

int DtFom::myLowestInter

protected

int DtFom::myLowestObj

protected

bool DtFom::myMomIsDisabled

protected

std::map<int, DtObjClassDesc*> DtFom::myObjClassesByHandle

protected

std::map<DtString, DtObjClassDesc*> DtFom::myObjClassesByName

protected

std::list<DtObjClassDesc*> DtFom::myObjClassList

protected

DtString DtFom::myObjRootName

protected

std::list<DtRoutingSpaceDesc*> DtFom::myRoutingSpaceList

protected

List of descriptors.

std::map<RTI::SpaceHandle, DtRoutingSpaceDesc*> DtFom::myRoutingSpacesByHandle

protected

Hash lists that map class handles (DtIntHashKeys) to DtObjClassDesc pointers.

std::map<DtString, DtRoutingSpaceDesc*> DtFom::myRoutingSpacesByName

protected

Hash lists that map class names (DtStringHashKeys) to descriptor pointers.

DtFomCreator DtFom::theCreatorFunction

staticprotected

The documentation for this class was generated from the following file:

fom.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
