A generic variable record that has a variable sized buffer Because the format of the contents is not known, the buffer is always padded to the required 8-byte boundary (i.e., there might be additional trailing bytes added to the variable data from what is expected. More...

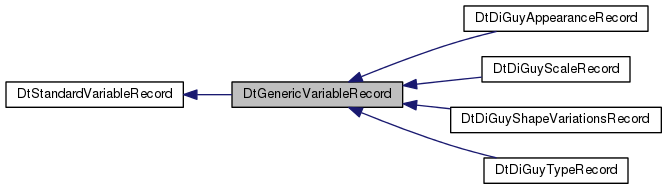

Inheritance diagram for DtGenericVariableRecord:

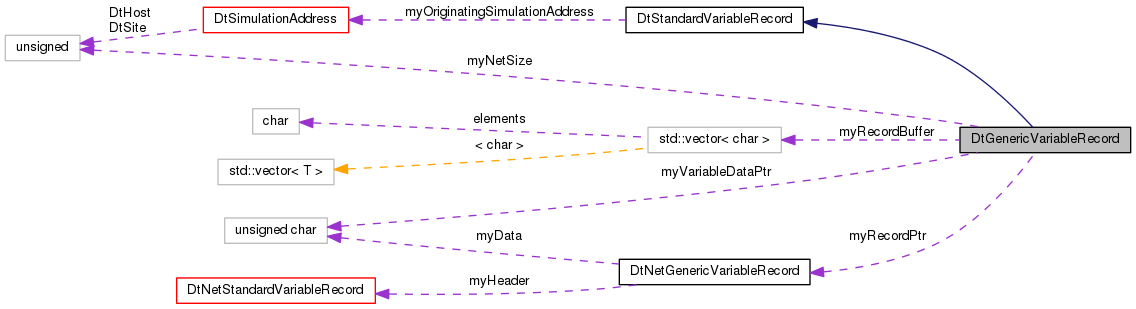

Collaboration diagram for DtGenericVariableRecord:

Public Member Functions
	DtGenericVariableRecord (unsigned int recordType, unsigned int dataLength=0, void *dataPtr=0)
	Construct a record of the given type with optional data length (not including header or padding) and data. More...

	DtGenericVariableRecord (const DtGenericVariableRecord &orig)
	Copy Constructor. More...

	DtGenericVariableRecord (void *ptr, unsigned int size)
	Net Constructor Memory must exist for life of the variable record. More...

virtual	~DtGenericVariableRecord ()
	Destructor. More...

virtual DtGenericVariableRecord &	operator= (const DtGenericVariableRecord &record)
	Assignment Operator. More...

virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &other)
	Assignment operator. More...

virtual bool	operator== (const DtGenericVariableRecord &record)
	Equals Operator. More...

virtual bool	operator== (const DtStandardVariableRecord &record)
	Equals Operator. More...

virtual unsigned int	dataSize () const
	Get the variable data size (will include size of padding bytes if any) More...

virtual void	writeRecord (void *addr) const

virtual void	setFromNet (const void netRecord, unsigned int length, DtStandardVariableRetCode retCode=NULL)
	Sets the record from an address and length. More...

virtual const char *	netRep () const
	The net record including the header. More...

virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...

virtual unsigned int	unpaddedNetsize () const
	This is the network size of the record without padding. More...

virtual DtStandardVariableRecord *	clone () const
	Clone. More...


virtual unsigned int	recordType () const
	Get/Set Record Type. More...

virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...


virtual unsigned int	recordLength () const
	Get/Set Record Length. More...

virtual void	setRecordLength (unsigned int length)
	Must include size of record header and padding to 8 bytes. More...


virtual const char *	variableData () const
	Get/Set the variable data part of record. More...

virtual char *	variableData ()
	Get/Set the variable data part of record. More...

virtual void	setVariableData (const std::vector< char > &data)
	Get/Set the variable data part of record. More...

virtual void	setVariableData (const char *data, unsigned size)
	Get/Set the variable data part of record. More...

Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...

virtual	~DtStandardVariableRecord ()
	Destructor. More...

virtual void	printData () const
	Prints the data to DtInfo. More...

virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...

virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)

virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Creator of an unknown record for registering in a factory. More...

Protected Member Functions
virtual void	resizeForDataOfSize (int size)
	Resize the buffer for the given data size. More...

Protected Attributes
std::vector< char >	myRecordBuffer

DtNetGenericVariableRecord *	myRecordPtr

DtU8 *	myVariableDataPtr

unsigned int	myNetSize
	Greater than 0 only when record is wrapping around a network buffer. More...

Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Detailed Description

A generic variable record that has a variable sized buffer Because the format of the contents is not known, the buffer is always padded to the required 8-byte boundary (i.e., there might be additional trailing bytes added to the variable data from what is expected.

Constructor & Destructor Documentation

DtGenericVariableRecord::DtGenericVariableRecord	(	unsigned int	recordType,
		unsigned int	dataLength = `0`,
		void *	dataPtr = `0`
	)

Construct a record of the given type with optional data length (not including header or padding) and data.

DtGenericVariableRecord::DtGenericVariableRecord ( const DtGenericVariableRecord & orig )

Copy Constructor.

DtGenericVariableRecord::DtGenericVariableRecord	(	void *	ptr,
		unsigned int	size
	)

Net Constructor Memory must exist for life of the variable record.

virtual DtGenericVariableRecord::~DtGenericVariableRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtGenericVariableRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

Reimplemented in DtDiGuyAppearanceRecord, DtDiGuyShapeVariationsRecord, DtDiGuyScaleRecord, and DtDiGuyTypeRecord.

static DtStandardVariableRecord* DtGenericVariableRecord::create	(	void *	addr,
		unsigned int	length
	)

static

Creator of an unknown record for registering in a factory.

virtual unsigned int DtGenericVariableRecord::dataSize ( ) const

virtual

Get the variable data size (will include size of padding bytes if any)

virtual const char* DtGenericVariableRecord::netRep ( ) const

virtual

The net record including the header.

virtual DtGenericVariableRecord& DtGenericVariableRecord::operator= ( const DtGenericVariableRecord & record )

virtual

Assignment Operator.

virtual DtStandardVariableRecord& DtGenericVariableRecord::operator= ( const DtStandardVariableRecord & other )

virtual

Assignment operator.

Reimplemented in DtDiGuyShapeVariationsRecord, DtDiGuyAppearanceRecord, DtDiGuyScaleRecord, and DtDiGuyTypeRecord.

virtual bool DtGenericVariableRecord::operator== ( const DtGenericVariableRecord & record )

virtual

Equals Operator.

virtual bool DtGenericVariableRecord::operator== ( const DtStandardVariableRecord & record )

virtual

Equals Operator.

Implements DtStandardVariableRecord.

Reimplemented in DtDiGuyShapeVariationsRecord, DtDiGuyAppearanceRecord, DtDiGuyScaleRecord, and DtDiGuyTypeRecord.

virtual void DtGenericVariableRecord::printDataToStream ( std::ostream & stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

Reimplemented in DtDiGuyAppearanceRecord, DtDiGuyShapeVariationsRecord, DtDiGuyScaleRecord, and DtDiGuyTypeRecord.

virtual unsigned int DtGenericVariableRecord::recordLength ( ) const

virtual

Get/Set Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtGenericVariableRecord::recordType ( ) const

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

virtual void DtGenericVariableRecord::resizeForDataOfSize ( int size )

protectedvirtual

Resize the buffer for the given data size.

virtual void DtGenericVariableRecord::setFromNet	(	const void *	netRecord,
		unsigned int	length,
		DtStandardVariableRetCode *	retCode = `NULL`
	)

virtual

Sets the record from an address and length.

Return code will be Valid if all goes well. Memory for netRecord must exist for life of this variable record or until setFromNet or assignment is performed

Implements DtStandardVariableRecord.

Reimplemented in DtDiGuyAppearanceRecord, DtDiGuyShapeVariationsRecord, DtDiGuyScaleRecord, and DtDiGuyTypeRecord.

virtual void DtGenericVariableRecord::setRecordLength ( unsigned int length )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtGenericVariableRecord::setRecordType ( unsigned int recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

virtual void DtGenericVariableRecord::setVariableData ( const std::vector< char > & data )

virtual
