DtGroundVehicleLightingRecord Class Reference

Attribute record for sending extended Ground Vehicle lighting information across the network. More...

Inheritance diagram for DtGroundVehicleLightingRecord:

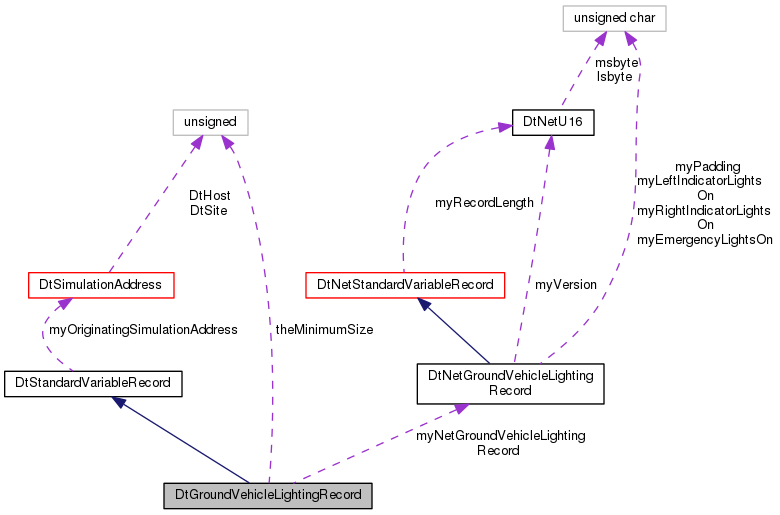

Collaboration diagram for DtGroundVehicleLightingRecord:

Public Member Functions
	DtGroundVehicleLightingRecord ()
	Constructor. More...
	DtGroundVehicleLightingRecord (unsigned int dataType)
	Constructor with record type specified. More...
	DtGroundVehicleLightingRecord (const DtGroundVehicleLightingRecord &orig)
	Copy Constructor. More...
	DtGroundVehicleLightingRecord (void *netBuffer, unsigned int size)
	Net Constructor. More...
virtual	~DtGroundVehicleLightingRecord ()
	Destructor. More...
virtual bool	operator== (const DtGroundVehicleLightingRecord &other)
	Equals operator. More...
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator. More...
virtual void	setEmergencyLightsOn (bool val)
	Set Emergency Lights on/off. More...
virtual bool	emergencyLightsOn () const
	Get Emergency Lights on/off. More...
virtual void	setLeftIndicatorLightsOn (bool val)
	Set Left Indicator Lights on/off. More...
virtual bool	leftIndicatorLightsOn () const
	Get Left Indicator Lights on/off. More...
virtual void	setRightIndicatorLightsOn (bool val)
	Set Right Indicator Lights on/off. More...
virtual bool	rightIndicatorLightsOn () const
	Get Right Indicator Lights on/off. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from Network Representation from the given location. More...
virtual unsigned	unpaddedNetsize () const
	This is the network size of the record without padding. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual unsigned int	recordType () const
	Get/Set Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Get/Set Record Length. More...
virtual void	setRecordLength (unsigned int recordLength)
	Must include size of record header and padding to 8 bytes. More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Creator of an unknown record for registering in a factory. More...
static unsigned int	recordTypeToUse ()
	Return the DI-Guy Action record type for uuid. More...
static void	setRecordTypeToUse (unsigned int typeToUse)
	Set the record type to use. More...

Protected Attributes
DtNetGroundVehicleLightingRecord	myNetGroundVehicleLightingRecord
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Static Protected Attributes
static const unsigned int	theMinimumSize

Detailed Description

Attribute record for sending extended Ground Vehicle lighting information across the network.

Constructor & Destructor Documentation

DtGroundVehicleLightingRecord::DtGroundVehicleLightingRecord

(

)

Constructor.

DtGroundVehicleLightingRecord::DtGroundVehicleLightingRecord

(

unsigned int

dataType

)

Constructor with record type specified.

DtGroundVehicleLightingRecord::DtGroundVehicleLightingRecord

(

const DtGroundVehicleLightingRecord &

orig

)

Copy Constructor.

DtGroundVehicleLightingRecord::DtGroundVehicleLightingRecord	(	void *	netBuffer,
		unsigned int	size
	)

Net Constructor.

virtual DtGroundVehicleLightingRecord::~DtGroundVehicleLightingRecord ( )

virtual

Destructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtGroundVehicleLightingRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtGroundVehicleLightingRecord::create ( void *  addr, unsigned int  length  )

static

Creator of an unknown record for registering in a factory.

virtual bool DtGroundVehicleLightingRecord::emergencyLightsOn ( ) const

virtual

Get Emergency Lights on/off.

virtual bool DtGroundVehicleLightingRecord::leftIndicatorLightsOn ( ) const

virtual

Get Left Indicator Lights on/off.

virtual unsigned int DtGroundVehicleLightingRecord::netSize ( )

virtual

Returns the size of the network representation (including padding bytes)

Reimplemented from DtStandardVariableRecord.

virtual bool DtGroundVehicleLightingRecord::operator== ( const DtGroundVehicleLightingRecord &  other )

virtual

Equals operator.

virtual bool DtGroundVehicleLightingRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Implements DtStandardVariableRecord.

virtual void DtGroundVehicleLightingRecord::printData ( ) const

virtual

Prints the data to DtInfo.

Reimplemented from DtStandardVariableRecord.

virtual void DtGroundVehicleLightingRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtGroundVehicleLightingRecord::recordLength ( ) const

virtual

Get/Set Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtGroundVehicleLightingRecord::recordType ( ) const

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static unsigned int DtGroundVehicleLightingRecord::recordTypeToUse ( )

static

Return the DI-Guy Action record type for uuid.

virtual bool DtGroundVehicleLightingRecord::rightIndicatorLightsOn ( ) const

virtual

Get Right Indicator Lights on/off.

virtual void DtGroundVehicleLightingRecord::setEmergencyLightsOn ( bool  val )

virtual

Set Emergency Lights on/off.

virtual void DtGroundVehicleLightingRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from Network Representation from the given location.

Memory must exist for life of the variable record

Implements DtStandardVariableRecord.

virtual void DtGroundVehicleLightingRecord::setLeftIndicatorLightsOn ( bool  val )

virtual

Set Left Indicator Lights on/off.

virtual void DtGroundVehicleLightingRecord::setRecordLength ( unsigned int  recordLength )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtGroundVehicleLightingRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static void DtGroundVehicleLightingRecord::setRecordTypeToUse ( unsigned int  typeToUse )

static

Set the record type to use.

virtual void DtGroundVehicleLightingRecord::setRightIndicatorLightsOn ( bool  val )

virtual

Set Right Indicator Lights on/off.

virtual unsigned DtGroundVehicleLightingRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Implements DtStandardVariableRecord.

virtual void DtGroundVehicleLightingRecord::writeRecord ( void *  addr ) const

virtual

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetGroundVehicleLightingRecord DtGroundVehicleLightingRecord::myNetGroundVehicleLightingRecord

protected

const unsigned int DtGroundVehicleLightingRecord::theMinimumSize

staticprotected

---

The documentation for this class was generated from the following file:

• groundVehicleLightingRecord.h
