DtMetocLayerRecord Class Reference

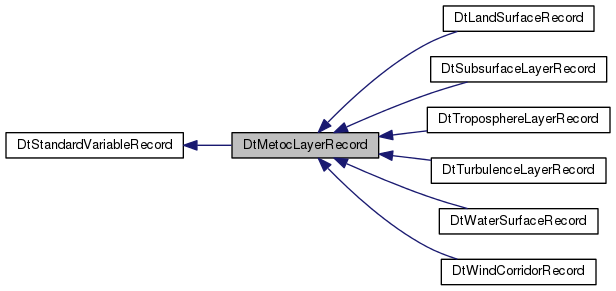

Inheritance diagram for DtMetocLayerRecord:

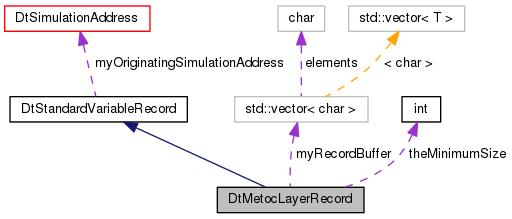

Collaboration diagram for DtMetocLayerRecord:

Public Member Functions
	DtMetocLayerRecord ()
	Constructor. More...
	DtMetocLayerRecord (const DtMetocLayerRecord &orig)
	Copy Constructor. More...
	DtMetocLayerRecord (void *netBuffer, unsigned int size)
	Net Constructor. More...
virtual DtMetocLayerRecord &	operator= (const DtMetocLayerRecord &record)
	Assignment Operator. More...
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &other)
	Assignment operator. More...
virtual bool	operator== (const DtMetocLayerRecord &record)
	Equals Operator. More...
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator. More...
virtual void	setPriority (unsigned short priority)
virtual unsigned short	priority () const
virtual void	setVrfWeatherAreaIdentifier (const DtVrlUuid &vrfWeatherAreaId)
virtual DtVrlUuid	vrfWeatherAreaIdentifier () const
virtual void	writeRecord (void *addr) const
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from an address and length. More...
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream. More...
virtual unsigned int	unpaddedNetsize () const
	This is the network size of the record without padding. More...
virtual DtStandardVariableRecord *	clone () const
	Clone. More...
virtual unsigned int	recordType () const
	Get/Set Record Type. More...
virtual void	setRecordType (unsigned int recordType)
	Get/Set Record Type. More...
virtual unsigned int	recordLength () const
	Get/Set Record Length. More...
virtual void	setRecordLength (unsigned int length)
	Must include size of record header and padding to 8 bytes. More...
Public Member Functions inherited from DtStandardVariableRecord
	DtStandardVariableRecord ()
	Constructor. More...
virtual	~DtStandardVariableRecord ()
	Destructor. More...
virtual void	printData () const
	Prints the data to DtInfo. More...
virtual unsigned int	netSize ()
	Returns the size of the network representation (including padding bytes) More...
virtual void	setOriginatingSimulationAddress (const DtSimulationAddress &)
virtual const DtSimulationAddress &	originatingSimulationAddress () const

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Creator of an unknown record for registering in a factory. More...
static unsigned int	recordTypeToUse ()
	Return the METOC Layer record type. More...
static void	setRecordTypeToUse (unsigned int typeToUse)
	Set the record type to use. More...

Protected Attributes
std::vector< char >	myRecordBuffer
Protected Attributes inherited from DtStandardVariableRecord
DtSimulationAddress	myOriginatingSimulationAddress

Static Protected Attributes
static const unsigned int	theMinimumSize

Constructor & Destructor Documentation

DtMetocLayerRecord::DtMetocLayerRecord

(

)

Constructor.

DtMetocLayerRecord::DtMetocLayerRecord

(

const DtMetocLayerRecord &

orig

)

Copy Constructor.

DtMetocLayerRecord::DtMetocLayerRecord	(	void *	netBuffer,
		unsigned int	size
	)

Net Constructor.

Member Function Documentation

virtual DtStandardVariableRecord* DtMetocLayerRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

Reimplemented in DtLandSurfaceRecord, DtWaterSurfaceRecord, DtSubsurfaceLayerRecord, DtWindCorridorRecord, DtTroposphereLayerRecord, and DtTurbulenceLayerRecord.

static DtStandardVariableRecord* DtMetocLayerRecord::create ( void *  addr, unsigned int  length  )

static

Creator of an unknown record for registering in a factory.

virtual DtMetocLayerRecord& DtMetocLayerRecord::operator= ( const DtMetocLayerRecord &  record )

virtual

Assignment Operator.

virtual DtStandardVariableRecord& DtMetocLayerRecord::operator= ( const DtStandardVariableRecord &  other )

virtual

Assignment operator.

Reimplemented in DtWaterSurfaceRecord, DtLandSurfaceRecord, DtSubsurfaceLayerRecord, DtWindCorridorRecord, DtTurbulenceLayerRecord, and DtTroposphereLayerRecord.

virtual bool DtMetocLayerRecord::operator== ( const DtMetocLayerRecord &  record )

virtual

Equals Operator.

virtual bool DtMetocLayerRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Implements DtStandardVariableRecord.

Reimplemented in DtWaterSurfaceRecord, DtLandSurfaceRecord, DtSubsurfaceLayerRecord, DtWindCorridorRecord, DtTurbulenceLayerRecord, and DtTroposphereLayerRecord.

virtual void DtMetocLayerRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

Reimplemented in DtLandSurfaceRecord, DtWaterSurfaceRecord, DtSubsurfaceLayerRecord, DtWindCorridorRecord, DtTroposphereLayerRecord, and DtTurbulenceLayerRecord.

virtual unsigned short DtMetocLayerRecord::priority ( ) const

virtual

virtual unsigned int DtMetocLayerRecord::recordLength ( ) const

virtual

Get/Set Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtMetocLayerRecord::recordType ( ) const

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static unsigned int DtMetocLayerRecord::recordTypeToUse ( )

static

Return the METOC Layer record type.

virtual void DtMetocLayerRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from an address and length.

Return code will be Valid if all goes well. Memory must exist for life of the variable record

Implements DtStandardVariableRecord.

Reimplemented in DtLandSurfaceRecord, DtWaterSurfaceRecord, DtSubsurfaceLayerRecord, DtWindCorridorRecord, DtTroposphereLayerRecord, and DtTurbulenceLayerRecord.

virtual void DtMetocLayerRecord::setPriority ( unsigned short  priority )

virtual

virtual void DtMetocLayerRecord::setRecordLength ( unsigned int  length )

virtual

Must include size of record header and padding to 8 bytes.

Implements DtStandardVariableRecord.

virtual void DtMetocLayerRecord::setRecordType ( unsigned int  recordType )

virtual

Get/Set Record Type.

Implements DtStandardVariableRecord.

static void DtMetocLayerRecord::setRecordTypeToUse ( unsigned int  typeToUse )

static

Set the record type to use.

virtual void DtMetocLayerRecord::setVrfWeatherAreaIdentifier ( const DtVrlUuid &  vrfWeatherAreaId )

virtual

virtual unsigned int DtMetocLayerRecord::unpaddedNetsize ( ) const

virtual

This is the network size of the record without padding.

Implements DtStandardVariableRecord.

Reimplemented in DtLandSurfaceRecord, DtWaterSurfaceRecord, DtSubsurfaceLayerRecord, DtWindCorridorRecord, DtTroposphereLayerRecord, and DtTurbulenceLayerRecord.

virtual DtVrlUuid DtMetocLayerRecord::vrfWeatherAreaIdentifier ( ) const

virtual

virtual void DtMetocLayerRecord::writeRecord ( void *  addr ) const

virtual

Implements DtStandardVariableRecord.

Reimplemented in DtLandSurfaceRecord, DtWaterSurfaceRecord, DtSubsurfaceLayerRecord, DtWindCorridorRecord, DtTroposphereLayerRecord, and DtTurbulenceLayerRecord.

Member Data Documentation

std::vector<char> DtMetocLayerRecord::myRecordBuffer

protected

const unsigned int DtMetocLayerRecord::theMinimumSize

staticprotected

---

The documentation for this class was generated from the following file:

• metocLayerRecord.h
