Instances of DtObjectPublisher are used for local or source simulations of objects, (i.e. More...

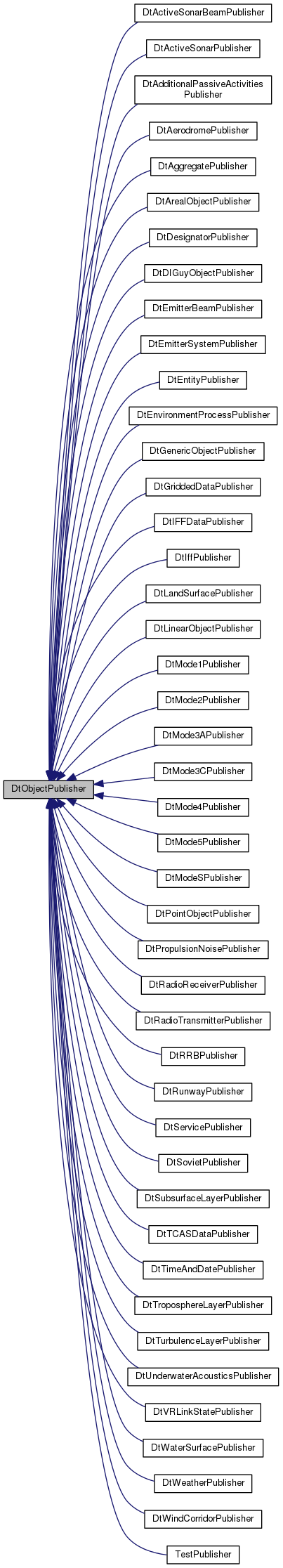

Inheritance diagram for DtObjectPublisher:

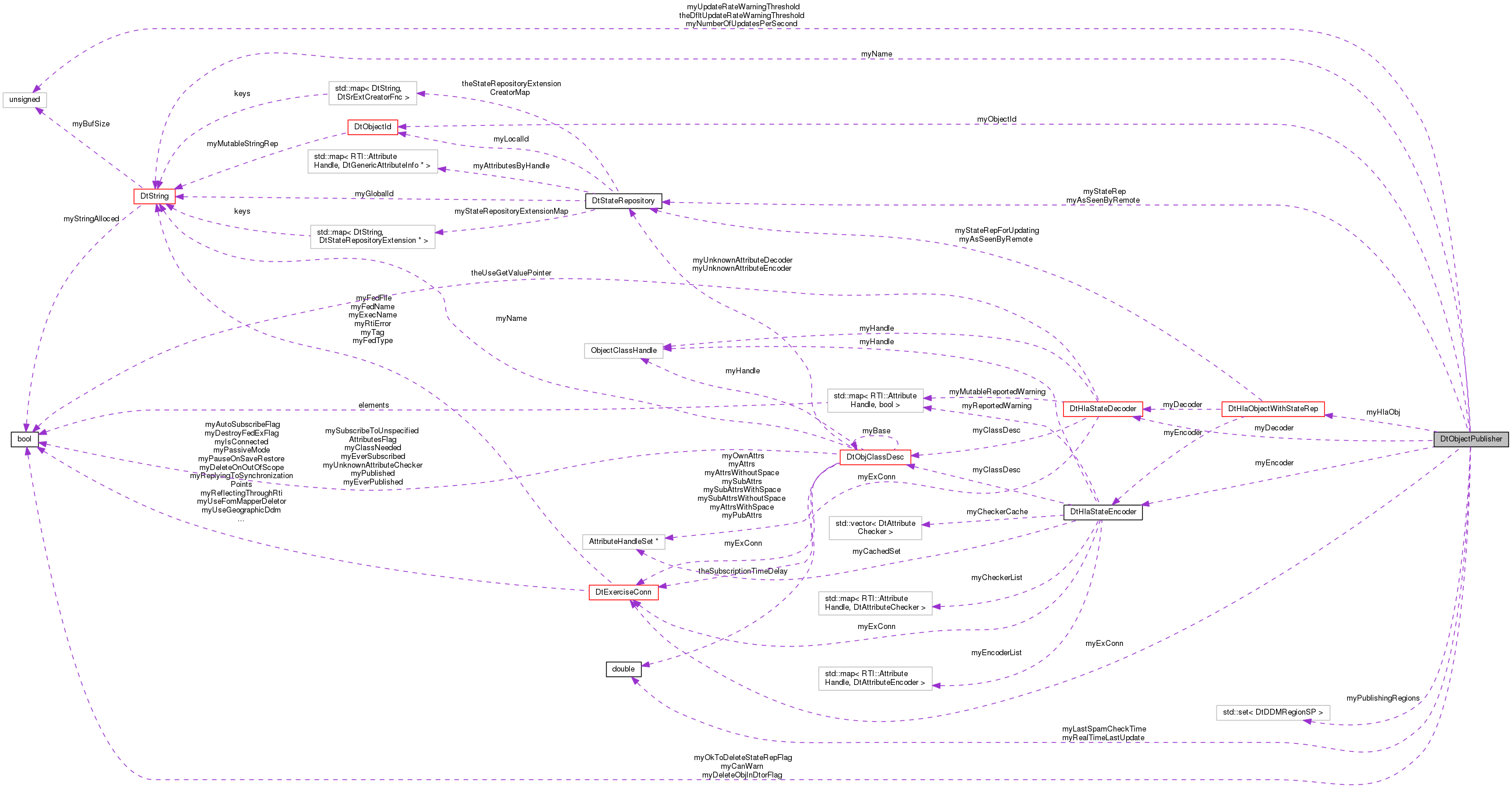

Collaboration diagram for DtObjectPublisher:

Public Member Functions
	DtObjectPublisher (DtExerciseConn conn, DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet regionSet=0)
	Constructor. More...

virtual	~DtObjectPublisher ()
	Destructor. More...

virtual void	setHlaObject (const char className, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet *regionSet=0)
	A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called. More...

virtual void	setHlaObject (RTI::ObjectClassHandle hand, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0, const char objectName=0, const DtDDMRegionSet regionSet=0)
	This version takes a classHandle and optional object name, and creates the DtHlaObject for you. More...

virtual void	setHlaObject (DtHlaObjectWithStateRep obj, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)
	This version takes an existing DtHlaObject, and uses it. More...

virtual void	detachHlaObject ()
	Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called. More...

virtual DtStateRepository *	stateRep ()
	Returns a pointer to the DtStateRepository - through which you can set or inspect current state information. More...

virtual DtStateRepository *	sr ()
	Synonym for stateRep(). More...

virtual DtStateRepository *	approximateRemoteStateRep ()
	Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message. More...

virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR. More...

virtual DtHlaStateEncoder *	encoder ()
	Returns a pointer to the Encoder being used to encode current state into an outgoing message. More...

virtual DtHlaObjectWithStateRep *	hlaObject ()
	Get the object's hlaObject. More...

virtual DtExerciseConn *	exerciseConn ()
	Get our exercise connection. More...

virtual const DtObjectId &	id () const
	Get the object's local identifier. More...

virtual const DtObjectId &	objectId () const
	Get the object's local identifier. More...

virtual const DtObjectId &	localId () const
	Get the object's local identifier. More...

virtual const DtString &	name () const
	Get the object's name. More...

virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3. More...

virtual void	forceUpdate ()
	Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent. More...

virtual void	forceUpdate (const RTI::AttributeHandleSet &set)

virtual bool	tick ()
	Tick (update) this object. More...

virtual bool	parallelTick ()
	Tick (update) this object in parallel threads. More...

virtual void	setDeleteObjInDtorFlag (bool onOff)
	Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher. More...

virtual bool	deleteObjInDtorFlag () const

virtual const DtDDMRegionSet &	publishingRegions () const

virtual void	addRegion (DtDDMRegionSP regionToAdd)
	Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador. More...

virtual void	removeRegion (DtDDMRegionSP regionToRemove)
	Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador. More...

virtual void	setUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets & overrides the default (static) updates per second for a specific instance If a negative integer is passed to it, it will use the difference of the max value of an unsigned short and the absolute value of the negative integer. More...

virtual unsigned short	updateRateWarningThreshold () const
	Returns the value of the overridden rate warning threshold. More...

virtual void	checkForUpdateRateWarning ()
	Helper function that determines whether or not to trigger a spam warning. More...

	DtObjectPublisher (DtExerciseConn conn, const char name=0)
	These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases. More...

void	init (RTI::ObjectClassHandle hand, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder decoder=0)

void	init (const char className, DtStateRepository stateRep, DtStateRepository asSeenByRemote, DtHlaStateEncoder encoder=0, DtHlaStateDecoder *decoder=0)

Static Public Member Functions
static void	removeObjectCb (DtHlaObject obj, void pub)
	Callback to be called when our underlying DtHlaObject goes away. More...

static void	setDfltUpdateRateWarningThreshold (unsigned short updatesPerSecond)
	Sets the default (static) updates per second for any instance. More...

static unsigned short	dfltUpdateRateWarningThreshold ()
	Return the value of theDfltUpdateRateWarningThreshold. More...

Protected Member Functions
	DtObjectPublisher (DtStateRepository stateRep, DtStateRepository asSeenByRemote, bool okToDeleteStateRep=true, const DtDDMRegionSet *regionSet=0)
	Constructor which does not include the DtExerciseConn. More...

virtual void	setExerciseConn (DtExerciseConn *conn)
	Allows the DtExerciseConn to be set after initial publisher creation. More...

virtual void	processRemoveObject (DtHlaObject *obj)
	Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away. More...

Protected Attributes
DtExerciseConn *	myExConn

DtHlaObjectWithStateRep *	myHlaObj

DtStateRepository *	myStateRep

DtStateRepository *	myAsSeenByRemote

DtHlaStateEncoder *	myEncoder

DtHlaStateDecoder *	myDecoder

DtObjectId	myObjectId

bool	myOkToDeleteStateRepFlag

DtString	myName

bool	myDeleteObjInDtorFlag

DtDDMRegionSet	myPublishingRegions

DtTime	myRealTimeLastUpdate

DtTime	myLastSpamCheckTime

unsigned short	myNumberOfUpdatesPerSecond

unsigned short	myUpdateRateWarningThreshold

bool	myCanWarn

Static Protected Attributes
static unsigned short	theDfltUpdateRateWarningThreshold
	Static member that holds the value of the number of updates to be sent to trigger a spam warning. More...

Private Member Functions
	DtObjectPublisher (const DtObjectPublisher &orig)
	copy constructor – not implemented More...

DtObjectPublisher &	operator= (const DtObjectPublisher &orig)
	assignment operator – not implemented More...

Detailed Description

Instances of DtObjectPublisher are used for local or source simulations of objects, (i.e.

these objects are not dependent on data being produced elsewhere on the network for their existence). These object send data to the network.

Constructor & Destructor Documentation

DtObjectPublisher::DtObjectPublisher	(	DtExerciseConn *	conn,
		DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		bool	okToDeleteStateRep = `true`,
		const DtDDMRegionSet *	regionSet = `0`
	)

Constructor.

Object is not fully constructed until setHlaObject is called - typically by subclass constructor.

virtual DtObjectPublisher::~DtObjectPublisher ( )

virtual

Destructor.

If we own the privilege to delete, and the deleteObjInDtor flag is true, this will cause the HLA object we are publishing to be deleted.

DtObjectPublisher::DtObjectPublisher ( const DtObjectPublisher & orig )

private

copy constructor – not implemented

DtObjectPublisher::DtObjectPublisher	(	DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		bool	okToDeleteStateRep = `true`,
		const DtDDMRegionSet *	regionSet = `0`
	)

protected

Constructor which does not include the DtExerciseConn.

This is typically not desired, but may be useful in certain cases when a derived publisher wants to better control how the object is published.

DtObjectPublisher::DtObjectPublisher	(	DtExerciseConn *	conn,
		const char *	name = `0`
	)

These constructors and init functions are obsolete, but are here for backwards compatibility with pre-3.4 releases.

Please use the constructor and setHlaObject functions described at the top of this class definition instead.

Member Function Documentation

virtual void DtObjectPublisher::addRegion ( DtDDMRegionSP regionToAdd )

virtual

Adds the specified region to the set of publishing regions, and calls associateRegionForUpdates on the RTI Ambassador.

DtStateRepository * DtObjectPublisher::approximateRemoteStateRep ( )

inlinevirtual

Returns a pointer to the approximate remote DtStateRepository – This state repository contains the contents of the last sent message.

VR-Link keeps this SR so it can ensure that object updates get sent only when their data have changed.

References myAsSeenByRemote.

virtual void DtObjectPublisher::checkForUpdateRateWarning ( )

virtual

Helper function that determines whether or not to trigger a spam warning.

virtual DtHlaStateDecoder* DtObjectPublisher::decoder ( )

virtual

Returns a pointer to the Decoder being used to decode state messages that we send back into the asSeenByRemote SR.

virtual bool DtObjectPublisher::deleteObjInDtorFlag ( ) const

virtual

virtual void DtObjectPublisher::detachHlaObject ( )

virtual

Detach HLA object - bringing the DtObjectPublisher back to the state it was in before setHlaObject was called.

Typically called only by destructor.

static unsigned short DtObjectPublisher::dfltUpdateRateWarningThreshold ( )

static

Return the value of theDfltUpdateRateWarningThreshold.

virtual DtHlaStateEncoder* DtObjectPublisher::encoder ( )

virtual

Returns a pointer to the Encoder being used to encode current state into an outgoing message.

DtExerciseConn * DtObjectPublisher::exerciseConn ( )

inlinevirtual

Get our exercise connection.

References myExConn.

virtual void DtObjectPublisher::forceUpdate ( )

virtual

Specify a set of attributes that should be included in the ahvps the next time tick is called, even if they would not otherwise need to be sent.

The call with no arguments, indicates the set of all of the object's attributes. Multiple calls are cumulative, until the set is cleared with clearForcedAttributes, which should happen within tick.

Reimplemented in DtEmitterSystemPublisher, DtActiveSonarPublisher, and DtUnderwaterAcousticsPublisher.

virtual void DtObjectPublisher::forceUpdate ( const RTI::AttributeHandleSet & set )

virtual

Reimplemented in DtEmitterSystemPublisher, DtActiveSonarPublisher, and DtUnderwaterAcousticsPublisher.

virtual const DtGlobalObjectDesignator& DtObjectPublisher::globalId ( ) const

virtual

Get the HLA object's global object designator - the object name in RTI1.3.3, but the objectId in RTI1.0.3.

DtHlaObjectWithStateRep * DtObjectPublisher::hlaObject ( )

inlinevirtual

Get the object's hlaObject.

References myHlaObj.

virtual const DtObjectId& DtObjectPublisher::id ( ) const

virtual

Get the object's local identifier.

Referenced by localId().

void DtObjectPublisher::init	(	RTI::ObjectClassHandle	hand,
		DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`
	)

void DtObjectPublisher::init	(	const char *	className,
		DtStateRepository *	stateRep,
		DtStateRepository *	asSeenByRemote,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`
	)

const DtObjectId & DtObjectPublisher::localId ( ) const

inlinevirtual

Get the object's local identifier.

References id().

virtual const DtString& DtObjectPublisher::name ( ) const

virtual

Get the object's name.

virtual const DtObjectId& DtObjectPublisher::objectId ( ) const

virtual

Get the object's local identifier.

DtObjectPublisher& DtObjectPublisher::operator= ( const DtObjectPublisher & orig )

private

assignment operator – not implemented

virtual bool DtObjectPublisher::parallelTick ( )

virtual

Tick (update) this object in parallel threads.

Will return true if data was sent.

virtual void DtObjectPublisher::processRemoveObject ( DtHlaObject * obj )

protectedvirtual

Called by removeObjectCb to detachHlaObject when our underlying DtHlaObject goes away.

virtual const DtDDMRegionSet& DtObjectPublisher::publishingRegions ( ) const

virtual

static void DtObjectPublisher::removeObjectCb	(	DtHlaObject *	obj,
		void *	pub
	)

static

Callback to be called when our underlying DtHlaObject goes away.

virtual void DtObjectPublisher::removeRegion ( DtDDMRegionSP regionToRemove )

virtual

Removes the specified region from the set of publishing regions, and calls unassociateRegionForUpdates on the RTI Ambassador.

Must be the same shared pointer that was in the set passed in through the constructor, or the same shared pointer as that passed into addRegion().

virtual void DtObjectPublisher::setDeleteObjInDtorFlag ( bool onOff )

virtual

Set/Get a flag that determines whether to try to delete the HLA object that we represent, upon destruction of this DtObjectPublisher.

Default is true.

static void DtObjectPublisher::setDfltUpdateRateWarningThreshold ( unsigned short updatesPerSecond )

static

Sets the default (static) updates per second for any instance.

virtual void DtObjectPublisher::setExerciseConn ( DtExerciseConn * conn )

protectedvirtual

Allows the DtExerciseConn to be set after initial publisher creation.

This should only be used when using the constructor which does not take an exercise connection.

virtual void DtObjectPublisher::setHlaObject	(	const char *	className,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`,
		const char *	objectName = `0`,
		const DtDDMRegionSet *	regionSet = `0`
	)

virtual

A DtObjectPublisher is not capable of communicating data through the RTI until setHlaObject is called.

It is typically called by subclass constructors. If encoder or decoder are 0, the FOM Mapper is consulted. This class assumes ownership of the encoder/decoder objects passed to setHlaObject, and will delete them on destruction, or if this function fails. If objectName is 0, a name is obtained from the RTI. This version takes a className and optional object name, and creates the DtHlaObject.

virtual void DtObjectPublisher::setHlaObject	(	RTI::ObjectClassHandle	hand,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`,
		const char *	objectName = `0`,
		const DtDDMRegionSet *	regionSet = `0`
	)

virtual

This version takes a classHandle and optional object name, and creates the DtHlaObject for you.

virtual void DtObjectPublisher::setHlaObject	(	DtHlaObjectWithStateRep *	obj,
		DtHlaStateEncoder *	encoder = `0`,
		DtHlaStateDecoder *	decoder = `0`
	)

virtual

This version takes an existing DtHlaObject, and uses it.

Called by the other versions of setHlaObject.

virtual void DtObjectPublisher::setUpdateRateWarningThreshold ( unsigned short updatesPerSecond )

virtual

Sets & overrides the default (static) updates per second for a specific instance If a negative integer is passed to it, it will use the difference of the max value of an unsigned short and the absolute value of the negative integer.

DtStateRepository * DtObjectPublisher::sr ( )

inlinevirtual

Synonym for stateRep().

References myStateRep.

DtStateRepository * DtObjectPublisher::stateRep ( )

inlinevirtual

Returns a pointer to the DtStateRepository - through which you can set or inspect current state information.

References myStateRep.

virtual bool DtObjectPublisher::tick ( )

virtual

Tick (update) this object.

Will return true if data was sent.

Reimplemented in DtEntityPublisher, DtEmitterSystemPublisher, DtAggregatePublisher, DtIffPublisher, DtActiveSonarPublisher, DtAerodromePublisher, and DtUnderwaterAcousticsPublisher.

virtual unsigned short DtObjectPublisher::updateRateWarningThreshold ( ) const

virtual

Returns the value of the overridden rate warning threshold.

Member Data Documentation

DtStateRepository* DtObjectPublisher::myAsSeenByRemote

protected

Referenced by approximateRemoteStateRep().

bool DtObjectPublisher::myCanWarn

protected

DtHlaStateDecoder* DtObjectPublisher::myDecoder

protected

bool DtObjectPublisher::myDeleteObjInDtorFlag

protected

DtHlaStateEncoder* DtObjectPublisher::myEncoder

protected

DtExerciseConn* DtObjectPublisher::myExConn

protected

Referenced by exerciseConn().

DtHlaObjectWithStateRep* DtObjectPublisher::myHlaObj

protected

Referenced by hlaObject().

DtTime DtObjectPublisher::myLastSpamCheckTime

protected

DtString DtObjectPublisher::myName

protected

unsigned short DtObjectPublisher::myNumberOfUpdatesPerSecond

protected

DtObjectId DtObjectPublisher::myObjectId

protected

bool DtObjectPublisher::myOkToDeleteStateRepFlag

protected

DtDDMRegionSet DtObjectPublisher::myPublishingRegions

protected

DtTime DtObjectPublisher::myRealTimeLastUpdate

protected

DtStateRepository* DtObjectPublisher::myStateRep

protected

Referenced by DtActiveSonarBeamPublisher::activeSonarBeamStateRep(), DtActiveSonarPublisher::activeSonarStateRep(), DtAdditionalPassiveActivitiesPublisher::additionalPassiveActivitiesStateRep(), DtAerodromePublisher::aerodromeStateRep(), DtAggregatePublisher::aggregateStateRep(), DtArealObjectPublisher::aosr(), DtArealObjectPublisher::arealObjectStateRep(), DtActiveSonarPublisher::asr(), DtActiveSonarBeamPublisher::asr(), DtAdditionalPassiveActivitiesPublisher::asr(), DtAggregatePublisher::asr(), DtAerodromePublisher::asr(), DtEmitterBeamPublisher::bsr(), DtDesignatorPublisher::designatorStateRep(), DtDIGuyObjectPublisher::dIGuyObjectStateRep(), DtDesignatorPublisher::dsr(), DtDIGuyObjectPublisher::dsr(), DtEmitterBeamPublisher::emitrBeamRep(), DtEmitterSystemPublisher::emitterSystemRep(), DtEntityPublisher::entityStateRep(), DtEnvironmentProcessPublisher::environmentProcessStateRep(), DtEnvironmentProcessPublisher::epsr(), DtEmitterSystemPublisher::esr(), DtEntityPublisher::esr(), DtGriddedDataPublisher::gdsr(), DtGriddedDataPublisher::gridDataStateRep(), DtIFFDataPublisher::IFFDataStateRep(), DtIffPublisher::iffStateRep(), DtIffPublisher::isr(), DtIFFDataPublisher::Isr(), DtLandSurfacePublisher::landSurfaceStateRep(), DtLinearObjectPublisher::linearObjectStateRep(), DtLinearObjectPublisher::losr(), DtLandSurfacePublisher::lsr(), DtMode1Publisher::mode1StateRep(), DtMode2Publisher::mode2StateRep(), DtMode3APublisher::mode3AStateRep(), DtMode3CPublisher::Mode3CStateRep(), DtMode4Publisher::mode4StateRep(), DtMode5Publisher::mode5StateRep(), DtModeSPublisher::modeSStateRep(), DtMode1Publisher::msr(), DtMode2Publisher::msr(), DtMode3APublisher::msr(), DtMode3CPublisher::msr(), DtMode4Publisher::msr(), DtMode5Publisher::msr(), DtModeSPublisher::msr(), DtRRBPublisher::msr(), DtPointObjectPublisher::pointObjectStateRep(), DtPointObjectPublisher::posr(), DtPropulsionNoisePublisher::propulsionNoiseStateRep(), DtPropulsionNoisePublisher::psr(), DtRadioTransmitterPublisher::radioXmitRep(), DtRadioReceiverPublisher::receiverRep(), DtRRBPublisher::rrbStateRep(), DtRadioReceiverPublisher::rsr(), DtRunwayPublisher::rsr(), DtRunwayPublisher::runwayStateRep(), DtServicePublisher::serviceStateRep(), DtSovietPublisher::sovietStateRep(), sr(), DtServicePublisher::ssr(), DtSubsurfaceLayerPublisher::ssr(), DtSovietPublisher::ssr(), stateRep(), DtSubsurfaceLayerPublisher::subsurfaceLayerStateRep(), DtTCASDataPublisher::TCASDataStateRep(), DtTimeAndDatePublisher::timeAndDateStateRep(), DtTroposphereLayerPublisher::troposphereLayerStateRep(), DtRadioTransmitterPublisher::tsr(), DtTimeAndDatePublisher::tsr(), DtTroposphereLayerPublisher::tsr(), DtTurbulenceLayerPublisher::tsr(), DtTCASDataPublisher::Tsr(), DtTurbulenceLayerPublisher::turbulenceLayerStateRep(), DtUnderwaterAcousticsPublisher::underwaterAcousticsStateRep(), DtUnderwaterAcousticsPublisher::usr(), DtVRLinkStatePublisher::vrlinkStateStateRep(), DtVRLinkStatePublisher::vsr(), DtWaterSurfacePublisher::waterSurfaceStateRep(), DtWeatherPublisher::weatherStateRep(), DtWindCorridorPublisher::windCorridorStateRep(), DtWeatherPublisher::wsr(), DtWindCorridorPublisher::wsr(), and DtWaterSurfacePublisher::wsr().

unsigned short DtObjectPublisher::myUpdateRateWarningThreshold

protected

unsigned short DtObjectPublisher::theDfltUpdateRateWarningThreshold

staticprotected

Static member that holds the value of the number of updates to be sent to trigger a spam warning.

The documentation for this class was generated from the following file:

objectPublisherHLA.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
