DtReflectedAggregateList Class Reference

class DtReflectedAggregateList: More...

Inheritance diagram for DtReflectedAggregateList:

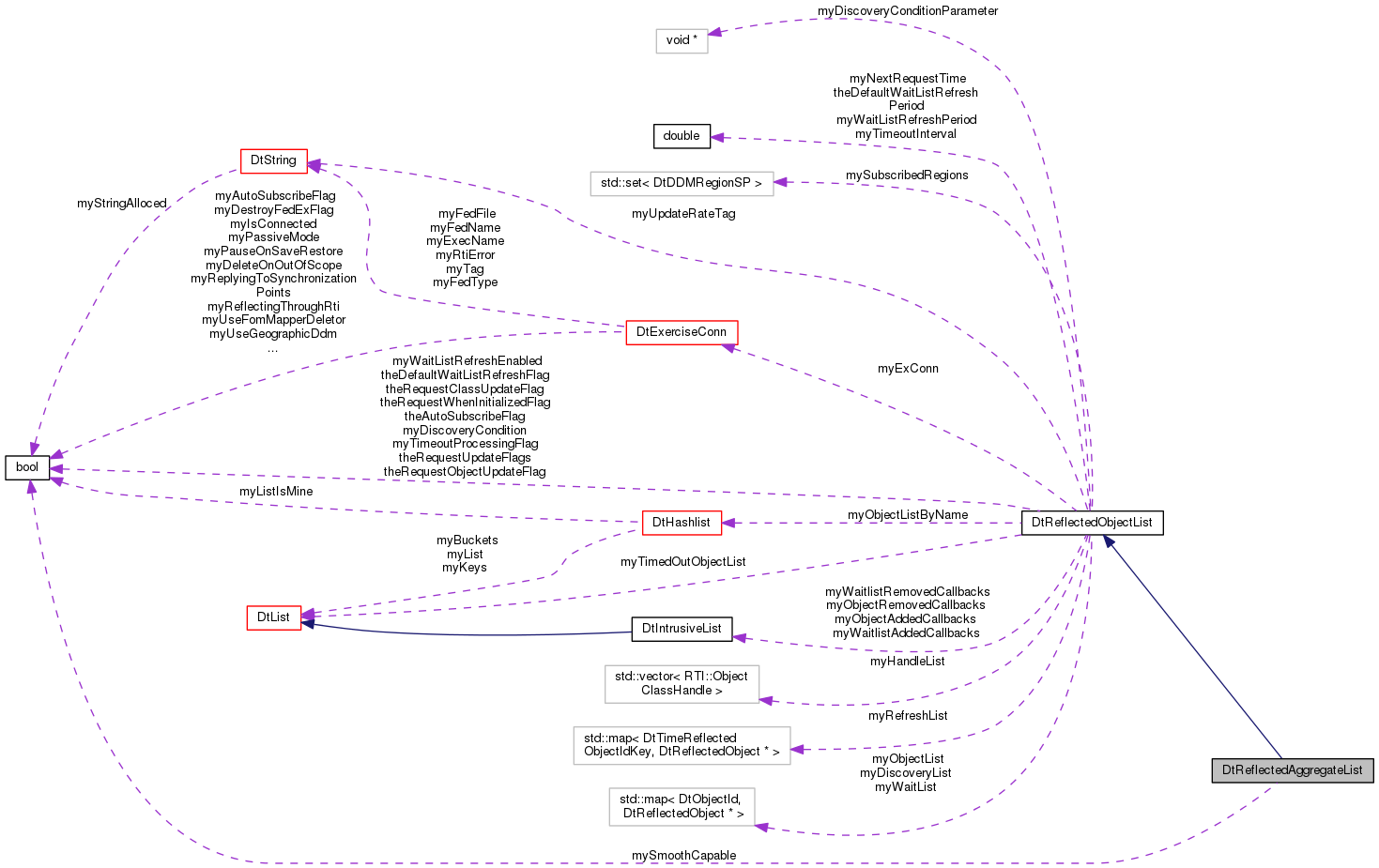

Collaboration diagram for DtReflectedAggregateList:

Public Member Functions
	DtReflectedAggregateList (DtExerciseConn *exConn, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper. More...
	DtReflectedAggregateList (DtExerciseConn *exConn, const DtList *handleList, bool smoothCapable=false, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor - only subscribe to the RTI::ObjectClassHandles in handleList. More...
virtual	~DtReflectedAggregateList ()
	destructor More...
virtual DtReflectedAggregate *	lookup (RTI::ObjectHandle id)
	Look up aggregate by identifier. More...
virtual DtReflectedAggregate *	lookup (const DtGlobalObjectDesignator &objName)
	Look up aggregate by name. More...
virtual DtReflectedAggregate *	first () const
	Get the first/last entity in the list. More...
virtual DtReflectedAggregate *	last () const
virtual void	addAggregateAdditionCallback (DtAggregateCallbackFunction cb, void *userData)
	Aggregate added callback registration/deregistration. More...
virtual void	removeAggregateAdditionCallback (DtAggregateCallbackFunction cb, void *userData)
virtual void	addAggregateRemovalCallback (DtAggregateCallbackFunction cb, void *userData)
	Aggregate removed callback registration/deregistration. More...
virtual void	removeAggregateRemovalCallback (DtAggregateCallbackFunction cb, void *userData)
Public Member Functions inherited from DtReflectedObjectList
	DtReflectedObjectList (DtExerciseConn *exConn, const DtDDMRegionSet *regionSetToUse=0, const DtString &updateRateTag=DtString(""))
	Constructor. More...
virtual	~DtReflectedObjectList ()
	destructor More...
virtual DtReflectedObject *	lookupObj (RTI::ObjectHandle id)
	Look up object by identifier. More...
virtual DtReflectedObject *	lookupObj (const DtGlobalObjectDesignator &objName)
	Look up object by global ID (which is the object name in RTI1.3.3). More...
virtual int	count () const
	Get number of objects. More...
virtual DtExerciseConn *	exerciseConn () const
	Get my exerciseConn. More...
virtual void	manageObjectClass (RTI::ObjectClassHandle handle)
	Register callbacks with exercise connection so that we get notified when an object of this class is discovered. More...
virtual bool	removeObject (const DtObjectId &id)
	Have the application act as though we had never discovered the object. More...
virtual void	addObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object added callback registration/deregistration. More...
virtual void	removeObjectAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object removed callback registration/deregistration. More...
virtual void	removeObjectRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	print ()
	Print the SRs of all objects. More...
virtual void	printWaitList ()
	Print the SRs of all waiting objects (most likely will have mostly bad data). More...
virtual void	setTimeoutProcessing (bool onOff)
	Set whether or not timeout processing occurs. More...
virtual bool	isTimeoutProcessing () const
	Get whether or not timeout processing occurs. More...
virtual bool	requestsEnabled () const
	Get whether or not to process requests for reflected objects that were just discovered or are waiting for updates (to meet discovery criteria). More...
virtual int	numberObjectsWaiting () const
	Return the number of objects in the wait list. More...
virtual void	checkDiscoveryConditionForWaitList ()
	Check discovery conditions for all items in wait list. More...
virtual DtTime	nextRequestTime () const
	Return the time when the next request will be made for entries in the wait refresh list. More...
virtual void	setDiscoveryCondition (DtDiscoveryCondition fn, void *usr)
	Set the checker function which will determine when an object gets discovered and put into the reflected list. More...
virtual void	clearDiscoveryCondition ()
	Unregisters the checker function set in setDiscoverCondition. More...
virtual const DtDDMRegionSet &	subscribedRegions ()
	Returns list of regions subscribed to. More...
virtual void	addWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Callback registration for when objects are added or removed from the waitlist. More...
virtual void	removeWaitlistAdditionCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual void	addWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Waitlist removed callback registration/deregistration. More...
virtual void	removeWaitlistRemovalCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	firstObj () const
	Get the first/last object in the list. More...
virtual DtReflectedObject *	lastObj () const
	Get the first/last object in the list. More...
virtual void	setTimeoutInterval (DtTime time)
	Set/Get the remote object timeout period. More...
virtual DtTime	timeoutInterval () const
	Set/Get the remote object timeout period. More...
virtual void	setWaitListRefreshEnabled (bool on)
	Set whether or not we will resend request updates for objects which remain on wait list because they have not met discovery criteria. More...
virtual bool	waitListRefreshEnabled () const
	Set whether or not we will resend request updates for objects which remain on wait list because they have not met discovery criteria. More...
virtual void	setWaitListRefreshPeriod (DtTime period)
	Set/Get the wait list refresh period. More...
virtual DtTime	waitListRefreshPeriod () const
	Set/Get the wait list refresh period. More...
virtual DtReflectedObject *	firstWaitingObj () const
	Get the first/last object in the wait list. More...
virtual DtReflectedObject *	lastWaitingObj () const
	Get the first/last object in the wait list. More...

Protected Member Functions
	DtReflectedAggregateList (const DtReflectedAggregateList &orig)
	copy constructor More...
DtReflectedAggregateList &	operator= (const DtReflectedAggregateList &orig)
	assignment operator More...
virtual const DtList *	dfltHandleList ()
	Asks the FOM Mapper for the DtList of RTI::ObjectClassHandles to use. More...
virtual DtReflectedObject *	newReflectedObject (DtHlaObject *obj) const
	Override of virtual function. Calls newReflectedAggregate. More...
virtual DtReflectedAggregate *	newReflectedAggregate (DtHlaObject *obj) const
	Create a remote aggregate object for the HLA object. More...
virtual void	removeAndDelete (DtReflectedObject *object, const char *msg)
	Virtual function override. More...
virtual void	removeAndDelete (DtReflectedAggregate *aggregate, const char *msg=NULL)
	Default calls down to base class version, but can be overridden. More...
virtual void	objectAdded (DtReflectedObject *obj)
	Called from processDiscoverObject() after a remote transmitter has been added to the list. More...
virtual void	aggregateAdded (DtReflectedAggregate *ent)
	Called by objectAdded (which is called from processDiscoverObject()) after a remote aggregate has been added to the list. More...
Protected Member Functions inherited from DtReflectedObjectList
virtual void	processDiscoverObject (DtHlaObject *obj)
	Process the discovery of a remote object on the network. More...
virtual void	processRemoveObject (DtHlaObject *obj)
	Process the removal of a remote object from the network. More...
virtual void	processTimedOutObjectReflect (const DtStateMsg &msg, DtHlaObject *obj)
	Handle the receipt of attributes for a remote object which was timed out. More...
virtual void	doTimeouts ()
	Remove any remote objects which have not been updated during the timeout period. More...
virtual void	doRequestUpdates ()
	Request an update for discovered objects. More...
virtual bool	shouldBeTimedOut (DtReflectedObject *object)
	Returns whether or not the object should be timed out. More...
virtual void	timeOutObject (DtReflectedObject *object)
	Times out object by removing it from the remote object list and deleting it. More...
virtual void	unTimeOutObject (DtHlaObject *obj)
	Manages callbacks and data used for reinstating a remote object which was timed out. More...
virtual void	addObjectClass (RTI::ObjectClassHandle handle)
	Register interest in this FOM object class. More...
virtual void	addObjectClassByName (const char *className)
	Register interest in this FOM object class by className. More...
virtual void	init (const DtList *handleList)
	Register interest in a whole list of RTI::ObjectClassHandles all at once. More...
void	emptyLists ()
	Empty the object list and the timeout list. More...
void	emptyCallbackLists ()
	Empty the callback lists. More...
virtual void	processObjectAdditionCallbacks (DtReflectedObject *object)
	Process object addition/removal callbacks. More...
virtual void	processObjectRemovalCallbacks (DtReflectedObject *object)
virtual void	processWaitlistAdditionCallbacks (DtReflectedObject *object)
	Process waitlist addition/removal callbacks. More...
virtual void	processWaitlistRemovalCallbacks (DtReflectedObject *object)
virtual void	findAlreadyDiscoveredObjects ()
	When list is created, we call this function to go through the list of all discovered HLA objects to see if any should be managed by this list. More...
virtual void	checkDiscoveryCondition (DtReflectedObject *refObj)
virtual bool	readyToAdd (DtReflectedObject *obj)
	Returns true if the obj is ready to be added to myObjectList; calls myWaitListChecker from within. More...
virtual void	addToObjectList (DtReflectedObject *refObj)
	Add refObj to myObjectList and initiates discovery callbacks. More...
virtual void	addToWaitList (DtReflectedObject *refObj)
	Add refObj to wait list. More...
virtual void	removeFromWaitList (DtReflectedObject *refObj)
	Remove refObj from wait list. More...
virtual void	addToRefreshList (DtReflectedObject *refObj, DtTime timeToRefresh)
	Add refObj to refresh list. More...
virtual DtReflectedObject *	lookupObjInWaitList (RTI::ObjectHandle id)
	Find object in waitList by identifier. More...
virtual DtReflectedObject *	lookupObjInWaitList (const DtGlobalObjectDesignator &name)
	Find object in waitList by name. More...
void	unsubscribeRegions ()
const DtString &	updateRateSubscriptionName () const
	Return the name of the update rate associated with our subscription, if any. More...

Protected Attributes
bool	mySmoothCapable
Protected Attributes inherited from DtReflectedObjectList
DtExerciseConn *	myExConn
DtRefHlaObjectMap	myObjectList
DtHashList	myObjectListByName
DtRefHlaObjectMap	myWaitList
DtRefHlaObjectMap	myDiscoveryList
DtRefHlaObjectTimeMap	myRefreshList
bool	myWaitListRefreshEnabled
DtTime	myNextRequestTime
DtTime	myWaitListRefreshPeriod
DtList	myTimedOutObjectList
DtTime	myTimeoutInterval
bool	myTimeoutProcessingFlag
std::vector < RTI::ObjectClassHandle >	myHandleList
DtIntrusiveList	myObjectAddedCallbacks
DtIntrusiveList	myObjectRemovedCallbacks
DtIntrusiveList	myWaitlistAddedCallbacks
DtIntrusiveList	myWaitlistRemovedCallbacks
DtDiscoveryCondition	myDiscoveryCondition
void *	myDiscoveryConditionParameter
DtDDMRegionSet	mySubscribedRegions
DtString	myUpdateRateTag

Additional Inherited Members
Static Public Member Functions inherited from DtReflectedObjectList
static bool	requestUpdateFlags ()
	Get flag that indicates if any requests are enabled (class, object, or initialized) More...
static void	findDiscoveredObjectsCb (void *usr)
	Post-drain callback that calls findAlreadyDiscovedObjects(). More...
static void	setAutoSubscribeFlag (bool flag)
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...
static bool	autoSubscribeFlag ()
	Set/Get flag which determines whether to subscribe to object classes that this list manages. More...
static void	setRequestClassUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...
static bool	requestClassUpdateFlag ()
	Set/Get flag that determines whether we request updates from all objects of the object classes we subscribe to. More...
static void	setRequestObjectUpdateFlag (bool onOff)
	Set/Get flag that determines whether we request updates from an object as we discover it. More...
static bool	requestObjectUpdateFlag ()
	Set/Get flag that determines whether we request updates from an object as we discover it. More...
static void	setRequestWhenInitializedFlag (bool onOff)
	Set/Get flag that determines whether we request updates for wait listed objects only when all known VRLStateObject instances are initialized. More...
static bool	requestWhenInitializedFlag ()
	Set/Get flag that determines whether we request updates for wait listed objects only when all known VRLStateObject instances are initialized. More...
static void	setDefaultWaitListRefreshFlag (bool onOff)
	Set/Get the default wait list enabled flag value. More...
static bool	defaultWaitListRefreshFlag ()
	Set/Get the default wait list enabled flag value. More...
static void	setDefaultWaitListRefreshPeriod (DtTime period)
	Set/Get the default wait list refresh period. More...
static DtTime	defaultWaitListRefreshPeriod ()
	Set/Get the default wait list refresh period. More...
Static Protected Member Functions inherited from DtReflectedObjectList
static void	discoverObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processDiscoverObject(). More...
static void	removeObjectCb (DtHlaObject *hlaObj, void *rel)
	Cast the void* to a DtReflectedObjectList* and calls processRemoveObject(). More...
static void	timedOutObjectReflectCb (const DtStateMsg &msg, DtHlaObject *obj, void *usr)
	Cast the void* to a DtReflectedObjectList* and calls processTimedOutObjectReflect(). More...
static void	doTimeoutsPostDrainCb (void *usr)
	Calls doTimeouts. More...
static void	doRequestUpdatesPostDrainCb (void *usr)
	Calls doRequestUpdates. More...
static void	postUpdateCb (DtReflectedObject *obj, void *usr)
	Calls checkDiscoveryCondition. More...
Static Protected Attributes inherited from DtReflectedObjectList
static bool	theAutoSubscribeFlag
static bool	theRequestClassUpdateFlag
static bool	theRequestObjectUpdateFlag
static bool	theRequestWhenInitializedFlag
static bool	theRequestUpdateFlags
static bool	theDefaultWaitListRefreshFlag
static DtTime	theDefaultWaitListRefreshPeriod

Detailed Description

class DtReflectedAggregateList:

Instances of DtReflectedAggregateList are used to manage remote aggregates from the network.

Constructor & Destructor Documentation

DtReflectedAggregateList::DtReflectedAggregateList	(	DtExerciseConn *	exConn,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor - obtains the set of object classes to subscribe to from the exConn's fomMapper.

DtReflectedAggregateList::DtReflectedAggregateList	(	DtExerciseConn *	exConn,
		const DtList *	handleList,
		bool	smoothCapable = false,
		const DtDDMRegionSet *	regionSetToUse = 0,
		const DtString &	updateRateTag = DtString("")
	)

Constructor - only subscribe to the RTI::ObjectClassHandles in handleList.

virtual DtReflectedAggregateList::~DtReflectedAggregateList ( )

virtual

destructor

DtReflectedAggregateList::DtReflectedAggregateList ( const DtReflectedAggregateList &  orig )

protected

copy constructor

Member Function Documentation

virtual void DtReflectedAggregateList::addAggregateAdditionCallback ( DtAggregateCallbackFunction  cb, void *  userData  )

virtual

Aggregate added callback registration/deregistration.

virtual void DtReflectedAggregateList::addAggregateRemovalCallback ( DtAggregateCallbackFunction  cb, void *  userData  )

virtual

Aggregate removed callback registration/deregistration.

virtual void DtReflectedAggregateList::aggregateAdded ( DtReflectedAggregate *  ent )

protectedvirtual

Called by objectAdded (which is called from processDiscoverObject()) after a remote aggregate has been added to the list.

Default implementation prints a message. Subclasses can override this function to add functionality on addition.

virtual const DtList* DtReflectedAggregateList::dfltHandleList ( )

protectedvirtual

Asks the FOM Mapper for the DtList of RTI::ObjectClassHandles to use.

virtual DtReflectedAggregate* DtReflectedAggregateList::first ( ) const

virtual

Get the first/last entity in the list.

virtual DtReflectedAggregate* DtReflectedAggregateList::last ( ) const

virtual

virtual DtReflectedAggregate* DtReflectedAggregateList::lookup ( RTI::ObjectHandle  id )

virtual

Look up aggregate by identifier.

virtual DtReflectedAggregate* DtReflectedAggregateList::lookup ( const DtGlobalObjectDesignator &  objName )

virtual

Look up aggregate by name.

virtual DtReflectedAggregate* DtReflectedAggregateList::newReflectedAggregate ( DtHlaObject *  obj ) const

protectedvirtual

Create a remote aggregate object for the HLA object.

Caller is responsible for deletion.

virtual DtReflectedObject* DtReflectedAggregateList::newReflectedObject ( DtHlaObject *  obj ) const

protectedvirtual

Override of virtual function. Calls newReflectedAggregate.

Implements DtReflectedObjectList.

virtual void DtReflectedAggregateList::objectAdded ( DtReflectedObject *  obj )

protectedvirtual

Called from processDiscoverObject() after a remote transmitter has been added to the list.

Calls aggregateAdded.

Reimplemented from DtReflectedObjectList.

DtReflectedAggregateList& DtReflectedAggregateList::operator= ( const DtReflectedAggregateList &  orig )

protected

assignment operator

virtual void DtReflectedAggregateList::removeAggregateAdditionCallback ( DtAggregateCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedAggregateList::removeAggregateRemovalCallback ( DtAggregateCallbackFunction  cb, void *  userData  )

virtual

virtual void DtReflectedAggregateList::removeAndDelete ( DtReflectedObject *  object, const char *  msg  )

protectedvirtual

Virtual function override.

Calls removeAndDelete(DtReflectedAggregate*....)

Reimplemented from DtReflectedObjectList.

virtual void DtReflectedAggregateList::removeAndDelete ( DtReflectedAggregate *  aggregate, const char *  msg = NULL  )

protectedvirtual

Default calls down to base class version, but can be overridden.

Member Data Documentation

bool DtReflectedAggregateList::mySmoothCapable

protected

---

The documentation for this class was generated from the following file:

• reflectedAggregateListHLA.h
