DtReflectedDesignator Class Reference

class DtReflectedDesignator: More...

Inheritance diagram for DtReflectedDesignator:

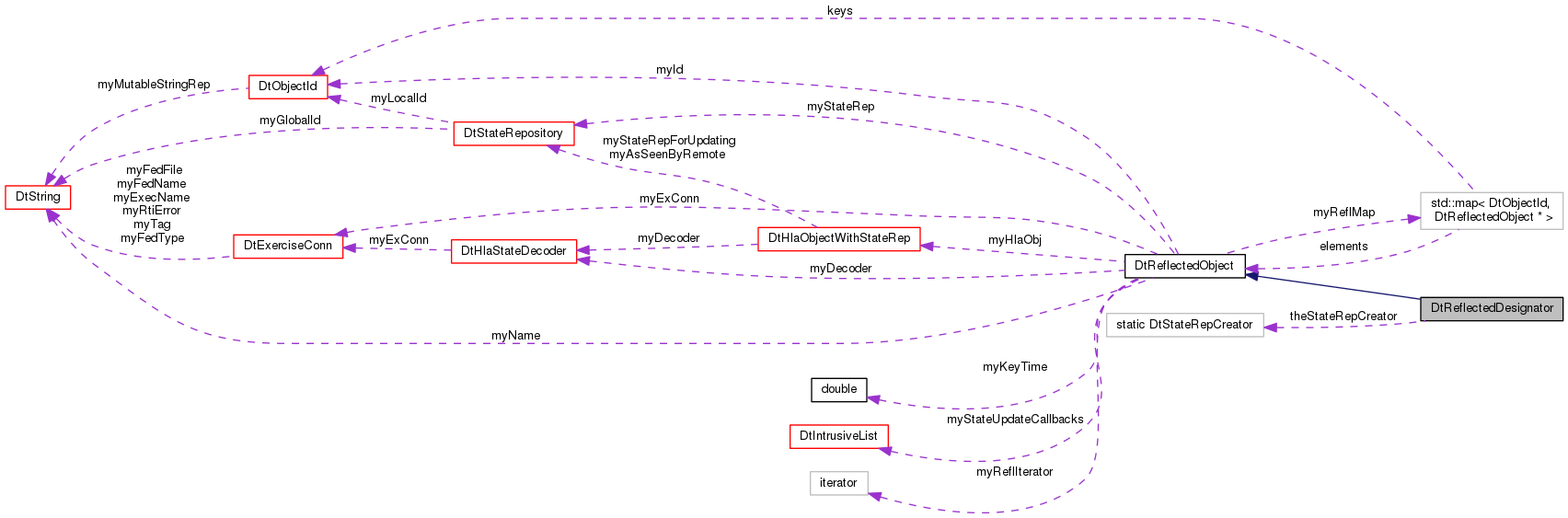

Collaboration diagram for DtReflectedDesignator:

Public Types
typedef DtDesignatorRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtDesignatorRepositories. More...
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories. More...

Public Member Functions
	DtReflectedDesignator (DtHlaObject *obj, DtExerciseConn *conn)
	constructor More...
virtual	~DtReflectedDesignator ()
	destructor More...
virtual DtDesignatorRepository *	designatorRep () const
	Get the designator's state repository. More...
virtual DtDesignatorRepository *	dsr () const
	Synonym for designatorRep(). More...
virtual DtReflectedDesignator *	next () const
	Get the next remote designator. More...
virtual DtReflectedDesignator *	prev () const
	Get the previous remote designator. More...
virtual DtReflectedDesignator *	wrapNext () const
	Get the next remote designator. More...
virtual DtReflectedDesignator *	wrapPrev () const
	Get the previous remote designator. More...
virtual void	addPostUpdateCallback (DtDesignatorCallbackFunction cb, void *userData)
	Designator state callback registration/deregistration. More...
virtual void	removePostUpdateCallback (DtDesignatorCallbackFunction cb, void *userData)
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor. More...
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor. More...
virtual	~DtReflectedObject ()
	destructor More...
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information. More...
virtual DtStateRepository *	sr () const
	Synonym for stateRep(). More...
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR. More...
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject). More...
virtual const DtObjectId &	objectId () const
	Get the HLA object's id. More...
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID). More...
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID). More...
virtual const DtString &	name () const
	Get the HLA object name. More...
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA. More...
virtual const DtString &	lastProducingFederate () const
	Get the name of the last federate that produced a reflected update. More...
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity. More...
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity. More...
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration. More...
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object. More...
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object. More...
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object. More...
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder. More...
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object. More...
void	detachHlaObject ()
	Ends managing of current HLA object. More...
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update. More...
virtual DtTime	keyTime () const
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...
virtual void	setKeyTime (DtTime timeValue)
	Set/Get the time value used with ID to define a map key Key is used to store objects by time but still allow index by ID (using this keyTime) More...

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs. More...

Protected Member Functions
	DtReflectedDesignator (const DtReflectedDesignator &orig)
	copy constructor More...
DtReflectedDesignator &	operator= (const DtReflectedDesignator &orig)
	assignment operator More...
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented More...
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented More...
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks. More...

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks. More...
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtTime	myKeyTime
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Detailed Description

class DtReflectedDesignator:

Instances of DtReflectedDesignator are used to represent HLA Designator Object instances, which were remotely published.

Member Typedef Documentation

typedef DtDesignatorRepository*(* DtReflectedDesignator::DtStateRepCreator)()

Function prototype for functions that create DtDesignatorRepositories.

Constructor & Destructor Documentation

DtReflectedDesignator::DtReflectedDesignator	(	DtHlaObject *	obj,
		DtExerciseConn *	conn
	)

constructor

virtual DtReflectedDesignator::~DtReflectedDesignator ( )

virtual

destructor

DtReflectedDesignator::DtReflectedDesignator ( const DtReflectedDesignator &  orig )

protected

copy constructor

Member Function Documentation

virtual void DtReflectedDesignator::addPostUpdateCallback ( DtDesignatorCallbackFunction  cb, void *  userData  )

virtual

Designator state callback registration/deregistration.

DtDesignatorRepository * DtReflectedDesignator::designatorRep ( ) const

inlinevirtual

Get the designator's state repository.

References DtReflectedObject::myStateRep.

DtDesignatorRepository * DtReflectedDesignator::dsr ( ) const

inlinevirtual

Synonym for designatorRep().

References DtReflectedObject::myStateRep.

virtual DtReflectedDesignator* DtReflectedDesignator::next ( ) const

virtual

Get the next remote designator.

DtReflectedDesignator& DtReflectedDesignator::operator= ( const DtReflectedDesignator &  orig )

protected

assignment operator

virtual DtReflectedDesignator* DtReflectedDesignator::prev ( ) const

virtual

Get the previous remote designator.

virtual void DtReflectedDesignator::removePostUpdateCallback ( DtDesignatorCallbackFunction  cb, void *  userData  )

virtual

static DtStateRepCreator DtReflectedDesignator::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtReflectedDesignator* DtReflectedDesignator::wrapNext ( ) const

virtual

Get the next remote designator.

Will cycle back to the first remote designator.

virtual DtReflectedDesignator* DtReflectedDesignator::wrapPrev ( ) const

virtual

Get the previous remote designator.

Will cycle back to the last remote designator.

Member Data Documentation

DtStateRepCreator DtReflectedDesignator::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedDesignatorHLA.h
