DtTurbulenceLayerStateRepository Class Reference

Instances of DtTurbulenceLayerStateRepository are used to store state data for METOC_Root.EnvironmentCondition.MAK_TurbulenceLayer objects. More...

Inheritance diagram for DtTurbulenceLayerStateRepository:

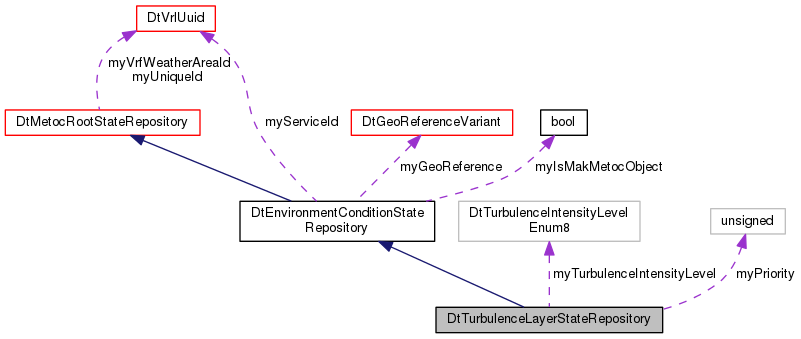

Collaboration diagram for DtTurbulenceLayerStateRepository:

Public Member Functions
	DtTurbulenceLayerStateRepository ()
	Constructor. More...
virtual	~DtTurbulenceLayerStateRepository ()
	Destructor. More...
	DtTurbulenceLayerStateRepository (const DtTurbulenceLayerStateRepository &orig)
	Copy Constructor. More...
DtTurbulenceLayerStateRepository &	operator= (const DtTurbulenceLayerStateRepository &orig)
	Assignment Operator. More...
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this. More...
virtual void	printData () const
	Print data to the DtInfo stream. More...
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream. More...
virtual void	setPriority (const DtU16 &val)
	Set the Priority. More...
virtual const DtU16 &	priority () const
	Get the Priority. More...
virtual void	setTurbulenceIntensityLevel (const DtTurbulenceIntensityLevelEnum8 &val)
	Set the Turbulence Intensity Level. More...
virtual const DtTurbulenceIntensityLevelEnum8 &	turbulenceIntensityLevel () const
	Get the Turbulence Intensity Level. More...
Public Member Functions inherited from DtEnvironmentConditionStateRepository
	DtEnvironmentConditionStateRepository ()
	Constructor. More...
virtual	~DtEnvironmentConditionStateRepository ()
	Destructor. More...
	DtEnvironmentConditionStateRepository (const DtEnvironmentConditionStateRepository &orig)
	Copy Constructor. More...
DtEnvironmentConditionStateRepository &	operator= (const DtEnvironmentConditionStateRepository &orig)
	Assignment Operator. More...
virtual void	setServiceId (const DtVrlUuid &val)
	Set the ServiceId. More...
virtual const DtVrlUuid &	serviceId () const
	Get the ServiceId. More...
virtual void	setGeoReference (const DtGeoReferenceVariant &val)
	Set the GeoReference. More...
virtual const DtGeoReferenceVariant &	geoReference () const
	Get the GeoReference. More...
virtual bool	isGlobalGeoreference () const
	returns true if the geo reference object is global. More...
virtual void	setIsMakMetocObject (bool val)
	Set if this object is a MAK extended class. More...
virtual bool	isMakMetocObject () const
	returns true if this object is a MAK Extended METOC object opposed to a NETN METOC object without MAK extensions More...
Public Member Functions inherited from DtMetocRootStateRepository
	DtMetocRootStateRepository ()
	Constructor. More...
virtual	~DtMetocRootStateRepository ()
	Destructor. More...
	DtMetocRootStateRepository (const DtMetocRootStateRepository &orig)
	Copy Constructor. More...
DtMetocRootStateRepository &	operator= (const DtMetocRootStateRepository &orig)
	Assignment Operator. More...
virtual void	setUniqueId (const DtVrlUuid &val)
	Set the UniqueId. More...
virtual const DtVrlUuid &	uniqueId () const
	Get the UniqueId. More...
virtual void	setName (const DtString &val)
	Set the Name. More...
virtual const DtString &	name () const
	Get the Name. More...
virtual void	setVrfWeatherAreaIdentifier (const DtVrlUuid &vrfWeatherAreaIdentifier)
	Set the UniqueId. More...
virtual DtVrlUuid	vrfWeatherAreaIdentifier () const
	Get the UniqueId. More...
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor More...
	DtStateRepository (const DtStateRepository &orig)
	copy constructor More...
virtual	~DtStateRepository ()
	destructor More...
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator More...
virtual void	setGlobalId (const DtString &id)
	Get/Set global identifier, or name. More...
virtual const DtString &	globalId () const
virtual void	setLocalId (const DtObjectId &id)
	Get/Set local identifier, or handle. More...
virtual const DtObjectId &	localId () const
virtual bool	publishesAttribute (const RTI::AttributeHandle &val) const
	Returns true if the attribute is published. More...
virtual void	setAttributeByHandle (const RTI::AttributeHandle &attrHdl, const char *attrValue, unsigned size)
	Set the attribute with the given handle. More...
virtual const char *	getAttributeByHandle (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle. More...
virtual void	setAttributeByName (const DtString &attrName, const char *attrValue, unsigned size, DtHlaObject *hlaObj)
	Set the attribute with the given name. Note that in order to do this you must provide a DtHlaObject. More...
virtual const char *	getAttributeByName (const DtString &attrName, unsigned &size, DtHlaObject *hlaObj) const
	Get a pointer to attribute value for the attribute with the given name. More...
virtual const char *	getAttributeByHandleIfUpdated (const RTI::AttributeHandle &attrHdl, unsigned &size) const
	Get a pointer to attribute value for the attribute with the given handle, but only if it's been updated since the last time we read it. More...
virtual DtStateRepositoryExtension *	stateRepositoryExtension (DtString srExtName) const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual std::vector< DtString >	stateRepositoryExtensionNames () const
	Returns a set of the registered state repository extension names. More...
virtual void	setStateRepositoryExtensions (std::map< DtString, DtStateRepositoryExtension * > extensions)
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...
virtual const std::map < DtString, DtStateRepositoryExtension * >	stateRepositoryExtensions () const
	Returns pointer to a DtStateRepositoryExtension object with the given name Returns 0 if no extension with given name is found. More...

Static Public Member Functions
static DtTurbulenceLayerStateRepository *	create ()
	Create a DtTurbulenceLayerStateRepository. More...
Static Public Member Functions inherited from DtEnvironmentConditionStateRepository
static DtEnvironmentConditionStateRepository *	create ()
	Create a DtEnvironmentConditionStateRepository. More...
Static Public Member Functions inherited from DtMetocRootStateRepository
static DtMetocRootStateRepository *	create ()
	Create a DtMetocRootStateRepository. More...
Static Public Member Functions inherited from DtStateRepository
static bool	addStateRepositoryExtension (DtString srExtName, DtSrExtCreatorFnc fnc)
	The following functions are for extending state repositories through State Repository Extension classes. More...

Protected Attributes
DtU16	myPriority
DtTurbulenceIntensityLevelEnum8	myTurbulenceIntensityLevel
Protected Attributes inherited from DtEnvironmentConditionStateRepository
DtVrlUuid	myServiceId
DtGeoReferenceVariant	myGeoReference
bool	myIsMakMetocObject
Protected Attributes inherited from DtMetocRootStateRepository
DtVrlUuid	myUniqueId
DtString	myName
DtVrlUuid	myVrfWeatherAreaId

Additional Inherited Members
Public Types inherited from DtStateRepository
typedef std::map< DtString, DtStateRepositoryExtension * >	DtStateRepositoryExtensionMap
Public Attributes inherited from DtStateRepository
DtString	myGlobalId
DtObjectId	myLocalId
std::map< RTI::AttributeHandle, DtGenericAttributeInfo * >	myAttributesByHandle
	Attributes by handle. More...
DtStateRepositoryExtensionMap	myStateRepositoryExtensionMap
Static Public Attributes inherited from DtStateRepository
static std::map< DtString, DtSrExtCreatorFnc >	theStateRepositoryExtensionCreatorMap

Detailed Description

Instances of DtTurbulenceLayerStateRepository are used to store state data for METOC_Root.EnvironmentCondition.MAK_TurbulenceLayer objects.

Constructor & Destructor Documentation

DtTurbulenceLayerStateRepository::DtTurbulenceLayerStateRepository

(

)

Constructor.

virtual DtTurbulenceLayerStateRepository::~DtTurbulenceLayerStateRepository ( )

virtual

Destructor.

DtTurbulenceLayerStateRepository::DtTurbulenceLayerStateRepository

(

const DtTurbulenceLayerStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtTurbulenceLayerStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtEnvironmentConditionStateRepository.

static DtTurbulenceLayerStateRepository* DtTurbulenceLayerStateRepository::create ( )

static

Create a DtTurbulenceLayerStateRepository.

DtTurbulenceLayerStateRepository& DtTurbulenceLayerStateRepository::operator=

(

const DtTurbulenceLayerStateRepository &

orig

)

Assignment Operator.

virtual void DtTurbulenceLayerStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtEnvironmentConditionStateRepository.

virtual void DtTurbulenceLayerStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtEnvironmentConditionStateRepository.

virtual const DtU16& DtTurbulenceLayerStateRepository::priority ( ) const

virtual

Get the Priority.

virtual void DtTurbulenceLayerStateRepository::setPriority ( const DtU16 &  val )

virtual

Set the Priority.

virtual void DtTurbulenceLayerStateRepository::setTurbulenceIntensityLevel ( const DtTurbulenceIntensityLevelEnum8 &  val )

virtual

Set the Turbulence Intensity Level.

virtual const DtTurbulenceIntensityLevelEnum8& DtTurbulenceLayerStateRepository::turbulenceIntensityLevel ( ) const

virtual

Get the Turbulence Intensity Level.

Member Data Documentation

DtU16 DtTurbulenceLayerStateRepository::myPriority

protected

DtTurbulenceIntensityLevelEnum8 DtTurbulenceLayerStateRepository::myTurbulenceIntensityLevel

protected

---

The documentation for this class was generated from the following file:

• turbulenceLayerStateRepository.h
