Inheritance diagram for DtUnknownInteraction:

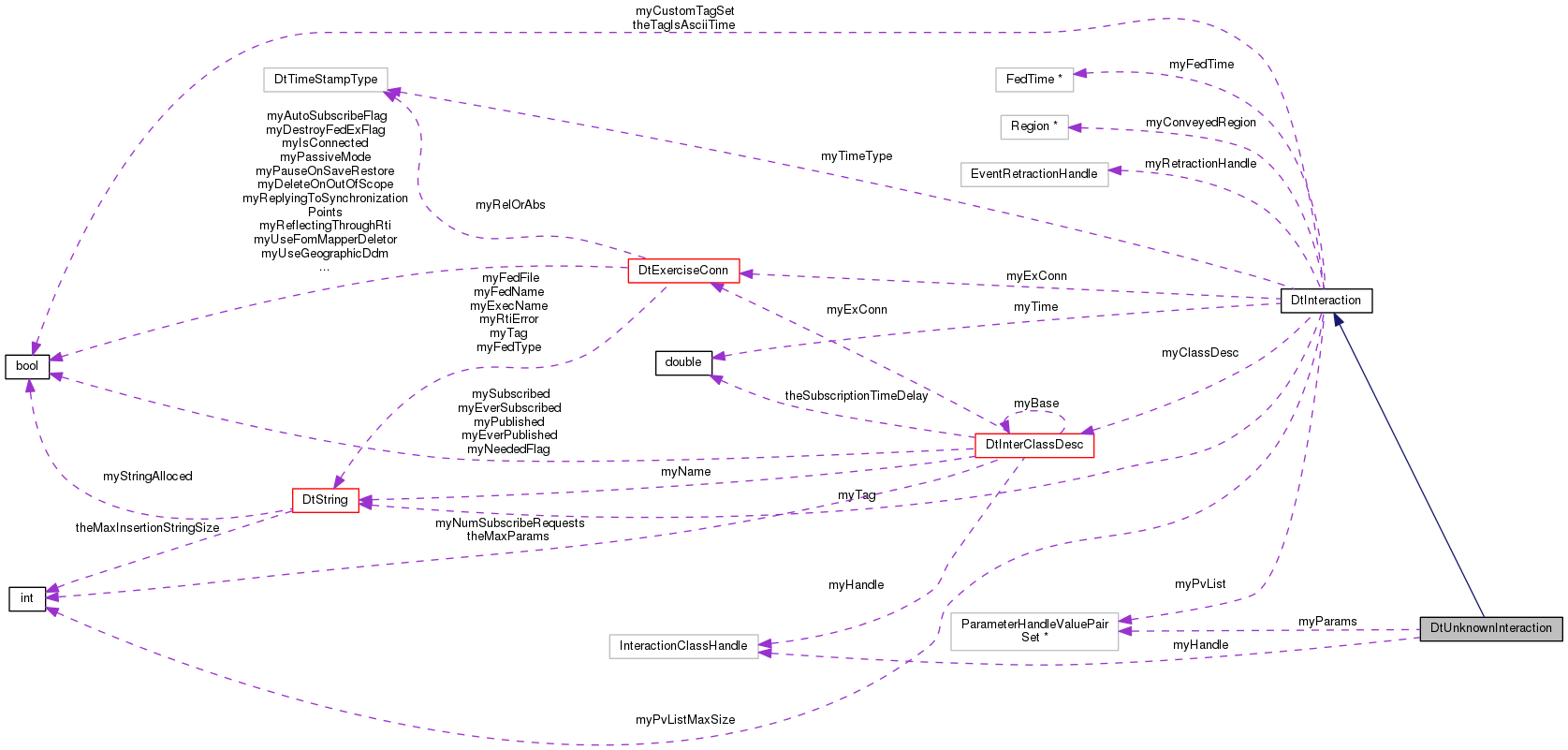

Collaboration diagram for DtUnknownInteraction:

Public Member Functions
	DtUnknownInteraction ()
	default constructor More...

	DtUnknownInteraction (RTI::InteractionClassHandle handle, const RTI::ParameterHandleValuePairSet &pvList)
	constructor More...

virtual	~DtUnknownInteraction ()
	destructor More...

	DtUnknownInteraction (const DtUnknownInteraction &orig)
	copy constructor More...

DtUnknownInteraction &	operator= (const DtUnknownInteraction &orig)
	assignment operator More...

virtual const RTI::ParameterHandleValuePairSet &	phvps () const
	Get the parameter handle value pair set for the interaction. More...

virtual void	setFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Decode into this object from parameter value list. More...

virtual void	setExConn (DtExerciseConn exConn, DtInterClassDesc classDesc)
	Sets the interaction's ExerciseConn and class descriptor. More...

virtual void	printData () const
	Just prints the parameters. More...

virtual const char *	name () const
	Name of the interaction. More...

Public Member Functions inherited from DtInteraction
	DtInteraction ()
	default constructor More...

virtual	~DtInteraction ()
	destructor More...

	DtInteraction (const DtInteraction &orig)
	copy constructor More...

DtInteraction &	operator= (const DtInteraction &orig)
	assignment operator More...

virtual RTI::InteractionClassHandle	interactionClassHandle () const
	Get the interaction class handle. Returns 0 if no classDesc. More...

virtual char *	interactionClassName () const
	Get the interaction class name. Returns NULL if no classDesc. More...

virtual int	numParameters () const
	Get the number of parameters. Returns 0 if no classDesc. More...

virtual bool	neededByFederation () const
	Returns true if the interaction class is needed by the federation false otherwise. More...

virtual void	print () const
	Print the interaction's host rep data, including header. More...

virtual void	printToStream (std::ostream &stream) const
	Print the interaction to a stream. More...

virtual void	printHeader () const
	Print the header info. More...

virtual void	printHeaderToStream (std::ostream &stream) const
	Print the header info to a stream. More...

virtual void	printDataToString (DtString &buff) const
	Print the interaction's data to the string provided. More...

virtual void	printDataToStream (std::ostream &stream) const
	Print the interaction's data to the stream. More...

virtual void	printParams (bool withHex) const
	Print the header followed by the interaction's parameters. More...

virtual void	printParamsToStream (std::ostream &stream, bool withHex) const
	Print the header followed by the interaction's parameters to a stream. More...

virtual DtExerciseConn *	exerciseConn () const
	Get the current exercise connection. More...

virtual DtInterClassDesc *	classDesc () const
	Get the current class descriptor we're using for this interaction. More...

virtual bool	customTagSet () const
	Get whether a custom tag has been set on the interaction or not. More...

virtual void	setCustomTag (const DtString &a_tag)
	Set the user-defined tag. More...

virtual void	setTag (const DtString &tag)
	Set the user-defined tag. More...

virtual const DtString &	tag () const
	Get the user-defined tag. More...

virtual const RTI::Region *	conveyedRegion () const
	Get & Set the conveyed region of the reflected state message. More...

virtual void	setConveyedRegion (const RTI::Region *region)

virtual void	setProducingFederateHandle (RTI::FederateHandle federateHandle)
	HLA Evolved added an argument that provides the FederateHandle of the federate that produced the interaction being received. More...

virtual RTI::FederateHandle	producingFederateHandle () const
	The producing federate handle. Invalid if not enabled (or could be from MOM). More...

virtual const DtString &	producingFederateName () const
	The producing federate handle is used to get the federate name (cached after first access). More...

virtual void	setTransportationTypeHandle (RTI::TransportationTypeHandle transportationTypeHandle)
	HLA 4 added an argument that provides the TransportationTypeHandle. More...

virtual RTI::TransportationTypeHandle	transportationTypeHandle () const
	The transportation type handle. More...

virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the time of validity of the message, and whether this represents relative or absolute time. More...

virtual DtTime	timeStamp () const
	Return the time of validity of the message (in seconds past an hour) as set by setTimeStamp. More...

virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp. More...

virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour. More...

virtual void	setFedTime (const RTI::FedTime &ft)
	This is used for TSO interactions. More...

virtual const RTI::FedTime *	fedTime () const
	When the interaction is received, if the federate sending the interaction had TSO set then the fedTime will be set. More...

virtual void	setEventRetractionHandle (const RTI::EventRetractionHandle &handle)
	Get/Set the EventRetractionHandle. More...

virtual RTI::EventRetractionHandle	eventRetractionHandle () const
	Get the event retraction handle. For more info see setEventRetractionHandle. More...

Static Public Member Functions
static DtInteraction *	create ()
	Create a DtUnknownInteraction. More...

static void	addCallback (RTI::InteractionClassHandle handle, DtExerciseConn conn, DtUnknownInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add (register)/Remove (deregister) function to be called when interaction with specified class handle occurs. More...

static void	removeCallback (RTI::InteractionClassHandle handle, DtExerciseConn conn, DtUnknownInteractionCb cb, void usr, DtDDMRegionSP region=DtDDMRegionSP())

Static Public Member Functions inherited from DtInteraction
static void	setTagIsAsciiTime (bool val)
	Set/Get flag that tells us whether we're using the RPR FOM convention that the UserDefinedTag in updates and interactions represents a DIS-style timestamp. More...

static bool	tagIsAsciiTime ()

static void	addCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Register/Deregister callback function cb with conn, on all interaction class name (char*) contained in classes. More...

static void	removeCallback (DtExerciseConn conn, const std::vector< DtString > classes, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

static void	addCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Can be used instead of above for a single class. More...

static void	removeCallback (DtExerciseConn conn, const char className, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())

Protected Member Functions
void	internalSetFromPhvps (const RTI::ParameterHandleValuePairSet &pvList)
	Decode into this object from parameter value list. More...

Protected Member Functions inherited from DtInteraction
virtual const char *	interactionClassToUse (DtExerciseConn *exConn) const
	Returns the FOM interaction class name to use. More...

virtual RTI::ParameterHandleValuePairSet *	privPvList () const
	Returns a pointer to a private pvList that can be used as a return value by phvps. More...

DtInteraction *	self () const
	Get rid of const-ness on the "this" pointer in order to access non-const functions from const member functions (such as simple accessors). More...

Protected Attributes
RTI::ParameterHandleValuePairSet *	myParams

RTI::InteractionClassHandle	myHandle

Protected Attributes inherited from DtInteraction
DtInterClassDesc *	myClassDesc

DtExerciseConn *	myExConn

DtTime	myTime

DtTimeStampType	myTimeType

DtString	myTag

RTI::ParameterHandleValuePairSet *	myPvList

int	myPvListMaxSize

RTI::FedTime *	myFedTime

RTI::EventRetractionHandle	myRetractionHandle

const RTI::Region *	myConveyedRegion

bool	myCustomTagSet

Additional Inherited Members
Static Protected Attributes inherited from DtInteraction
static bool	theTagIsAsciiTime

Detailed Description

class DtUnknownInteraction:

Instances of DtUnknownInteraction are used to represent Interactions for which there is no derived DtInteraction.

Constructor & Destructor Documentation

DtUnknownInteraction::DtUnknownInteraction ( )

default constructor

DtUnknownInteraction::DtUnknownInteraction	(	RTI::InteractionClassHandle	handle,
		const RTI::ParameterHandleValuePairSet &	pvList
	)

constructor

virtual DtUnknownInteraction::~DtUnknownInteraction ( )

virtual

destructor

DtUnknownInteraction::DtUnknownInteraction ( const DtUnknownInteraction & orig )

copy constructor

Member Function Documentation

static void DtUnknownInteraction::addCallback	(	RTI::InteractionClassHandle	handle,
		DtExerciseConn *	conn,
		DtUnknownInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

static

Add (register)/Remove (deregister) function to be called when interaction with specified class handle occurs.

static DtInteraction* DtUnknownInteraction::create ( )

static

Create a DtUnknownInteraction.

Caller is responsible for deletion.

void DtUnknownInteraction::internalSetFromPhvps ( const RTI::ParameterHandleValuePairSet & pvList )

protected

Decode into this object from parameter value list.

Non-virtual, since meant to be called from ctor.

virtual const char* DtUnknownInteraction::name ( ) const

virtual

Name of the interaction.

Implements DtInteraction.

DtUnknownInteraction& DtUnknownInteraction::operator= ( const DtUnknownInteraction & orig )

assignment operator

virtual const RTI::ParameterHandleValuePairSet& DtUnknownInteraction::phvps ( ) const

virtual

Get the parameter handle value pair set for the interaction.

Implements DtInteraction.

virtual void DtUnknownInteraction::printData ( ) const

virtual

Just prints the parameters.

Reimplemented from DtInteraction.

static void DtUnknownInteraction::removeCallback	(	RTI::InteractionClassHandle	handle,
		DtExerciseConn *	conn,
		DtUnknownInteractionCb	cb,
		void *	usr,
		DtDDMRegionSP	region = `DtDDMRegionSP()`
	)

static

virtual void DtUnknownInteraction::setExConn	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

virtual

Sets the interaction's ExerciseConn and class descriptor.

If classDesc is NULL, we use the classDesc associated with the handle on which the interaction was created. Without being told what ExConn or class descriptor to use, many of the HLA-specific functions won't work properly.

Reimplemented from DtInteraction.

virtual void DtUnknownInteraction::setFromPhvps ( const RTI::ParameterHandleValuePairSet & pvList )

virtual

Decode into this object from parameter value list.

Implements DtInteraction.

Member Data Documentation

RTI::InteractionClassHandle DtUnknownInteraction::myHandle

protected

RTI::ParameterHandleValuePairSet* DtUnknownInteraction::myParams

protected

The documentation for this class was generated from the following file:

unknownInteraction.h
