DtAdditionalPassiveActivitiesRepository Class Reference

class DtAdditionalPassiveActivitiesRepository More...

Inheritance diagram for DtAdditionalPassiveActivitiesRepository:

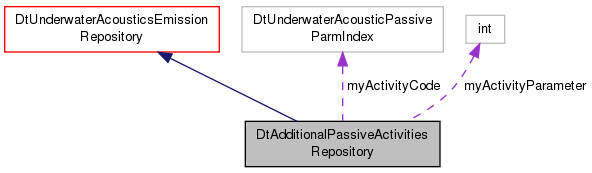

Collaboration diagram for DtAdditionalPassiveActivitiesRepository:

Public Member Functions
	DtAdditionalPassiveActivitiesRepository ()
	Constructor.
virtual	~DtAdditionalPassiveActivitiesRepository ()
	Destructor.
	DtAdditionalPassiveActivitiesRepository (const DtAdditionalPassiveActivitiesRepository &orig)
	Copy Constructor.
DtAdditionalPassiveActivitiesRepository &	operator= (const DtAdditionalPassiveActivitiesRepository &orig)
	Assignment Operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual void	setActivityCode (DtUnderwaterAcousticPassiveParmIndex val)
	Set the ActivityCode.
virtual DtUnderwaterAcousticPassiveParmIndex	activityCode () const
	Get the ActivityCode.
virtual void	setActivityParameter (DtInt16 val)
	Set the ActivityParameter.
virtual DtInt16	activityParameter () const
	Get the ActivityParameter.
virtual bool	isSilent () const
	Get the IsSilent.
Public Member Functions inherited from DtUnderwaterAcousticsEmissionRepository
	DtUnderwaterAcousticsEmissionRepository ()
	Constructor.
virtual	~DtUnderwaterAcousticsEmissionRepository ()
	Destructor.
	DtUnderwaterAcousticsEmissionRepository (const DtUnderwaterAcousticsEmissionRepository &orig)
	Copy Constructor.
DtUnderwaterAcousticsEmissionRepository &	operator= (const DtUnderwaterAcousticsEmissionRepository &orig)
	Assignment Operator.
virtual void	setEventIdentifier (const DtEventId &val)
	Set the EventIdentifier.
virtual const DtEventId &	eventIdentifier () const
	Get the EventIdentifier.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity.
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtAdditionalPassiveActivitiesRepository *	create ()
	Create a DtAdditionalPassiveActivitiesStateRepository.

Protected Attributes
DtUnderwaterAcousticPassiveParmIndex	myActivityCode
int	myActivityParameter
Protected Attributes inherited from DtUnderwaterAcousticsEmissionRepository
DtEventId	myEventIdentifier
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtVector32	myRelativePosition

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Detailed Description

class DtAdditionalPassiveActivitiesRepository

Instances of DtAdditionalPassiveActivitiesStateRepository are used to store state data for EmbeddedSystem.UnderwaterAcousticsEmission.AdditionalPassiveActivities objects.

Constructor & Destructor Documentation

DtAdditionalPassiveActivitiesRepository::DtAdditionalPassiveActivitiesRepository

(

)

Constructor.

virtual DtAdditionalPassiveActivitiesRepository::~DtAdditionalPassiveActivitiesRepository ( )

virtual

Destructor.

DtAdditionalPassiveActivitiesRepository::DtAdditionalPassiveActivitiesRepository

(

const DtAdditionalPassiveActivitiesRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtUnderwaterAcousticPassiveParmIndex DtAdditionalPassiveActivitiesRepository::activityCode ( ) const

virtual

Get the ActivityCode.

virtual DtInt16 DtAdditionalPassiveActivitiesRepository::activityParameter ( ) const

virtual

Get the ActivityParameter.

virtual DtStateRepository* DtAdditionalPassiveActivitiesRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

static DtAdditionalPassiveActivitiesRepository* DtAdditionalPassiveActivitiesRepository::create ( )

static

Create a DtAdditionalPassiveActivitiesStateRepository.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual bool DtAdditionalPassiveActivitiesRepository::isSilent ( ) const

virtual

Get the IsSilent.

DtAdditionalPassiveActivitiesRepository& DtAdditionalPassiveActivitiesRepository::operator=

(

const DtAdditionalPassiveActivitiesRepository &

orig

)

Assignment Operator.

virtual void DtAdditionalPassiveActivitiesRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual void DtAdditionalPassiveActivitiesRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual void DtAdditionalPassiveActivitiesRepository::setActivityCode ( DtUnderwaterAcousticPassiveParmIndex  val )

virtual

Set the ActivityCode.

virtual void DtAdditionalPassiveActivitiesRepository::setActivityParameter ( DtInt16  val )

virtual

Set the ActivityParameter.

Member Data Documentation

DtUnderwaterAcousticPassiveParmIndex DtAdditionalPassiveActivitiesRepository::myActivityCode

protected

int DtAdditionalPassiveActivitiesRepository::myActivityParameter

protected

---

The documentation for this class was generated from the following file:

• additionalPassiveActivitiesRepository.h
