DtLinearObjectStatePdu Class Reference

Instances of DtLinearObjectStatePdu are used to communicate information about the addition/modification of a synthetic object which is geometrically anchored to the terrain with one point. More...

Inheritance diagram for DtLinearObjectStatePdu:

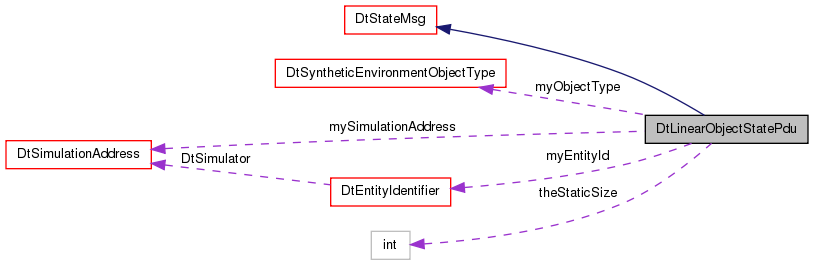

Collaboration diagram for DtLinearObjectStatePdu:

Public Member Functions
	DtLinearObjectStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	CTOR.
	DtLinearObjectStatePdu (const DtLinearObjectStatePdu &orig)
	Copy CTOR.
	DtLinearObjectStatePdu (const DtNetLinearObjectStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Net Copy CTOR.
virtual	~DtLinearObjectStatePdu ()
	Virtual DTOR.
DtLinearObjectStatePdu &	operator= (const DtLinearObjectStatePdu &orig)
	Assignment operator.
virtual void	setObjectId (const DtEntityIdentifier &id)
	Set/Get object ID.
virtual const DtEntityIdentifier &	objectId () const
virtual void	setReferencedObjectId (const DtEntityIdentifier &id)
	Set/Get referenced object ID.
virtual const DtEntityIdentifier &	referencedObjectId () const
virtual void	setUpdateNumber (DtU16 field)
	Set/Get update number.
virtual DtU16	updateNumber () const
virtual void	setForceId (DtForceType force)
	Set/Get the force ID.
virtual DtForceType	forceId () const
virtual bool	setNumSegments (DtU8 num)
	Set/Get the number of segments.
virtual DtU8	numSegments () const
virtual void	setRequesterId (const DtSimulationAddress &type)
	Set/Get the requester ID.
virtual const DtSimulationAddress &	requesterId () const
virtual void	setReceivingId (const DtSimulationAddress &type)
	Set/Get the receiving ID.
virtual const DtSimulationAddress &	receivingId () const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get the object type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
virtual bool	setLinearSegmentRecord (int index, const DtLinearSegmentRecord &record)
	Set/Get a linear segment parameter record.
virtual bool	getLinearSegmentRecord (int index, DtLinearSegmentRecord &record) const
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor.
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor.
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator.
virtual	~DtPduWithAttributeRecordSets ()
	Destructor.
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets()
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo.
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream.
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record.
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record.
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier.
virtual void	clearAllRecordSets ()
	Removes all RecordSets.
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets.
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers.
virtual const std::vector < DtStandardVariableRecord * > &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier.
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier.
virtual const std::vector < DtStandardVariableRecord * >	allRecords () const
	This will return the Records of all Record Sets.
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets.
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier.
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher).
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	encode ()
	Encode method.
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method.
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets.
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets.
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding.
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets.
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map.
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not)
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length.
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header.
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header.
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header.
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference.
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference.
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header.
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header.
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled.
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled.
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header.
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header.
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header.
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header.
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header.
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header.
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header.
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header.
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header.
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header.
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header.
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex.
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state.
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called.
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size, bool skipSizeChanged=false)
	Changes the size of the message.
virtual void	insertBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep.
virtual void	insertBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated address.
virtual void	deleteBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes at the indicated offset in the net rep.
virtual void	deleteBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes starting at the indicated address.
virtual void	clearAll ()
	Zeros out all bytes in the network representation.
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a DtLinearObjectStatePdu.
static void	addCallback (DtExerciseConn *conn, DtLinearObjectStatePduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtLinearObjectStatePduCb cb, void *usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetLinearObjectStatePdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtLinearObjectStatePdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.
virtual char *	var () const
	Returns a pointer to the first byte of variable length data.

Protected Attributes
DtEntityIdentifier	myEntityId
	Temporary objects for reference returns.
DtSyntheticEnvironmentObjectType	myObjectType
DtSimulationAddress	mySimulationAddress

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records.

Detailed Description

Instances of DtLinearObjectStatePdu are used to communicate information about the addition/modification of a synthetic object which is geometrically anchored to the terrain with one point.

Constructor & Destructor Documentation

DtLinearObjectStatePdu::DtLinearObjectStatePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

CTOR.

DtLinearObjectStatePdu::DtLinearObjectStatePdu

(

const DtLinearObjectStatePdu &

orig

)

Copy CTOR.

DtLinearObjectStatePdu::DtLinearObjectStatePdu	(	const DtNetLinearObjectStatePdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

Net Copy CTOR.

virtual DtLinearObjectStatePdu::~DtLinearObjectStatePdu ( )

virtual

Virtual DTOR.

Member Function Documentation

static void DtLinearObjectStatePdu::addCallback ( DtExerciseConn *  conn, DtLinearObjectStatePduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtLinearObjectStatePdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Create a DtLinearObjectStatePdu.

Caller is responsible for deletion.

virtual DtForceType DtLinearObjectStatePdu::forceId ( ) const

virtual

virtual bool DtLinearObjectStatePdu::getLinearSegmentRecord ( int  index, DtLinearSegmentRecord &  record  ) const

virtual

virtual DtPduKind DtLinearObjectStatePdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual DtNetLinearObjectStatePdu* DtLinearObjectStatePdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual DtU8 DtLinearObjectStatePdu::numSegments ( ) const

virtual

virtual const DtEntityIdentifier& DtLinearObjectStatePdu::objectId ( ) const

virtual

virtual const DtSyntheticEnvironmentObjectType& DtLinearObjectStatePdu::objectType ( ) const

virtual

DtLinearObjectStatePdu& DtLinearObjectStatePdu::operator=

(

const DtLinearObjectStatePdu &

orig

)

Assignment operator.

virtual void DtLinearObjectStatePdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtLinearObjectStatePdu::printDataToStream ( std::ostream &  stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

virtual const DtSimulationAddress& DtLinearObjectStatePdu::receivingId ( ) const

virtual

virtual const DtEntityIdentifier& DtLinearObjectStatePdu::referencedObjectId ( ) const

virtual

static void DtLinearObjectStatePdu::removeCallback ( DtExerciseConn *  conn, DtLinearObjectStatePduCb  cb, void *  usr  )

static

virtual const DtSimulationAddress& DtLinearObjectStatePdu::requesterId ( ) const

virtual

DtLinearObjectStatePdu* DtLinearObjectStatePdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual void DtLinearObjectStatePdu::setForceId ( DtForceType  force )

virtual

Set/Get the force ID.

virtual bool DtLinearObjectStatePdu::setLinearSegmentRecord ( int  index, const DtLinearSegmentRecord &  record  )

virtual

Set/Get a linear segment parameter record.

Returns false if the index is out of range.

virtual bool DtLinearObjectStatePdu::setNumSegments ( DtU8  num )

virtual

Set/Get the number of segments.

virtual void DtLinearObjectStatePdu::setObjectId ( const DtEntityIdentifier &  id )

virtual

Set/Get object ID.

virtual void DtLinearObjectStatePdu::setObjectType ( const DtSyntheticEnvironmentObjectType &  type )

virtual

Set/Get the object type.

virtual void DtLinearObjectStatePdu::setReceivingId ( const DtSimulationAddress &  type )

virtual

Set/Get the receiving ID.

virtual void DtLinearObjectStatePdu::setReferencedObjectId ( const DtEntityIdentifier &  id )

virtual

Set/Get referenced object ID.

virtual void DtLinearObjectStatePdu::setRequesterId ( const DtSimulationAddress &  type )

virtual

Set/Get the requester ID.

virtual void DtLinearObjectStatePdu::setUpdateNumber ( DtU16  field )

virtual

Set/Get update number.

virtual DtU16 DtLinearObjectStatePdu::updateNumber ( ) const

virtual

virtual char* DtLinearObjectStatePdu::var ( ) const

protectedvirtual

Returns a pointer to the first byte of variable length data.

Member Data Documentation

DtEntityIdentifier DtLinearObjectStatePdu::myEntityId

protected

Temporary objects for reference returns.

DtSyntheticEnvironmentObjectType DtLinearObjectStatePdu::myObjectType

protected

DtSimulationAddress DtLinearObjectStatePdu::mySimulationAddress

protected

const int DtLinearObjectStatePdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

---

The documentation for this class was generated from the following file:

• linearObjectStatePdu.h
