DtPropulsionNoiseStateRepository Class Reference

class DtPropulsionNoiseStateRepository More...

Inheritance diagram for DtPropulsionNoiseStateRepository:

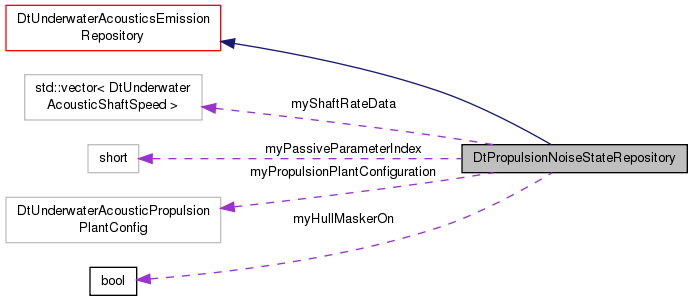

Collaboration diagram for DtPropulsionNoiseStateRepository:

Public Member Functions
	DtPropulsionNoiseStateRepository ()
	Constructor.
virtual	~DtPropulsionNoiseStateRepository ()
	Destructor.
	DtPropulsionNoiseStateRepository (const DtPropulsionNoiseStateRepository &orig)
	Copy Constructor.
DtPropulsionNoiseStateRepository &	operator= (const DtPropulsionNoiseStateRepository &orig)
	Assignment Operator.
virtual DtStateRepository *	clone (bool copy) const
	Return a copy/empty object of the same type as this.
virtual void	printData () const
	Print data to the DtInfo stream.
virtual void	printDataToStream (std::ostream &stream) const
	Print data to the specified stream.
virtual void	setHullMaskerOn (bool val)
	Set the HullMaskerOn.
virtual bool	hullMaskerOn () const
	Get the HullMaskerOn.
virtual void	setPassiveParameterIndex (DtU16 val)
	Set the PassiveParameterIndex.
virtual DtU16	passiveParameterIndex () const
	Get the PassiveParameterIndex.
virtual void	setPropulsionPlantConfiguration (DtUnderwaterAcousticPropulsionPlantConfig val)
	Set the PropulsionPlantConfiguration.
virtual DtUnderwaterAcousticPropulsionPlantConfig	propulsionPlantConfiguration () const
	Get the PropulsionPlantConfiguration.
virtual void	setShaftRateData (const std::vector< DtUnderwaterAcousticShaftSpeed > &val)
	Set the ShaftRateData.
virtual const std::vector < DtUnderwaterAcousticShaftSpeed > &	shaftRateData () const
	Get the ShaftRateData.
Public Member Functions inherited from DtUnderwaterAcousticsEmissionRepository
	DtUnderwaterAcousticsEmissionRepository ()
	Constructor.
virtual	~DtUnderwaterAcousticsEmissionRepository ()
	Destructor.
	DtUnderwaterAcousticsEmissionRepository (const DtUnderwaterAcousticsEmissionRepository &orig)
	Copy Constructor.
DtUnderwaterAcousticsEmissionRepository &	operator= (const DtUnderwaterAcousticsEmissionRepository &orig)
	Assignment Operator.
virtual void	setEventIdentifier (const DtEventId &val)
	Set the EventIdentifier.
virtual const DtEventId &	eventIdentifier () const
	Get the EventIdentifier.
Public Member Functions inherited from DtEmbeddedSystemRepository
	DtEmbeddedSystemRepository ()
	default constructor
	DtEmbeddedSystemRepository (const DtEmbeddedSystemRepository &orig)
	copy constructor
virtual	~DtEmbeddedSystemRepository ()
	destructor
DtEmbeddedSystemRepository &	operator= (const DtEmbeddedSystemRepository &orig)
	assignment operator
virtual void	setEntityId (const DtEntityIdentifier &id)
	Set the entity identifier.
virtual const DtEntityIdentifier &	entityId () const
	Get the entity identifier.
virtual void	setHostId (const DtGlobalObjectDesignator &id)
	Set the host identifier.
virtual const DtGlobalObjectDesignator &	hostId () const
	Get the host identifier.
virtual void	setRelativePosition (const DtVector32 &position)
	Set the position of the object relative to the entity.
virtual const DtVector32 &	relativePosition () const
	Get the position of the object relative to the entity.
Public Member Functions inherited from DtStateRepository
	DtStateRepository ()
	default constructor
	DtStateRepository (const DtStateRepository &orig)
	copy constructor
virtual	~DtStateRepository ()
	destructor
DtStateRepository &	operator= (const DtStateRepository &orig)
	assignment operator
virtual void	setGlobalId (const DtGlobalObjectDesignator &id)
	Get/Set global identifier, or name.
virtual const DtGlobalObjectDesignator &	globalId () const
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records)
	The following functions are related to the extendability part of DIS 7.
virtual const std::vector < DtStandardVariableRecord * >	attributeRecords (unsigned int recordType=0) const
virtual void	getAttributeRecords (std::vector< DtStandardVariableRecord * > &vec, unsigned int recordType=0) const
virtual void	addAttributeRecord (DtStandardVariableRecord *record)
virtual void	clearAttributeRecords ()
virtual void	setAttributeRecords (const std::vector< DtStandardVariableRecord * > &records, const DtSimulationAddress &address)
virtual void	setSimAddr (const DtSimulationAddress &id)
	Get/Set default simulation address. Set by VR-Link for publishers (based on exercise connection)
virtual const DtSimulationAddress &	simAddr () const
virtual unsigned int	numberOfAttributeRecords () const

Static Public Member Functions
static DtPropulsionNoiseStateRepository *	create ()
	Create a DtPropulsionNoiseStateRepository.

Protected Attributes
bool	myHullMaskerOn
DtU16	myPassiveParameterIndex
DtUnderwaterAcousticPropulsionPlantConfig	myPropulsionPlantConfiguration
std::vector < DtUnderwaterAcousticShaftSpeed >	myShaftRateData
Protected Attributes inherited from DtUnderwaterAcousticsEmissionRepository
DtEventId	myEventIdentifier
Protected Attributes inherited from DtEmbeddedSystemRepository
DtEntityIdentifier	myEntityId
DtVector32	myRelativePosition

Additional Inherited Members
Public Attributes inherited from DtStateRepository
DtGlobalObjectDesignator	myGlobalId
DtSimulationAddress	myDefaultSimulationAddress
std::map< DtSimulationAddress, std::vector < DtStandardVariableRecord * > >	myRecordsMap

Detailed Description

class DtPropulsionNoiseStateRepository

Instances of DtPropulsionNoiseStateRepository are used to store state data for EmbeddedSystem.UnderwaterAcousticsEmission.PropulsionNoise objects.

Constructor & Destructor Documentation

DtPropulsionNoiseStateRepository::DtPropulsionNoiseStateRepository

(

)

Constructor.

virtual DtPropulsionNoiseStateRepository::~DtPropulsionNoiseStateRepository ( )

virtual

Destructor.

DtPropulsionNoiseStateRepository::DtPropulsionNoiseStateRepository

(

const DtPropulsionNoiseStateRepository &

orig

)

Copy Constructor.

Member Function Documentation

virtual DtStateRepository* DtPropulsionNoiseStateRepository::clone ( bool  copy ) const

virtual

Return a copy/empty object of the same type as this.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

static DtPropulsionNoiseStateRepository* DtPropulsionNoiseStateRepository::create ( )

static

Create a DtPropulsionNoiseStateRepository.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual bool DtPropulsionNoiseStateRepository::hullMaskerOn ( ) const

virtual

Get the HullMaskerOn.

DtPropulsionNoiseStateRepository& DtPropulsionNoiseStateRepository::operator=

(

const DtPropulsionNoiseStateRepository &

orig

)

Assignment Operator.

virtual DtU16 DtPropulsionNoiseStateRepository::passiveParameterIndex ( ) const

virtual

Get the PassiveParameterIndex.

virtual void DtPropulsionNoiseStateRepository::printData ( ) const

virtual

Print data to the DtInfo stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual void DtPropulsionNoiseStateRepository::printDataToStream ( std::ostream &  stream ) const

virtual

Print data to the specified stream.

Reimplemented from DtUnderwaterAcousticsEmissionRepository.

virtual DtUnderwaterAcousticPropulsionPlantConfig DtPropulsionNoiseStateRepository::propulsionPlantConfiguration ( ) const

virtual

Get the PropulsionPlantConfiguration.

virtual void DtPropulsionNoiseStateRepository::setHullMaskerOn ( bool  val )

virtual

Set the HullMaskerOn.

virtual void DtPropulsionNoiseStateRepository::setPassiveParameterIndex ( DtU16  val )

virtual

Set the PassiveParameterIndex.

virtual void DtPropulsionNoiseStateRepository::setPropulsionPlantConfiguration ( DtUnderwaterAcousticPropulsionPlantConfig  val )

virtual

Set the PropulsionPlantConfiguration.

virtual void DtPropulsionNoiseStateRepository::setShaftRateData ( const std::vector< DtUnderwaterAcousticShaftSpeed > &  val )

virtual

Set the ShaftRateData.

virtual const std::vector<DtUnderwaterAcousticShaftSpeed>& DtPropulsionNoiseStateRepository::shaftRateData ( ) const

virtual

Get the ShaftRateData.

Member Data Documentation

bool DtPropulsionNoiseStateRepository::myHullMaskerOn

protected

DtU16 DtPropulsionNoiseStateRepository::myPassiveParameterIndex

protected

DtUnderwaterAcousticPropulsionPlantConfig DtPropulsionNoiseStateRepository::myPropulsionPlantConfiguration

protected

std::vector<DtUnderwaterAcousticShaftSpeed> DtPropulsionNoiseStateRepository::myShaftRateData

protected

---

The documentation for this class was generated from the following file:

• propulsionNoiseStateRepository.h
