DtReflectedObject Class Reference

Instances of DtReflectedObject are used to represent a simulation entity reflected across a network (i.e. More...

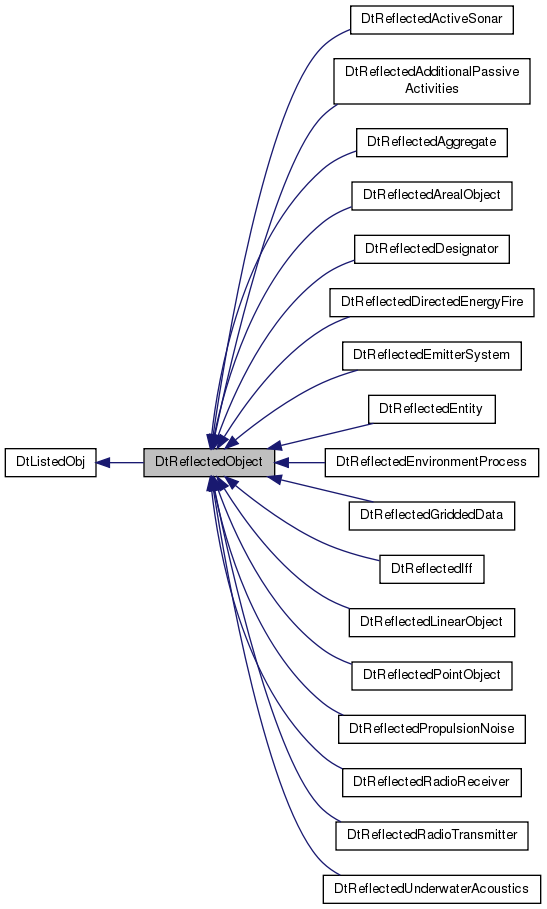

Inheritance diagram for DtReflectedObject:

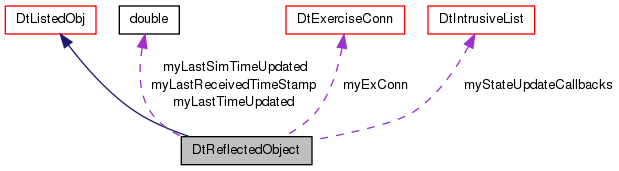

Collaboration diagram for DtReflectedObject:

Public Member Functions
	DtReflectedObject (DtExerciseConn *conn)
	constructor
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	stateRep () const =0
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtTime	lastTimeUpdated () const
	Returns the value of wallclock time at the time an update was last received for the entity.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of sim time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value in seconds past the hour of the timeStamp from the last received PDU.
virtual void	processStateMessage (const DtStateMsg &msg)
	Process an entity state PDU.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
virtual const DtBaseHashKey &	hashKey () const =0
	Get a hash key for this object.
virtual DtString	idString () const =0
	Get a string identification of this object.
virtual const DtGlobalObjectDesignator &	globalId () const =0
	Get the Global ID for this object.
Public Member Functions inherited from DtListedObj
	DtListedObj ()
	Constructor.
virtual	~DtListedObj ()
	Destructor.
void *	next () const
	Return next (previous) elements on the list, or NULL if hit the end (beginning) of the list.
void *	prev () const
void *	wrapNext () const
	Return next (previous) elements on the list, but wrap to the beginning (end) of the list when you hit the end (beginning).
void *	wrapPrev () const

Protected Member Functions
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – not implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – not implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
DtExerciseConn *	myExConn
DtIntrusiveList	myStateUpdateCallbacks
DtTime	myLastTimeUpdated
DtTime	myLastSimTimeUpdated
DtTime	myLastReceivedTimeStamp
Protected Attributes inherited from DtListedObj
DtList *	myList
DtListItem *	myItem

Detailed Description

Instances of DtReflectedObject are used to represent a simulation entity reflected across a network (i.e.

this is not a full simulation running on this machine).

Constructor & Destructor Documentation

DtReflectedObject::DtReflectedObject

(

DtExerciseConn *

conn

)

constructor

virtual DtReflectedObject::~DtReflectedObject ( )

virtual

destructor

DtReflectedObject::DtReflectedObject ( const DtReflectedObject &  orig )

protected

copy constructor – not implemented

Member Function Documentation

virtual void DtReflectedObject::baseAddPostUpdateCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

Object state callback registration/deregistration.

virtual void DtReflectedObject::baseRemovePostUpdateCallback ( DtReflectedObjectCallbackFunction  cb, void *  userData  )

virtual

virtual const DtGlobalObjectDesignator& DtReflectedObject::globalId ( ) const

pure virtual

Get the Global ID for this object.

Implemented in DtReflectedDesignator, DtReflectedIff, DtReflectedUnderwaterAcoustics, DtReflectedActiveSonar, DtReflectedEmitterSystem, DtReflectedAdditionalPassiveActivities, DtReflectedDirectedEnergyFire, DtReflectedPropulsionNoise, DtReflectedPointObject, DtReflectedArealObject, DtReflectedLinearObject, DtReflectedEntity, DtReflectedEnvironmentProcess, DtReflectedGriddedData, DtReflectedRadioReceiver, DtReflectedRadioTransmitter, and DtReflectedAggregate.

virtual const DtBaseHashKey& DtReflectedObject::hashKey ( ) const

pure virtual

Get a hash key for this object.

Implemented in DtReflectedEntity, DtReflectedRadioReceiver, DtReflectedRadioTransmitter, DtReflectedEnvironmentProcess, DtReflectedGriddedData, DtReflectedAggregate, DtReflectedIff, DtReflectedDesignator, DtReflectedUnderwaterAcoustics, DtReflectedActiveSonar, DtReflectedEmitterSystem, DtReflectedAdditionalPassiveActivities, DtReflectedDirectedEnergyFire, DtReflectedPropulsionNoise, DtReflectedPointObject, DtReflectedArealObject, and DtReflectedLinearObject.

virtual DtString DtReflectedObject::idString ( ) const

pure virtual

Get a string identification of this object.

Implemented in DtReflectedEntity, DtReflectedRadioReceiver, DtReflectedRadioTransmitter, DtReflectedEnvironmentProcess, DtReflectedGriddedData, DtReflectedAggregate, DtReflectedIff, DtReflectedDesignator, DtReflectedUnderwaterAcoustics, DtReflectedActiveSonar, DtReflectedEmitterSystem, DtReflectedAdditionalPassiveActivities, DtReflectedDirectedEnergyFire, DtReflectedPropulsionNoise, DtReflectedPointObject, DtReflectedArealObject, and DtReflectedLinearObject.

virtual DtTime DtReflectedObject::lastReceivedTimeStamp ( ) const

virtual

Returns the value in seconds past the hour of the timeStamp from the last received PDU.

virtual DtTime DtReflectedObject::lastSimTimeUpdated ( ) const

virtual

Returns the value of sim time at the time an update was last received for the entity.

virtual DtTime DtReflectedObject::lastTimeUpdated ( ) const

virtual

Returns the value of wallclock time at the time an update was last received for the entity.

virtual DtReflectedObject* DtReflectedObject::nextObj ( ) const

virtual

Get the next remote object.

DtReflectedObject& DtReflectedObject::operator= ( const DtReflectedObject &  orig )

protected

assignment operator – not implemented

virtual DtReflectedObject* DtReflectedObject::prevObj ( ) const

virtual

Get the previous remote object.

virtual void DtReflectedObject::processPostUpdateCallbacks ( )

protectedvirtual

Process the post update callbacks.

virtual void DtReflectedObject::processStateMessage ( const DtStateMsg &  msg )

virtual

Process an entity state PDU.

Reimplemented in DtReflectedRadioReceiver, DtReflectedRadioTransmitter, DtReflectedEntity, DtReflectedEnvironmentProcess, DtReflectedGriddedData, DtReflectedAggregate, DtReflectedIff, DtReflectedUnderwaterAcoustics, DtReflectedActiveSonar, DtReflectedAdditionalPassiveActivities, DtReflectedDesignator, DtReflectedEmitterSystem, DtReflectedPropulsionNoise, DtReflectedDirectedEnergyFire, DtReflectedPointObject, DtReflectedArealObject, and DtReflectedLinearObject.

virtual DtStateRepository* DtReflectedObject::sr ( ) const

virtual

Synonym for stateRep().

virtual DtStateRepository* DtReflectedObject::stateRep ( ) const

pure virtual

Returns a pointer to the StateRepository - through which you can inspect current state information.

Implemented in DtReflectedEntity, DtReflectedAggregate, DtReflectedIff, DtReflectedEnvironmentProcess, DtReflectedGriddedData, DtReflectedRadioReceiver, DtReflectedRadioTransmitter, DtReflectedEmitterSystem, DtReflectedUnderwaterAcoustics, DtReflectedActiveSonar, DtReflectedAdditionalPassiveActivities, DtReflectedDesignator, DtReflectedDirectedEnergyFire, DtReflectedPropulsionNoise, DtReflectedPointObject, DtReflectedArealObject, and DtReflectedLinearObject.

virtual DtReflectedObject* DtReflectedObject::wrapNextObj ( ) const

virtual

Get the next remote object.

Will cycle back to the first remote object.

virtual DtReflectedObject* DtReflectedObject::wrapPrevObj ( ) const

virtual

Get the previous remote object.

Will cycle back to the last remote object.

Member Data Documentation

DtExerciseConn* DtReflectedObject::myExConn

protected

DtTime DtReflectedObject::myLastReceivedTimeStamp

protected

DtTime DtReflectedObject::myLastSimTimeUpdated

protected

DtTime DtReflectedObject::myLastTimeUpdated

protected

DtIntrusiveList DtReflectedObject::myStateUpdateCallbacks

protected

---

The documentation for this class was generated from the following file:

• reflectedObjectDIS.h
