DtFom Class Reference

Represents a particular FOM, as described by a FED file. More...

Inheritance diagram for DtFom:

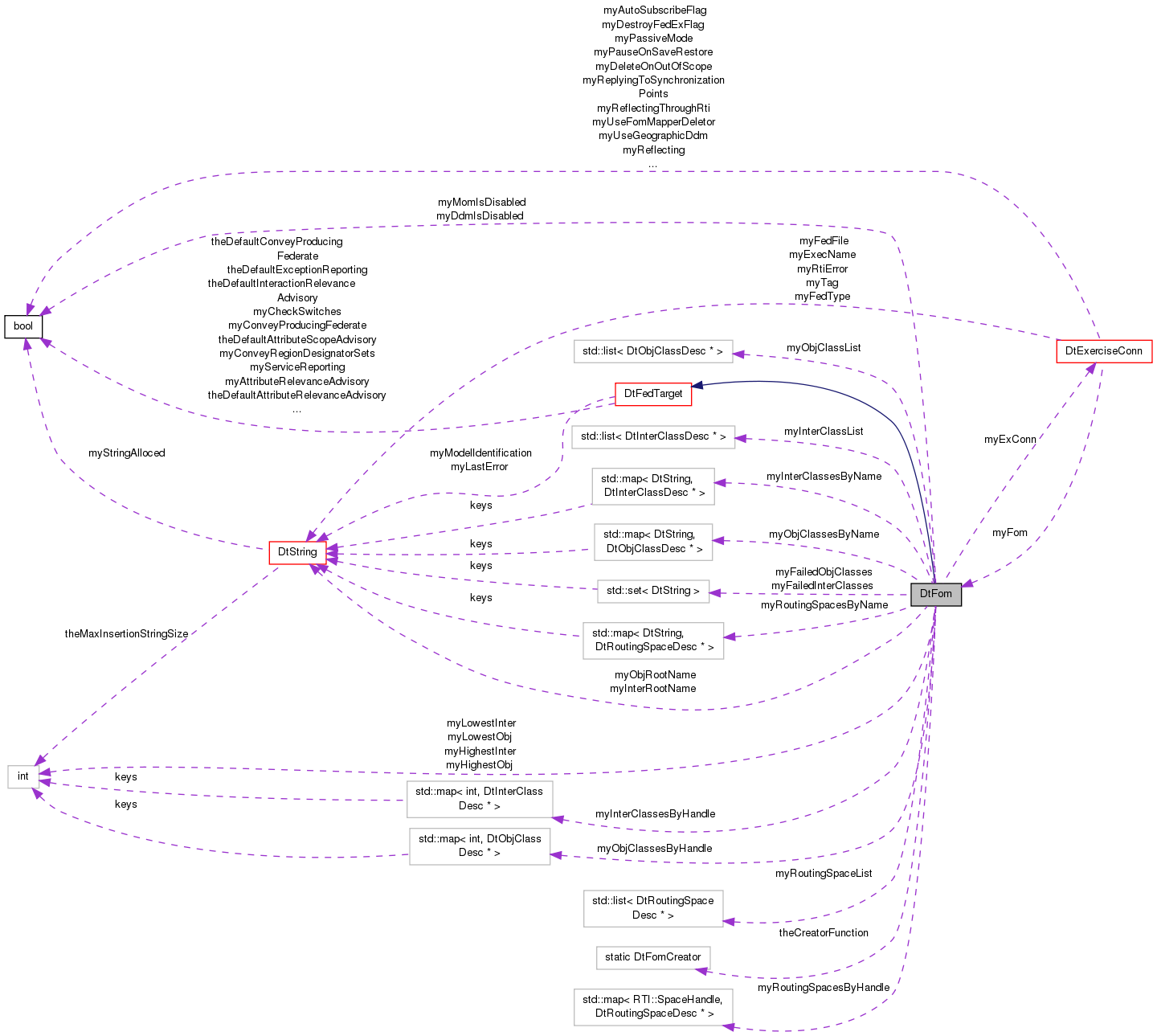

Collaboration diagram for DtFom:

Public Member Functions
	DtFom (DtExerciseConn *exConn)
	Constructor.
virtual	~DtFom ()
	Destructor.
	DtFom (const DtFom &orig)
	copy constructor
DtFom &	operator= (const DtFom &orig)
	assignment operator
virtual DtFedReadStatus	readFed (const DtString &fedFile, const std::vector< std::wstring > &fomModules, const DtString &mimModule, bool strictCheckingEnabled, bool useDTD, bool dontParseSwitches)
	Read a vector of create merging them into this as they're read.
virtual void	addSpace (const char *name)
	Define a routing space. Used when initializing from FED file.
virtual void	addDimension (const char *spaceName, const char *dimName)
	Define a dimension within a routing space.
virtual bool	addInterClass (const char *name, const char *baseName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define a class.
virtual bool	shouldPrintMissingClass (const char *name)
	Controls whether to print missing classes.
virtual bool	addObjClass (const char *name, const char *baseName)
	Define a class.
virtual void	addParameter (const char *className, const char *paramName)
	Define an parameter of a class.
virtual bool	addInteractionDimension (const char *interactionName, const char *dimension)
	Add regions to the class Return true if add was successful (i.e., dimension is valid)
virtual void	addAttribute (const char *className, const char *attrName, DtTransportType transport, DtOrderType order, const char *space=NULL)
	Define an attribute of a class.
void	addAttribute (const char *className, const char *attrName, DtTransportType transport, DtOrderType order, DtSharingType sharing, DtFomUpdateType updateType, const DtString &updateCondition, DtOwnershipType ownershipType, const DtString &semantics, const char *spaceName=NULL)
	Define an attribute of a class.
virtual bool	addAttributeDimension (const char *className, const char *attrName, const char *dimName)
	Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)
virtual DtRoutingSpaceDesc *	spaceByName (const char *name) const
	Returns the space descriptor for the name.
virtual DtRoutingSpaceDesc *	spaceByHandle (RTI::SpaceHandle handle) const
	Returns the space descriptor for the handle.
virtual RTI::DimensionHandle	dimensionHandle (const char *spaceName, const char *dimensionName) const
	Returns the handle for the name.
virtual const DtString &	dimensionName (const char *spaceName, RTI::DimensionHandle dimHandle) const
	Returns the name for the handle.
virtual DtInterClassDesc *	interClassByName (const char *name) const
	Returns the class descriptor for the name.
virtual DtObjClassDesc *	objClassByName (const char *name) const
	Returns the class descriptor for the name.
virtual DtInterClassDesc *	interClassByHandle (RTI::InteractionClassHandle handle) const
	Returns the class descriptor for the handle.
virtual DtObjClassDesc *	objClassByHandle (RTI::ObjectClassHandle handle) const
	Returns the class descriptor for the handle.
virtual const std::list < DtInterClassDesc * > &	interClassList () const
	interClassList() and objClassList() provide return a list of interaction and object classes.
virtual const std::list < DtObjClassDesc * > &	objClassList () const
virtual DtObjClassDesc *	firstObjClass () const
	Returns the first, last and next object classes in the FOM.
virtual DtObjClassDesc *	lastObjClass () const
virtual DtObjClassDesc *	nextObjClass (DtObjClassDesc *current) const
virtual DtInterClassDesc *	firstInterClass () const
	Returns the first, last and next interaction class in the FOM.
virtual DtInterClassDesc *	lastInterClass () const
virtual DtInterClassDesc *	nextInterClass (DtInterClassDesc *current) const
virtual DtVrlRtiAmbassador *	rtiAmb () const
	Returns our RTI ambassador.
virtual void	print () const
	Prints the contents of the FOM.
int	minObjClassHandle () const
	Returns the minimum and maximum interaction and object class handles in the FOM.
int	maxObjClassHandle () const
int	minInterClassHandle () const
int	maxInterClassHandle () const
int	numObjClasses () const
	Returns number of object or interaction classes in the FOM.
int	numInterClasses () const
bool	isDdmDisabled () const
	These variables determine if certain HLA services do not exist (For example, on lightweight mode).
void	setIsDdmDisabled (bool val)
bool	isMomIsDisabled () const
void	setIsMomIsDisabled (bool val)
Public Member Functions inherited from DtFedTarget
	DtFedTarget ()
	Constructor.
virtual	~DtFedTarget ()
	Destructor.
	DtFedTarget (const DtFedTarget &orig)
	copy constructor
DtFedTarget &	operator= (const DtFedTarget &orig)
	assignment operator
virtual void	setFomType (DtFomType type)
	Set/Get the FOM type.
virtual DtFomType	fomType ()
virtual void	addDimension (const char *dimName, unsigned long upperBound, unsigned long defaultLowerBound, unsigned long defaultUpperBound, bool excluded, const DtString &normalization)
	Define a dimension. Used when initializing from FED file.
virtual bool	autoProvide () const
	switches
virtual void	setAutoProvide (bool value)
virtual bool	conveyRegionDesignatorSets () const
	Set/Get convey region designator sets switch.
virtual void	setConveyRegionDesignatorSets (bool value)
virtual bool	conveyProducingFederate () const
	Set/Get convey producing federate switch.
virtual void	setConveyProducingFederate (bool value)
virtual bool	attributeScopeAdvisory () const
	Set/Get attribute scople advisory switch.
virtual void	setAttributeScopeAdvisory (bool value)
virtual bool	attributeRelevanceAdvisory () const
	Set/Get attribute relevance advisory switch.
virtual void	setAttributeRelevanceAdvisory (bool value)
virtual bool	objectClassRelevanceAdvisory () const
	Set/Get object class relevance advisory switch.
virtual void	setObjectClassRelevanceAdvisory (bool value)
virtual bool	interactionRelevanceAdvisory () const
	Set/Get ineraction relevance advisory switch.
virtual void	setInteractionRelevanceAdvisory (bool value)
virtual bool	serviceReporting () const
	Set/Get service reporting switch.
virtual void	setServiceReporting (bool value)
virtual bool	exceptionReporting () const
	Set/Get exception reporting switch.
virtual void	setExceptionReporting (bool value)
virtual bool	delaySubscriptionEvaluation () const
	Set/Get delay subscription evaluation switch.
virtual void	setDelaySubscriptionEvaluation (bool value)
virtual DtResignAction	automaticResignAction () const
	Set/Get Automatic Resign Action switch.
virtual void	setAutomaticResignAction (DtResignAction value)
virtual bool	UpdateRateConsistencyTest (const DtUpdateRateType &updateRate)
virtual bool	knownUpdateRate (const DtUpdateRateType &updateRate) const
virtual unsigned int	numUpdateRates () const
virtual void	addUpdateRate (DtUpdateRateType *updateRate)
virtual bool	SyncPointConsistencyTest (const DtSynchronizationPointsType &syncName)
virtual bool	knownSyncPoint (const DtSynchronizationPointsType &syncName) const
virtual void	addSyncPoint (DtSynchronizationPointsType *syncName)
virtual unsigned int	numSyncPoints () const
virtual bool	knownTransportType (const DtTransportationType &transportName) const
virtual bool	TransportTypeConsistencyTest (const DtTransportationType &transportName)
virtual unsigned int	numTransports () const
virtual void	addTransportType (DtTransportationType *transportName)
virtual DtTransportType	transportTypeFromTransportation (const DtString &transportTypeName) const
virtual bool	knownUserDefinedTag (const DtUserSuppliedTagsType &tagName) const
virtual unsigned int	numUserDefinedTags () const
virtual bool	userDefinedTagsSame (DtFedTarget const &module) const
virtual void	addUserDefinedTag (DtUserSuppliedTagsType *tagName)
virtual DtMergeFomStatus	mergeUserDefinedTypes (DtFedTarget const &module)
virtual bool	NoteConsistencyTest (const DtNotesType &syncName)
virtual bool	knownNote (const DtNotesType &noteName) const
virtual void	addNote (DtNotesType *noteName)
virtual unsigned int	numNotes () const
virtual DtMergeFomStatus	mergeSwitches (DtFedTarget const &module)
virtual bool	knownSwitch (const DtString &switchName) const
virtual unsigned int	numSwitches () const
virtual bool	switchesSame (DtFedTarget const &module) const
virtual bool	switchValue (const DtString &switchName) const
virtual void	addSwitch (const DtString &switchName, bool switchVal)
virtual DtMergeFomStatus	mergeNotes (DtFedTarget const &module)
virtual bool	knownTime (const DtTimeType &timeName) const
virtual unsigned int	numTimeTypes () const
virtual bool	timeTypesSame (DtFedTarget const &module) const
virtual void	addTime (DtTimeType *timeName)
virtual DtMergeFomStatus	mergeTimeTypes (DtFedTarget const &module)
virtual void	addModelIdentification (const char *nameTag)
virtual DtMergeFomStatus	mergeTarget (DtFedTarget const &module)
virtual DtMergeFomStatus	mergeSpaces (DtFedTarget const &module)
virtual DtMergeFomStatus	mergeUpdateRates (DtFedTarget const &module)
virtual DtMergeFomStatus	mergeSyncPoints (DtFedTarget const &module)
virtual DtMergeFomStatus	mergeTransportTypes (DtFedTarget const &module)
virtual DtMergeFomStatus	postMergeCheckTarget (DtString &errorString)
virtual bool	resolveObjectModelIdentification (DtString &errorString)
virtual bool	resolveObjectClasses (DtString &errorString, bool &fomReadError)
virtual bool	resolveInteractionClasses (DtString &errorString, bool &fomReadError)
virtual bool	resolveAttributes (DtString &errorString, bool &fomReadError)
virtual bool	resolveParameters (DtString &errorString, bool &fomReadError)
virtual bool	resolveDimensions (DtString &errorString, bool &fomReadError)
virtual bool	resolveTimeRepresentations (DtString &errorString)
virtual bool	resolveUserSuppliedTags (DtString &errorString)
virtual bool	resolveSynchronizationPoints (DtString &errorString)
virtual bool	resolveTranportationTypes (DtString &errorString)
virtual bool	resolveUpdateRates (DtString &errorString)
virtual bool	resolveSwitches (DtString &errorString)
void	checkSpecificSwitch (const DtString &switchName, bool &mySwitchMissing, DtString &mySwitchesError)
virtual bool	resolveDatatypes (DtString &errorString)
virtual bool	resolveNotes (DtString &errorString)
virtual bool	resolveServiceUsage (DtString &errorString)
virtual void	addBasicDataRepresentation (DtBasicDataRepresentationType *theBasicDataRepresentation)
virtual void	addSimpleDataType (DtSimpleDatatypeType *theSimpleDataType)
virtual void	addArrayDataType (DtArrayDatatypeType *theArrayDataType)
virtual void	addEnumeratedDataType (DtEnumeratedDatatypeType *theEnumeratedDataType)
virtual void	addFixedRecordDataType (DtFixedRecordDatatypeType *theFixedRecordDataType)
virtual void	addVariantRecordDataType (DtVariantRecordDatatypeType *theVariantRecordDataType)
virtual bool	knownModelIdentification (DtString const &nameTag) const
virtual bool	modelIdentificationSame (DtFedTarget const &module) const
virtual bool	basicDataRepresentationConsistencyTest (const DtBasicDataRepresentationType &theBasicDataRepresentation)
virtual bool	knownBasicDataRepresentation (const DtBasicDataRepresentationType &theBasicDataRepresentation) const
virtual bool	basicDataRepresentationSame (DtFedTarget const &module) const
virtual DtMergeFomStatus	mergeBasicDataRepresentation (DtFedTarget const &module)
virtual bool	simpleDatatypeConsistencyTest (const DtSimpleDatatypeType &theSimpleDatatype)
virtual bool	knownSimpleDatatype (const DtSimpleDatatypeType &theSimpleDatatype) const
virtual bool	simpleDatatypeSame (DtFedTarget const &module) const
virtual DtMergeFomStatus	mergeSimpleDatatype (DtFedTarget const &module)
virtual bool	enumeratedDatatypeConsistencyTest (const DtEnumeratedDatatypeType &theSimpleDatatype)
virtual bool	knownEnumeratedDatatype (const DtEnumeratedDatatypeType &theEnumeratedDatatype) const
virtual bool	enumeratedDatatypeSame (DtFedTarget const &module) const
virtual DtMergeFomStatus	mergeEnumeratedDatatype (DtFedTarget const &module)
virtual bool	arrayDatatypeConsistencyTest (const DtArrayDatatypeType &DtArrayDatatypeType)
virtual bool	knownArrayDatatype (const DtArrayDatatypeType &theArrayDatatype) const
virtual bool	arrayDatatypeSame (DtFedTarget const &module) const
virtual DtMergeFomStatus	mergeArrayDatatypeType (DtFedTarget const &module)
virtual bool	fixedRecordDatatypeConsistencyTest (const DtFixedRecordDatatypeType theFixedRecordDatatype)
virtual bool	knownFixedRecordDatatype (const DtFixedRecordDatatypeType theFixedRecordDatatype) const
virtual bool	fixedRecordDatatypeSame (DtFedTarget const &module) const
virtual DtMergeFomStatus	mergeFixedRecordDatatype (DtFedTarget const &module)
virtual bool	variantRecordDatatypeConsistencyTest (const DtVariantRecordDatatypeType &theVariantRecordDatatype)
virtual bool	knownVariantRecordDatatype (const DtVariantRecordDatatypeType &theVariantRecordDatatype) const
virtual bool	variantRecordDatatypeSame (DtFedTarget const &module) const
DtMergeFomStatus	mergeVariantRecordDatatype (DtFedTarget const &module)
virtual void	addUnresolvedAttributeTransportation (const DtString &transportationName, const DtString &className, const DtString &attrName)
virtual void	removeResolvedAttributeTransportation (const DtString &transportationName, ClassAttributeNamePair classAttrPair)
virtual void	addUnresolvedInteractionTransportation (const DtString &transportationName, const DtString &interactionName)
virtual void	removeResolvedInteractionTransportation (const DtString &transportationName, const DtString &interactionName)
virtual DtString &	lastError ()

Static Public Member Functions
static void	setFomCreator (DtFomCreator)
	set creator function
static DtFom *	create (DtExerciseConn *exConn)
	creator function
static void	setIntersection (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Attribute Handle Set operations These operations append to destination (i.e., do not begin by clearing out destination)
static void	setUnion (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Union of attribute handle sets is added to the destination.
static void	setDifference (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Difference of attribute handle set2 from set1 is added to the destination.
static void	setSymmetricDifference (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2, RTI::AttributeHandleSet &destinationSet)
	Symmetric difference of attribute handle set1 and set2 is added to the destination (s1-s2 U s2-s1)
static bool	setsEqual (const RTI::AttributeHandleSet &set1, const RTI::AttributeHandleSet &set2)
	Determine if the 2 sets are equal Return bool: s1 == set2.
static void	setInsert (RTI::AttributeHandleSet &handleSet, const RTI::AttributeHandle &handle)
	Add handle to set.
static void	setInsert (RTI::AttributeHandleSet &destinationSet, const RTI::AttributeHandleSet &sourceSet)
	Add source attributes to destination set.
static void	setRemove (RTI::AttributeHandleSet &handleSet, const RTI::AttributeHandle &handle)
	Remove handle from set.
static void	setRemove (RTI::AttributeHandleSet &destinationSet, const RTI::AttributeHandleSet &sourceSet)
	Remove source attributes from destination set.
static void	setClear (RTI::AttributeHandleSet &handleSet)
	Clear or empty the given set.
Static Public Member Functions inherited from DtFedTarget
static void	setDefaultAutoProvide (bool onOff)
	Set/Get the default auto provide.
static bool	defaultAutoProvide ()
static void	setDefaultConveyRegionDesignatorSets (bool onOff)
	Set/Get the default convey region.
static bool	defaultConveyRegionDesignatorSets ()
static void	setDefaultConveyProducingFederate (bool onOff)
	Set/Get the default convey producing federate.
static bool	defaultConveyProducingFederate ()
static void	setDefaultObjectClassRelevanceAdvisory (bool onOff)
	Set/Get the default class relevance advisory.
static bool	defaultObjectClassRelevanceAdvisory ()
static void	setDefaultAttributeRelevanceAdvisory (bool onOff)
	Set/Get the default attribute relevance advisory.
static bool	defaultAttributeRelevanceAdvisory ()
static void	setDefaultAttributeScopeAdvisory (bool onOff)
	Set/Get the default attribute scope advisory.
static bool	defaultAttributeScopeAdvisory ()
static void	setDefaultInteractionRelevanceAdvisory (bool onOff)
	Set/Get the default interaction relevance advisory.
static bool	defaultInteractionRelevanceAdvisory ()
static void	setDefaultServiceReporting (bool onOff)
	Set/Get the default service reporting.
static bool	defaultServiceReporting ()
static void	setDefaultExceptionReporting (bool onOff)
	set/get the default exception reporting
static bool	defaultExceptionReporting ()
static void	setDefaultAutomaticResignAction (DtResignAction val)
	set/get the automatic resign action
static DtResignAction	defaultAutomaticResignAction ()

Protected Member Functions
virtual DtMergeFomStatus	mergeObjectClasses (const DtFom &module)
	Merge the object classes of the specified FomMgr with this.
virtual DtMergeFomStatus	mergeObjClassDesc (const DtObjClassDesc *desc)
	Merge the contents of the objClassDesc with this.
virtual DtMergeFomStatus	mergeInteractionClasses (const DtFom &module)
	Merge the contents of the specified interactionClasses with this.
virtual DtMergeFomStatus	mergeIntClassDesc (const DtInterClassDesc *desc)
	Merge the contents of the InteractionClassDescription with this.
virtual DtMergeFomStatus	mergeObjectClasses (const DtFedTarget &module)
	Merge the object classes of the specified FomMgr with this.
virtual DtMergeFomStatus	mergeInteractionClasses (const DtFedTarget &module)
	Merge the contents of the specified interactionClasses with this.
virtual bool	resolveAttributeDimensions ()
Protected Member Functions inherited from DtFedTarget
virtual void	addUnresolvedAttributeDimension (const DtString &dimensionName, const DtString &className, const DtString &attrName)
virtual void	removeResolvedAttribute (const DtString &dimensionName, ClassAttributeNamePair classAttrPair)
virtual void	addUnresolvedInteractionDimension (const DtString &dimensionName, const DtString &interactionName)
virtual void	removeResolvedInteractionDimension (const DtString &dimensionName, const DtString &interactionName)
virtual void	mergeUnresolved (DtFedTarget const &module)
virtual void	unionUnresolvedAttributeDimensions (const std::map< DtString, std::set< ClassAttributeNamePair > > &unresolvedAttributeDimensions)
virtual void	unionUnresolvedInteractionDimensions (const std::map< DtString, std::set< DtString > > &unresolvedInteractionDimensions)
virtual void	unionUnresolvedAttributeTransportation (const std::map< DtString, std::set< ClassAttributeNamePair > > &unresolvedAttributetransportations)
virtual void	unionUnresolvedInteractionTransportation (const std::map< DtString, std::set< DtString > > &unresolvedInteractiontransportations)
virtual bool	checkStringsIgnoringWhiteSpaceAndNewline (const DtString &left, const DtString &right)

Protected Attributes
DtExerciseConn *	myExConn
std::map< DtString, DtRoutingSpaceDesc * >	myRoutingSpacesByName
	Hash lists that map class names (DtStringHashKeys) to descriptor pointers.
std::map< DtString, DtInterClassDesc * >	myInterClassesByName
std::map< DtString, DtObjClassDesc * >	myObjClassesByName
std::map< RTI::SpaceHandle, DtRoutingSpaceDesc * >	myRoutingSpacesByHandle
	Hash lists that map class handles (DtIntHashKeys) to DtObjClassDesc pointers.
std::map< int, DtInterClassDesc * >	myInterClassesByHandle
std::map< int, DtObjClassDesc * >	myObjClassesByHandle
std::list< DtRoutingSpaceDesc * >	myRoutingSpaceList
	List of descriptors.
std::list< DtObjClassDesc * >	myObjClassList
std::list< DtInterClassDesc * >	myInterClassList
int	myLowestObj
int	myHighestObj
int	myLowestInter
int	myHighestInter
DtString	myObjRootName
DtString	myInterRootName
std::set< DtString >	myFailedObjClasses
std::set< DtString >	myFailedInterClasses
bool	myDdmIsDisabled
bool	myMomIsDisabled
Protected Attributes inherited from DtFedTarget
std::map< DtString, std::set < ClassAttributeNamePair > >	unresolvedAttributeDimensions
std::map< DtString, std::set < DtString > >	unresolvedInteractionDimensions
std::map< DtString, std::set < ClassAttributeNamePair > >	unresolvedAttributeTransportations
std::map< DtString, std::set < DtString > >	unresolvedInteractionTransportations

Static Protected Attributes
static DtFomCreator	theCreatorFunction
Static Protected Attributes inherited from DtFedTarget
static bool	theDefaultAutoProvide
static bool	theDefaultConveyRegionDesignatorSets
static bool	theDefaultConveyProducingFederate
static bool	theDefaultObjectClassRelevanceAdvisory
static bool	theDefaultAttributeRelevanceAdvisory
static bool	theDefaultAttributeScopeAdvisory
static bool	theDefaultInteractionRelevanceAdvisory
static bool	theDefaultServiceReporting
static bool	theDefaultExceptionReporting
static DtResignAction	theDefaultAutomaticResignAction

Additional Inherited Members
Public Types inherited from DtFedTarget
typedef std::set < DtBoost::shared_ptr < DtBasicDataRepresentationType > , FomTypeCompare < DtBasicDataRepresentationType > >	DtBasicDataRepresentationSetT
	Datatype tables (six in total)
typedef std::set < DtBoost::shared_ptr < DtSimpleDatatypeType > , FomTypeCompare < DtSimpleDatatypeType > >	DtSimpleDatatypeSetT
typedef std::set < DtBoost::shared_ptr < DtEnumeratedDatatypeType > , FomTypeCompare < DtEnumeratedDatatypeType > >	DtEnumeratedDatatypeSetT
typedef std::set < DtBoost::shared_ptr < DtArrayDatatypeType > , FomTypeCompare < DtArrayDatatypeType > >	DtArrayDatatypeSetT
typedef std::set < DtBoost::shared_ptr < DtFixedRecordDatatypeType > , FomTypeCompare < DtFixedRecordDatatypeType > >	DtFixedRecordDatatypeSetT
typedef std::set < DtBoost::shared_ptr < DtVariantRecordDatatypeType > , FomTypeCompare < DtVariantRecordDatatypeType > >	DtVariantRecordDatatypeSetT
Public Attributes inherited from DtFedTarget
DtFomType	myFomType
DtString	myModelIdentification
bool	myAutoProvide
bool	myConveyRegionDesignatorSets
bool	myConveyProducingFederate
bool	myAttributeScopeAdvisory
bool	myAttributeRelevanceAdvisory
bool	myObjectClassRelevanceAdvisory
bool	myInteractionRelevanceAdvisory
bool	myServiceReporting
bool	myExceptionReporting
bool	myDelaySubscriptionEvaluation
DtResignAction	myAutomaticResignAction
bool	isStrictMerge
bool	myCheckSwitches
DtTimeTypeSetT	myTimeTypes
DtUserDefinedTagsSetT	myUserDefinedTags
DtSyncPointSetT	mySyncPoints
DtTransportationSetT	myTransportTypes
DtUpdateRateSetT	myUpdateRates
DtNotesSetT	myNotes
std::map< DtString, bool >	mySwitches
DtBasicDataRepresentationSetT	myBasicDataRepTypes
DtSimpleDatatypeSetT	mySimpleDatatypeTypes
DtEnumeratedDatatypeSetT	myEnumeratedDatatypeTypes
DtArrayDatatypeSetT	myArrayDatatypeTypes
DtFixedRecordDatatypeSetT	myFixedRecordDatatypeTypes
DtVariantRecordDatatypeSetT	myVariantRecordDatatypeTypes
DtString	myLastError
bool	myErrorFlag
bool	myMergingFomModule
	Indicates a FOM module merge is taking place.

Detailed Description

Represents a particular FOM, as described by a FED file.

Object classes are represented by DtObjClassDescs; Interaction classes by DtInterClassDescs. Being a DtFedTarget, a DtFom can be filled in by a DtFedReader. Alternatively, you can fill it in programatically, with addObjClass, addInterClass, addParameter and addAttribute. Once so initialized, you can query for a class descriptor associated with a class.

Constructor & Destructor Documentation

DtFom::DtFom

(

DtExerciseConn *

exConn

)

Constructor.

virtual DtFom::~DtFom ( )

virtual

Destructor.

DtFom::DtFom

(

const DtFom &

orig

)

copy constructor

Member Function Documentation

virtual void DtFom::addAttribute ( const char *  className, const char *  attrName, DtTransportType  transport, DtOrderType  order, const char *  space = NULL  )

virtual

Define an attribute of a class.

Used when initializing from FED file.

Implements DtFedTarget.

void DtFom::addAttribute ( const char *  className, const char *  attrName, DtTransportType  transport, DtOrderType  order, DtSharingType  sharing, DtFomUpdateType  updateType, const DtString &  updateCondition, DtOwnershipType  ownershipType, const DtString &  semantics, const char *  spaceName = NULL  )

virtual

Define an attribute of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual bool DtFom::addAttributeDimension ( const char *  className, const char *  attrName, const char *  dimName  )

virtual

Define the dimensions of an attribute Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual void DtFom::addDimension ( const char *  spaceName, const char *  dimName  )

virtual

Define a dimension within a routing space.

Used when initializing from FED file.

Reimplemented from DtFedTarget.

virtual bool DtFom::addInteractionDimension ( const char *  interactionName, const char *  dimension  )

virtual

Add regions to the class Return true if add was successful (i.e., dimension is valid)

Implements DtFedTarget.

virtual bool DtFom::addInterClass ( const char *  name, const char *  baseName, DtTransportType  transport, DtOrderType  order, const char *  space = NULL  )

virtual

Define a class.

Used when initializing from FED file. Return bool: add was successful?

Implements DtFedTarget.

virtual bool DtFom::addObjClass ( const char *  name, const char *  baseName  )

virtual

Define a class.

Used when initializing from FED file. Return bool: add was successful?

Implements DtFedTarget.

virtual void DtFom::addParameter ( const char *  className, const char *  paramName  )

virtual

Define an parameter of a class.

Used when initializing from FED file.

Implements DtFedTarget.

virtual void DtFom::addSpace ( const char *  name )

virtual

Define a routing space. Used when initializing from FED file.

Reimplemented from DtFedTarget.

static DtFom* DtFom::create ( DtExerciseConn *  exConn )

static

creator function

virtual RTI::DimensionHandle DtFom::dimensionHandle ( const char *  spaceName, const char *  dimensionName  ) const

virtual

Returns the handle for the name.

virtual const DtString& DtFom::dimensionName ( const char *  spaceName, RTI::DimensionHandle  dimHandle  ) const

virtual

Returns the name for the handle.

virtual DtInterClassDesc* DtFom::firstInterClass ( ) const

virtual

Returns the first, last and next interaction class in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstInterClass; desc; desc = nextInterClass(desc))

virtual DtObjClassDesc* DtFom::firstObjClass ( ) const

virtual

Returns the first, last and next object classes in the FOM.

Next returns NULL if current is the last class, or if current is NULL. These functions facilitate looping through classes like this: for (desc = firstObjClass; desc; desc = nextObjClass(desc))

virtual DtInterClassDesc* DtFom::interClassByHandle ( RTI::InteractionClassHandle  handle ) const

virtual

Returns the class descriptor for the handle.

virtual DtInterClassDesc* DtFom::interClassByName ( const char *  name ) const

virtual

Returns the class descriptor for the name.

virtual const std::list<DtInterClassDesc*>& DtFom::interClassList ( ) const

virtual

interClassList() and objClassList() provide return a list of interaction and object classes.

These lists contain pointers to DtInterClassDesc and DtObjClassDesc, which can be accessed using the DtList API. This is provided to replace the firstObjClass/lastObjClass/nextObjClass functionality below.

bool DtFom::isDdmDisabled

(

)

const

These variables determine if certain HLA services do not exist (For example, on lightweight mode).

You can set them manually or they will be set automatically when we try to use these services.

bool DtFom::isMomIsDisabled

(

)

const

virtual DtInterClassDesc* DtFom::lastInterClass ( ) const

virtual

virtual DtObjClassDesc* DtFom::lastObjClass ( ) const

virtual

int DtFom::maxInterClassHandle

(

)

const

int DtFom::maxObjClassHandle

(

)

const

virtual DtMergeFomStatus DtFom::mergeIntClassDesc ( const DtInterClassDesc *  desc )

protectedvirtual

Merge the contents of the InteractionClassDescription with this.

virtual DtMergeFomStatus DtFom::mergeInteractionClasses ( const DtFom &  module )

protectedvirtual

Merge the contents of the specified interactionClasses with this.

virtual DtMergeFomStatus DtFom::mergeInteractionClasses ( const DtFedTarget &  module )

protectedvirtual

Merge the contents of the specified interactionClasses with this.

Reimplemented from DtFedTarget.

virtual DtMergeFomStatus DtFom::mergeObjClassDesc ( const DtObjClassDesc *  desc )

protectedvirtual

Merge the contents of the objClassDesc with this.

virtual DtMergeFomStatus DtFom::mergeObjectClasses ( const DtFom &  module )

protectedvirtual

Merge the object classes of the specified FomMgr with this.

virtual DtMergeFomStatus DtFom::mergeObjectClasses ( const DtFedTarget &  module )

protectedvirtual

Merge the object classes of the specified FomMgr with this.

Reimplemented from DtFedTarget.

int DtFom::minInterClassHandle

(

)

const

int DtFom::minObjClassHandle

(

)

const

Returns the minimum and maximum interaction and object class handles in the FOM.

Not every handle between min and max must be valid.

virtual DtInterClassDesc* DtFom::nextInterClass ( DtInterClassDesc *  current ) const

virtual

virtual DtObjClassDesc* DtFom::nextObjClass ( DtObjClassDesc *  current ) const

virtual

int DtFom::numInterClasses

(

)

const

int DtFom::numObjClasses

(

)

const

Returns number of object or interaction classes in the FOM.

virtual DtObjClassDesc* DtFom::objClassByHandle ( RTI::ObjectClassHandle  handle ) const

virtual

Returns the class descriptor for the handle.

virtual DtObjClassDesc* DtFom::objClassByName ( const char *  name ) const

virtual

Returns the class descriptor for the name.

virtual const std::list<DtObjClassDesc*>& DtFom::objClassList ( ) const

virtual

DtFom& DtFom::operator=

(

const DtFom &

orig

)

assignment operator

virtual void DtFom::print ( ) const

virtual

Prints the contents of the FOM.

virtual DtFedReadStatus DtFom::readFed ( const DtString &  fedFile, const std::vector< std::wstring > &  fomModules, const DtString &  mimModule, bool  strictCheckingEnabled, bool  useDTD, bool  dontParseSwitches  )

virtual

Read a vector of create merging them into this as they're read.

virtual bool DtFom::resolveAttributeDimensions ( )

protectedvirtual

DtVrlRtiAmbassador * DtFom::rtiAmb ( ) const

inlinevirtual

Returns our RTI ambassador.

References myExConn, and DtExerciseConn::rtiAmb().

static void DtFom::setClear ( RTI::AttributeHandleSet &  handleSet )

static

Clear or empty the given set.

static void DtFom::setDifference ( const RTI::AttributeHandleSet &  set1, const RTI::AttributeHandleSet &  set2, RTI::AttributeHandleSet &  destinationSet  )

static

Difference of attribute handle set2 from set1 is added to the destination.

static void DtFom::setFomCreator ( DtFomCreator  )

static

set creator function

static void DtFom::setInsert ( RTI::AttributeHandleSet &  handleSet, const RTI::AttributeHandle &  handle  )

static

Add handle to set.

static void DtFom::setInsert ( RTI::AttributeHandleSet &  destinationSet, const RTI::AttributeHandleSet &  sourceSet  )

static

Add source attributes to destination set.

static void DtFom::setIntersection ( const RTI::AttributeHandleSet &  set1, const RTI::AttributeHandleSet &  set2, RTI::AttributeHandleSet &  destinationSet  )

static

Attribute Handle Set operations These operations append to destination (i.e., do not begin by clearing out destination)

Intersection of attribute handle sets is added to the destination

void DtFom::setIsDdmDisabled

(

bool

val

)

void DtFom::setIsMomIsDisabled

(

bool

val

)

static void DtFom::setRemove ( RTI::AttributeHandleSet &  handleSet, const RTI::AttributeHandle &  handle  )

static

Remove handle from set.

static void DtFom::setRemove ( RTI::AttributeHandleSet &  destinationSet, const RTI::AttributeHandleSet &  sourceSet  )

static

Remove source attributes from destination set.

static bool DtFom::setsEqual ( const RTI::AttributeHandleSet &  set1, const RTI::AttributeHandleSet &  set2  )

static

Determine if the 2 sets are equal Return bool: s1 == set2.

static void DtFom::setSymmetricDifference ( const RTI::AttributeHandleSet &  set1, const RTI::AttributeHandleSet &  set2, RTI::AttributeHandleSet &  destinationSet  )

static

Symmetric difference of attribute handle set1 and set2 is added to the destination (s1-s2 U s2-s1)

static void DtFom::setUnion ( const RTI::AttributeHandleSet &  set1, const RTI::AttributeHandleSet &  set2, RTI::AttributeHandleSet &  destinationSet  )

static

Union of attribute handle sets is added to the destination.

virtual bool DtFom::shouldPrintMissingClass ( const char *  name )

virtual

Controls whether to print missing classes.

This returns true if the name passed in must be present when mixing protocols (do not print MOM failures)

virtual DtRoutingSpaceDesc* DtFom::spaceByHandle ( RTI::SpaceHandle  handle ) const

virtual

Returns the space descriptor for the handle.

virtual DtRoutingSpaceDesc* DtFom::spaceByName ( const char *  name ) const

virtual

Returns the space descriptor for the name.

Member Data Documentation

bool DtFom::myDdmIsDisabled

protected

DtExerciseConn* DtFom::myExConn

protected

Referenced by rtiAmb().

std::set<DtString> DtFom::myFailedInterClasses

protected

std::set<DtString> DtFom::myFailedObjClasses

protected

int DtFom::myHighestInter

protected

int DtFom::myHighestObj

protected

std::map<int, DtInterClassDesc*> DtFom::myInterClassesByHandle

protected

std::map<DtString, DtInterClassDesc*> DtFom::myInterClassesByName

protected

std::list<DtInterClassDesc*> DtFom::myInterClassList

protected

DtString DtFom::myInterRootName

protected

int DtFom::myLowestInter

protected

int DtFom::myLowestObj

protected

bool DtFom::myMomIsDisabled

protected

std::map<int, DtObjClassDesc*> DtFom::myObjClassesByHandle

protected

std::map<DtString, DtObjClassDesc*> DtFom::myObjClassesByName

protected

std::list<DtObjClassDesc*> DtFom::myObjClassList

protected

DtString DtFom::myObjRootName

protected

std::list<DtRoutingSpaceDesc*> DtFom::myRoutingSpaceList

protected

List of descriptors.

std::map<RTI::SpaceHandle, DtRoutingSpaceDesc*> DtFom::myRoutingSpacesByHandle

protected

Hash lists that map class handles (DtIntHashKeys) to DtObjClassDesc pointers.

std::map<DtString, DtRoutingSpaceDesc*> DtFom::myRoutingSpacesByName

protected

Hash lists that map class names (DtStringHashKeys) to descriptor pointers.

DtFomCreator DtFom::theCreatorFunction

staticprotected

---

The documentation for this class was generated from the following file:

• fom.h
