DtL16RadioSignalDecoder Class Reference

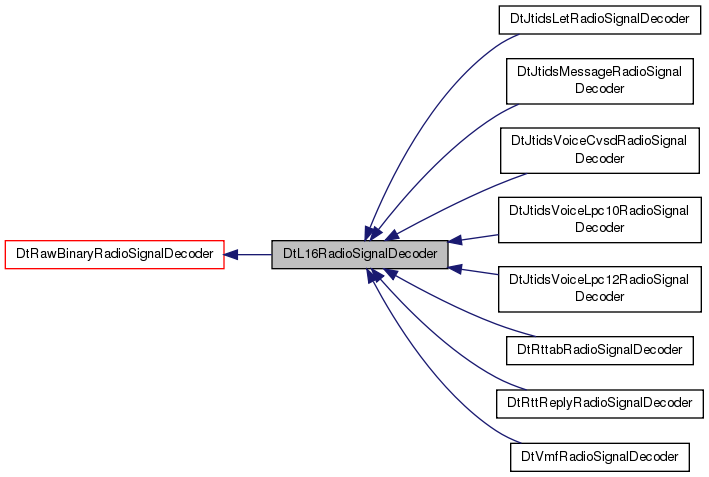

Inheritance diagram for DtL16RadioSignalDecoder:

Collaboration diagram for DtL16RadioSignalDecoder:

Public Member Functions
	DtL16RadioSignalDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	default constructor
virtual	~DtL16RadioSignalDecoder ()
	destructor
	DtL16RadioSignalDecoder (const DtL16RadioSignalDecoder &orig)
	copy constructor
DtL16RadioSignalDecoder &	operator= (const DtL16RadioSignalDecoder &orig)
	assignment operator
Public Member Functions inherited from DtRawBinaryRadioSignalDecoder
	DtRawBinaryRadioSignalDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	default constructor
virtual	~DtRawBinaryRadioSignalDecoder ()
	destructor
	DtRawBinaryRadioSignalDecoder (const DtRawBinaryRadioSignalDecoder &orig)
	copy constructor
DtRawBinaryRadioSignalDecoder &	operator= (const DtRawBinaryRadioSignalDecoder &orig)
	assignment operator
Public Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (DtExerciseConn *exConn, DtInterClassDesc *classDesc)
	constructor
virtual	~DtInteractionDecoder ()
	destructor
DtParameterDecoder	addDecoder (RTI::ParameterHandle handle, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by handle.
DtParameterDecoder	addDecoder (char *name, DtParameterDecoder proc)
	Add/Remove a decoding function for the parameter specified by name.
virtual DtParameterDecoder	decoder (RTI::ParameterHandle handle) const
	Get the parameter decoder for the specified handle.
virtual void	decode (DtInteractionRep *interaction, const RTI::ParameterHandleValuePairSet &pvList)
	Decode the interaction.
virtual RTI::InteractionClassHandle	interactionClassHandle ()
	Get the interaction's class handle.
virtual DtInteractionDecoder *	clone () const
	Returns a new-ed clone of this object.
virtual DtInteractionDecoder *	clone (DtInterClassDesc *interDesc) const
	Returns a new-ed clone of this object which corresponds to the inter description interDesc.

Protected Member Functions
	DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER (NPGNumber)
	DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER (NetNumber)
	DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER (MSEC_CVLL)
	DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER (TSEC_CVLL)
	DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER (TimeSlotID)
	DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER (PerceivedTransmitTime)
Protected Member Functions inherited from DtRawBinaryRadioSignalDecoder
	DtDECLARE_RAW_BIN_RADIO_SIGNAL_PARAM_DECODER (HostRadioIndex)
	DtDECLARE_RAW_BIN_RADIO_SIGNAL_PARAM_DECODER (DataRate)
	DtDECLARE_RAW_BIN_RADIO_SIGNAL_PARAM_DECODER (SignalDataLength)
	DtDECLARE_RAW_BIN_RADIO_SIGNAL_PARAM_DECODER (SignalData)
	DtDECLARE_RAW_BIN_RADIO_SIGNAL_PARAM_DECODER (TacticalDataLinkType)
	DtDECLARE_RAW_BIN_RADIO_SIGNAL_PARAM_DECODER (TDLMessageCount)
	DtDECLARE_RAW_BIN_RADIO_SIGNAL_PARAM_DECODER (HostRadioID)
	RPR FOM <= 0.8 compatibility.
Protected Member Functions inherited from DtInteractionDecoder
	DtInteractionDecoder (const DtInteractionDecoder &orig)
	copy constructor - not implemented.
DtInteractionDecoder &	operator= (const DtInteractionDecoder &orig)
	assignment operator - not implemented.
virtual void	decodeParameter (DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvList, int index)
	Process (decode) the specified parameter.

Static Protected Member Functions
static int	decodeJTIDSheaderStruct (DtJtidsHeaderStruct &hdrStruct, const RTI::ParameterHandleValuePairSet &params, int index)
static int	decodeDataBuffer (std::vector< DtU8 > &data, const RTI::ParameterHandleValuePairSet &params, int index)

Additional Inherited Members
Public Types inherited from DtInteractionDecoder
typedef void(*	DtParameterDecoder )(DtInteractionRep *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Parameter decoder function signature.
Static Public Member Functions inherited from DtInteractionDecoder
static char *	decodingBuffer (int length)
	Returns a pointer to a buffer that can be used to copy data obtained from a phvps.
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length)
	Returns a pointer to a buffer containing the parameter data.
static char *	parameterData (const RTI::ParameterHandleValuePairSet &pvList, int index, RTI::ULong &length, unsigned int expectedDataSize, char *paramName)
	Gets the parameter data and checks the expected size.
static DtNetEventId *	eventIdParameterData (const RTI::ParameterHandleValuePairSet &params, int index)
	Get the parameter data as a DtNetEventId (adds defensive null terminator) Returns a pointer to the parameter data.
static void	decodeGenericParameter (DtInteractionWithEncDec *inter, const RTI::ParameterHandleValuePairSet &pvlist, int i)
	Generic decoder class.
Static Public Attributes inherited from DtInteractionDecoder
static bool	theUseGetValuePointer
Protected Attributes inherited from DtInteractionDecoder
DtExerciseConn *	myExConn
DtInterClassDesc *	myClassDesc
RTI::InteractionClassHandle	myClassHandle
std::map< RTI::ParameterHandle, DtParameterDecoder >	myList
	myList is an array of classDesc->maxParamHandle() items.

Constructor & Destructor Documentation

DtL16RadioSignalDecoder::DtL16RadioSignalDecoder	(	DtExerciseConn *	exConn,
		DtInterClassDesc *	classDesc
	)

default constructor

virtual DtL16RadioSignalDecoder::~DtL16RadioSignalDecoder ( )

virtual

destructor

DtL16RadioSignalDecoder::DtL16RadioSignalDecoder

(

const DtL16RadioSignalDecoder &

orig

)

copy constructor

Member Function Documentation

static int DtL16RadioSignalDecoder::decodeDataBuffer ( std::vector< DtU8 > &  data, const RTI::ParameterHandleValuePairSet &  params, int  index  )

staticprotected

static int DtL16RadioSignalDecoder::decodeJTIDSheaderStruct ( DtJtidsHeaderStruct &  hdrStruct, const RTI::ParameterHandleValuePairSet &  params, int  index  )

staticprotected

DtL16RadioSignalDecoder::DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER ( NPGNumber  )

protected

DtL16RadioSignalDecoder::DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER ( NetNumber  )

protected

DtL16RadioSignalDecoder::DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER ( MSEC_CVLL  )

protected

DtL16RadioSignalDecoder::DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER ( TSEC_CVLL  )

protected

DtL16RadioSignalDecoder::DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER ( TimeSlotID  )

protected

DtL16RadioSignalDecoder::DtDECLARE_LINK16_RADIO_SIGNAL_PARAM_DECODER ( PerceivedTransmitTime  )

protected

DtL16RadioSignalDecoder& DtL16RadioSignalDecoder::operator=

(

const DtL16RadioSignalDecoder &

orig

)

assignment operator

---

The documentation for this class was generated from the following file:

• l16RadioSignalDecoder.h
