DtOutputStream Class Reference

DtOutputStream is used for all toolkit output. More...

Inheritance diagram for DtOutputStream:

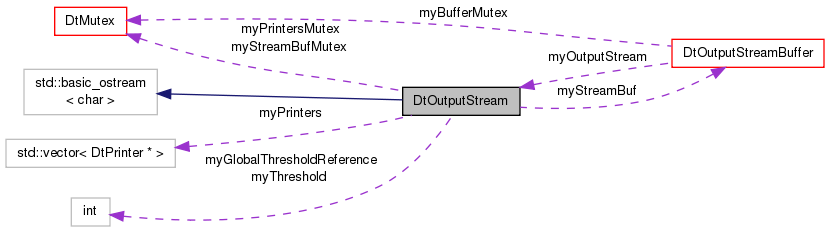

Collaboration diagram for DtOutputStream:

Public Member Functions
	DtOutputStream (DtOutputStreamBuffer *buffer, int &globalThresholdRef, int threshold=1, DtPrinter *dflt_printer=0)
	CTOR.
virtual	~DtOutputStream ()
	Virtual DTOR.
virtual void	attachPrinter (DtPrinter *sink)
	Add or remove DtPrinters from this Stream.
virtual bool	detachPrinter (DtPrinter *sink)
	Returns true if printer was found, returns false if not found or other error.
virtual void	detachAllPrinters ()
	Removes all DtPrinter references.
virtual void	write (const std::string &str, bool newLine=false)
	Writes the string to each printer.
virtual void	setThreshold (int level)
	Sets the threshold required for sending string output to all attached printer.
virtual int	threshold () const
	Returns the current threshold required to send string output to all attached printers.
virtual bool	okToPrint () const
	Boolean, if true we will write this, if false write is a no-op.
virtual void	operator() (const char *s,...)
	Provided to allow printf like syntax.

Protected Types
typedef std::vector< DtPrinter * >	PrinterPtrVec

Protected Attributes
DtOutputStreamBuffer *	myStreamBuf
DtMutex	myStreamBufMutex
PrinterPtrVec	myPrinters
DtMutex	myPrintersMutex
int	myThreshold
int &	myGlobalThresholdReference
	This is the global value we compare myThreshold to.

Private Member Functions
	DtOutputStream (const DtOutputStream &)
	Copy constructor - not implemented.
DtOutputStream &	operator= (const DtOutputStream &)
	Assignment Operator - not implemented.

Detailed Description

DtOutputStream is used for all toolkit output.

It takes streams and strings of characters and sends them to one or more DtPrinter objects. Each DtPrinter object will then send that stream to an output device. It is possible for DtOutputStream to have NO DtPrinters, then it will output nothing.

DtOutputStream has a threshold property, based on this property the output stream will, or will not be sent to each registered printer. By default the threshold is compared to the global variable globalThresholdRef. If the value of globalThresholdRef is greater or equal to the value the threshold, the string is passed to each registered printer.

DtOutputStream maintains pointers to DtPrinter instances, when you attach a printer to it, you must maintain the DtPrinter instance for the whole time it is attached. Likewise DtOutputStream will not free this printer when you detach from it.

Member Typedef Documentation

typedef std::vector<DtPrinter*> DtOutputStream::PrinterPtrVec

protected

Constructor & Destructor Documentation

DtOutputStream::DtOutputStream	(	DtOutputStreamBuffer *	buffer,
		int &	globalThresholdRef,
		int	threshold = 1,
		DtPrinter *	dflt_printer = 0
	)

CTOR.

Takes a pointer to a variable to use to check against a global threshold. Each DtOutputStreamBuffer needs to also have a unique DtOutputStreamBuffer which should be created before the DtOutputStream that uses it is created.

virtual DtOutputStream::~DtOutputStream ( )

virtual

Virtual DTOR.

DtOutputStream::DtOutputStream ( const DtOutputStream &  )

private

Copy constructor - not implemented.

Member Function Documentation

virtual void DtOutputStream::attachPrinter ( DtPrinter *  sink )

virtual

Add or remove DtPrinters from this Stream.

virtual void DtOutputStream::detachAllPrinters ( )

virtual

Removes all DtPrinter references.

Remember, DtOutputStream does not manage any memory, so if you allocated a printer please delete it.

virtual bool DtOutputStream::detachPrinter ( DtPrinter *  sink )

virtual

Returns true if printer was found, returns false if not found or other error.

virtual bool DtOutputStream::okToPrint ( ) const

virtual

Boolean, if true we will write this, if false write is a no-op.

override this if you want to change the conditions under which this class will print.

virtual void DtOutputStream::operator() ( const char *  s,   ...  )

virtual

Provided to allow printf like syntax.

DtOutputStream& DtOutputStream::operator= ( const DtOutputStream &  )

private

Assignment Operator - not implemented.

void DtOutputStream::setThreshold ( int  level )

inlinevirtual

Sets the threshold required for sending string output to all attached printer.

int DtOutputStream::threshold ( ) const

inlinevirtual

Returns the current threshold required to send string output to all attached printers.

virtual void DtOutputStream::write ( const std::string &  str, bool  newLine = false  )

virtual

Writes the string to each printer.

The newLine argument indicates that the string to write starts a new line. This can be used to format output (eg. for adding timestamps).

Member Data Documentation

int& DtOutputStream::myGlobalThresholdReference

protected

This is the global value we compare myThreshold to.

PrinterPtrVec DtOutputStream::myPrinters

protected

DtMutex DtOutputStream::myPrintersMutex

protected

DtOutputStreamBuffer* DtOutputStream::myStreamBuf

protected

DtMutex DtOutputStream::myStreamBufMutex

protected

int DtOutputStream::myThreshold

protected

---

The documentation for this class was generated from the following file:

• vlPrint.h
