DtReflectedEmitterSystem Class Reference

Instances of DtReflectedEmitterSystem represent EmitterSystem objects simulated by remote applications. More...

Inheritance diagram for DtReflectedEmitterSystem:

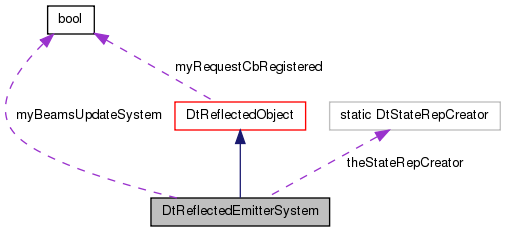

Collaboration diagram for DtReflectedEmitterSystem:

Public Types
typedef DtEmitterSystemRepository *(*	DtStateRepCreator )()
	Function prototype for functions that create DtEmitterSystemRepositories.
Public Types inherited from DtReflectedObject
typedef DtStateRepository *(*	DtBaseStateRepCreator )()
	Function prototype for functions that create DtStateRepositories.

Public Member Functions
	DtReflectedEmitterSystem (DtHlaObject *obj, DtExerciseConn *conn, bool beamsUpdateSystem)
	constructor If beamsUpdateSystem == true, then a system's post-update callbacks are called whenever one of the beams in the system is updated.
	DtReflectedEmitterSystem (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, bool beamsUpdateSystem)
	Constructor used to construct a placeholder system when we discover a beam whose system hasn't been discovered yet.
virtual	~DtReflectedEmitterSystem ()
	destructor
virtual DtEmitterSystemRepository *	emitterSysRep () const
	Get the emitter system's state repository.
virtual DtEmitterSystemRepository *	esr () const
	Synonym for emitterSysRep().
virtual DtReflectedEmitterSystem *	next () const
	Get the next remote emitterSystem.
virtual DtReflectedEmitterSystem *	prev () const
	Get the previous remote emitterSystem.
virtual DtReflectedEmitterSystem *	wrapNext () const
	Get the next remote emitterSystem.
virtual DtReflectedEmitterSystem *	wrapPrev () const
	Get the previous remote emitterSystem.
virtual void	addPostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *usr)
	emitterSystem state callback registration/deregistration.
virtual void	removePostUpdateCallback (DtEmitterSystemCallbackFunction cb, void *usr)
virtual void	beamUpdated ()
	Tell the emitter system that one of its beams has been updated.
Public Member Functions inherited from DtReflectedObject
	DtReflectedObject (DtExerciseConn *conn, DtStateRepository *stateRep)
	Primary constructor.
	DtReflectedObject (DtHlaObject *obj, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor.
	DtReflectedObject (const DtObjectId &id, const DtGlobalObjectDesignator &des, DtExerciseConn *conn, DtBaseStateRepCreator creator)
	Older constructor.
virtual	~DtReflectedObject ()
	destructor
virtual DtStateRepository *	stateRep () const
	Returns a pointer to the StateRepository - through which you can inspect current state information.
virtual DtStateRepository *	sr () const
	Synonym for stateRep().
virtual DtHlaStateDecoder *	decoder ()
	Returns a pointer to the Decoder being used to decode state messages into our SR.
virtual DtHlaObjectWithStateRep *	hlaObject () const
	Get the entity's hlaObject (DtHlaObjectWithStateRep is derived from DtHlaObject).
virtual const DtObjectId &	objectId () const
	Get the HLA object's id.
virtual const DtObjectId &	id () const
	Get the HLA object's id (local ID).
virtual const DtObjectId &	localId () const
	Get the HLA object's id (local ID).
virtual const DtString &	name () const
	Get the HLA object name.
virtual const DtGlobalObjectDesignator &	globalId () const
	Get the HLA object's global object designator - the object name in HLA.
virtual DtTime	lastSimTimeUpdated () const
	Returns the value of simulation time at the time an update was last received for the entity.
virtual DtTime	lastReceivedTimeStamp () const
	Returns the value of the time send in the last Update received for this entity.
virtual void	baseAddPostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
	Object state callback registration/deregistration.
virtual void	baseRemovePostUpdateCallback (DtReflectedObjectCallbackFunction cb, void *userData)
virtual DtReflectedObject *	nextObj () const
	Get the next remote object.
virtual DtReflectedObject *	prevObj () const
	Get the previous remote object.
virtual DtReflectedObject *	wrapNextObj () const
	Get the next remote object.
virtual DtReflectedObject *	wrapPrevObj () const
	Get the previous remote object.
void	setHlaObject (DtHlaObject *obj, DtHlaStateDecoder *decoder=NULL)
	Start reflecting this object, using this decoder.
virtual void	setNoHlaObject (const DtObjectId &id, const DtGlobalObjectDesignator &des)
	Used to set up a proxy DtReflectedEntity - one that is not actually managing a real reflected HLA object.
void	detachHlaObject ()
	Ends managing of current HLA object.
virtual void	requestUpdate ()
	Request that the owner of this entity send an attribute update.

Static Public Member Functions
static DtStateRepCreator	setStateRepCreator (DtStateRepCreator creator)
	Give us a function to be used for creating SRs.

Protected Member Functions
	DtReflectedEmitterSystem (const DtReflectedEmitterSystem &orig)
	copy constructor
DtReflectedEmitterSystem &	operator= (const DtReflectedEmitterSystem &orig)
	assignment operator
Protected Member Functions inherited from DtReflectedObject
	DtReflectedObject (const DtReflectedObject &orig)
	copy constructor – Not Implemented
DtReflectedObject &	operator= (const DtReflectedObject &orig)
	assignment operator – Not Implemented
virtual void	processPostUpdateCallbacks ()
	Process the post update callbacks.

Protected Attributes
bool	myBeamsUpdateSystem
Protected Attributes inherited from DtReflectedObject
DtExerciseConn *	myExConn
DtHlaObjectWithStateRep *	myHlaObj
DtStateRepository *	myStateRep
DtHlaStateDecoder *	myDecoder
bool	myRequestCbRegistered
DtIntrusiveList	myStateUpdateCallbacks
DtObjectId	myId
DtString	myName
DtRefHlaObjectMap::iterator	myReflIterator
DtRefHlaObjectMap *	myReflMap

Static Protected Attributes
static DtStateRepCreator	theStateRepCreator

Additional Inherited Members
Static Protected Member Functions inherited from DtReflectedObject
static void	requestUpdatePostDrainCb (void *usr)
	Calls requestUpdate.
static void	processPostUpdateCallbacksCb (const DtStateMsg &stateMsg, DtHlaObject *obj, void *usr)
	Callback from HlaObject to process post update callbacks.

Detailed Description

Instances of DtReflectedEmitterSystem represent EmitterSystem objects simulated by remote applications.

State data can be viewed through its state repository.

Member Typedef Documentation

typedef DtEmitterSystemRepository*(* DtReflectedEmitterSystem::DtStateRepCreator)()

Function prototype for functions that create DtEmitterSystemRepositories.

Constructor & Destructor Documentation

DtReflectedEmitterSystem::DtReflectedEmitterSystem	(	DtHlaObject *	obj,
		DtExerciseConn *	conn,
		bool	beamsUpdateSystem
	)

constructor If beamsUpdateSystem == true, then a system's post-update callbacks are called whenever one of the beams in the system is updated.

DtReflectedEmitterSystem::DtReflectedEmitterSystem	(	const DtObjectId &	id,
		const DtGlobalObjectDesignator &	des,
		DtExerciseConn *	conn,
		bool	beamsUpdateSystem
	)

Constructor used to construct a placeholder system when we discover a beam whose system hasn't been discovered yet.

virtual DtReflectedEmitterSystem::~DtReflectedEmitterSystem ( )

virtual

destructor

DtReflectedEmitterSystem::DtReflectedEmitterSystem ( const DtReflectedEmitterSystem &  orig )

protected

copy constructor

Member Function Documentation

virtual void DtReflectedEmitterSystem::addPostUpdateCallback ( DtEmitterSystemCallbackFunction  cb, void *  usr  )

virtual

emitterSystem state callback registration/deregistration.

virtual void DtReflectedEmitterSystem::beamUpdated ( )

virtual

Tell the emitter system that one of its beams has been updated.

DtEmitterSystemRepository * DtReflectedEmitterSystem::emitterSysRep ( ) const

inlinevirtual

Get the emitter system's state repository.

References DtReflectedObject::myStateRep.

DtEmitterSystemRepository * DtReflectedEmitterSystem::esr ( ) const

inlinevirtual

Synonym for emitterSysRep().

References DtReflectedObject::myStateRep.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::next ( ) const

virtual

Get the next remote emitterSystem.

DtReflectedEmitterSystem& DtReflectedEmitterSystem::operator= ( const DtReflectedEmitterSystem &  orig )

protected

assignment operator

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::prev ( ) const

virtual

Get the previous remote emitterSystem.

virtual void DtReflectedEmitterSystem::removePostUpdateCallback ( DtEmitterSystemCallbackFunction  cb, void *  usr  )

virtual

static DtStateRepCreator DtReflectedEmitterSystem::setStateRepCreator ( DtStateRepCreator  creator )

static

Give us a function to be used for creating SRs.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapNext ( ) const

virtual

Get the next remote emitterSystem.

Will cycle back to the first remote emitterSystem.

virtual DtReflectedEmitterSystem* DtReflectedEmitterSystem::wrapPrev ( ) const

virtual

Get the previous remote emitterSystem.

Will cycle back to the last remote emitterSystem.

Member Data Documentation

bool DtReflectedEmitterSystem::myBeamsUpdateSystem

protected

DtStateRepCreator DtReflectedEmitterSystem::theStateRepCreator

staticprotected

---

The documentation for this class was generated from the following file:

• reflectedEmitterSystemHLA.h
