DtAngleDeceptionAttributeRecord Class Reference

Inheritance diagram for DtAngleDeceptionAttributeRecord:

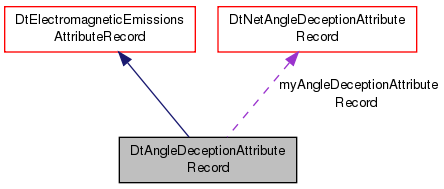

Collaboration diagram for DtAngleDeceptionAttributeRecord:

Public Member Functions
	DtAngleDeceptionAttributeRecord ()
	Constructor.
	DtAngleDeceptionAttributeRecord (unsigned int emitterNumber, unsigned int beamNumber, DtEEAttributeStateIndicator stateIndicator, float azimuthOffset, float azimuthWidth, float azimuthPullRate, float azimuthPullAcceleration, float elevationOffset, float elevationWidth, float elevationPullRate, float elevationPullAcceleration)
	Constructor.
	DtAngleDeceptionAttributeRecord (const DtAngleDeceptionAttributeRecord &orig)
	Copy Constructor.
	DtAngleDeceptionAttributeRecord (const DtNetAngleDeceptionAttributeRecord &orig)
	Copy Constructor.
	DtAngleDeceptionAttributeRecord (void *ptr, unsigned int length)
	Net Constructor.
virtual DtAngleDeceptionAttributeRecord &	operator= (const DtAngleDeceptionAttributeRecord &other)
	Assignment operator.
virtual DtStandardVariableRecord &	operator= (const DtStandardVariableRecord &record)
	Assignment operator.
virtual bool	operator== (const DtAngleDeceptionAttributeRecord &other)
	Equals operator.
virtual bool	operator== (const DtStandardVariableRecord &other)
	Equals operator.
virtual unsigned int	recordType () const
	Setters and Getters for Record Type.
virtual void	setRecordType (unsigned int recordType)
virtual unsigned int	recordLength () const
	Setters and Getters for Record Length.
virtual void	setRecordLength (unsigned int recordLength)
virtual unsigned int	emitterNumber () const
	Setters and Getters for Emitter Number.
virtual void	setEmitterNumber (unsigned int emitterNumber)
virtual unsigned int	beamNumber () const
	Setters and Getters for Beam Number.
virtual void	setBeamNumber (unsigned int beamNumber)
virtual DtEEAttributeStateIndicator	stateIndicator () const
	Setters and Getters for State Indicator.
virtual void	setStateIndicator (DtEEAttributeStateIndicator stateIndicator)
virtual float	azimuthOffset () const
	Setters and Getters for Azimuth Offset.
virtual void	setAzimuthOffset (float azimuthOffset)
virtual float	azimuthWidth () const
	Setters and Getters for Azimuth Width.
virtual void	setAzimuthWidth (float azimuthWidth)
virtual float	azimuthPullRate () const
	Setters and Getters for Azimuth Pull Rate.
virtual void	setAzimuthPullRate (float azimuthPullRate)
virtual float	azimuthPullAcceleration () const
	Setters and Getters for Azimuth Pull Acceleration.
virtual void	setAzimuthPullAcceleration (float azimuthPullAcceleration)
virtual float	elevationOffset () const
	Setters and Getters for Elevation Offset.
virtual void	setElevationOffset (float elevationOffset)
virtual float	elevationWidth () const
	Setters and Getters for Elevation Width.
virtual void	setElevationWidth (float elevationWidth)
virtual float	elevationPullRate () const
	Setters and Getters for Elevation Pull Rate.
virtual void	setElevationPullRate (float elevationPullRate)
virtual float	elevationPullAcceleration () const
	Setters and Getters for Elevation Pull Acceleration.
virtual void	setElevationPullAcceleration (float elevationPullAcceleration)
virtual void	printDataToStream (std::ostream &stream) const
	Prints the data to the specified stream.
virtual void	writeRecord (void *addr) const
	Writes the network representation to the given address.
virtual void	setFromNet (const void *netRecord, unsigned int length, DtStandardVariableRetCode *retCode=NULL)
	Sets the record from an address and length. Retcode will be Valid if all goes well.
virtual unsigned int	unpaddedNetsize () const
	Returns the size of the network representation (without padding bytes)
virtual unsigned int	netSize () const
	This overrides netSize because this Record is a special case as it is of a fixed size and Will never require padding.
virtual DtStandardVariableRecord *	clone () const
	Clone.

Static Public Member Functions
static DtStandardVariableRecord *	create (void *addr, unsigned int length)
	Create function used by Standard Variable Record Factory.

Protected Attributes
DtNetAngleDeceptionAttributeRecord	myAngleDeceptionAttributeRecord

Constructor & Destructor Documentation

DtAngleDeceptionAttributeRecord::DtAngleDeceptionAttributeRecord

(

)

Constructor.

DtAngleDeceptionAttributeRecord::DtAngleDeceptionAttributeRecord	(	unsigned int	emitterNumber,
		unsigned int	beamNumber,
		DtEEAttributeStateIndicator	stateIndicator,
		float	azimuthOffset,
		float	azimuthWidth,
		float	azimuthPullRate,
		float	azimuthPullAcceleration,
		float	elevationOffset,
		float	elevationWidth,
		float	elevationPullRate,
		float	elevationPullAcceleration
	)

Constructor.

DtAngleDeceptionAttributeRecord::DtAngleDeceptionAttributeRecord

(

const DtAngleDeceptionAttributeRecord &

orig

)

Copy Constructor.

DtAngleDeceptionAttributeRecord::DtAngleDeceptionAttributeRecord

(

const DtNetAngleDeceptionAttributeRecord &

orig

)

Copy Constructor.

DtAngleDeceptionAttributeRecord::DtAngleDeceptionAttributeRecord	(	void *	ptr,
		unsigned int	length
	)

Net Constructor.

Member Function Documentation

virtual float DtAngleDeceptionAttributeRecord::azimuthOffset ( ) const

virtual

Setters and Getters for Azimuth Offset.

virtual float DtAngleDeceptionAttributeRecord::azimuthPullAcceleration ( ) const

virtual

Setters and Getters for Azimuth Pull Acceleration.

virtual float DtAngleDeceptionAttributeRecord::azimuthPullRate ( ) const

virtual

Setters and Getters for Azimuth Pull Rate.

virtual float DtAngleDeceptionAttributeRecord::azimuthWidth ( ) const

virtual

Setters and Getters for Azimuth Width.

virtual unsigned int DtAngleDeceptionAttributeRecord::beamNumber ( ) const

virtual

Setters and Getters for Beam Number.

Implements DtElectromagneticEmissionsAttributeRecord.

virtual DtStandardVariableRecord* DtAngleDeceptionAttributeRecord::clone ( ) const

virtual

Clone.

Implements DtStandardVariableRecord.

static DtStandardVariableRecord* DtAngleDeceptionAttributeRecord::create ( void *  addr, unsigned int  length  )

static

Create function used by Standard Variable Record Factory.

virtual float DtAngleDeceptionAttributeRecord::elevationOffset ( ) const

virtual

Setters and Getters for Elevation Offset.

virtual float DtAngleDeceptionAttributeRecord::elevationPullAcceleration ( ) const

virtual

Setters and Getters for Elevation Pull Acceleration.

virtual float DtAngleDeceptionAttributeRecord::elevationPullRate ( ) const

virtual

Setters and Getters for Elevation Pull Rate.

virtual float DtAngleDeceptionAttributeRecord::elevationWidth ( ) const

virtual

Setters and Getters for Elevation Width.

virtual unsigned int DtAngleDeceptionAttributeRecord::emitterNumber ( ) const

virtual

Setters and Getters for Emitter Number.

Implements DtElectromagneticEmissionsAttributeRecord.

virtual unsigned int DtAngleDeceptionAttributeRecord::netSize ( ) const

virtual

This overrides netSize because this Record is a special case as it is of a fixed size and Will never require padding.

virtual DtAngleDeceptionAttributeRecord& DtAngleDeceptionAttributeRecord::operator= ( const DtAngleDeceptionAttributeRecord &  other )

virtual

Assignment operator.

virtual DtStandardVariableRecord& DtAngleDeceptionAttributeRecord::operator= ( const DtStandardVariableRecord &  record )

virtual

Assignment operator.

virtual bool DtAngleDeceptionAttributeRecord::operator== ( const DtAngleDeceptionAttributeRecord &  other )

virtual

Equals operator.

virtual bool DtAngleDeceptionAttributeRecord::operator== ( const DtStandardVariableRecord &  other )

virtual

Equals operator.

Implements DtStandardVariableRecord.

virtual void DtAngleDeceptionAttributeRecord::printDataToStream ( std::ostream &  stream ) const

virtual

Prints the data to the specified stream.

Implements DtStandardVariableRecord.

virtual unsigned int DtAngleDeceptionAttributeRecord::recordLength ( ) const

virtual

Setters and Getters for Record Length.

Implements DtStandardVariableRecord.

virtual unsigned int DtAngleDeceptionAttributeRecord::recordType ( ) const

virtual

Setters and Getters for Record Type.

Implements DtStandardVariableRecord.

virtual void DtAngleDeceptionAttributeRecord::setAzimuthOffset ( float  azimuthOffset )

virtual

virtual void DtAngleDeceptionAttributeRecord::setAzimuthPullAcceleration ( float  azimuthPullAcceleration )

virtual

virtual void DtAngleDeceptionAttributeRecord::setAzimuthPullRate ( float  azimuthPullRate )

virtual

virtual void DtAngleDeceptionAttributeRecord::setAzimuthWidth ( float  azimuthWidth )

virtual

virtual void DtAngleDeceptionAttributeRecord::setBeamNumber ( unsigned int  beamNumber )

virtual

Implements DtElectromagneticEmissionsAttributeRecord.

virtual void DtAngleDeceptionAttributeRecord::setElevationOffset ( float  elevationOffset )

virtual

virtual void DtAngleDeceptionAttributeRecord::setElevationPullAcceleration ( float  elevationPullAcceleration )

virtual

virtual void DtAngleDeceptionAttributeRecord::setElevationPullRate ( float  elevationPullRate )

virtual

virtual void DtAngleDeceptionAttributeRecord::setElevationWidth ( float  elevationWidth )

virtual

virtual void DtAngleDeceptionAttributeRecord::setEmitterNumber ( unsigned int  emitterNumber )

virtual

Implements DtElectromagneticEmissionsAttributeRecord.

virtual void DtAngleDeceptionAttributeRecord::setFromNet ( const void *  netRecord, unsigned int  length, DtStandardVariableRetCode *  retCode = NULL  )

virtual

Sets the record from an address and length. Retcode will be Valid if all goes well.

Implements DtStandardVariableRecord.

virtual void DtAngleDeceptionAttributeRecord::setRecordLength ( unsigned int  recordLength )

virtual

Implements DtStandardVariableRecord.

virtual void DtAngleDeceptionAttributeRecord::setRecordType ( unsigned int  recordType )

virtual

Implements DtStandardVariableRecord.

virtual void DtAngleDeceptionAttributeRecord::setStateIndicator ( DtEEAttributeStateIndicator  stateIndicator )

virtual

virtual DtEEAttributeStateIndicator DtAngleDeceptionAttributeRecord::stateIndicator ( ) const

virtual

Setters and Getters for State Indicator.

virtual unsigned int DtAngleDeceptionAttributeRecord::unpaddedNetsize ( ) const

virtual

Returns the size of the network representation (without padding bytes)

Implements DtStandardVariableRecord.

virtual void DtAngleDeceptionAttributeRecord::writeRecord ( void *  addr ) const

virtual

Writes the network representation to the given address.

The assumption is that this memory is allocated and is of the proper size.

Implements DtStandardVariableRecord.

Member Data Documentation

DtNetAngleDeceptionAttributeRecord DtAngleDeceptionAttributeRecord::myAngleDeceptionAttributeRecord

protected

---

The documentation for this class was generated from the following file:

• angleDeceptionAttributeRecord.h
