Represents a IPv4 or IPv6 address. More...

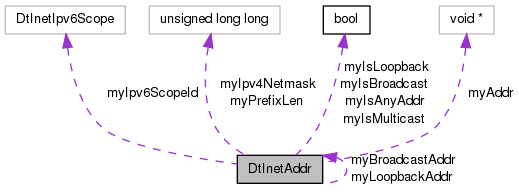

Collaboration diagram for DtInetAddr:

Public Member Functions
	DtInetAddr (DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4)
	Default Constructor.
	DtInetAddr (const struct sockaddr_in6 &addr, DtU32 prefixLen=0)
	IPv6 Constructors.
	DtInetAddr (const struct sockaddr_storage &addr, DtU32 prefixLen=0)
	Constructor taking a sockaddr_storage, which may contain either an IPv4 or IPv6 address.
	DtInetAddr (const DtU128 &addr, DtInetUtils::DtInetAddrFamily family, DtU32 prefixLen=0)
	Constructor taking a 128-bit value, which may contain either an IPv4 or IPv6 address.
	DtInetAddr (void *boostAsioIpAddress)
	Constructor taking a boost::asio::ip::address which is abstracted to a void pointer.
virtual	~DtInetAddr ()
	Destructor.
	DtInetAddr (const DtInetAddr &orig)
	Copy constructor.
DtInetAddr &	operator= (const DtInetAddr &orig)
	Assignment.
virtual DtString	toDtString (bool useShortForm=false) const
	Returns a DtString representation of the address in the appropriate format.
virtual DtInetUtils::DtInetAddrFamily	family () const
	Returns the family, IPv4 or IPv6, of the address object.
virtual void	setNetmask (DtU32 mask)
	Set the IPv4 netmask.
virtual DtU32	netmask () const
	Return the IPv4 netmask derived from the address class as an unsigned 32-bit integer in host byte order.
virtual void	setPrefixLen (DtU64 prefixLen)
	Set the IPv4 or IPv6 netmask based on the supplied CIDR prefix length.
virtual DtU64	prefix () const
	Return the IPv4 or IPv6 prefix length.
virtual bool	isMulticast () const
	Return true if the address is a multicast address.
virtual bool	isBroadcast () const
	Return true if the address is a broadcast address.
virtual bool	isLoopback () const
	Return true if the address is a loopback address.
virtual bool	isAnyAddr () const
	Return true if the address represents the INADDR_ANY (or IN6ADDR_ANY) address.
virtual const DtInetAddr *	getBroadcastAddr ()
	Return the default broadcast address associated with the address based on its class & netmask (if IPv4) or link scope (if IPv6)
virtual const DtInetAddr *	getLoopbackAddr ()
	Return the default loopback address based on the family, IPv4 or IPv6.
virtual void	toAddrStorage (struct sockaddr_storage *addrStor) const
	Stores the address in a sockaddr_storage to be sent in a message.
virtual DtU128	toU128 () const
	Return the address value as a DtU128 in host byte order (IPv4 & IPv6).
virtual DtU32	toULong () const
	Return the address value as a DtU32 in host byte order (IPv4 only).
virtual void	setScope (DtInetIpv6Scope scopeId)
	Sets the link scope (IPv6 only).
virtual DtInetIpv6Scope	scope () const
	Returns the link scope (IPv6 only).
virtual void *	boostAddress ()
	Returns the Boost address class object.
virtual const void *	boostAddress () const

	DtInetAddr (const DtString &addrString, const DtString &netmaskString="")
	Constructors.
	DtInetAddr (const char addrString, const char netmaskString=NULL)
	Constructors.

	DtInetAddr (const struct sockaddr_in &addr, DtU32 netmask=0)
	IPv4 Constructors.
	DtInetAddr (const DtU32 addr, DtU32 netmask=0)
	IPv4 Constructors.

virtual bool	isIPv4 () const
	Return true if the address matches the queried family.
virtual bool	isIPv6 () const
	Return true if the address matches the queried family.

virtual int	toSockaddr (struct sockaddr_in *s) const
	Copy address into sockaddr struct in network byte order.
virtual int	toSockaddr (struct sockaddr_in6 *s) const
	Copy address into sockaddr struct in network byte order.

Static Public Member Functions
static const DtInetAddr &	inaddrAny (DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4)
static const DtInetAddr &	loopbackAddress (DtInetUtils::DtInetAddrFamily family=DtInetUtils::DtInetAddrFamily_IPv4)

Protected Member Functions
void	init ()
void	initFromStrings (const char addrString, const char netmaskString)

Protected Attributes
void *	myAddr
	Private data, do not change.
DtU64	myIpv4Netmask
DtU64	myPrefixLen
DtInetAddr *	myBroadcastAddr
DtInetAddr *	myLoopbackAddr
bool	myIsBroadcast
bool	myIsMulticast
bool	myIsLoopback
bool	myIsAnyAddr
DtInetIpv6Scope	myIpv6ScopeId

Friends

bool	operator== (const DtInetAddr &addr1, const DtInetAddr &addr2)
	Comparison operator.
bool	operator!= (const DtInetAddr &addr1, const DtInetAddr &addr2)
	Comparison operator.
bool	operator< (const DtInetAddr &addr1, const DtInetAddr &addr2)
	Comparison operator.
bool	operator> (const DtInetAddr &addr1, const DtInetAddr &addr2)
	Comparison operator.

Detailed Description

Represents a IPv4 or IPv6 address.

Constructor & Destructor Documentation

DtInetAddr::DtInetAddr ( DtInetUtils::DtInetAddrFamily family = DtInetUtils::DtInetAddrFamily_IPv4 )

Default Constructor.

Takes an optional address family and creates an INADDR_ANY (IPv4) or IN6ADDR_ANY (IPv6) address

DtInetAddr::DtInetAddr	(	const DtString &	addrString,
		const DtString &	netmaskString = `""`
	)

Constructors.

Takes a string representing either IPv4 or IPv6 address and a netmask string. For IPv4 addresses the netmask string can be expressed in either dotted decimal notation (eg. "/255.255.0.0") or as a CIDR prefix length (eg. "/24"). For IPv6 addresses the netmask string must be expressed as a CIDR prefix length. The '/' may be omitted.

DtInetAddr::DtInetAddr	(	const char *	addrString,
		const char *	netmaskString = `NULL`
	)

Constructors.

Takes a string representing either IPv4 or IPv6 address and a netmask string. For IPv4 addresses the netmask string can be expressed in either dotted decimal notation (eg. "/255.255.0.0") or as a CIDR prefix length (eg. "/24"). For IPv6 addresses the netmask string must be expressed as a CIDR prefix length. The '/' may be omitted.

DtInetAddr::DtInetAddr	(	const struct sockaddr_in &	addr,
		DtU32	netmask = `0`
	)

IPv4 Constructors.

If netmask is specified is must be expressed as a 32-bit integer representing the bitmask, not as a prefix length. Use DtInetUtils::prefixLenToIpv4Netmask() to make the conversion.

DtInetAddr::DtInetAddr	(	const DtU32	addr,
		DtU32	netmask = `0`
	)

IPv4 Constructors.

If netmask is specified is must be expressed as a 32-bit integer representing the bitmask, not as a prefix length. Use DtInetUtils::prefixLenToIpv4Netmask() to make the conversion.

DtInetAddr::DtInetAddr	(	const struct sockaddr_in6 &	addr,
		DtU32	prefixLen = `0`
	)

IPv6 Constructors.

DtInetAddr::DtInetAddr	(	const struct sockaddr_storage &	addr,
		DtU32	prefixLen = `0`
	)

Constructor taking a sockaddr_storage, which may contain either an IPv4 or IPv6 address.

DtInetAddr::DtInetAddr	(	const DtU128 &	addr,
		DtInetUtils::DtInetAddrFamily	family,
		DtU32	prefixLen = `0`
	)

Constructor taking a 128-bit value, which may contain either an IPv4 or IPv6 address.

Must specify if it is IPv4 or IPv6, cannot tell otherwise.

DtInetAddr::DtInetAddr ( void * boostAsioIpAddress )

Constructor taking a boost::asio::ip::address which is abstracted to a void pointer.

virtual DtInetAddr::~DtInetAddr ( )

virtual

Destructor.

DtInetAddr::DtInetAddr ( const DtInetAddr & orig )

Copy constructor.

Member Function Documentation

virtual void* DtInetAddr::boostAddress ( )

virtual

Returns the Boost address class object.

Note: This function should not be considered part of the public interface.

virtual const void* DtInetAddr::boostAddress ( ) const

virtual

virtual DtInetUtils::DtInetAddrFamily DtInetAddr::family ( ) const

virtual

Returns the family, IPv4 or IPv6, of the address object.

virtual const DtInetAddr* DtInetAddr::getBroadcastAddr ( )

virtual

Return the default broadcast address associated with the address based on its class & netmask (if IPv4) or link scope (if IPv6)

virtual const DtInetAddr* DtInetAddr::getLoopbackAddr ( )

virtual

Return the default loopback address based on the family, IPv4 or IPv6.

static const DtInetAddr& DtInetAddr::inaddrAny ( DtInetUtils::DtInetAddrFamily family = DtInetUtils::DtInetAddrFamily_IPv4 )

static

void DtInetAddr::init ( )

protected

void DtInetAddr::initFromStrings	(	const char *	addrString,
		const char *	netmaskString
	)

protected

virtual bool DtInetAddr::isAnyAddr ( ) const

virtual

Return true if the address represents the INADDR_ANY (or IN6ADDR_ANY) address.

virtual bool DtInetAddr::isBroadcast ( ) const

virtual

Return true if the address is a broadcast address.

virtual bool DtInetAddr::isIPv4 ( ) const

virtual

Return true if the address matches the queried family.

virtual bool DtInetAddr::isIPv6 ( ) const

virtual

Return true if the address matches the queried family.

virtual bool DtInetAddr::isLoopback ( ) const

virtual

Return true if the address is a loopback address.

virtual bool DtInetAddr::isMulticast ( ) const

virtual

Return true if the address is a multicast address.

static const DtInetAddr& DtInetAddr::loopbackAddress ( DtInetUtils::DtInetAddrFamily family = DtInetUtils::DtInetAddrFamily_IPv4 )

static

virtual DtU32 DtInetAddr::netmask ( ) const

virtual

Return the IPv4 netmask derived from the address class as an unsigned 32-bit integer in host byte order.

Returns 0 if called on an IPv6 address object.

DtInetAddr& DtInetAddr::operator= ( const DtInetAddr & orig )

Assignment.

virtual DtU64 DtInetAddr::prefix ( ) const

virtual

Return the IPv4 or IPv6 prefix length.

virtual DtInetIpv6Scope DtInetAddr::scope ( ) const

virtual

Returns the link scope (IPv6 only).

Returns 0 if called on an IPv4 address.

virtual void DtInetAddr::setNetmask ( DtU32 mask )

virtual

Set the IPv4 netmask.

Argument must be an unsigned 32-bit integer in host byte order.

virtual void DtInetAddr::setPrefixLen ( DtU64 prefixLen )

virtual

Set the IPv4 or IPv6 netmask based on the supplied CIDR prefix length.

virtual void DtInetAddr::setScope ( DtInetIpv6Scope scopeId )

virtual

Sets the link scope (IPv6 only).

virtual void DtInetAddr::toAddrStorage ( struct sockaddr_storage * addrStor ) const

virtual

Stores the address in a sockaddr_storage to be sent in a message.

virtual DtString DtInetAddr::toDtString ( bool useShortForm = false ) const

virtual

Returns a DtString representation of the address in the appropriate format.

If useShortForm is set to true it will omit the zone index from the IPv6 address string.

virtual int DtInetAddr::toSockaddr ( struct sockaddr_in * s ) const

virtual

Copy address into sockaddr struct in network byte order.

Returns 0 on success, -1 on error.

virtual int DtInetAddr::toSockaddr ( struct sockaddr_in6 * s ) const

virtual

Copy address into sockaddr struct in network byte order.

Returns 0 on success, -1 on error.

virtual DtU128 DtInetAddr::toU128 ( ) const

virtual

Return the address value as a DtU128 in host byte order (IPv4 & IPv6).

virtual DtU32 DtInetAddr::toULong ( ) const

virtual

Return the address value as a DtU32 in host byte order (IPv4 only).

Returns 0 if the address is not an IPv4 address

Friends And Related Function Documentation

bool operator!=	(	const DtInetAddr &	addr1,
		const DtInetAddr &	addr2
	)

friend

Comparison operator.

bool operator<	(	const DtInetAddr &	addr1,
		const DtInetAddr &	addr2
	)

friend

Comparison operator.

bool operator==	(	const DtInetAddr &	addr1,
		const DtInetAddr &	addr2
	)

friend

Comparison operator.

bool operator>	(	const DtInetAddr &	addr1,
		const DtInetAddr &	addr2
	)

friend

Comparison operator.

Member Data Documentation

void* DtInetAddr::myAddr

protected

Private data, do not change.

DtInetAddr* DtInetAddr::myBroadcastAddr

protected

DtU64 DtInetAddr::myIpv4Netmask

protected

DtInetIpv6Scope DtInetAddr::myIpv6ScopeId

protected

bool DtInetAddr::myIsAnyAddr

protected

bool DtInetAddr::myIsBroadcast

protected

bool DtInetAddr::myIsLoopback

protected

bool DtInetAddr::myIsMulticast

protected

DtInetAddr* DtInetAddr::myLoopbackAddr

protected

DtU64 DtInetAddr::myPrefixLen

protected

The documentation for this class was generated from the following file:

vlInetAddr.h
