DtInteractionManager Class Reference

class DtInteractionManager: More...

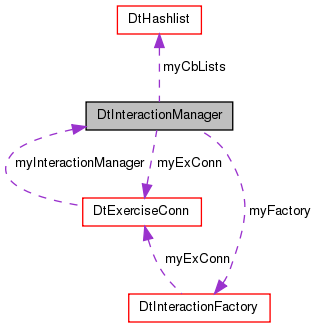

Collaboration diagram for DtInteractionManager:

Public Member Functions
	DtInteractionManager (DtInteractionFactory *factory, DtExerciseConn *exConn)
	constructor
virtual	~DtInteractionManager ()
	destructor
virtual void	addInteractionCallback (RTI::InteractionClassHandle h, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
	Add/remove a callback to be called when an interaction is received from another federate.
virtual void	removeInteractionCallback (RTI::InteractionClassHandle h, DtReceiveInteractionCb cb, void *usr, DtDDMRegionSP region=DtDDMRegionSP())
virtual void	processInteraction (RTI::InteractionClassHandle h, const RTI::ParameterHandleValuePairSet &p, const RTI::FedTime *fedTime, const char *tag=NULL, const RTI::Region *region=0)
	Create an interaction object, call the registered callbacks, then delete the interaction object.

Protected Member Functions
	DtInteractionManager (const DtInteractionManager &orig)
	copy constructor - not implemented.
DtInteractionManager &	operator= (const DtInteractionManager &orig)
	assignment operator - not implemented.
void	emptyCbList ()
	Empty callback list.
virtual DtList *	cbList (RTI::InteractionClassHandle handle)
	Returns the list of callbacks registered for a particular class.

Protected Attributes
DtExerciseConn *	myExConn
DtInteractionFactory *	myFactory
DtHashlist	myCbLists
	DtHashlist that maps object class handles (DtIntHashKeys) to pointers to DtLists of callback functions.

Detailed Description

class DtInteractionManager:

Instances of DtInteractionManager are used to manage the creation and processing of HLA interactions.

Constructor & Destructor Documentation

DtInteractionManager::DtInteractionManager	(	DtInteractionFactory *	factory,
		DtExerciseConn *	exConn
	)

constructor

virtual DtInteractionManager::~DtInteractionManager ( )

virtual

destructor

DtInteractionManager::DtInteractionManager ( const DtInteractionManager &  orig )

protected

copy constructor - not implemented.

Member Function Documentation

virtual void DtInteractionManager::addInteractionCallback ( RTI::InteractionClassHandle  h, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

virtual

Add/remove a callback to be called when an interaction is received from another federate.

virtual DtList* DtInteractionManager::cbList ( RTI::InteractionClassHandle  handle )

protectedvirtual

Returns the list of callbacks registered for a particular class.

void DtInteractionManager::emptyCbList ( )

protected

Empty callback list.

Non-virtual since meant to be called from destructor.

DtInteractionManager& DtInteractionManager::operator= ( const DtInteractionManager &  orig )

protected

assignment operator - not implemented.

virtual void DtInteractionManager::processInteraction ( RTI::InteractionClassHandle  h, const RTI::ParameterHandleValuePairSet &  p, const RTI::FedTime *  fedTime, const char *  tag = NULL, const RTI::Region *  region = 0  )

virtual

Create an interaction object, call the registered callbacks, then delete the interaction object.

virtual void DtInteractionManager::removeInteractionCallback ( RTI::InteractionClassHandle  h, DtReceiveInteractionCb  cb, void *  usr, DtDDMRegionSP  region = DtDDMRegionSP()  )

virtual

Member Data Documentation

DtHashlist DtInteractionManager::myCbLists

protected

DtHashlist that maps object class handles (DtIntHashKeys) to pointers to DtLists of callback functions.

DtExerciseConn* DtInteractionManager::myExConn

protected

DtInteractionFactory* DtInteractionManager::myFactory

protected

---

The documentation for this class was generated from the following file:

• interactionManager.h
