DtObjectClassFedNode Class Reference

defines an object class inside our Fed Tree More...

Inheritance diagram for DtObjectClassFedNode:

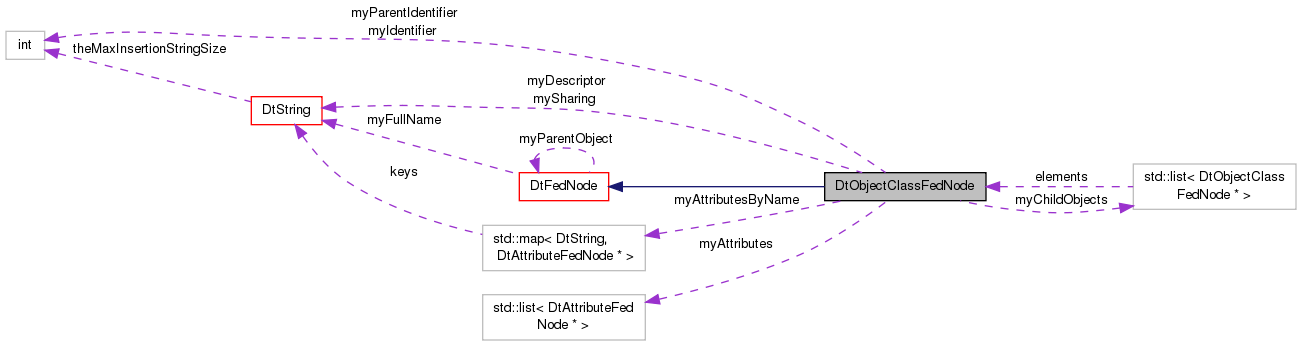

Collaboration diagram for DtObjectClassFedNode:

Public Types
typedef std::list < DtObjectClassFedNode * >	ObjectClassFedNodeList
	A list of DtObjectClassFedNode pointers.
typedef std::list < DtAttributeFedNode * >	AttributeFedNodeList
	A list of AttributeFedNode pointers.
typedef std::map< DtString, DtAttributeFedNode * >	AttributeFedNodeByName

Public Member Functions
	DtObjectClassFedNode ()
	Default Constructor.
	DtObjectClassFedNode (DtFedNode *)
	Constructor that includes a parent node.
virtual	~DtObjectClassFedNode ()
	Destructor.
	DtObjectClassFedNode (const DtObjectClassFedNode &orig)
	Copy Constructor.
DtObjectClassFedNode &	operator= (const DtObjectClassFedNode &rhs)
	Assignment Operator.
virtual void	addAttribute (DtAttributeFedNode *attribute)
	Add a new attribute to this class.
virtual void	associateAttribute (DtAttributeFedNode *attribute)
	Associate attribute with its attribute handle (assumed to have been set in attribute)
virtual void	addChildObject (DtObjectClassFedNode *child)
	Add a new child object to this class.
virtual DtObjectClassFedNode *	findChildObject (const char *name)
	Go down the tree until I find the object with the following name.
virtual DtAttributeFedNode *	findAttribute (const char *attribute) const
	Get the attribute with the given name.
virtual const ObjectClassFedNodeList &	getChildObjects () const
	Get the list of Child objects.
virtual const AttributeFedNodeList &	getAttributes () const
	Get the list of Attributes.
virtual void	setDescriptor (const DtString &)
virtual const DtString &	getDescriptor () const
virtual void	setSharing (const DtString &)
virtual const DtString &	getSharing () const
virtual void	setIdentifier (int)
virtual int	getIdentifier ()
virtual void	setParentIdentifier (int)
virtual int	getParentIdentifier ()
Public Member Functions inherited from DtFedNode
	DtFedNode ()
	Default Constructor.
	DtFedNode (DtFedNode *)
	Build this Node as a child in the tree.
virtual	~DtFedNode ()
	Destructor.
	DtFedNode (const DtFedNode &orig)
	Copy Constructor.
DtFedNode &	operator= (const DtFedNode &rhs)
	Assignment Operator.
bool	operator== (const DtFedNode &rhs)
virtual void	setParentObject (DtFedNode *)
	Set the parent, if you haven't done it in the constructor.
virtual DtFedNode *	getParentObject () const
	Get the parent.
virtual const DtString &	getFullName () const
	Get the full name of this node...
Public Member Functions inherited from DtOMTNode
	DtOMTNode ()
	Default Constructor.
virtual	~DtOMTNode ()
	Destructor.
	DtOMTNode (const DtOMTNode &orig)
	Copy Constructor.
DtOMTNode &	operator= (const DtOMTNode &rhs)
	Assignment Operator.
virtual void	setName (const DtString &)
virtual const DtString &	getName () const
virtual void	setNote (const DtString &)
virtual const DtString &	getNote () const

Protected Member Functions
virtual void	removeAttributes ()

Protected Attributes
AttributeFedNodeList	myAttributes
AttributeFedNodeByName	myAttributesByName
ObjectClassFedNodeList	myChildObjects
DtString	myDescriptor
DtString	mySharing
int	myIdentifier
int	myParentIdentifier
Protected Attributes inherited from DtFedNode
DtFedNode *	myParentObject
Protected Attributes inherited from DtOMTNode
DtString	myName
DtString	myNote

Detailed Description

defines an object class inside our Fed Tree

Member Typedef Documentation

typedef std::map<DtString, DtAttributeFedNode*> DtObjectClassFedNode::AttributeFedNodeByName

typedef std::list<DtAttributeFedNode*> DtObjectClassFedNode::AttributeFedNodeList

A list of AttributeFedNode pointers.

typedef std::list<DtObjectClassFedNode*> DtObjectClassFedNode::ObjectClassFedNodeList

A list of DtObjectClassFedNode pointers.

Constructor & Destructor Documentation

DtObjectClassFedNode::DtObjectClassFedNode

(

)

Default Constructor.

DtObjectClassFedNode::DtObjectClassFedNode ( DtFedNode *  )

explicit

Constructor that includes a parent node.

virtual DtObjectClassFedNode::~DtObjectClassFedNode ( )

virtual

Destructor.

DtObjectClassFedNode::DtObjectClassFedNode

(

const DtObjectClassFedNode &

orig

)

Copy Constructor.

Member Function Documentation

virtual void DtObjectClassFedNode::addAttribute ( DtAttributeFedNode *  attribute )

virtual

Add a new attribute to this class.

virtual void DtObjectClassFedNode::addChildObject ( DtObjectClassFedNode *  child )

virtual

Add a new child object to this class.

virtual void DtObjectClassFedNode::associateAttribute ( DtAttributeFedNode *  attribute )

virtual

Associate attribute with its attribute handle (assumed to have been set in attribute)

virtual DtAttributeFedNode* DtObjectClassFedNode::findAttribute ( const char *  attribute ) const

virtual

Get the attribute with the given name.

virtual DtObjectClassFedNode* DtObjectClassFedNode::findChildObject ( const char *  name )

virtual

Go down the tree until I find the object with the following name.

virtual const AttributeFedNodeList& DtObjectClassFedNode::getAttributes ( ) const

virtual

Get the list of Attributes.

virtual const ObjectClassFedNodeList& DtObjectClassFedNode::getChildObjects ( ) const

virtual

Get the list of Child objects.

virtual const DtString& DtObjectClassFedNode::getDescriptor ( ) const

virtual

virtual int DtObjectClassFedNode::getIdentifier ( )

virtual

virtual int DtObjectClassFedNode::getParentIdentifier ( )

virtual

virtual const DtString& DtObjectClassFedNode::getSharing ( ) const

virtual

DtObjectClassFedNode& DtObjectClassFedNode::operator=

(

const DtObjectClassFedNode &

rhs

)

Assignment Operator.

virtual void DtObjectClassFedNode::removeAttributes ( )

protectedvirtual

virtual void DtObjectClassFedNode::setDescriptor ( const DtString &  )

virtual

virtual void DtObjectClassFedNode::setIdentifier ( int  )

virtual

virtual void DtObjectClassFedNode::setParentIdentifier ( int  )

virtual

virtual void DtObjectClassFedNode::setSharing ( const DtString &  )

virtual

Member Data Documentation

AttributeFedNodeList DtObjectClassFedNode::myAttributes

protected

AttributeFedNodeByName DtObjectClassFedNode::myAttributesByName

protected

ObjectClassFedNodeList DtObjectClassFedNode::myChildObjects

protected

DtString DtObjectClassFedNode::myDescriptor

protected

int DtObjectClassFedNode::myIdentifier

protected

int DtObjectClassFedNode::myParentIdentifier

protected

DtString DtObjectClassFedNode::mySharing

protected

---

The documentation for this class was generated from the following file:

• objectClassFedNode.h
