DtPointObjectStatePdu Class Reference

Instances of DtPointObjectStatePdu are used to state information for synthetic environment objects. More...

Inheritance diagram for DtPointObjectStatePdu:

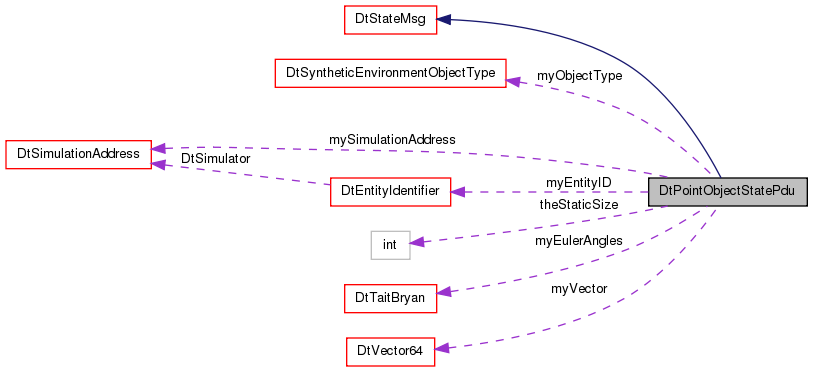

Collaboration diagram for DtPointObjectStatePdu:

Public Member Functions
	DtPointObjectStatePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Constructors.
	DtPointObjectStatePdu (const DtNetPointObjectStatePdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	DtPointObjectStatePdu (const DtPointObjectStatePdu &orig)
virtual	~DtPointObjectStatePdu ()
	destructor
DtPointObjectStatePdu &	operator= (const DtPointObjectStatePdu &orig)
	Assignment operator.
virtual void	setObjectID (const DtEntityIdentifier &id)
	Set/Get object ID.
virtual const DtEntityIdentifier &	objectID () const
virtual void	setReferencedObjectID (const DtEntityIdentifier &id)
	Set/Get referenced object ID.
virtual const DtEntityIdentifier &	referencedObjectID () const
virtual void	setUpdateNumber (DtU16 field)
	Set/Get update number.
virtual DtU16	updateNumber () const
virtual void	setForceID (DtForceType force)
	Set/Get the force ID.
virtual DtForceType	forceID () const
virtual void	setModifications (DtU8 value)
	Set/Get the modifications (by 8-bit integer).
virtual DtU8	modifications () const
virtual void	setModificationsField (DtModificationField field, bool value)
	Set/Get the modifications (by field).
virtual bool	modificationsField (DtModificationField field) const
virtual void	setObjectType (const DtSyntheticEnvironmentObjectType &type)
	Set/Get the object type.
virtual const DtSyntheticEnvironmentObjectType &	objectType () const
virtual void	setLocation (const DtVector &coords)
	Set/Get location.
virtual const DtVector &	location () const
virtual void	setOrientation (const DtTaitBryan &orientation)
	Set/Get orientation.
virtual const DtTaitBryan &	orientation () const
virtual void	setGeneralAppearance (DtU16 app)
	Set/Get general appearance.
virtual DtU16	generalAppearance () const
virtual void	setGeneralAppearanceAttribute (DtAppearAttribute attr, DtAppearAttrVal val)
	Set/Get general appearance by attribute.
virtual DtAppearAttrVal	generalAppearanceAttribute (DtAppearAttribute attr) const
virtual void	setSpecificAppearance (DtU32 app)
	Set/Get specific appearance.
virtual DtU32	specificAppearance () const
virtual void	setSpecificAppearanceAttribute (const DtAppearAttribute attr, const DtAppearAttrVal val)
	Set/Get specific appearance by attribute, the upper 32 bits.
virtual DtAppearAttrVal	specificAppearanceAttribute (const DtAppearAttribute attr) const
virtual void	setRequesterID (const DtSimulationAddress &type)
	Set/Get the requester ID.
virtual const DtSimulationAddress &	requesterID () const
virtual void	setReceivingID (const DtSimulationAddress &type)
	Set/Get the receiving ID.
virtual const DtSimulationAddress &	receivingID () const
virtual void	printData () const
	Print the data contained by this PDU.
virtual void	printDataToStream (std::ostream &stream) const
	Print the data to a stream.
Public Member Functions inherited from DtStateMsg
	DtStateMsg ()
	default constructor
virtual	~DtStateMsg ()
	destructor
	DtStateMsg (const DtStateMsg &orig)
	copy constructor
DtStateMsg &	operator= (const DtStateMsg &orig)
	assignment operator
Public Member Functions inherited from DtPduWithAttributeRecordSets
	DtPduWithAttributeRecordSets ()
	Constructor.
	DtPduWithAttributeRecordSets (const DtPduWithAttributeRecordSets &orig)
	Constructor.
DtPduWithAttributeRecordSets &	operator= (const DtPduWithAttributeRecordSets &other)
	Assignment operator.
virtual	~DtPduWithAttributeRecordSets ()
	Destructor.
virtual void	printToStream (std::ostream &stream) const
	Print the contents of the PDU. This will call DtPdu's printToStream and also call printRecordSets()
virtual void	printRecordSets (bool printEntityObjectId=false) const
	Prints the Record Sets to DtInfo.
virtual void	printRecordSetsToStream (std::ostream &stream, bool printEntityObjectId=false) const
	Prints the Record Sets to the specified stream.
virtual void	addRecord (std::auto_ptr< DtStandardVariableRecord > record, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Adds a Record.
virtual void	removeRecord (unsigned int index, const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes a Record.
virtual void	clearRecordSet (const DtEntityIdentifier &id=DtEntityIdentifier::nullId())
	Removes all Records and deletes the recordSet for the given Entity/Object Identifier.
virtual void	clearAllRecordSets ()
	Removes all RecordSets.
virtual std::vector < DtEntityIdentifier >	recordSetIdentifiers () const
	Returns a vector of Entity/Object Identifiers. These are the Identifiers for the Record Sets.
virtual void	getRecordSetIdentifiers (std::vector< DtEntityIdentifier > &entityIdVector) const
	Returns by reference the vector of Entity/Object Identifiers.
virtual const std::vector < DtStandardVariableRecord * > &	records (const DtEntityIdentifier &id=DtEntityIdentifier::nullId()) const
	This will return the Records for a given Entity/Object Identifier.
virtual const DtAttributeRecordSet &	recordSet (const DtEntityIdentifier &id) const
	This will return the Record Set for a given Entity/Object Identifier.
virtual const std::vector < DtStandardVariableRecord * >	allRecords () const
	This will return the Records of all Record Sets.
virtual unsigned int	numberOfRecords () const
	Returns the number of records for all Record Sets.
virtual unsigned int	numberOfRecords (const DtEntityIdentifier &id) const
	Returns the number of records in the Record Set for the given Entity/Object Identifier.
virtual bool	containsStandardRecordSets () const
	Returns if this PDU contains Standard Record Sets. (This is only applicable to DIS 7 and higher).
virtual const DtSimulationAddress &	attributePduSimulationAddress () const
	Returns the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	setAttributePduSimulationAddress (const DtSimulationAddress &addr)
	Sets the Simulation address if an attribute PDU was coupled. Used internally in VR-Link in Reflected Lists.
virtual void	encode ()
	Encode method.
virtual void	decode (DtPduFactory *pduFactory=0)
	Decode method.
virtual unsigned int	attributeRecordSetsNetSize () const
	Network Size of the all Attribute Record Sets.
virtual unsigned int	recordSetsNetSize () const
	Network Size of the all Record Sets.
virtual void	setStandardVariableRecordFactory (DtStandardVariableRecordFactory *factory)
	Sets/gets the Standard Variable Record Factory used for decoding.
virtual DtStandardVariableRecordFactory *	standardVariableRecordFactory () const
virtual unsigned int	numberOfRecordSets () const
	Gets the number of Attribute Record Sets.
virtual const DtAttributeRecordSetMap &	attributeRecordSetMap () const
	Get the AttributeRecordSet Map.
virtual int	computeMasterAttributeRecordType () const
	Get the Master Attribute Record Type (if applicable, this will return MULTIPLES_PRESENT if not)
Public Member Functions inherited from DtPdu
virtual	~DtPdu ()
	Destructor.
	DtPdu (const DtPdu &pdu, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtPdu &	operator= (const DtPdu &pdu)
	Assignment operator.
virtual void *	packet () const
	Older function that returns a pointer to the network representation.
virtual int	status () const
	Get PDU status.
virtual void	setVersion (int vers)
	Set/Get protocol version from PDU header.
virtual int	protocolVersion () const
virtual void	setExerciseId (int id)
	Set/Get exerciseID in PDU header.
virtual int	exerciseId () const
virtual DtPduKind	kind () const
	Returns PDU kind from PDU header.
virtual DtProtocolFamily	protocolFamily () const
	Returns protocol family from PDU header.
virtual void	setTimeStamp (DtTime time, DtTimeStampType type=DtTimeStampRelative)
	Set the PDU header's time stamp to reflect time and type.
virtual DtTime	timeStamp () const
	Return the time (in seconds past an hour) encoded in the PDU header's time stamp.
virtual DtTimeStampType	timeStampType () const
	Return the type of the time stamp, as indicated in PDU header.
virtual void	setPduLength (unsigned int length)
	Set the PDU header's length.
virtual unsigned int	pduLength () const
	Return the length of the PDU, as indicated in the PDU header.
virtual void	setPduStatus (int)
	Set the PDU Status in the PDU header.
virtual int	pduStatus () const
	Returns the PDU Status from the PDU header.
virtual void	setTransferredEntityIndicator (bool difference)
	Set the Transferred Entity Indicator in the PDU header False is No Difference True is Difference.
virtual bool	transferredEntityIndicator () const
	Returns the Transferred Entity Indicator from the PDU header False is No Difference True is Difference.
virtual void	setLvcIndicator (DtPduStatusLVCIndicator lvcIndicator)
	Set the LVC Indicator in the PDU header.
virtual DtPduStatusLVCIndicator	lvcIndicator () const
	Returns the LVC Indicator from the PDU header.
virtual void	setCoupledExtensionIndicator (bool coupled)
	Set the Coupled Extension Indicator in the PDU Header False is Not Coupled True is Coupled.
virtual bool	coupledExtensionIndicator () const
	Returns the Coupled Extension Indicator from the PDU Header False is Not Coupled True is Coupled.
virtual void	setFireTypeIndicator (DtPduStatusFireTypeIndicator fireTypeIndicator)
	Set the Fire Type Indicator in the PDU header.
virtual DtPduStatusFireTypeIndicator	fireTypeIndicator () const
	Returns the Fire Type Indicator from the PDU header.
virtual void	setDetonationTypeIndicator (DtPduStatusDetonationTypeIndicator detonationTypeIndicator)
	Set the Detonation Type Indicator in the PDU header.
virtual DtPduStatusDetonationTypeIndicator	detonationTypeIndicator () const
	Returns the Detonation Type Indicator from the PDU header.
virtual void	setRadioAttachedIndicator (DtPduStatusRadioAttachedIndicator radioAttachedIndicator)
	Set the Radio Attached Indicator in the PDU header.
virtual DtPduStatusRadioAttachedIndicator	radioAttachedIndicator () const
	Returns the Radio Attached Indicator from the PDU header.
virtual void	setIntercomAttachedIndicator (DtPduStatusIntercomAttachedIndicator intercomAttachedIndicator)
	Set the Intercom Attached Indicator in the PDU header.
virtual DtPduStatusIntercomAttachedIndicator	intercomAttachedIndicator () const
	Returns the Intercom Attached Indicator from the PDU header.
virtual void	setIffSimulationMode (bool interactive)
	Set the IFF Simulation Mode in the PDU header.
virtual bool	iffSimulationMode () const
	Returns the IFF Simulation Mode from the PDU header.
virtual void	setActiveInterrogationIndicator (bool active)
	Set the Active Interrogation Indicator in the PDU header.
virtual bool	activeInterrogationIndicator () const
	Returns the Active Interrogation Indicator from the PDU header.
virtual DtTime	guessTimeValid (DtTime referenceTime) const
	Since timestamp only represents number of seconds past the hour, guessTimeValid chooses the hour that would make the timestamp closest to reference time, and returns a time that is timestamp seconds past that hour.
virtual DtNetPduHeader *	netHeader () const
	Returns a pointer to the PDU's header.
virtual void	print () const
	Print the contents of the PDU by calling printToStream(DtInfo).
virtual void	printHeader () const
	Print the PDU's header. This calls printHeaderToStream(DtInfo).
virtual void	printHeaderToStream (std::ostream &stream) const
	Print the PDU's header to a stream.
virtual void	printDataToString (DtString &str) const
virtual void	printPduInHexToStream (std::ostream &stream, unsigned int numberOfColumns) const
	Prints the entire PDU's internal buffer to the stream in Hex.
virtual bool	isTransientPdu () const
	This method returns true if transient, false if state.
Public Member Functions inherited from DtBaseMsg
virtual	~DtBaseMsg ()
	Destructor.
	DtBaseMsg (const DtBaseMsg &msg, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	Copy constructor.
DtBaseMsg &	operator= (const DtBaseMsg &msg)
	Assignment.
virtual const char *	netRep () const
	Get network representation.
virtual int	length () const
	Get size of message.
	DtBaseMsg ()
	Constructor Object is not fully constructed until initMsg is called.
void	initMsg (int size, DtBufferPtr bufferPtr)
void	initMsg (const void *initial, int size, DtBufferPtr bufferPtr)
virtual void	changeSize (int size, bool skipSizeChanged=false)
	Changes the size of the message.
virtual void	insertBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated offset into the net rep.
virtual void	insertBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Inserts numBytes zeroed-out bytes at the indicated address.
virtual void	deleteBytes (int offset, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes at the indicated offset in the net rep.
virtual void	deleteBytes (void *address, int numBytes, bool skipSizeChanged=false)
	Deletes numBytes bytes starting at the indicated address.
virtual void	clearAll ()
	Zeros out all bytes in the network representation.
virtual void *	newInternalBuffer (int size)
	Sets myInternalBuff to point to a malloc'ed buffer of size bytes.

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a DtPointObjectStatePdu.
static void	addCallback (DtExerciseConn *conn, DtPointObjectStatePduCb cb, void *usr)
	Add (register)/Remove (deregister) function to be called when pdu is received.
static void	removeCallback (DtExerciseConn *conn, DtPointObjectStatePduCb cb, void *usr)

Protected Member Functions
virtual DtPduKind	internalGetPduKind () const
	Returns the internal PDU kind.
virtual DtNetPointObjectStatePdu *	netPduStruct () const
	Casts the netPdu element to our network struct.
DtPointObjectStatePdu *	self () const
	Casts the 'this' pointer for changing elements in a const function.

Protected Attributes
DtEntityIdentifier	myEntityID
	Temporary objects for reference returns.
DtSyntheticEnvironmentObjectType	myObjectType
DtVector	myVector
DtTaitBryan	myEulerAngles
DtSimulationAddress	mySimulationAddress

Static Protected Attributes
static const int	theStaticSize
	Size of PDU with zero parameter records.

Detailed Description

Instances of DtPointObjectStatePdu are used to state information for synthetic environment objects.

Constructor & Destructor Documentation

DtPointObjectStatePdu::DtPointObjectStatePdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

Constructors.

DtPointObjectStatePdu::DtPointObjectStatePdu	(	const DtNetPointObjectStatePdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

DtPointObjectStatePdu::DtPointObjectStatePdu

(

const DtPointObjectStatePdu &

orig

)

virtual DtPointObjectStatePdu::~DtPointObjectStatePdu ( )

virtual

destructor

Member Function Documentation

static void DtPointObjectStatePdu::addCallback ( DtExerciseConn *  conn, DtPointObjectStatePduCb  cb, void *  usr  )

static

Add (register)/Remove (deregister) function to be called when pdu is received.

static DtPdu* DtPointObjectStatePdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Create a DtPointObjectStatePdu.

Caller is responsible for deletion.

virtual DtForceType DtPointObjectStatePdu::forceID ( ) const

virtual

virtual DtU16 DtPointObjectStatePdu::generalAppearance ( ) const

virtual

virtual DtAppearAttrVal DtPointObjectStatePdu::generalAppearanceAttribute ( DtAppearAttribute  attr ) const

virtual

virtual DtPduKind DtPointObjectStatePdu::internalGetPduKind ( ) const

protectedvirtual

Returns the internal PDU kind.

Implements DtPdu.

virtual const DtVector& DtPointObjectStatePdu::location ( ) const

virtual

virtual DtU8 DtPointObjectStatePdu::modifications ( ) const

virtual

virtual bool DtPointObjectStatePdu::modificationsField ( DtModificationField  field ) const

virtual

virtual DtNetPointObjectStatePdu* DtPointObjectStatePdu::netPduStruct ( ) const

protectedvirtual

Casts the netPdu element to our network struct.

virtual const DtEntityIdentifier& DtPointObjectStatePdu::objectID ( ) const

virtual

virtual const DtSyntheticEnvironmentObjectType& DtPointObjectStatePdu::objectType ( ) const

virtual

DtPointObjectStatePdu& DtPointObjectStatePdu::operator=

(

const DtPointObjectStatePdu &

orig

)

Assignment operator.

virtual const DtTaitBryan& DtPointObjectStatePdu::orientation ( ) const

virtual

virtual void DtPointObjectStatePdu::printData ( ) const

virtual

Print the data contained by this PDU.

Reimplemented from DtPdu.

virtual void DtPointObjectStatePdu::printDataToStream ( std::ostream &  stream ) const

virtual

Print the data to a stream.

Reimplemented from DtPdu.

virtual const DtSimulationAddress& DtPointObjectStatePdu::receivingID ( ) const

virtual

virtual const DtEntityIdentifier& DtPointObjectStatePdu::referencedObjectID ( ) const

virtual

static void DtPointObjectStatePdu::removeCallback ( DtExerciseConn *  conn, DtPointObjectStatePduCb  cb, void *  usr  )

static

virtual const DtSimulationAddress& DtPointObjectStatePdu::requesterID ( ) const

virtual

DtPointObjectStatePdu* DtPointObjectStatePdu::self ( ) const

protected

Casts the 'this' pointer for changing elements in a const function.

Non-virtual, since you can't override based on return type.

virtual void DtPointObjectStatePdu::setForceID ( DtForceType  force )

virtual

Set/Get the force ID.

virtual void DtPointObjectStatePdu::setGeneralAppearance ( DtU16  app )

virtual

Set/Get general appearance.

Pre DIS 7, this is the lower 16 bits. In DIS 7, this is the upper 16 bits.

virtual void DtPointObjectStatePdu::setGeneralAppearanceAttribute ( DtAppearAttribute  attr, DtAppearAttrVal  val  )

virtual

Set/Get general appearance by attribute.

Pre DIS 7, this is in the lower 16 bits. In DIS 7, this is in the upper 16 bits.

virtual void DtPointObjectStatePdu::setLocation ( const DtVector &  coords )

virtual

Set/Get location.

virtual void DtPointObjectStatePdu::setModifications ( DtU8  value )

virtual

Set/Get the modifications (by 8-bit integer).

virtual void DtPointObjectStatePdu::setModificationsField ( DtModificationField  field, bool  value  )

virtual

Set/Get the modifications (by field).

virtual void DtPointObjectStatePdu::setObjectID ( const DtEntityIdentifier &  id )

virtual

Set/Get object ID.

virtual void DtPointObjectStatePdu::setObjectType ( const DtSyntheticEnvironmentObjectType &  type )

virtual

Set/Get the object type.

virtual void DtPointObjectStatePdu::setOrientation ( const DtTaitBryan &  orientation )

virtual

Set/Get orientation.

virtual void DtPointObjectStatePdu::setReceivingID ( const DtSimulationAddress &  type )

virtual

Set/Get the receiving ID.

virtual void DtPointObjectStatePdu::setReferencedObjectID ( const DtEntityIdentifier &  id )

virtual

Set/Get referenced object ID.

virtual void DtPointObjectStatePdu::setRequesterID ( const DtSimulationAddress &  type )

virtual

Set/Get the requester ID.

virtual void DtPointObjectStatePdu::setSpecificAppearance ( DtU32  app )

virtual

Set/Get specific appearance.

Pre DIS 7, this is the the upper 32 bits. In DIS 7, this is the lower 32 bits.

virtual void DtPointObjectStatePdu::setSpecificAppearanceAttribute ( const DtAppearAttribute  attr, const DtAppearAttrVal  val  )

virtual

Set/Get specific appearance by attribute, the upper 32 bits.

virtual void DtPointObjectStatePdu::setUpdateNumber ( DtU16  field )

virtual

Set/Get update number.

virtual DtU32 DtPointObjectStatePdu::specificAppearance ( ) const

virtual

virtual DtAppearAttrVal DtPointObjectStatePdu::specificAppearanceAttribute ( const DtAppearAttribute  attr ) const

virtual

virtual DtU16 DtPointObjectStatePdu::updateNumber ( ) const

virtual

Member Data Documentation

DtEntityIdentifier DtPointObjectStatePdu::myEntityID

protected

Temporary objects for reference returns.

DtTaitBryan DtPointObjectStatePdu::myEulerAngles

protected

DtSyntheticEnvironmentObjectType DtPointObjectStatePdu::myObjectType

protected

DtSimulationAddress DtPointObjectStatePdu::mySimulationAddress

protected

DtVector DtPointObjectStatePdu::myVector

protected

const int DtPointObjectStatePdu::theStaticSize

staticprotected

Size of PDU with zero parameter records.

---

The documentation for this class was generated from the following file:

• pointObjectStatePdu.h
